QGH-RZD06In Wall Dimmer

PRELIMINARY Single Pole (One location) or 3-Way (Multi-location) Incandescent Dimmer Cat. No. RZIØ6-1L, 600W (Lighted) 120VAC, 60Hz INSTALLATION INSTRUCTIONS Bl Single-Pole Wiring Application: DI-000-RZI06-00A-X0 Tools needed to install your Dimmer: Slotted/Phillips ScrewdriverElectrical Tape PliersPencil CuttersRuler Changing the color of your Dimmer: Your Dimmer may include three color options. The Dimmer ships with the White frame attached. To change color of frame, proceed as follows: Installing Dimmer by itself or with other devices: If installing Dimmer in a single device application, proceed with the INSTALLING YOUR DIMMER section. If installing Dimmer in a multi-device application, proceed as follows: MULTI-DEVICE APPLICATION: In multi-dimmer installations, the reduction of the dimmer’s capacity is required. Refer to the chart for maximum load per dimmer. INSTALLING YOUR DIMMER NOTE: Use check boxes when Steps are completed. WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring! Identifying your wiring application (most common): NOTE: If the wiring in the wall box does not resemble any of these configurations, consult a qualified electrician. Step 2 Step 3 ONOFF ONOFF ONOFF ONOFF ONOFF ONOFF ONOFFONOFF ONOFF ONOFF ONOFF ONOFF 2 4 3 1 2 4 1 5 3 3-Way 1.Line or Load (See important instruction below) 2.Neutral 3.Ground 4.First Traveler – note color 5.Second Traveler – note color NOTE: For matching remote w/LEDs installation, the First Traveler becomes Line Hot. Step 4a WIRING DIMMER: Connect wires per WIRING DIAGRAM as follows: •Green or bare copper wire in wall box to Green terminal screw. •Line Hot wall box wire to terminal screw marked "BK". •Load wall box wire to terminal screw marked "RD". •Dimmer terminal screw marked "YL/RD" should have Red insulation label affixed. NOTE: If insulating label is not affixed to terminal screw marked "YL/RD", use electrical tape to cover. •Proceed to Step 5. Hot (Black) Neutral (White) Load Dimmer BK Black White RD Green Ground Line 120VAC, 60Hz YL/RD Use Terminal for 3-Way or More Applications Only. For Single-Pole Applications, Do Not Remove This Label. BK YL/RD RD Terminal Screw marked Black (BK) Terminal Screw marked Red (RD) Terminal Screw marked Yellow/Red (YL/RD) Terminal Label: Use Terminal for 3-Way or More Applications Only. For Single-Pole Applications, Do Not Remove This Label. 4 3 2 1 Back Wire (either hole may be used) Back wire openings use #14-12 AWG solid copper wire only. •Make sure that the ends of the wires from the wall box are straight (cut if necessary). •Remove insulation from each wire in the wall box as shown. •For Single-Pole Application, go to Step 4a. •For 3-Way Coordinating Remote (no LEDs) Application, go to Step 4b. WARNINGS AND CAUTIONS: •To be installed and/or used in accordance with appropriate electrical codes and regulations. •If you are unsure about any part of these instructions, consult a qualified electrician. •To avoid overheating and possible damage to this device and other equipment, do not install to control a receptacle, fluorescent lighting, a motor- or a transformer- operated appliance. •Use with incandescent or 120V halogen fixtures only. •Vizia™ RF dimmers are not compatible with standard 3-way or 4-way switches. They must be used with compatible Vizia™ RF remotes for multi-location dimming. •Use only one (1) Vizia™ RF dimmer in a multi-location circuit with up to 9 coordinating remotes without LEDs or Vizia™ RF controllers. The remote(s) will turn the light on at the brightness level selected at the dimmer. WARNINGS AND CAUTIONS: •Dimmer may not operate with dioded lamps (Sylvania Designer 16™ or Philips PAR-16™). •Total minimum load must exceed 40W. •Dimmer may feel warm to the touch during normal operation. •Recommended minimum wall box depth is 2-1/2". •Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft. •Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture. •Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL. Single-Pole 1.Line (Hot) 2.Neutral 3.Ground 4.Load Step 4a cont’d Strip Gage (measure bare wire here or use gage on back of the dimmer) IMPORTANT: For 3-Way applications, note that one of the screw terminals from the old switch being removed will usually be a different color (Black) or labeled Common. Tag that wire with electrical tape and identify as the common (Line or Load) in both the dimmer wall box and remote wall box. 5/8" (1.6 cm) Step 1 √ Cut (if necessary) Side Wire Connection Side wire terminals accept #14 AWG solid copper wire only. 3-Way Wiring with Coordinating Dimming or Switching Remote (no LEDs) Step 4b BK YL/RD RD BK YL/RD RD 4 3 2 1 5 Terminal Screw marked Black (BK) Terminal Screw marked Red (RD) Terminal Screw marked Yellow/Red (YL/RD) Coordinating Remote 2 4 3 5 1 Dimmer Step 4b cont’d WIRING DIMMER: Connect wires per WIRING DIAGRAM as follows: NOTE: When using the coordinating remote without LEDs, the dimmer can be installed on either the Line or Load side of the 3-way circuit. NOTE: Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft. •Green or bare copper wire in wall box to Green terminal screw. •Line Hot (common) wall box wire identified (tagged) when removing old switch to terminal screw marked “BK”. •First Traveler wall box wire to terminal screw marked “RD” (note wire color). This traveler from the dimmer must go to the terminal screw on the remote marked “RD”. •Remove Red insulating label from terminal screw marked “YL/RD”. •Second Traveler wall box wire to terminal screw marked “YL/RD” (note wire color). This traveler from the dimmer must go to the terminal screw on the remote marked “YL/RD”. WIRING COORDINATING REMOTE: Connect wires per WIRING DIAGRAM as follows: NOTE: Maximum wire length from dimmer to last remote is 300ft. •Green or …

Text truncated - open the document above for the full version.

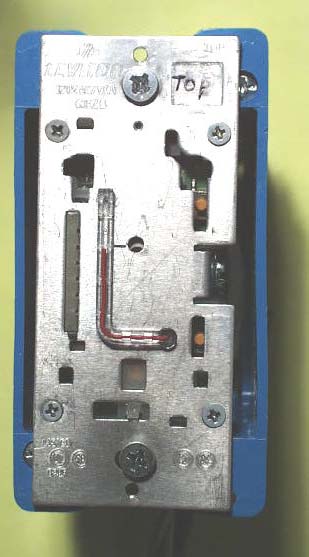

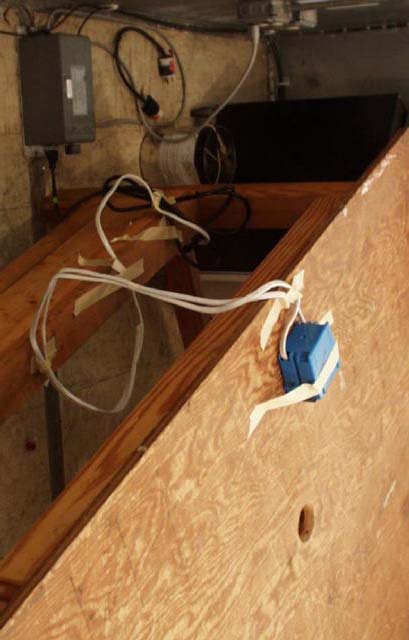

AHD 92723 Mich. Hwy-152 Sister Lakes, MI 49047 AHD EMC Lab, 92723 Michigan Hwy-152, Sister Lakes, MI 49047, (269) 424-7014 0700789FB Page 1 of 30 EMC Test Report #0700789 Issued 3/26/07 Regarding the FCC 15.231 Testing OF IN WALL DIMMER 908.42MHZ TRANSCEIVER MODEL RZ106 Judgment: FCC Part 2.1031, Part 15 Subpart C (15.249) – Compliant Prepared for: LEVITON MANUFACTURING, Inc. 59-25 Little Neck Pkwy Little Neck, NY 11362 Test Date(s): February 20-23, 2007 Report prepared by: Report reviewed by: Gordon Helm, NCE Warren Guthrie, RF Engineer Data recorded by: Gordon Helm, NCE Table of Contents Test report #0700789FB FCC 15.249 for RZ106 FCC ID: QGH-RZD06 Tested February 20-23, 2007 AHD EMC Lab, 92723 Michigan Hwy-152, Sister Lakes, MI 49047, (269) 424-7014 Page 2 of 30 Statements Concerning this Report.......................................................................................................3 Manufacturer/Applicant [2.1033(b1)] ....................................................................................................4 Measurement/Test Site Facility & Equipment........................................................................................4 Test Site1 [2.948, 2.1033(b6)] ....................................................................................................4 Measurement Equipment Used [2.947(d), 15.31(b)] .....................................................................4 Test Site2 [2.948, 2.1033(b6)] ....................................................................................................5 Tested Configuration /Setup: [2.1033(b8)] ............................................................................................6 Support Equipment & Cabling .......................................................................................................6 Setup Diagram ...............................................................................................................................6 Setup Photographs [ANSI C63.4.2.1033(B8)] .......................................................................................7 EUT Pictures..........................................................................................................................................7 Summary of Results: ...........................................................................................................................14 Changes made to achieve compliance........................................................................................14 Standards Applied to Test: [2.1033(b6)]..............................................................................................16 Test Methodology: [2.1033(b6)]...........................................................................................................16 FORMULAS AND SAMPLE CALCULATIONS: ...........................................................................18 Test Data [2.1033(b6)].........................................................................................................................19 Relative Emission Level vs. Supply Voltage [15.31(e)] ...............................................................19 Modulation Characteristics ..........................................................................................................20 Occupied Bandwidth (15.249 and RSS210)................................................................................20 Radiated Field Strength Measurements: [15.209, 15.249(a,d)] .................................................21 Out of Band Emissions [15.249(d)]..............................................................................................24 Line Conducted Measurements: [15.207(a)]...............................................................................26 AHD Accreditation ...............................................................................................................................28 NARTE Seal.................................................................................................................................30 Test report #0700789FB FCC 15.249 for RZ106 FCC ID: QGH-RZD06 Tested February 20-23, 2007 AHD EMC Lab, 92723 Michigan Hwy-152, Sister Lakes, MI 49047, (269) 424-7014 Page 3 of 30 Statements Concerning this Report NVLAP Accreditation: NVLAP Lab Code 200129-0 The scope of AHD accreditation is the conducted emissions, radiated emissions test methods of: IEC/CISPR 22: Limits and methods measurement of radio disturbance characteristics of information technology equipment. FCC Method – 47 CFT Part 15: AS/NZS 3548: Electromagnetic Interference – Limits and Methods of Measurement of Information Technology Equipment. IEC61000-4-2 and Amend.1: ElectroStatic Discharge Immunity IEC61000-4-5: Surge Immunity Test Data This test report contains data covered by the NVLAP accreditation. Subcontracted Testing: This report contains data recorded at the University of Michigan Radiation Laboratory. The University of Michigan test facility is located at 8501 Beck Road, Belleville, Michigan 48111. This test facility has been fully described and accepted by the FCC and Industry Canada. This facility was utilized to measure emissions occurring at frequencies greater than 6GHz. Test Traceability: The calibration of all measuring and test equipment and the measured data using this equipment are traceable to the National Institute for Standards and Technology (NIST). Limitations on results: The test results contained in this report relate only to the Item(s) tested. Any electrical or mechanical modification made to the test item subsequent to the test date shall invalidate the data presented in this report. Any electrical or mechanical modification made to the test item subsequent to this test date shall require an evaluation to verify continued compliance. Limitations on copying: This report shall not be reproduced, except in full, without the written approval of AHD. Limitations of the report:…

Text truncated - open the document above for the full version.
