QGH-VRP15Scene Capable Plug-In Appliance Module

Scene Capable Plug-In Appliance Module Cat. No. VRP15-1LW Incandescent: 1800W Fluorescent: 1800VA Resistive: 15A Motor: 1/2HP Rated: 120VAC, 60Hz INSTALLATION INSTRUCTIONS DI-030-VRP15-02A INTRODUCTION Leviton’s ViziaRF + TM components are designed to communicate with each other via Radio Frequency (RF) to provide remote control of your lighting. Using RF technology allows Leviton to provide the greatest signal integrity possible. Each module in Leviton’s Vizia RF + TM component line is a Z-Wave ® enabled device. In a Z-Wave ® network, each device is designed to act as a router. These routers will re-transmit the RF signal from one device to another until the intended device is reached. This ensures that the signal is received by its intended device by routing the signal around obstacles and radio dead spots. CAUTION: Remember to exercise good common sense when using the Timer features of your remote, especially when scheduling unattended devices. There can be some unexpected consequences if not used with care. For example, an empty coffee pot can be remotely turned on. If that should happen, your coffee pot could be damaged from overheating. If an electric heater is turned on by remote control while clothing is draped over it, a fire could result. DO NOT USE the remote for the control of high power heating appliances such as portable heaters. DO NOT change location after unit is enrolled in Z-wave ® network. NOTES: • If using a non-Leviton Programmer/Remote, refer to the Programmer/Remote instruction sheet for including a device. • If using VRCPG install checklist go directly to step B. A) If using a Leviton Z-Wave ® Programmer/ Remote, Cat. No. VRCPG, press the Menu button and scroll down to System. Press the center button to select System Menu. Choose Advanced. Press the center button to select Advanced Install. Including Scene Capable Plug-In Appliance Module into Z-Wave ® Network: Step 3 Attaching Scene Capable Plug-In Appliance Module to Wall Receptacle: Step 2 • Plug the Scene Capable Plug-in Appliance Module into wall receptacle. Verify that receptacle is live. If controlled by a wall switch, the switch must be kept ON at all times. Attaching Load to Scene Capable Plug-In Appliance Module: Step 1 NOTE: In order to use your Vizia RF + TM Scene Capable Plug-In Appliance Module in a Z-Wave ® network, it must be included in the network using a Primary Programmer/Remote, such as Leviton’s Cat. No. VRCPG. Before including your module, please refer to the Primary Programmer/Remote instruction sheet for complete information. Refer to Step 3 for further details. • Locate load to be controlled by Scene Capable Plug-In Appliance Module and ensure it is fully operational. Attach load plug into module receptacle noting proper polarity of blades. NOTE: Use check boxes when Steps are completed. INSTALLING YOUR APPLIANCE MODULE B) While standing close to the module (approximately 1 foot), press the center button to <Include> device in the network. NOTE: Only one device may be included at a time. DO NOT put multiple devices into the Inclusion mode at any time. C) While the Programmer/Remote is in the Inclusion mode and the LED is ON on the Scene Capable Plug-In Appliance Module, press the ON/OFF button on the module. The Programmer/Remote will verify inclusion and the LED will turn OFF on the Scene Capable Plug-In Appliance Module. NOTE: If the LED on the Scene Capable Plug-In Appliance Module turns solid Red while including, there has been a communication error. Refer to Troubleshooting section. D) The Primary Programmer/Remote will assign a node ID number (Name) for this module. NOTE: This ID number (Name) will be stored in the controller to be used for future reference. NOTE: You may name or edit this device at this time. E) The module is now installed in the network. NOTE: If the module has been successfully included in the network and the user tries to include it again without first excluding it from the network, the module will retain the first node ID it had received and ignore the second. • Switch ON/OFF • Scene capable • ON/OFF LED • Two way communication • RF reliability • Ease of installation – No new wiring • Compatible with other Z-Wave ® enabled devices FEATURES Step 2 cont’d Step 3 cont’d Programming and ON/OFF Button 1 ON 2 ON 3 ON 4 ON OFF OFF OFF OFF Programmer/Remote Cat. No. VRCPG Center Button Menu Button WARNINGS AND CAUTIONS: • To be installed and/or used in accordance with appropriate electrical codes and regulations. • If you are unsure about any part of these instructions, consult an electrician. WARNINGS AND CAUTIONS: • Unplug unit when servicing fixture or changing bulbs. • Save this instruction sheet. It contains important technical data along with testing and troubleshooting information which will be useful after installation is complete. Including Scene Capable Plug-In Appliance Module into Z-Wave ® Network: LIMITED 5 YEAR WARRANTY AND EXCLUSIONS Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 201 North Service Road, Melville, New York 11747. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including m…

Text truncated - open the document above for the full version.

LEvlTI ApnI4,2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21A46 Subject: Authorization to Act as Aeent Dear Sir or Madam: This letter is to formally give Underwriters Laboratories the authoization to act as'agent for the pu{pose of FCC and IC submission and answering of technical questions to UL CCS. Sincerely, Senior Manager, Compl. Eng. Sv. Leviton Manufacturing Co., lnc. zor North Service Road Melville, NY LLT47 tel 8oo 3e3-89e0 fax 8oo 83e-9538 www.teviton.com

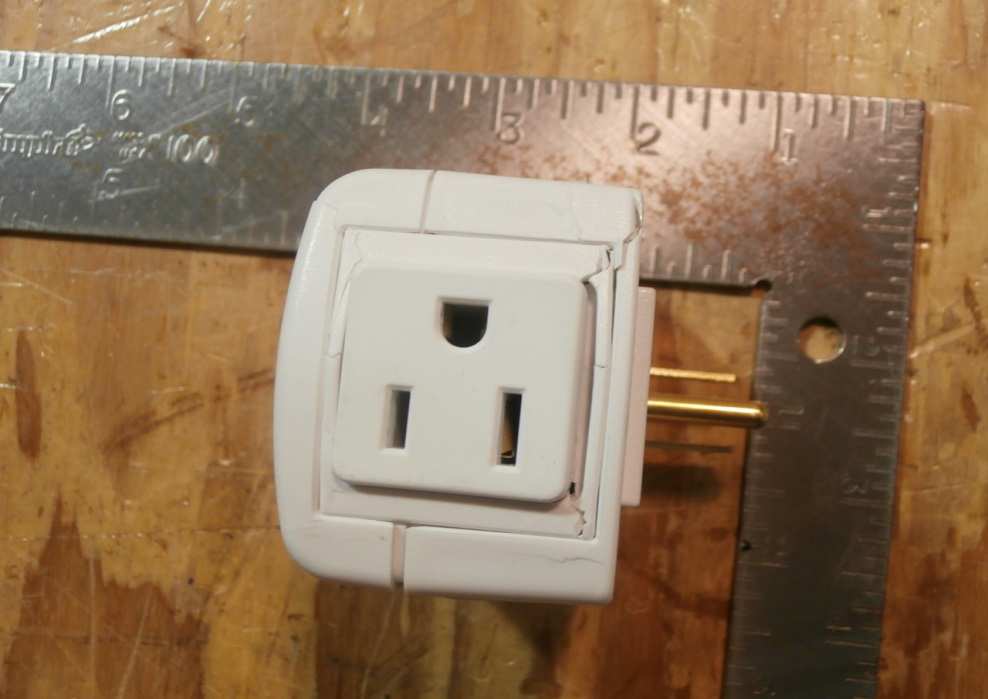

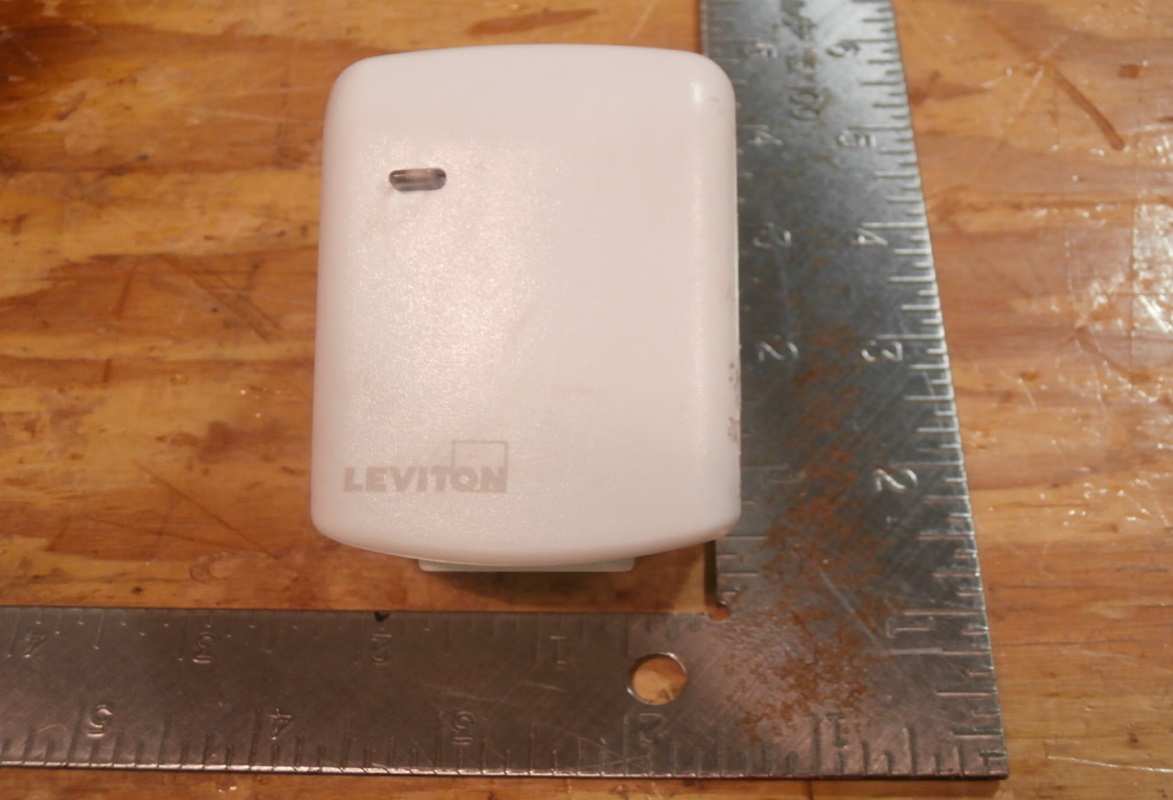

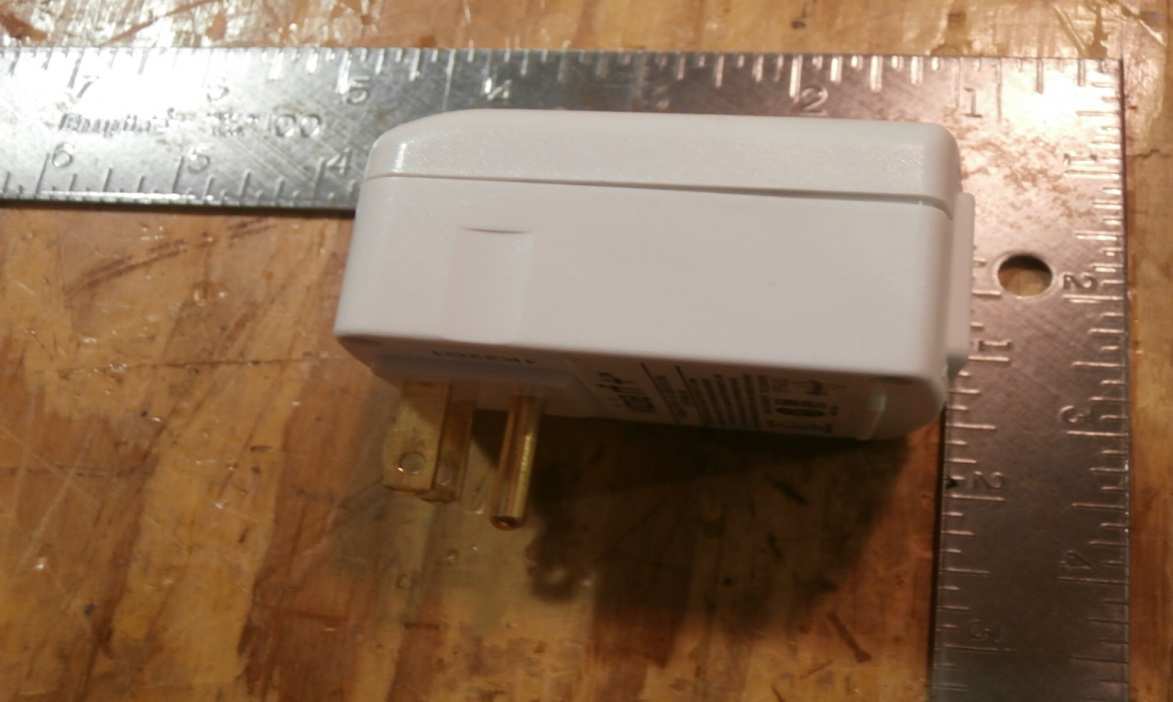

Front Bottom Side Top
