QGHHCCKRWireless key chain remote control

FEATURES • Controls 2 sequential addresses, ON/OFF •W orks with DHC plug-in RF transceivers • User programmable addresses; easy to program • Up to 75 feet transmission range • Small compact design DESCRIPTION The Leviton Wireless Key Chain Remote Control, Cat. No. HCCKR is designed for use with the DHC RF (Radio Frequency) Transceiver System. The system uses radio frequencies (like a 2-way radio) to transmit DHC commands to remotely turn ON and OFF lights and devices in the home . The remote control will permit the operation of devices with two different “addresses” the control of different lights and loads. The device allows the user to select a specific address for the first control buttons, while the second buttons are set to the next sequential address. The device will transmit up to 75 f t. making it useful to turn ON/OFF lights and loads while in home or driveway. APPLICATIONS The HCCKR Key Chain Remote RF Transmitter must be used in conjunction with the DHC RF Transceiver, such as Cat. No. HCPRF. FCC COMPLIANCE STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device must not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. SETUP The transmitter is pre-programmed to control DHC devices set at “A1” and “A2” addresses. ON/OFF buttons “1” are assigned to “A1 ” and ON/OFF buttons “2” are assigned to “A2”. If other addresses are desired, follow the programming procedure to change the address of the first and s econd buttons. NOTE: The second button will always be the next sequential address after the first button is programmed (i.e., if the first button i s “C3”, the second button is “C4”). If the first button is assigned to the highest number code, the next button would operate the lowest number code (i.e., after address “C16”, the next sequential code would be “C1”). PROGRAMMING AND OPERATION The HCCKR has 4 push-button and an LED (refer to Figure.1) . There are 2 pairs of buttons to control 2 DHC addresses as follows: • The “OFF” buttons will turn OFF devices on 2 sequential addresses. • The “ON” buttons will turn ON devices on 2 sequential addresses. Press and hold the appropriate button for the intended function. The LED will light and the device will send the “Radio Signal” command. The unit can be used to program the address on the DHC RF Transceiver to control its local load as follows: 1. Press and hold the program button on the transceiver until its LED flashes. 2. Press the “ON” button of either ID 1 or 2. 3. The LED on the transceiver will stop flashing. The transceiver will learn the code sent. If a light is connected to the receive r, it will turn ON. The Key Chain Remote Control when used with the transceiver, can also be used to operate other DHC controls (i.e., additional R F Transceivers, Plug-In Dimmers, Wall Mounted Dimmers and Switches). Those devices can be programmed to respond to the Key Chain Remote Control in conj unction with the RF T ransceiver load or separately. To Change Code Settings: The unit is preprogrammed at the factory with code A1 assigned to button 1 and “A2” assigned to button 2. Button 1 can be chang ed to any desired code; button 2 will automatically be assigned the next sequential number above it. Programming is as follows: 1. To enter programming mode, press and hold buttons “1-ON” and “1-OFF” simultaneously. 2. The LED will flash while unit is transmitting. After a few seconds, the LED will stop flashing. The LED will now flash once eve ry few seconds to indicate that the unit is in the programming mode. THE UNIT IS NOW INITIALIZED TO “A1”. 3. TO CHANGE THE HOUSE CODE (LETTER CODE): a. Press the “ON-1” button, the Remote will set to House Code “A”. b. For each repeated press of the “ON-1” button, the House Code will be set to the next incremental letter code (i.e., 1 push = “A ”, 2 total pushes = “B”, 3 total pushes = “C”, ... 16 total pushes = “P”. DI-000-HCCKR-00A-Pilot W ireless Key Chain Remote Control Cat. No. HCCKR OPERATING INSTRUCTIONS For Technical Assistance Call: 1-800-824-3005 (U.S.A. Only) 1 800 405-5320 (Canada Only) www.leviton.com LIMITED 2 YEAR WARRANTY AND EXCLUSIONS Leviton warrants to the original consumer purchaser andnot for the benefit of anyone else that this product at thetime of its sale by Leviton is free of defects in materials andworkmanship under normal and proper use for two yearsfrom the purchase date. Leviton’s only obligation is to correctsuch defects by repair or replacement, at its option, if withinsuch two year period the product is returned prepaid, withproof of purchase date, and a description of the problem toLeviton Manufacturing Co., Inc., Att: Quality AssuranceDepartment, 59-25 Little Neck Parkway, Little Neck, NewYo rk 11362-2591 (In Canada send to Leviton Mfg. of Canada Ltd., 165 Hymus Blvd., Point Claire, (Quebec),Canada H9R 1E9). This warranty excludes and there is disclaimed liability for labor for removal of this product orreinstallation. This warranty is void if this product is installedimproperly or in an improper environment, overloaded,misused, opened, abused, or altered in any manner, or isnot used under normal operating conditions or not inaccordance with any labels or instructions. There are noother or implied warranties of any kind, includingmerchantability and fitness for a particular purpose, but ifany implied warranty is required by the applicablejurisdiction, the duration of any such implied warranty,including merchantability and fitness for a particular purpose,is limited to two years. Leviton is not liable for incidental,indirect, special, or consequential damages, includingwithout limitation, damage to, or loss of use of, anyequipment, lost sales or profits or delay or failure to performthis warranty obligation. The remedies provided herein arethe exclusive remedies under this warranty, whether basedon contra…

Text truncated - open the document above for the full version.

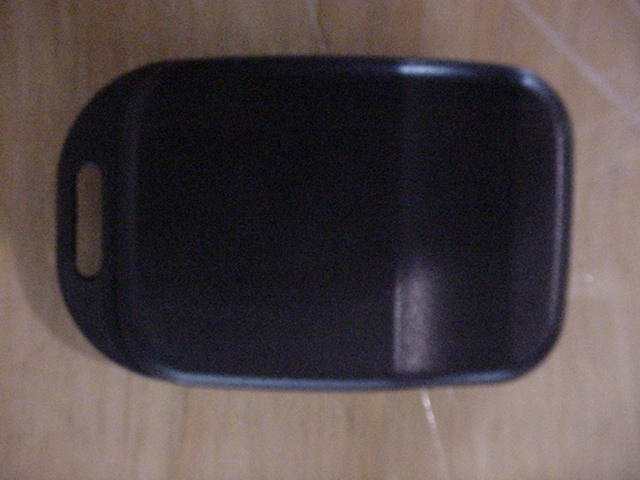

Page 1 of 5 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Underwriters Laboratories Inc. 1285 Walt Whitman Road Melville, New York 11747-3081 (631) 271-6200 Report of Measurements of Electromagnetic Compatibility Testing Test Report File No.:NC1454Date of issue: 6/19/2002 Applicant:Leviton Manufacturing Model / Serial No.:HCCKR Product Type:Wireless Key Chain Remote Control Power Supply:Battery Operated Manufacturer:Same As Applicant License holder:Same As Applicant Address:59-25 Little Neck Parkway :Little Neck, NY 11362 Test Type:External Photos Test Project Number:02ME13082 References(s)FCC ID: QGH-HCCKR Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 2 of 5 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Report Directory 1.0G E N E R A L – External Photos............................................................................................3-5 File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 3 of 5 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 1.0 G E N E R A L – Internal Photos External Photo Button Front Side File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 4 of 5 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 External Photo Back side File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 5 of 5 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Wireless Remote Key Chain internal

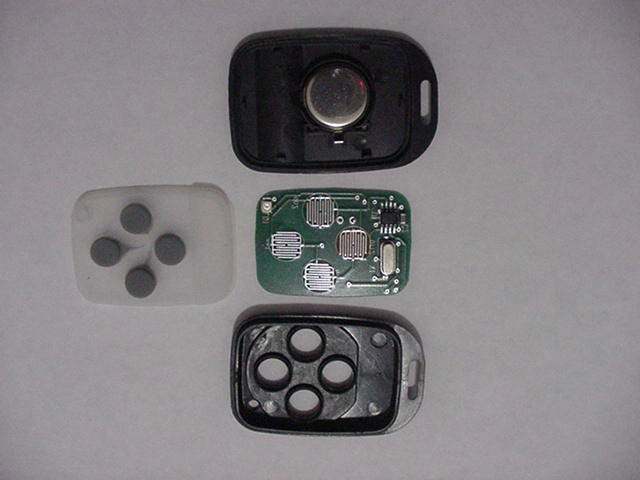

Page 1 of 5 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Underwriters Laboratories Inc. 1285 Walt Whitman Road Melville, New York 11747-3081 (631) 271-6200 Report of Measurements of Electromagnetic Compatibility Testing Test Report File No.:NC1454Date of issue: 6/19/2002 Applicant:Leviton Manufacturing Model / Serial No.:HCCKR Product Type:Wireless Key Chain Remote Control Power Supply:Battery Operated Manufacturer:Same As Applicant License holder:Same As Applicant Address:59-25 Little Neck Parkway :Little Neck, NY 11362 Test Type:Internal Photos Test Project Number:02ME13082 References(s)FCC ID: QGH-HCCKR Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 2 of 5 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Report Directory 1.0G E N E R A L – Internal Photos.............................................................................................3-5 File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 3 of 5 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 1.0 G E N E R A L – Internal Photos Internal Photo Button Front Side File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 4 of 5 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Internal Photo Back side File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 5 of 5 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Wireless Remote Key Chain internal

File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 3 of 21 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 1.0 G E N E R A L - Product Description The Leviton Wireless Key Chain Remote Control Catalog Number HCCKR is designed for use with DHC RF Transceiver System. The system uses frequencies to transmit DHC commands to remotely turn ON and OFF lights and devices in the home. The remote control will permit the operation of devices with two different “addresses” the control of different lights and loads. The device allows the user to select a specific address for the first control buttons, while the second buttons are set to the next sequential address. The device will transmit up to 75 feet making it useful to turn ON/OFF lights and loads while in home or driveway . The data envelope for a typical DHC RF code is pictured below. Each code starts with a 9ms burst of carrier followed by a 4.5ms silence. After the leader, there are 32 bits with binary 1 represented by 2.25ms between rising edges and binary 0 represented by 1.125ms between rising edges. The rising edge of the 33rd and final pulse marks the end of the last bit and is followed by a silence of approximately 40ms. The burst duration is 0.6ms. The DHC RF carrier frequency is 310MHz.

Page 1 of 22 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Underwriters Laboratories Inc. 1285 Walt Whitman Road Melville, New York 11747-3081 (631) 271-6200 Report of Measurements of Electromagnetic Compatibility Testing Test Report File No. : NC1454 Date of issue: 6/19/2002 Applicant : Leviton Manufacturing Model / Serial No. : HCCKR Product Type : Wireless Key Chain Remote Control Power Supply : Battery Operated Manufacturer : Same As Applicant License holder : Same As Applicant Address : 59-25 Little Neck Parkway : Little Neck, NY 11362 Test Type : Compliance Investigation Manufacturer’s Specification Test Project Number : 02ME13082 References(s) FCC ID: QGH-HCCKR Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. File Number: NC1454 Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKR FCC ID: QGH-HCCKR Page 2 of 22 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Report Directory 1.0 G E N E R A L - Product Description.........................................................................................3 1.1 Device Configuration During Test ............................................................................................................ 4 1.2 Deviations from ANSI C63.4 .................................................................................................................... 4 1.3 Device Modifications Necessary for Compliance ..................................................................................... 5 1.4 Test Summary............................................................................................................................................ 5 1.5 Immunity Performance Criteria................................................................................................................. 6 2.0 EMISSIONS TEST REGULATIONS ........................................................................................7 2.1 EUT OPERATION MODE - EMISSIONS TESTS .................................................................................. 7 2.1.1 Radiated Emissions Test (10 Meter Semi-Anechoic Chamber) ......................................................... 8 2.1.2 Fundamental Frequency and Spurious Emissions Measurement Limit Calculations and Measurement Techniques...................................................................................................................................................... 18 2.1.3 Automatic Cease Operation ............................................................................................................. 19 2.1.4 Bandwidth Determination ................................................................................................................ 20 3.0 IMMUNITY TEST REGULATIONS .......................................................................................21 3.1 EUT OPERATION MODE - IMMUNITY TESTS ................................................................................ 21 4.0 SUMMARY: ...............................................................................................................................22 File Number: NC1454 Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKR FCC ID: QGH-HCCKR Page 3 of 22 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 1.0 G E N E R A L - Product Description The Leviton Wireless Key Chain Remote Control Catalog Number HCCKR is designed for use with DHC RF Transceiver System. The system uses frequencies to transmit DHC commands to remotely turn ON and OFF lights and devices in the home. The remote control will permit the operation of devices with two different “addresses” the control of different lights and loads. The device allows the user to select a specific address for the first control buttons, while the second buttons are set to the next sequential address. The device will transmit up to 75 feet making it useful to turn ON/OFF lights and loads while in home or driveway The data envelope for a typical DHC RF code is pictured below . Each code starts with a 9ms burst of carrier followed by a 4.5ms silence. After the leader, there are 32 bits with binary 1 represented by 2.25ms between rising edges and binary 0 represented by 1.125ms between rising edges. The rising edge of the 33rd and final pulse marks the end of the last bit and is followed by a silence of approximately 40ms. The burst duration is 0.6ms. The DHC RF carrier frequency is 310MHz. File Number: NC1454 Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKR FCC ID: QGH-HCCKR Page 4 of 22 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 1.1 Device Configuration During Test The HCCKR Wireless Key Chain Remote Control is powered by a 3.2 Volt CR2032 Lithium .It was determined that worst case for this remote is constantly in the ON position . The…

Text truncated - open the document above for the full version.

Page 1 of 7 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Underwriters Laboratories Inc. 1285 Walt Whitman Road Melville, New York 11747-3081 (631) 271-6200 Report of Measurements of Electromagnetic Compatibility Testing Test Report File No.:NC1454Date of issue: 6/19/2002 Applicant:Leviton Manufacturing Model / Serial No.:HCCKR Product Type:Wireless Key Chain Remote Control Power Supply:Battery Operated Manufacturer:Same As Applicant License holder:Same As Applicant Address:59-25 Little Neck Parkway :Little Neck, NY 11362 Test Type:Test Setup Photos Test Project Number:02ME13082 References(s)FCC ID: QGH-HCCKR Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 2 of 7 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Report Directory 1.0G E N E R A L – Test setup Photos..........................................................................................3-7 File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 3 of 7 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 1.0 G E N E R A L – Test Setups Radiated Emissions 30-1000 MHz File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 4 of 7 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Radiated Emissions 30-1000 MHz File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 5 of 7 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Radiated Emissions 30-1000 MHz File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 6 of 7 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Radiated Emissions 1.0-5.0 GHz File Number: NC1454Issued: 6/19/2002 Project Number: 02ME13082 Model Number: HCCKRFCC ID: QGH-HCCKR Page 7 of 7 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Radiated Emissions 1-5 GHz
