QGZB3000The Vocera B3000 is a hands-free VOIP Communication Device using 802.11b/g and bluetooth

Vocera Badge User Guide Version 4.2 ii ··· Vocera Badge User Guide Copyright © 2002-2011 Vocera Communications, Inc. All rights reserved. Protected by US Patent Numbers D486,806; D486,807; 6,892,083; 6,901,255; 7,190,802; 7,206,594; 7,248,881; 7,257,415; 7,310,541; 7,457,751; AU Patent Number AU 2002332828 B2; CA Patent Number 2,459,955; EEC Patent Number ED 7513; and Japan Patent Number JP 4,372,547. Vocera® is a registered trademark of Vocera Communications, Inc. This software is licensed, not sold, by Vocera Communications, Inc. (“Vocera”). The reference text of the license governing this software can be found at www.vocera.com/legal. The version legally binding on you (which includes limitations of warranty, limitations of remedy and liability, and other provisions) is as agreed between Vocera and the reseller from whom your system was acquired and is available from that reseller. Certain portions of Vocera’s product are derived from software licensed by the third parties as described at http://www.vocera.com/legal/. Microsoft® Windows®, Windows Server™ 2003, Windows® XP, Microsoft® Internet Explorer, and Microsoft® Excel are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries. Java® is a registered trademark of Oracle Corporation and/or its affiliates. All other trademarks, service marks, registered trademarks, or registered service marks are the property of their respective owner/s. All other brands and/or product names are the trademarks (or registered trademarks) and property of their respective owner/s. Vocera Communications, Inc. www.vocera.com tel :: +1 408 882 5100 fax :: +1 408 882 5101 Part No :: 930-01783 Rev B, 21-Sep-2011 Build 1680 Contents ··· iii Contents What's New................................................................................. 9 Welcome to Vocera................................................................... 11 Getting Started with a Badge...................................................... 12 Badge Features.......................................................................... 17 B3000 Features........................................................................... 17 Enhanced Durability.............................................................. 17 Enhanced Display.................................................................. 18 Increased Speaker Volume..................................................... 19 Integrated Noise Cancellation................................................. 19 Smart Battery and Power Efficiency......................................... 20 Improved Attachments.......................................................... 20 Indicator Lights..................................................................... 20 B2000 and B1000A Features....................................................... 21 Display Screen...................................................................... 21 Microphone and Speaker....................................................... 22 Indicator Lights..................................................................... 22 Common Badge Features............................................................ 23 Call Button........................................................................... 23 Hold/DND Button.................................................................. 23 Background Updater............................................................. 24 The Badge Menus................................................................. 25 Custom Settings................................................................... 30 Anti-Microbial Protection....................................................... 33 Headset Jack........................................................................ 33 Alert Tones and Notifications................................................. 34 Commands.................................................................................. 35 Basic Calling............................................................................... 37 Logging In and Out.................................................................... 37 Recording Names and Greetings................................................... 38 iv ··· Vocera Badge User Guide Using the Welcome Tutorial on the Badge..................................... 38 Placing and Receiving Calls.......................................................... 39 Calling Other Users............................................................... 39 Using Speak or Spell............................................................. 39 Calling with Department Names............................................. 40 Calling a Group Member....................................................... 41 Training the Genie................................................................ 42 Answering a Call.................................................................. 44 Ending a Call....................................................................... 45 Using Buttons to Answer "Yes" or "No"................................. 45 Call Waiting......................................................................... 45 Putting a Caller on Hold and Releasing the Hold...................... 46 Using Do Not Disturb............................................................ 47 Sending Voice and Email Messages............................................... 47 Sending a Voice Message...................................................... 47 Sending an Email Message.................................................... 48 Listening to Messages................................................................. 49 Commands You Can Use During Message Play........................ 51 Reading Text Messages................................................................ 52 Using Voice Commands to Set Device Properties............................ 53 Using the Auto Answer Commands............................…

Text truncated - open the document above for the full version.

Date: August 1, 2011 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Re: Agent Authorization To Whom It May Concern: This letter will authorize Compliance Testing LLC to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Vocera Communications, Inc Ken Peters Director of Badge Engineering

Request for Confidentiality Date: August 1, 2011 Subject: Confidentiality Request for: FCC ID: QGZB3000 IC: 4362A-B3000 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term User’s Manual Vocera Communications, Inc., has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of _____ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify Compliance Testing in the event information regarding the product or the product is made available to the public. Compliance Testing will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, Ken Peters Director of Badge Engineering

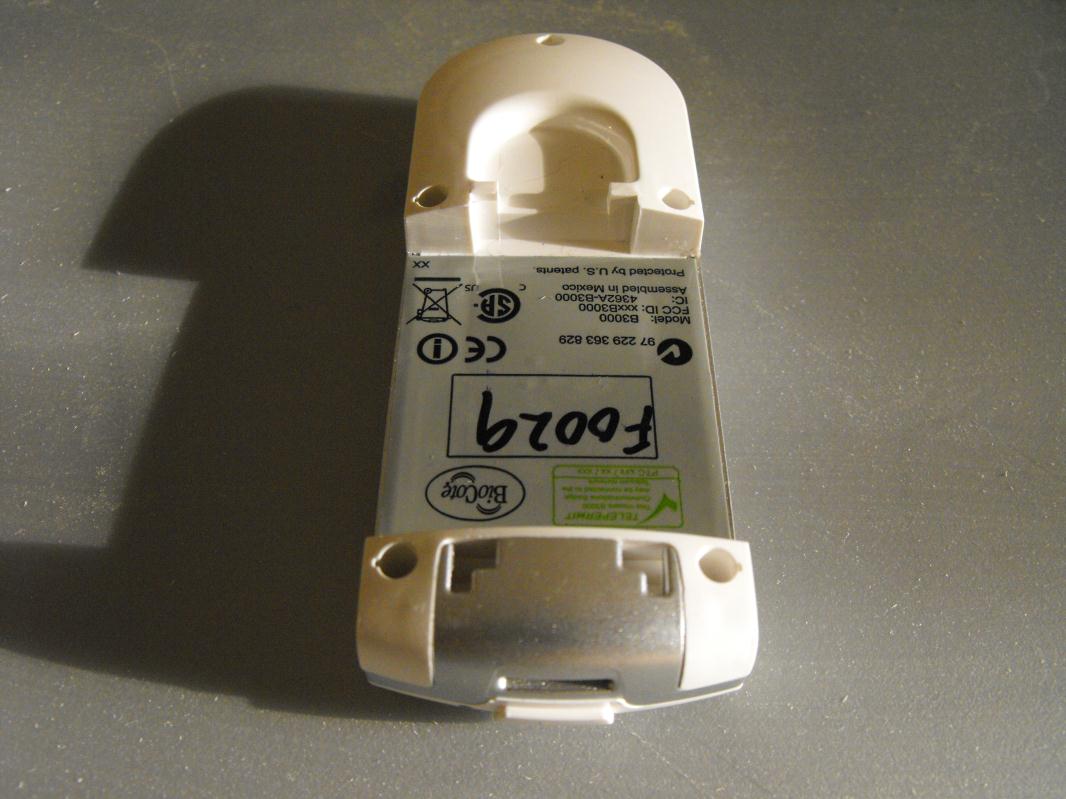

Page 1 of 8 External Photos: Vocera Communications Inc FCC ID: QGZB3000 IC: 4362A-B3000 Badge Bottom View w/o Battery Page 2 of 8 Badge Bottom End View w/o Battery Badge Top End View w/o Battery Page 3 of 8 Badge Bottom View with Battery –Top End Angled Badge Bottom View with Battery –Bottom End Angled Page 4 of 8 Badge Bottom View with Battery Page 5 of 8 Badge Top View-Top End Badge Top View-Speaker End Page 6 of 8 Badge Top View Page 7 of 8 Battery Bottom View Battery Bottom End View Page 8 of 8 Battery Bottom Top View Battery Top View

Protected by U.S. patents. Model: B3000 FCC ID: QGZB3000 IC: 4362A-B3000 Assembled in USA Composite Badge Label: Printed on light silver colored polyester label stock, shown here as PMS 877C. Silver coloring must be non-metallic Refer to the 300-01800 mechanical drawing for label material specification. Badge Label Black printing Font information: For all text other than specific artwork, use Arial Regular Red lines show label outline and should not be printed on label. 35.4 43.4 300-01800_RevB Label Badge, B3000_ART K. Peters Vocera, Inc. 08.10.11 97 229 363 829

Page 1 of 6 Internal Photos: Vocera Communications Inc FCC ID: QGZB3000 IC: 4362A-B3000 Bottom View of PCBA Top View of PCBA Page 2 of 6 View of PCBA Mounted in Case Internal Board Top Side Page 3 of 6 Internal Board Bottom Side Page 4 of 6 Internal Board Bottom Side Page 5 of 6 Internal Side by Side Page 6 of 6 Internal Board Top Side

1 3 2 ASSEMBLED VIEW EXPLODED VIEW D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 TITLE: SIZE B DWG. NO. REV SCALE: 5:1 REV. DESCRIPTION A RELEASE FOR PRODUCTION A Drawing, Sub Assembly, Antenna, Badge, B3000 SHEET 1 OF 1 123-01489 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF VOCERA COMMUNICATIONS, INC. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF VOCERA COMMUNICATIONS, INC., IS PROHIBITED. MILLIMETERS C. Wheaton THIRD ANGLE PROJECTION DO NOT SCALE DRAWING UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN MILLIMETERS. TOLERANCES: DECIMALS .X 0.10 .XX 0.08 ANGLES 0.5 DESIGNER DATE 525 RACE STREET SAN JOSE, CA 95126 WWW.VOCERA.COM 408.882.5100 NOTES: (UNLESS OTHERWISE SPECIFIED) 1. REFER TO 230-01902 BOM FOR CONSTITUENT PART NOTATION. 2. ASSEMBLE PSA, ITEM 3, ONTO METAL STAMPED ANTENNA, ITEM 1, THEN ASSEMBLE FOAM BLOCK, ITEM 2. 3. INDIVIDUALLY PACKAGE EACH ASSEMBLED UNIT IN A PLASTIC CARRIER TO PREVENT HANDLING AND SHIPPING DAMAGE. 6/6/2011

Date: September 1, 2011 The B3000 badge does not have a formal tune up procedure for our radio. Both the 802.11b and g bands as well as Bluetooth are controlled through an integrated radio modules supplied by Murata and based on the Marvell chip set. The Marvell radio chip comes up in the appropriate radio power levels when the badge boots up. Many Thanks, Ken Peters Director of Badge Engineering

p1160004_FCC_Part 1.1310_Rev 1.0 Page 1 of 4 FCC CFR47 Part 1.1310 Test Report Prepared for: Vocera Communications Inc Model: B3000 Description: The Vocera B3000 is a hands-free VOIP communication device using 802.11b/g and bluetooth To Federal Communications Commission Date of Issue: August 16, 2011 On the behalf of the applicant: Vocera Communications Inc 525 Race Street Suite 150 San Jose, CA 95126 Attention of: Ken Peters, Director of Badge Engineering Ph: (408) 882-5100 E-Mail: [email protected] Prepared by Compliance Testing, LLC 3356 N San Marcos Pl, Suite 107 Chandler, AZ 85225-7176 (866) 311-3268 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1160004 John Erhard Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results of this test report relate only to the item(s) there were tested p1160004_FCC_Part 1.1310_Rev 1.0 Page 2 of 4 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 August 16, 2011 John Erhard Original Document p1160004_FCC_Part 1.1310_Rev 1.0 Page 3 of 4 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless noted in the table below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC OATS Reg, #933597 IC Reg. #2044A-1 Non-accredited tests contained in this report: N/A p1160004_FCC_Part 1.1310_Rev 1.0 Page 4 of 4 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline, This is a portable device. 2. Measurement Results This is a portable device and the max peak output power is -0.899 dBm (0.8 mW). The peak output power is lower than the low threshold of 60/f GHz = (24.9 mW), for d<2.5 cm general population category. 60/2.402=24.9 mW The MPE measurement is not necessary for the FHSS transmitter only. END OF TEST REPORT
