QIE0608-0XHomePro Remote Control

ZTH100 Operating Instructions 060902 HomePro by ADVANCED CONTROL TECHNOLOGIES, INC. 1 BEFORE YOU BEGIN... READ ALL INSTRUCTIONS Remove battery cover on rear of transmitter. Install two (2) AA alkaline batteries (included). There are no field repairable assemblies on this unit. It is covered by a two year limited warranty. If service is needed, the unit must be returned where purchased. BUTTON LAYOUT MENU- ACTIVATES THE MENU DISPLAY. OK- ACCEPTS CHOICES ON THE DISPLAY. “LIGHT BULB” ON- ALL GROUPS ON. “LIGHT BULB OFF”- ALL GROUPS OFF. LEFT ARROW- MENU NAVIGATION BUTTON, LEFT. RIGHT ARROW- MENU NAVIGATION BUTTON, RIGHT. C- CLEAR. CANCELS ACTIONS. S- SCENE BUTTON. TURNS SCENES ON/OFF (PREDETERMINED GROUPS OF APPLIANCE AND LAMP MODULES AND WALL SWITCHES). “1” TO “6”- SPEED BUTTONS. GRANTS QUICK ACCESS TO USER DEFINED GROUPS AND SCENES. Programmable Radio Frequency Control Remote Transmitter Operating Instructions ALL OFF Button OK Button Navigation Buttons (toggle left or right thru menus) Scene button (Brings up scene menu) Numbered Speed Buttons (Grants quick access to groups and scenes) Cancel Button (cancels actions) ALL ON Button Menu Button (Activates menu display) ZTH100 HomePro RF Home Automation ZTH100 Operating Instructions 060902 HomePro by ADVANCED CONTROL TECHNOLOGIES, INC. 2 Table of Contents 1. INTRODUCTIONPAGE 1.1Getting Started................................................................................................................ 3 2. HOMEPRO PRODUCTS 2.1Other HomePro Lighting and Appliance Products.................................................................. 3 3. GENERAL OPERATION 3.1System Description. ................................................................................................................ 3 3.2Remote Transmitter Software features. .................................................................................. 3 3.3Powerdown and Display Timeout............................................................................................ 3 4. HOW TO USE THE ZTH100 FEATURES 4.1 Menu navigation and selection .............................................................................................. 4 4.2Groups/scenes........................................................................................................................ 4 4.2.1Add module to group ............................................................................................................ 4 4.2.2 Add module to scene. ........................................................................................................ 5 4.2.3Exceeding node limit. ............................................................................................................. 6 4.2.4Adding unsupported device types to the network.................................................................... 6 4.2.5Name a group/scene............................................................................................................... 6 4.2.5.1Character set. ......................................................................................................................... 6 4.2.6Remove module from group/scene......................................................................................... 7 4.2.7Delete group/scene................................................................................................................. 7 4.3Timer ...................................................................................................................................... 8 4.3.1Create/Edit a timer .................................................................................................................. 8 4.3.2Delete timer ............................................................................................................................10 4.4Child protection .....................................................................................................................10 4.5Burglar deterrent....................................................................................................................11 4.5.1Activate burglar deterrent .....................................................................................................12 4.5.2Exclude module ....................................................................................................................13 4.5.3Include module .......................................................................................................................13 4.6Setup.......................................................................................................................................14 4.6.1Set time ..................................................................................................................................14 4.6.2Display contrast ......................................................................................................................14 4.6.3Setup All On/Off .....................................................................................................................15 4.6.4Copy configuration to another remote transmitter...................................................................16 4.6.4.1Sending information to another remote transmitter.................................................................17 4.6.4.2 Receive information from Master remote transmitter.............................................................17 4.6.5Resetting lamp and appliance modules...................................................................................18 4.6.6Reset remote transmitter.........................................................................................................18 5. OPERATION MODE 5.1Operation display....................................................................................................................19 5.1.1Secondary remote indication .............................................................…

Text truncated - open the document above for the full version.

From: Yuriy Litvinov ITS/ES-Min Sent: Friday, July 12, 2002 2:22 PM To: Norman Shpilsher ITS/ES-Min Subject: FW: Request for Favorable Intrepretation TEXT.htm fyi -----Original Message----- From: Rich Fabina [mailto:[email protected]] Sent: Friday, July 12, 2002 2:00 PM To: [email protected] Cc: [email protected]; [email protected]; Tom Phillips Subject: Re: Request for Favorable Intrepretation ** High Priority ** Russel, As I understand the issue, you make a light dimmer with a remote control transceiver in it. Any remote control transceiver connected to the AC power lines must also be tested for compliance with the AC line conducted limits in Sections 15.107(a) and 15.207(a) of the FCC Rules. (They are the same limits although one is for the receiver and one is for the transmitter in a transceiver). However, the light dimmer emissions are causing failing emissions in the region below 30 MHz for AC line conducted emissions testing of the transceiver. Section 15.31(k) permits composite devices in a single enclosure ( a light dimmer and a remote control transceiver) as long as each device complies with its respective limits (see second sentence). It goes on...In no event may the measured emissions from the composite system exceed the highest level permitted for the individual component. Since the light dimmer has no technical standards on it, it automatically complies with the technical standards. ETL is incorrectly applying the more stringent of the standards by applying the remote control transmitter standards to the light dimmer. The rules state the the highest standard shall be the one applied to all the components in a composite device. All that must be done is test the remote control transceiver for compliance with the AC line conducted emissions limits with the light dimmer turned off. Tom Phillips’ interpretation is correct. You may turn off the light dimmer and measure the remote control transceiver for complaince with the AC line conducted emissions. If the transmitter passes and the receiver passes, the device may be certified by a TCB or the Commisison. Mr. Phillips also has the authority to issue such an interpretation since he is an employee of the Federal Communication Commission. He currently works in the Measurements and Calibration Branch here at the FCC Laboratory where interpretations are coordinated between branches. Please inform the TCB of this interpretation. I trust that this has responded to this inquiry. Rich Fabina >>> Russell Phillips <[email protected]> 07/05/02 06:33PM >>> Dear Mr. Fabina, I am an RF engineer with Advanced Control Technologies, Inc. in Indianapolis, Indiana. We are preparing to produce a series of lighting control products for residential use in the USA. These devices occasionally communicate with each other and with a handheld remote control using a single frequency in the 900 MHz ISM band. The reason I am contacting you is that one of the devices is a lamp dimmer that employs circuitry that is commonly used for the purpose, namely a triac which is turned at each zero crossing for a greater or lesser part of the 60Hz cycle, depending on how bright the lamp is to be. The dimmer circuitry generates a certain amount of noise on the AC power line due to this switching action just like every other dimmer of this type that is on the market. The difficulty that we have encountered is that by putting a 900 MHz radio transceiver in the same plastic enclosure, we have a situation in which the low frequency (<30 MHz) noise generated by the dimmer circuitry exceeds the maximum limits that are applicable to the radio part of the device. According to ETL, who is the TCB that we are working with, a strict interpretation of part 15.31k requires that the more stringent of the two standards that apply (one for the dimmer and another for the radio) be applied to the device as a whole. This would require that the dimmer circuitry, which is basically not regulated if it stood alone, be able to comply with the much tougher standard that applies to the radio portion of the product. The data that has been taken establishes that this noise is generated entirely by the dimmer and not by the radio part of the device. By disabling the radio portion of the device, it can further be shown that this noise is not created by any inter-action between the the dimmer circuitry and the radio part of the device. About a year ago, Tom Phillips, who at the time was in the FCC’s "Test Sites, Documentation and Measurement Procedures" section, said in an email response to Telelaboriet (a Danish testing lab) that, "The emissions from the dimmer circuit are not regulated. Therefore you may disable the dimmer circuit when making emission measurements on the transmitter and receiver to show compliance..." The test engineer at ETL that we are working with agrees that this is a reasonable approach and has established that the product does comply when tested this way. They also say however, that the rules do not allow them to do that. We are told that we would need a ruling from you on this matter before they could recogonize this testing method. According to them, the other gentleman at the FCC does not have the authority to make such a decision, but you do. Can you assist us in this matter? It seems unlikely to me that the rules were intended to be an obstacle in this case. The dimmer circuity alone is in compliance, the radio transceiver alone is in compliance, and they do not interact to cause either to be out of compliance if the respective standards are applied. Why then should the device as a whole be considered out of compliance? If you can help us, please let me know. The engineer at the ITS/ETL Semko is named Yuriy Litvinov. His email address is: [email protected]. The street address for the facility he works at is: 7250 Hudson Blvd., Suite 100, Oakdale, MN 55128. His phone number is (651) 730-1188. If you would like to call me, I can be reached a…

Text truncated - open the document above for the full version.

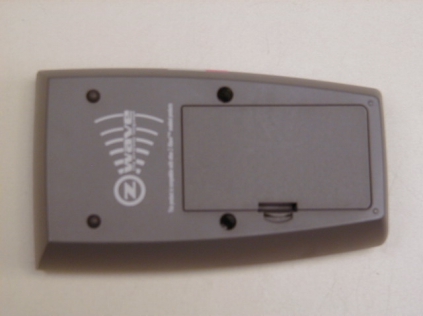

FCC ID: QIE0608-0X July 2002 Page 17 of 23 External Photo FCC ID: QIE0608-0X July 2002 Page 18 of 23 External Photo

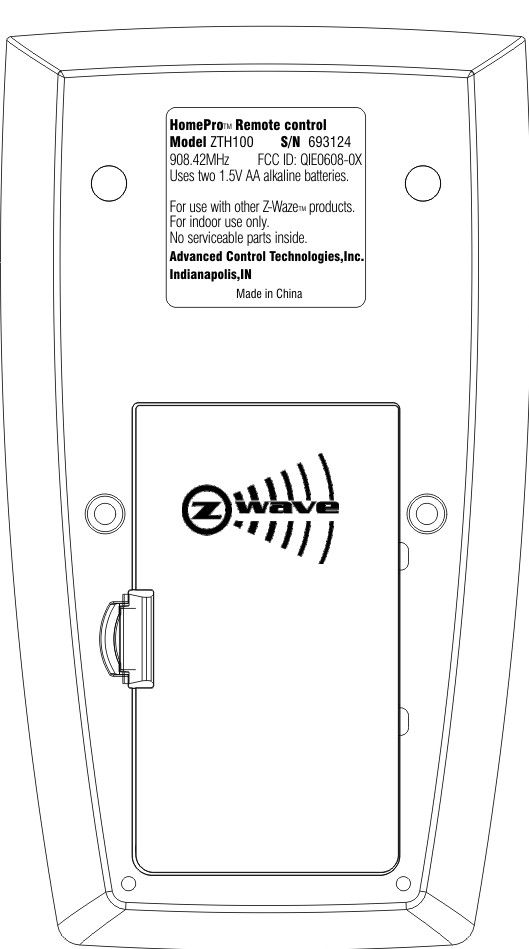

C‚€rQ…‚ 70 Sr€‚‡r8‚‡…‚y 0RGHO=7+0+] )&&,'4,(; 8VHRQO\9$$DONDOLQHEDWWHULH V )RUXVHZLWKRWKHU=:DYH 70 SURGXFWV )RULQGRRUXVHRQO\ 1RVHUYLFHDEOHSDUWVLQVLGH $GYDQFHG&RQWURO7HFKQRORJLHV,QF ,QGLDQDSROLV,1 0DGHLQ&KLQD

FCC ID: QIE0608-0X July 2002 Page 20 of 23 Internal Photo FCC ID: QIE0608-0X July 2002 Page 21 of 23 Internal Photo

Technical Description of the ZTH100 Wireless Remote Control Written by Russell A. Phillips, RF Engineer for Advanced Control Technologies, Inc. July 2002 The ZTH100 is a wireless remote control that is designed to work with a series of residential lighting and appliance modules that are also manufactured by Advanced Control Technologies. At the present time, these products are either dimmers or relay- based switches. The remote control uses a high-speed micro-controller to operate the LCD display, to read the keypad, to execute instructions, and to control communications with other devices. It also contains a device that functions as a time of day clock, and a flash memory IC to provide non-volatile retention of certain data. Additionally, the ZTH100 contains a transceiver that is electrically equivalent to the transceivers found in each of the modules that it controls. The transceivers operate in half-duplex fashion to provide two-way communications. The communications, while varied, most often consist of a command from the ZTH100 followed by an acknowledgement by the addressed module(s) that a valid command was received. The transceiver operates in the 900MHz ISM band at 908.42 MHz. The data, which is digital in nature, is Manchester encoded and sent using FSK modulation at a 9600 bit/sec rate. The deviation of the modulation is plus and minus 10 KHz. A 7.3728 MHz crystal oscillator is used both as a clock for the micro-controller and also as a reference oscillator for the fractional PLL frequency synthesizer. This PLL is used to generate both the local oscillator for the receiver and the fundamental frequency of the transmitter. The output power of the transmitter portion of the transceiver is controlled by the micro-controller which causes the transmit power to be very low for some setup functions. Modulation of the transmitter is accomplished in the PLL by having the micro-controller cause it to use one divisor when the modulating data is low and a slightly different one, when it is high. The receiver is a single conversion type. The local oscillator runs at 908.22 MHz (200 KHz below the receive frequency). A wireless transmission occurs briefly in response to one of two events: 1) A manually issued command initiated by the User, or 2) An automated command that is initiated when the internal time of day clock matches a previously User-programmed time. The communications are done using a protocol called the Z-Wave protocol, which is a wireless network protocol that has been especially designed for home automation products. It defines how various types of information are to be formatted into frames. These frames not only include commands and data, but also source and destination information, as well as checksums that are used for error detection. The ZTH100 and the modules that it controls make up a wireless local network, where each of the modules can function as wireless repeaters (also half duplex). There is provision within the protocol for intelligent and adaptive routing and also for handling collisions. Except for a handful of discrete passive components, the entire transceiver is contained in one integrated circuit, the CC900 made by Chipcon. The transmitter and receiver share a common antenna. A SAW filter is used to help minimize receiver overload from strong signals on nearby frequencies. The antenna used in the ZTH100 is simply a trace on a printed circuit board. There are no external connections to the antenna. Since the device is a battery-powered handheld device, it neither uses or provides for a ground connection of any kind.

Advanced Control Technologies Inc. Application For Certification ZTH 100 Remote Control (FCC ID: QIE0608-0X) July 21, 2002 All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. No quotations from reports or use of Intertek Testing Services name is permitted except as expressly authorized by Intertek Testing Services in writing. The report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. The NVLAP logo is applicable for testing to I EC/CISPR 22:1993 and FCC-47 CFR part 15 only. TABLE OF CONTENTS 1.0 General Description....................................................................................................................... 1 1.1 Related Submittal(s) Grants ................................................................................................1 1.2 Product Description ............................................................................................................ 1 1.3 Test Methodology ............................................................................................................... 1 1.4 Test Facility ........................................................................................................................ 1 2.0 System Test Configuration............................................................................................................ 2 2.1 Justification......................................................................................................................... 2 2.2 EUT Exercising Software ................................................................................................... 2 2.3 Special Accessories............................................................................................................. 2 2.4 Equipment Modification .....................................................................................................2 2.5 Support Equipment List and Description ............................................................................ 2 2.6 Test Configuration Block Diagram ..................................................................................... 3 3.0 Test Results..................................................................................................................................... 4 3.1 Field Strength of Fundamental and Harmonics Emissions, FCC 15.249(a)(b), 15.205 ...... 5 3.2 Out of Band Spurious Emissions, FCC 15.249(c), 15.209 ................................................. 6 3.3 Test Procedure .................................................................................................................... 9 3.4 Field Strength Calculation ................................................................................................ 10 4.0 Test Equipment............................................................................................................................ 11 EXHIBIT I Test Set Up Photographs................................................................................................................ 12 EXHIBIT II FCC ID Label Location.................................................................................................................. 15 EXHIBIT III External Photographs ..................................................................................................................... 16 EXHIBIT IV Internal Photographs ...................................................................................................................... 19 EXHIBIT V Electrical Schematics and Block Diagram ..................................................................................... 22 EXHIBIT VI User Manual and Operational Description ..................................................................................... 23 FCC ID: QIE0608-0X July 2002 Page 1 of 23 1.0 GENERAL DESCRIPTION 1.1 Related Submittals Grants This is single application of the ZTH 100 Remote Control for Certification under Part 15 Subpart C. There are no other simultaneous applications . 1.2 Product Description The ZTH 100 Remote Control is a RF remote control operating in 908.44MHz. The intended use of the ZTH 100 Remote Control is to generate and transmit a RF signal to control remote devices. The ZTH 100 Remote Control powered at 3VDC from two AA-size internal batteries. The ZTH 100 Remote Control antenna is an integrated antenna. 1.3 Test Methodology Emission measurements were performed according to the procedures in ANSI C63.4-1992. All field strength radiated emissions measurements were performed in the semi-anechoic chamber, and for each scan, the procedure for maximizing emissions in Appendices D and E were followed. All field strength radiated tests were performed at an antenna to EUT distance of 3 meters, unless stated otherwise in the "Justification Section" of this Application. 1.4 Test Facility The test site facility used to collect the radiated and conducted measurement data is located at 7250 Hudson Blvd., Suite 100, Oakdale, Minnesota. This test facility has been fully described in a report dated on January 2000 submitted to your office. Please reference the site registration number: 90706, dated May 19, 2000. FCC ID: QIE0608-0X July 2002 Page 2 of 23 2.0 SYSTEM TEST CONFIGURATION 2.1 Justification N/A 2.2 EUT Exercising Software N/A 2.3 Special Accessories There are no special accessories necessary for compliance of these products. 2.4 Equipment Modification No modifications were installed during the testing. 2.5 Support Equipment List and Description N/A FCC ID: QIE0608-0X July 2002 Page 3 of 23 2.6 Test Setup and Test Configuration Block Diagrams The EUT was setup as tabletop equipment. The EUT was powered at 3…

Text truncated - open the document above for the full version.

FCC ID: QIE0608-0X July 2002 Page 13 of 23 Radiated Emissions Test Configuration FCC ID: QIE0608-0X July 2002 Page 14 of 23 Radiated Emissions Test Configuration
