Evolve LRM-1000, Series 300, Rel. 5.2 Instructions P/D 1010111 LRM-1000 by Evolve Guest Controls Evolve Radio Frequency (RF) Controlled, 1000W, 120 VAC, NWI and Scene Capable, Wall Mounted Dimmer, Series 300, Release 5.2 LRM-1000 LRM-1000 WALL MOUNTED DIMMER The LRM-1000 Wall Mounted Dimmer is a component of the Evolve Guest Controls lighting control system. Wire the Wall Mounted Dimmer in place of the standard wall switch according to the diagram above and program from the Wireless Controller to operate loads. Inclusion of the LRM-1000 Wall Mounted Dimmer on the EHC-100 Wireless Controller menu allows remote ON/OFF control and dimming of lights connected. This Wall Mounted Dimmer is designed to work with other EvolveNet enabled devices. EvolveNet nodes of other types can be added to the system and will also act as repeaters to increase the range of the network This product is scene capable. This product supports 40Kbps data transmission. This product can also be used for networking support in systems that stream metadata. An example might include transmission of information from audio devices such as song title, artist, and album information to various displays. DANGER! SHOCK HAZARD. Read and understand these instructions before installing. This device is intended for installation in accordance with the National Electric code and local regulations in the United States, or the Canadian Electrical Code and local regulations in Canada. It is recommended that a qualified electrician perform this installation. There are no field repairable assemblies on this unit. If service is needed, the unit must be returned where purchased. CAUTION! To reduce the risk of overheating and possible damage to other equipment, do not install to control a receptacle, a motor operated appliance, a fluorescent lighting fixture, or a transformer-supplied appliance, but only permanently installed incandescent lamp fixtures. Make sure the lamp(s) to be controlled directly from this dimmer total no more than 1000 watts. Do not install this device if there is not at least 10 meters (30 feet) or more of wire between the point of connection and the electrical service panel. Retain instructions for future use. Standard color: White Supplied with matching decorative switch plate. Other replaceable trim kits available. Note: This module must be “Included in the Network” only where it will be permanently installed. The proper operation of this node in the mesh network is dependent on it knowing its location with respect to other nodes. You cannot “test bench” configure this module. • This product supports Zensor Net Beam technology • NWI and Scene Capable Evolve LRM-1000, Series 300, Rel. 5.2 Instructions P/D 101011 LRM-1000 by Evolve Guest Controls 2 INSTALLATION STEP 1.. With POWER OFF, wire this LRM-1000 according to the diagram shown. Caution! Do not wire unit “live” (with power on the circuit). Apply power when completed. Proper Single Gang Installation Using LRM-1000’s standard full heat-sink (all tabs), the connected incandescent lamp load shall not exceed 1000W. If a tab is removed from one side of the LRM-1000 unit, the connected incandescent lamp load must not exceed 900W. If both tabs are removed from the LRM-1000 unit, the connected incandescent lamp load must not exceed 800W. Proper Dual Gang Installation The connected incandescent lamp load must not exceed 900W for each of the two LRM-1000 units. Proper Triple Gang Installation The connected incandescent lamp load must not exceed 800W for each of the two LRM-1000 units. Air Gap Switch The LRM-1000 has an air gap switch on the face (lower left), that when pulled out, completely removes the power available to the load (simply turning the dimmer off does not). This enables the lamps that are controlled by the device to be changed with minimal danger of electrical shock. The air gap switch must be pushed back in for the dimmer to operate the lamps again. INCLUDING LRM-1000 TO THE NETWORK STEP 1. Prepare the Controller to include a unit to the network by adding it to a group (method of adding a node to the network). Refer to controller instructions. STEP 2. The LRM-1000 must be in its permanently installed location to add a node: Via Network Wide Inclusion (NWI): Tap the switch once. This can be done upon power-up of the node to be included, or once the controller is prepared to add all nodes to the network. Via Classic Inclusion: Tap the switch twice. To remove a node: Tap switch twice. STEP 3. You should see an indication on your Controller that the “DEVICE WAS INCLUDED” or “DEVICE WAS EXCLUDED” in the network. NOTE: If you have trouble adding the LRM-1000 to a group it may be that the Home ID and Node ID were not cleared from it after testing. You must first “RESET UNIT” with your controller to remove it from the network. If the EHC-100 select “SETUP” and scroll to “RESET UNIT” Although adding it to a group includes it in the network, removing it from a group does not remove it from the network. If removed from a group, it functions only as a repeater. BASIC OPERATION Local Control Pushing the top or bottom of the switch, the LRM-1000 allows the user to do the following • Tapping top of the switch turns the load attached ON. • Tapping bottom of the switch turns the load attached OFF. • Tapping and holding the top of the switch will brighten the load attached, and tapping and holding the bottom of the switch will dim the load. Evolve LRM-1000, Series 300, Rel. 5.2 Instructions P/D 1010113 LRM-1000 by Evolve Guest Controls LED indication The LED on the LRM-1000 will turn ON when the load attached is OFF to act as a night light. However, the LED can be user configured to turn ON when the load attached is ON, if so desired, Remote Control The LRM-1000 will respond to BASIC and MULTILEVEL commands that are part of the EvolveNet system. Refer to your controller’s instructions as to whether your controller can transmit those commands. All On/All Off The LRM-1000 suppo…

Text truncated - open the document above for the full version.

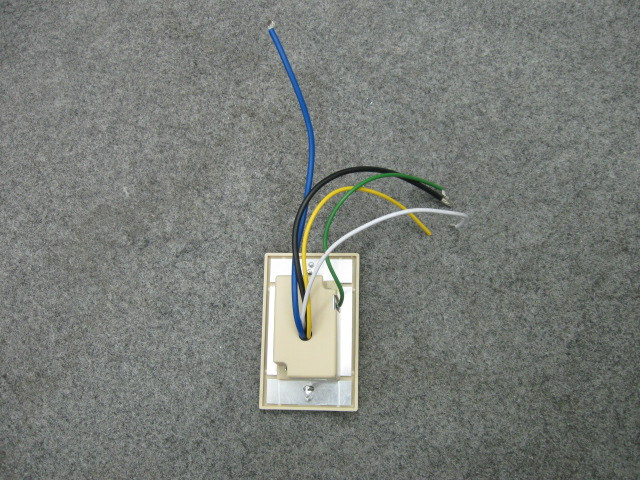

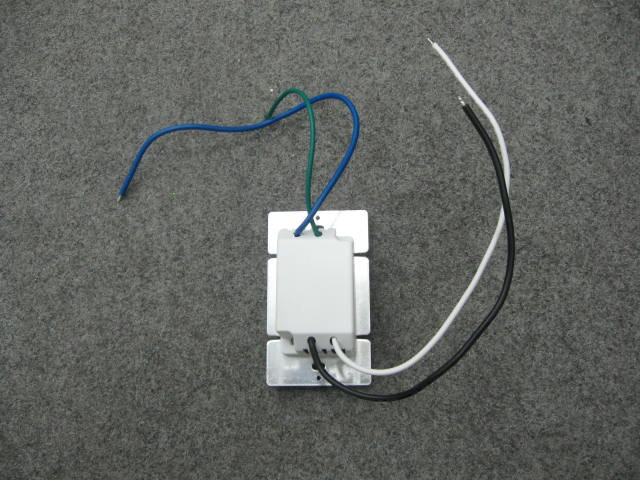

External Photo Front View of the product Rear View of the product

Lighting DimmerModel LRM-1000 Date Code Maximum Load: 1000W Incandescent Only120 Volts AC, 60 Hz 908.42 MHz Do not install to controla receptacle, a motor operated appliance, afluorescent lighting fixture or transformersupplied appliance.Conforms to ANSI/UL STD. 1472Made in ChinaFCC ID: QIE0810-01Canada IC: 4436A-081001Evolve Guest Controls, Inc. Hyde Park, NYSeries 300, Rel. 5.2 S/N: WHI-NEUTRAL BLK-LINE Label Specification for Evolve’s LRM-1000 Lighting Dimmer(Advanced Control’s Z-Wave Product Model ZDW131)Die cut and affix to back of product100311 3B54M PRODUCT LABELTo be made from 60Y or equivalent. Must complywith UL969. Label Dimensions:1-7/8” H x 1-1/2” W GRN-GND BLU-LOAD CAUTION:

Internal Photo Inner View of the product Inner Circuit Top View Inner Circuit Bottom View Inner Circuit Top View Inner Circuit Bottom View Antenna

TEST REPORT No: (5211)279-0837 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 2 of 23 Location of the test laboratory Radiated and Conducted emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2003. An Open Area Test Site and Full Anechoic Chamber (FCC Listed Site, Registration No. 642151) are set up for investigation and located at : BUREAU VERITAS HONG KONG LIMITED, EMC CENTRE No. 2106-2107, 21/F., Westin Centre, 26 Hung To Road, Kwun Tong, Kowloon, Hong Kong List of measuring equipment Radiated Emission EQUIPMENT MANUFACTURER MODEL NO. SERIAL NO. CALIBRATION DUE EMI TEST RECEIVER R&S ESCS 30 830986/030 13-DEC-2011 BILOG ANTENNA SCHAFFNER CBL6112D 25229 16-SEP-2012 OPEN AREA TEST SITE BVCPS N/A N/A 07-JULY-2012 ANECHOIC CHAMBER ALBATROSS M-CDC 80374004499B 26-OCT-2011 HORN ANTENNA SCHWARZBECK BBHA9120D 9120D-692 16-SEP-2012 PREAMPLIFIER SCHWARZBECK BBV9718 9718-152 16-SEP-2012 COAXIAL CABLE SUHNER N/A N/A 06-OCT-2012 Conducted Emission EQUIPMENT MANUFACTURER MODEL NO. SERIAL NO. CALIBRATION DUE EMI TEST RECEIVER R&S ESCS 30 830986/030 13-DEC-2011 LISN R&S ENV216 100024 12-APR-2012 Remarks:- N/A : Not Applicable or Not Available The measurement instrumentation uncertainty would be taking into consideration on each of the test result TEST REPORT No: (5211)279-0837 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 3 of 23 Equipment Under Test [EUT] Description of Sample: Model Name: Lighting Dimmer Model Number: LRM-1000 Rating: 120Va.c, 60Hz Description of EUT Operation: The Equipment Under Test (EUT) is an ADVANCED CONTROL TECHNOLOGIES, INC. of RF Fixture Module. It is a 2 switches and operating at 908.40MHz transceiver. The EUT transmit when ON/OFF switch is being pressed,. Modulation by IC, and type is FSK modulation. The transmitter has different control: 1. ON/OFF switch – on, off and dimmer control 2. Air Gap Load Disconnect switch – operation / disconnects power to load control Antenna Requirement (Section 15.203) The EUT is use of a permanently antenna. The antenna consists of 8cm long wire. It is soldered on the PCB. The antenna is not replaceable or user serviceable. The requirements of S15.203 are met. There are no deviations or exceptions to the specifications. TEST REPORT No: (5211)279-0837 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducte…

Text truncated - open the document above for the full version.

Conducted Emission Test Set Up Radiated Emission Test Set Up
