QIE0797-01Wall Mounted Dimmer

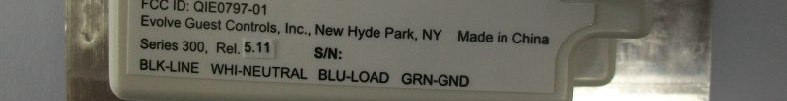

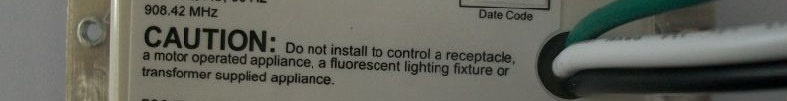

Evolve LRM-AS Series 300, Rel. 5.1 Instructions LRM-AS by Evolve Guest Controls EvolveNet Radio Frequency (RF) Controlled, 500W, 120 VAC, Wall Mounted Dimmer, Series 300, Release 5.1 LRM-AS WALL Mounted diMMeR The LRM-AS Wall Mounted Dimmer is a component of the HomePro lighting control system. Wire the Wall Mounted Dimmer in place of the standard wall switch according to the diagram above and program from the Wireless Controller to operate loads. Inclusion of the LRM-AS Wall Mounted Dimmer on the EHC-100 Wireless Controller menu allows remote ON/OFF control and dimming of lights connected. This Wall Mounted Dimmer is designed to work with other Z-Wave enabled devices. Z-Wave nodes of other types can be Included in the network and will also act as repeaters to increase the range of the network. this product is scene capable. This product supports 40Kbps data transmission. This product can also be used for networking support in systems that stream metadata. An example might include transmission of information from audio devices such as song title, artist, and album information to various displays around the home. dAnGeR! Shock hAzARd. Read and understand these instructions before installing. This device is intended for installation in accordance with the National Electric code and local regulations in the United States, or the Canadian Electrical Code and local regulations in Canada. It is recommended that a qualified electrician perform this installation. There are no field repairable assemblies on this unit. If service is needed, the unit must be returned where purchased. cAution: to reduce the risk of overheating and possible damage to other equipment, do not install to control a receptacle, a motor operated appliance, a fluorescent lighting fixture, or a transformer-supplied appliance, but only permanently installed incandescent lamp fixtures. Make sure the lamp(s) to be controlled directly from the dimmer receiver total no more than 500 watts. Do not install this device if there is not at least 10 meters (30 feet) or more of wire between the point of connection and the electrical service panel. Retain Supplied with matching decorative switch plate note: This module must be “Included in the Network” only where it will be permanently installed. The proper operation of this node in the mesh network is dependent on it knowing its location with respect to other nodes. You cannot “test bench” configure this module. LRM-AS • This product supports Zensor Net Beam technology. Evolve Guest Controls LRM-AS Instructions LRM-AS by Evolve Guest Controls instructions for future use. inStALLAtion SteP 1. With power off, wire this LRM-AS according to the diagram show. caution! Do not wire unit “live” (with power on the circuit) and do not allow the yellow wire to contact line voltage, neutral or ground or you will damage the device. If more than one LRM-AS is to be installed in a wall box, scored tabs on the side can be broken off by bending back and forth with pliers, to accommodate proper fit. Apply power when completed. Proper Single Gang Installation Using LRM-AS’s standard full heat-sink (all tabs), the connected incandescent lamp load shall not exceed 500W. If a tab is removed from one side of the LRM-AS unit, the connected incandescent lamp load must not exceed 400W. If both tabs are removed from the LRM-AS unit, the connected incandescent lamp load must not exceed 300W. Proper Dual Gang Installation The connected incandescent lamp load must not exceed 400W for each of the two LRM-AS units. Proper Triple Gang Installation The connected incandescent lamp load must not exceed 300W for each of the three LRM-AS units. Air Gap Switch The LRM-AS has an air gap switch on the face (lower left), that when pulled out, completely removes the power available to the load (simply turning the dimmer off does not). This enables the lamps that are controlled by the device to be changed with minimal danger of electrical shock. The air gap switch must be pushed all the way back in for the dimmer to operate the lamps again. incLudinG LRM-AS to the netWoRk SteP 1.. Prepare the Controller to include a unit to the network by adding it to a group (method of adding a node to the network). Refer to controller instructions. SteP 2. the LRM-AS must be in its permanently installed location. • To add a node: Tap the button. • To remove a node: Tap the button 3 times, then press and hold (Ex. tap, tap, tap, hold) SteP 3. You should see an indication on your Controller that the “DEvICE WAS INCLUDED” or “DEvICE WAS EXCLUDED” in the network. note: if you have trouble adding the LRM-AS to a group it may be that the Home ID and Node ID were not cleared from it after testing. You must first “RESET UNIT” with your controller to remove it from the network. If using the EHC-100 select “SETUP” and scroll to “RESET UNIT” Although adding it to a group includes it in the network, removing it from a group does not remove it from the network. If removed from a group, it functions only as a repeater. Basic OperaTiON Local Control The top or bottom of the LRM-AS switch can be used to carry out inclusion (add to a group), association, exclusion (remove from group) or reset (remove from network). Pushing the top or bottom of the switch, the LRM-AS allows the user to do the following: • Turn ON, OFF, DIM or bRIgHTEN the load attached. • To include or exclude the module, see step 2 above. Once the device has been added, when a controller prompts you to “Send Node ID” or to “Press button on Unit”, quickly tap the top or bottom of the switch 3 times, then press and hold (Ex. tap, tap, tap, hold). • Tapping top of the switch turns the load attached ON. • Tapping bottom of the switch turns the load attached OFF. • Pressing and holding the top of the switch will brighten the load attached, and pressing and holding the Evolve LRM-AS Series 300, Rel. 5.1 Instructions LRM-AS by Evolve Guest Controls bottom of the switch will dim the load. When OFF, pre…
