Datasheet BSS Reader 2G 0255 (BSS255R) Revision Datum Erstellt Freigegeben Kapitel Seite BSS255R_Datasheet_v1.2.docx 1.2 31.05.2023 RHE 1 von 4 TeraTron GmbH, Martin-Siebert-Str. 5, 51647 Gummersbach Technical Data Safety field system Control unit 2G (BSS255R) Power supply 10-32V DC Current consumption max. 1A @ 12V Outputs LF-Antennas Operation frequency: 2x125kHz, alternating Power (RF output) 2x -11 dBm EIRP (mean), alternating Relay outputs capability (2x Semiconductor relays) max.+36V DC / max. 5A DC (terminal 87/87a functionality only, no PCB internal connection to GND or supply) Interface-CAN CAN-Open, speed: 250 kBaud, UDS – diagnostic, Node ID 6 Interface-HF Operation frequency: 2.4 GHz ISM-Band Frequency channels: 2.400 to 2.4835 GHz Power (RF Output): +8.4 dBm EIRP (mean) Antenna: external roof screw mount, 50 Ω impedance Operating temperature range -40°C - +85°C Storage temperature range -40°C - +85°C Degree of protection by enclosure IP 67 Operating area Indoor / outdoor installation Dimension (L x B x H) 133 mm x 119 mm x 36 mm Weight 255 g Housing: Deutsch – EEC-325X4 Connector: Deutsch – DTM13-12PC – R008 Ret Sleeve: Type – C - green Tyco-No.: 1011-054-1205 Antenna Connector: Type FAKRA, Coding I, beige, 5677.SMBA.1I12149 Antenna MCA 2458 S Goretex-Membrane: Donaldson – P513622 Item number TeraTron 90000758 Item number Bomag 05763468 Note: The product communicates with the transmitter via 2.4 GHz, while the 125 kHz field is active. Pin assignment Pin Assignment 1 Terminal 15 2 GND 3 CAN High 4 CAN Low 5 IN terminal 87 rear direction 6 OUT terminal 87a rear direction 7 OUT terminal 87a front direction 8 IN terminal 87 front direction 9 125kHz Antenna rear direction 10 125kHz Antenna rear direction 11 125kHz Antenna front direction 12 125kHz Antenna front direction Datasheet BSS Reader 2G 0255 (BSS255R) Revision Datum Erstellt Freigegeben Kapitel Seite BSS255R_Datasheet_v1.2.docx 1.2 31.05.2023 RHE 2 von 4 Datasheet BSS Reader 2G 0255 (BSS255R) Revision Datum Erstellt Freigegeben Kapitel Seite BSS255R_Datasheet_v1.2.docx 1.2 31.05.2023 RHE 3 von 4 Compliance Statements Compliance Statements FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model: BSS255R FCC ID: QLXBSS255R Brand: TeraTron Compliance Statements IC This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Model: BSS255R IC ID: 4430A-BSS255R Brand: TeraTron Datasheet BSS Reader 2G 0255 (BSS255R) Revision Datum Erstellt Freigegeben Kapitel Seite BSS255R_Datasheet_v1.2.docx 1.2 31.05.2023 RHE 4 von 4 Installation and service The device is for professional use only and Installation and service of the BSS255R shall be done by authorized service personnel only. The device must be operated only with the following antenna: Hirschmann Mobility MCA 2458 S, max allowed gain: 3.6 dBi The device is to be used or installed only for BOMAG equipment. The device is only sold through BOMAG authorized dealers, who sell the product to other businesses. Due to safety reasons and the nature of the product in which the device will be built- in, the device will be delivered already installed in the BMP8500. In case of any spare part need in the future, it will be only provided by BOMAG dealer and installed by licensed professional trained by BOMAG. Disposal The end customer has to care for proper disposal of the device. Manufacturer BSS255R is a product of TeraTron GmbH Martin-Siebert-Str. 5 D-51647 Gummersbach Germany Brand declaration on PCB: „TeraTron“ „0255.01.xx“ Technical changes reserved.

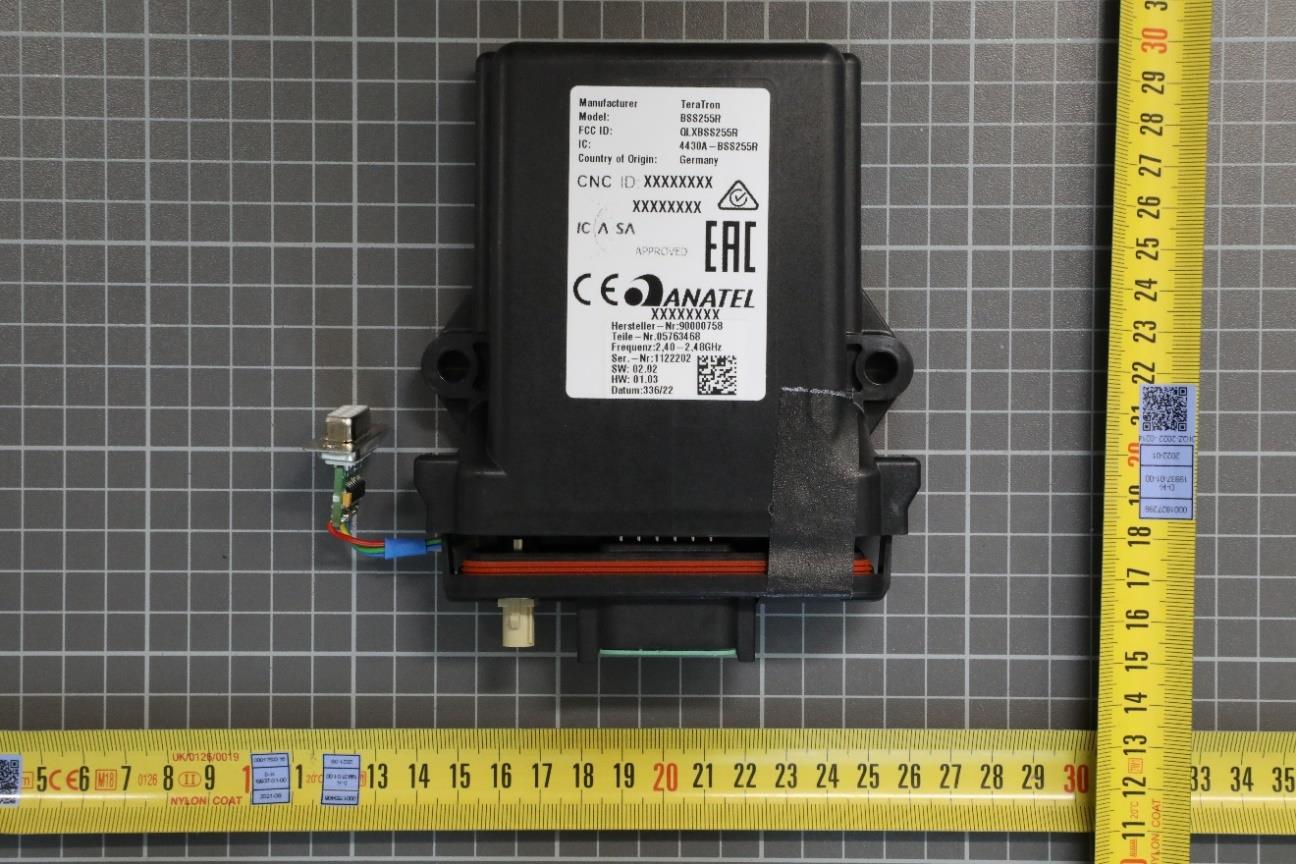

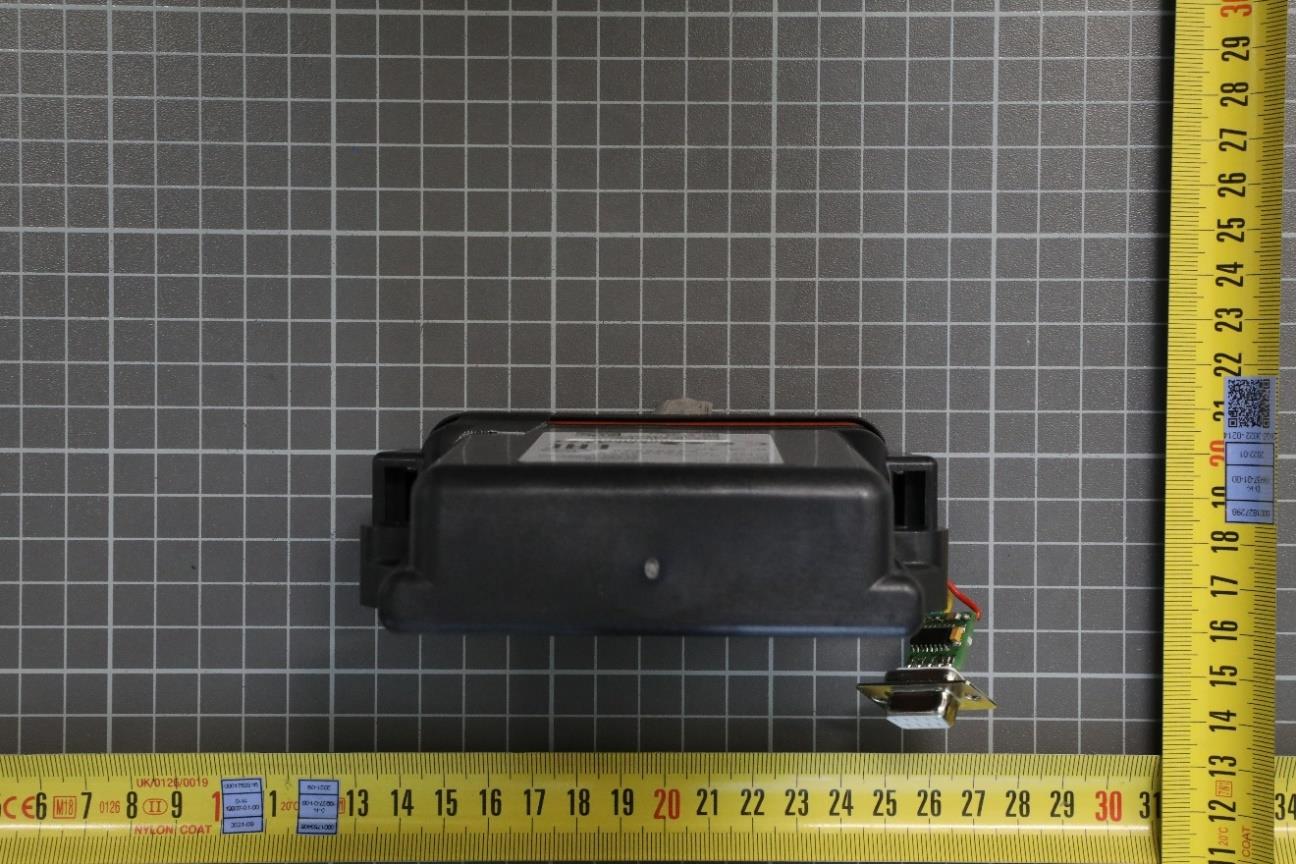

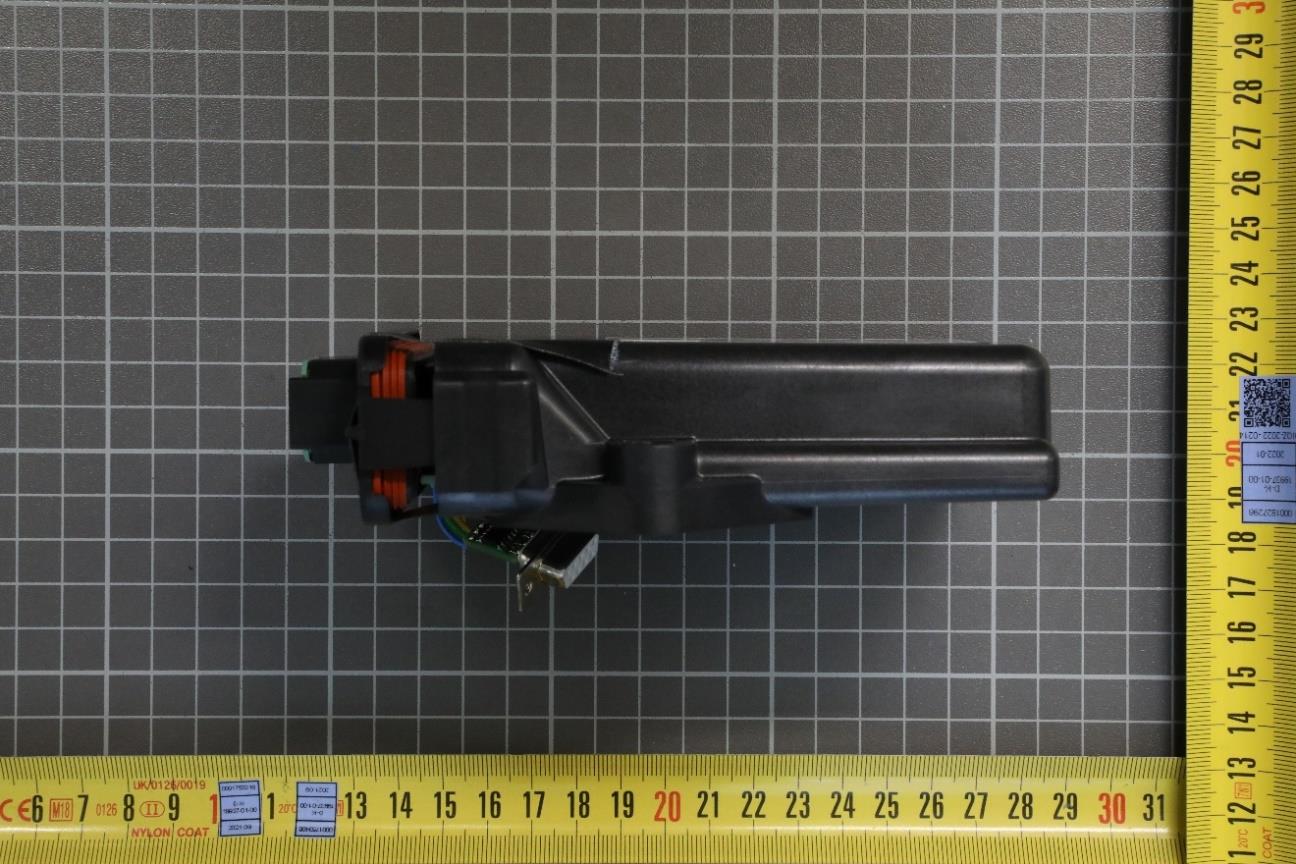

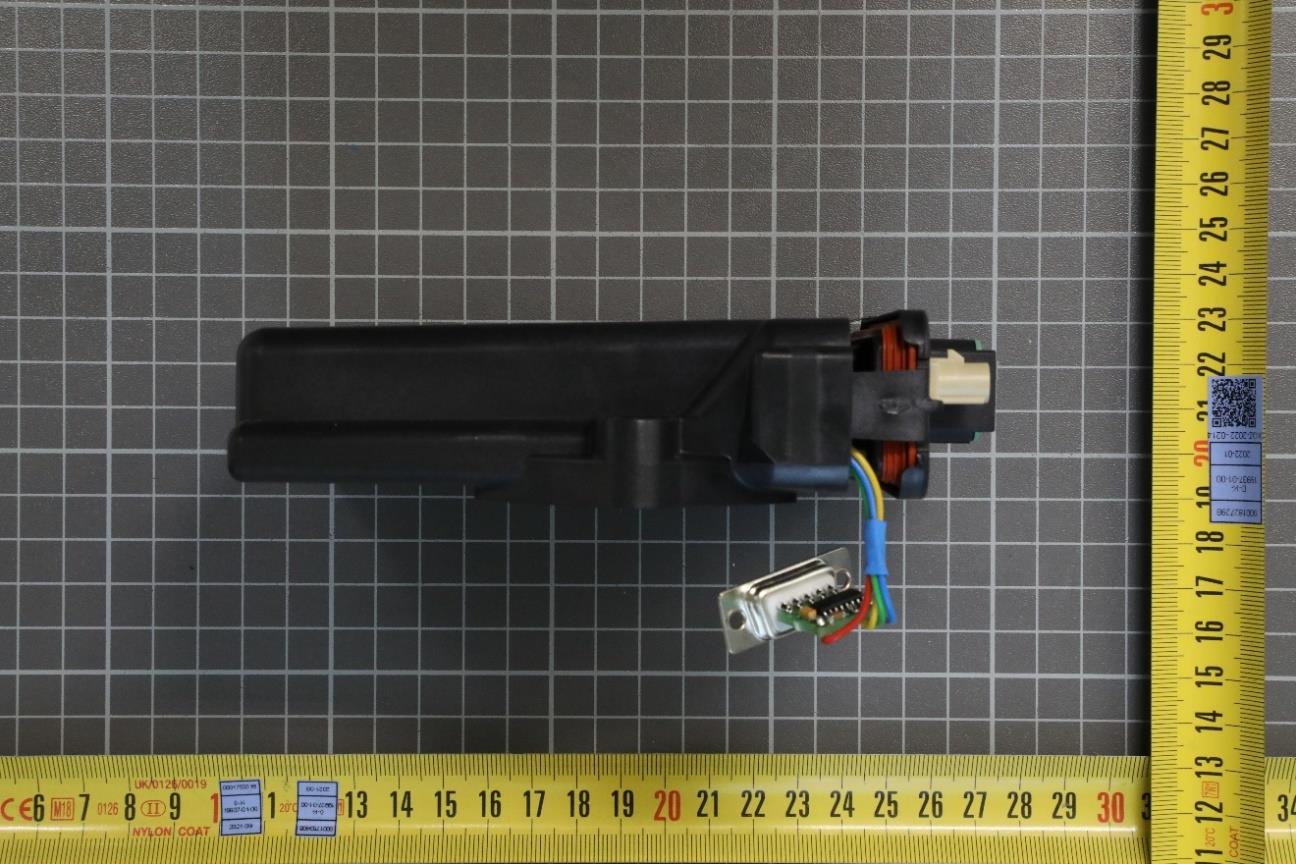

TR no.: 22107886-28661-0 2023-01-12 41 / 51 IBL-Lab GmbH Annex A EUT Photographs, external Photo No. 1: Photo No. 2: TR no.: 22107886-28661-0 2023-01-12 42 / 51 IBL-Lab GmbH Photo No. 3: Photo No. 4: TR no.: 22107886-28661-0 2023-01-12 43 / 51 IBL-Lab GmbH Photo No. 5: Photo No. 6:
TR no.: 22107886-28661-0 2023-01-12 45 / 51 IBL-Lab GmbH Annex B EUT Photographs, internal Photo No. 8: Photo No. 9: TR no.: 22107886-28661-0 2023-01-12 46 / 51 IBL-Lab GmbH Photo No. 10: Photo No. 11: TR no.: 22107886-28661-0 2023-01-12 47 / 51 IBL-Lab GmbH Photo No. 12:
Germany · IBL-Lab GmbH · Heinrich-Hertz-Allee 7-10 · 66386 Sankt Ingbert · Tel: +49 6894 38938-0 · Fax: +49 6894 38938-99 1 / 22 Company Register: 105151, Amtsgericht Saarbrücken URL: www.ib-lenhardt.de · E-Mail: [email protected] Assessment Report Test report no.: 22107886-28666-3 Date of issue: 2023-04-11 Test result: The test item - passed - and complies with the listed standards. Applicant TeraTron GmbH Manufacturer Same as applicant Test Item BSS255R MPE Assessment according to: FCC 47 CFR Part 15 Radio frequency devices Parts 1.1307, 1.1310, 2.1091, 2.1093 Canada RSS-102 Issue 5 Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) Tested by (name, function, signature) Andreas Bender Deputy Managing Director Approved by (name, function, signature) Sebastian Janoschka Lab Manager {{$tested}} {{$approved}} TR no.: 22107886-28666-3 2023-04-11 2 / 22 IBL-Lab GmbH Applicant and Test item details Applicant TeraTron GmbH Gewerbegebiet Sonnenberg Martin-Siebert-Str. 5 51647 , Gummersbach , Germany Fon: +49 (0) 2261 8082-0 Fax: +49 (0) 2261 8082-99 Manufacturer Same as applicant Test item description Protective Field Reader Model/Type reference BSS255R Standard specific information Frequency 2.4 GHz ISM band (2400 – 2483.5 MHz) 125 kHz Technology Bluetooth Low Energy (BLE) SRD Antenna External Antenna Power supply 10.0 to 32.0 V DC Temperature range -40 °C to +85 °C FCC ID QLXBSS255R Company number: 4430A IC (ISED CERTIFICATION NUMBER) 4430A-BSS255R HMN (HOST MARKETING NAME) N/V PMN (PRODUCT MARKETING NAME) BSS255R Protective Field Reader HVIN (HARDWARE VERSION IDENTIFICATION NO.) 0255.01.03 FVIN (FIRMWARE VERSION IDENTIFICATION NO.) N/V {{#tested=Sig_es_:signer1:signature:align(center):dimension(width=35mm, height=15mm)}} {{#approved=Sig_es_:signer2:signature:align(center):dimension(width=35mm, height=15mm)}} Disclaimer and Notes The content of this report relates to the mentioned test sample(s) only. Without a written permit of IBL-Lab GmbH, this test report shall not be reproduced, except in full. The last valid version is available at TAMSys . Copyright ©: All rights reserved by IBL-Lab GmbH Within this test report, a ☒ point / ☐ comma is used as a decimal separator. If otherwise, a detailed note is added adjected to its use. IBL-Lab GmbH does not take samples. The samples used for testing are provided by the applicant. Decision rule: See parent Test Report IBL-Lab GmbH. TR no.: 22107886-28666-3 2023-04-11 3 / 22 IBL-Lab GmbH Decision rule based on simple acceptance without guard bands, binary statement, based on mutually agreed uncertainty tolerances with expansion factor k=2. TR no.: 22107886-28666-3 2023-04-11 4 / 22 IBL-Lab GmbH 1 TABLE OF CONTENTS 1 TABLE OF CONTENTS.......................................................................................................................... 4 2 GENERAL INFORMATION .................................................................................................................... 5 2.1 Administrative details........................................................................................................................... 5 2.2 Possible test case verdicts .................................................................................................................. 5 2.3 Observations ....................................................................................................................................... 6 2.4 Opinions and Interpretations ............................................................................................................... 6 2.5 Revision History ................................................................................................................................... 6 3 ENVIRONMENTAL & TEST CONDITIONS ........................................................................................... 7 3.1 Environmental conditions of test lab.................................................................................................... 7 4 TEST STANDARDS AND REFERENCES ............................................................................................. 7 5 Device Data ............................................................................................................................................ 8 6 MPE Assessment Requirements ............................................................................................................ 9 6.1 FCC 47 CFR Part 1.1310 Radiofrequency radiation exposure limits. .............................................. 10 6.1.1 FCC 47 CFR Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. ............. 11 6.2 ISED RSS-102 Issue 5 - Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) ......................................................................................................................... 13 6.2.1 ISED MPE limits .................................................................................................................................. 13 6.2.2 RSS-102 Section 2.5 - Exemption Limits for Routine Evaluation ....................................................... 14 6.2.3 RSS-102 Section 2.5.2 - Exemption Limits for Routine Evaluation – RF Exposure Evaluation ........ 14 7 MPE Calculation Method ...................................................................................................................... 15 8 MPE Conclusion ................................................................................................................................... 16 9 List of test equipment used ................................................................................................................... 17 Annex 1 RSS-102 – Annex A - RF Technical Brief Cover Sheet ....................................................................... 18 Annex 2 RSS-102 – Annex B - Declaration of RF Exposure Compliance .…
