QLXKR0164Service Key Reader

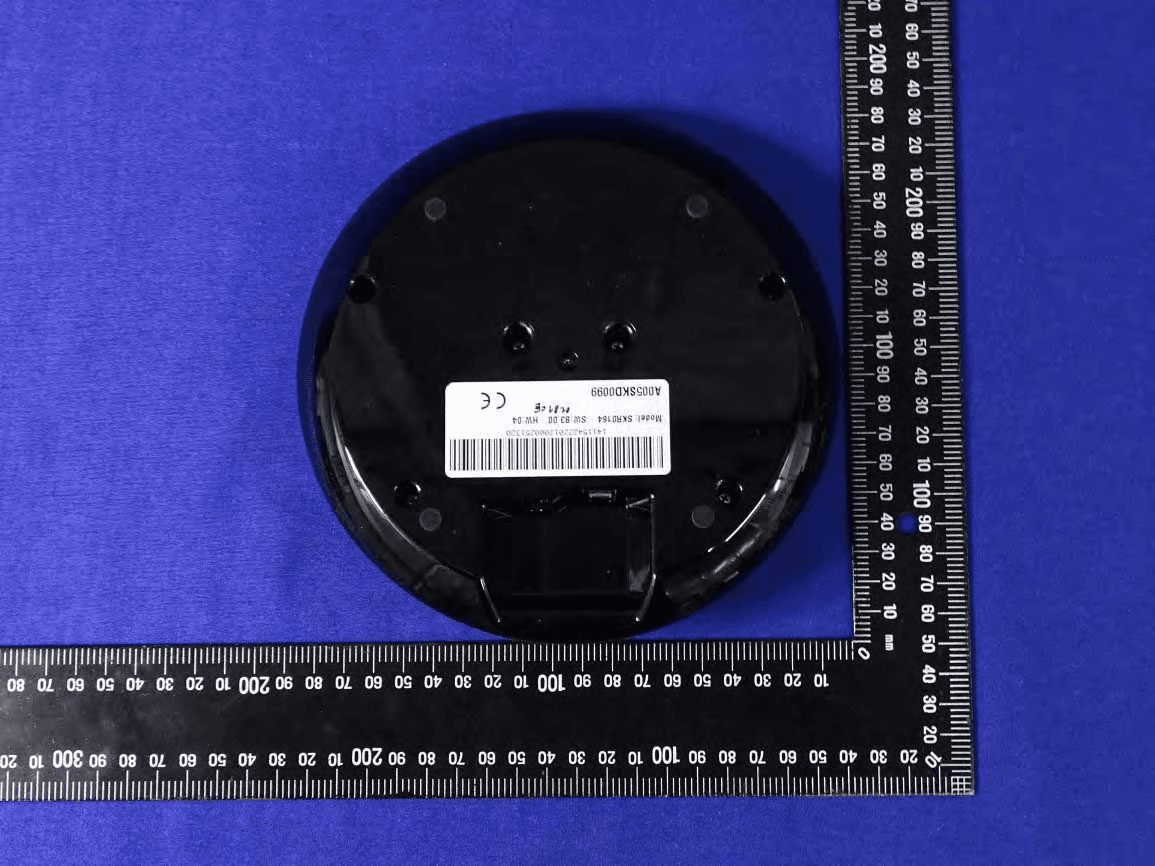

Report No.: 2020041R-RFUSP17V00 Page: 1 of 14 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 2020041R-RFUSP17V00 Page: 2 of 14 (3) EUT Photo (4) EUT Photo Report No.: 2020041R-RFUSP17V00 Page: 3 of 14 (5) EUT Photo (6) EUT Photo

Tera Tron GmbH FCC ID.: QLXKR0164 Martin-Siebert-Str. 5, 51647 Gummersbach, Germany TEL: 0049226180820 FCC ID Label

Tera Tron GmbH FCC ID.: QLXKR0164 Martin-Siebert-Str. 5, 51647 Gummersbach, Germany TEL: 0049226180820 看The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 2020041R-RFUSP17V00 Page: 4 of 14 (7) EUT Photo (8) EUT Photo Report No.: 2020041R-RFUSP17V00 Page: 5 of 14 (9) EUT Photo (10) EUT Photo Report No.: 2020041R-RFUSP17V00 Page: 6 of 14 (11) EUT Photo (12) EUT Photo Report No.: 2020041R-RFUSP17V00 Page: 7 of 14 (13) EUT Photo (14) EUT Photo 125kHz Antenna 21.85kHz Antenna Report No.: 2020041R-RFUSP17V00 Page: 8 of 14 (15) EUT Photo (16) EUT Photo 13.56MHz Antenna Report No.: 2020041R-RFUSP17V00 Page: 9 of 14 (17) EUT Photo (18) EUT Photo Report No.: 2020041R-RFUSP17V00 Page: 10 of 14 (19) EUT Photo (20) EUT Photo 125kHz Chip 21.85kHz Chip Report No.: 2020041R-RFUSP17V00 Page: 11 of 14 (21) EUT Photo (22) EUT Photo 13.56MHz Chip Report No.: 2020041R-RFUSP17V00 Page: 12 of 14 (23) EUT Photo (24) EUT Photo Report No.: 2020041R-RFUSP17V00 Page: 13 of 14 (25) EUT Photo (26) EUT Photo Report No.: 2020041R-RFUSP17V00 Page: 14 of 14 (27) EUT Photo

Report No.: 2020041R-RFUSP20V00 Page : 1 of 32 FCC Test Report Product Name Service Key Reader Model No. KR0164 FCC ID. QLXKR0164 Applicant Tera Tron GmbH Address Martin-Siebert-Str. 5, 51647 Gummersbach, Germany Date of Receipt Feb. 05, 2020 Issued Date Apr. 10, 2020 Report No. 2020041R-RFUSP20V00 Report Version V1 .0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. Report No.: 2020041R-RFUSP20V00 Page : 2 of 32 Test Report Issued Date: Apr. 10, 2020 Report No.: 2020041R-RFUSP20V00 Product Name Service Key Reader Applicant Tera Tron GmbH Address Martin-Siebert-Str. 5, 51647 Gummersbach, Germany Manufacturer Tera Tron GmbH Model No. KR0164 FCC ID. QLXKR0164 EUT Rated Voltage DC 12V / 2500mA EUT Test Voltage AC 120V / 60Hz Trade Name TeraTron Applicable Standard FCC CFR Title 47 Part 15 Subpart C ANSI C63.4: 2014, ANSI C63.10: 2013 Test Result Complied Documented By : ( Adm. Assistant / Ida Tung ) Tested By : (Senior Engineer / Bill Lin ) Approved By : ( Director / Vincent Lin ) Report No.: 2020041R-RFUSP20V00 Page : 3 of 32 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ........................................................................................................... 4 1.1. EUT Description ................................................................................................................... 4 1.2. Operational Description ........................................................................................................ 4 1.3. Test System Details ............................................................................................................... 5 1.4. Configuration of Test System ............................................................................................... 5 1.5. EUT Exercise Software ......................................................................................................... 5 1.6. Test Facility ........................................................................................................................... 6 1.7. List of Test Equipment .......................................................................................................... 7 1.8. Summary of Test Results ...................................................................................................... 7 1.9. Uncertainty ............................................................................................................................ 7 2. Conducted Emission ......................................................................................................................... 8 2.1. Test Setup .............................................................................................................................. 8 2.2. Limits .................................................................................................................................... 8 2.3. Test Procedure ....................................................................................................................... 8 2.4. Uncertainty ............................................................................................................................ 8 2.5. Test Result of Conducted Emission ...................................................................................... 9 3. Radiated Emission ........................................................................................................................... 13 3.1. Test Setup ............................................................................................................................ 13 3.2. Limits .................................................................................................................................. 14 3.3. Test Procedure ..................................................................................................................... 15 3.4. Uncertainty .......................................................................................................................... 15 3.5. Test Result of Radiated Emission ....................................................................................... 16 4. EMI Reduction Method During Compliance Testing .................................................................. 32 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No.: 2020041R-RFUSP20V00 Page : 4 of 32 1.GENERAL INFORMATION 1.1. EUT Description Product Name Service Key Reader Trade Name TeraTron Model No. KR0164 FCC ID. QLXKR0164 Frequency Range 21.85 kHz, 125 kHz Type of Modulation 125 kHz MHz for ASK 21,85 kHz for BPSK Type of antenna Coil Antenna Power Adapter MFR: ANSMANN, M/N: ANHG10609 Input: AC 100-240V ~ 60/50Hz, 0.7A Output: DC 12V, 2500mA, 30VA Cable Out: Non-shielded, 1.87m USB Cable: Non-shielded, 2m Frequency of Each Channel: Channel Frequency Channel Frequency 121.8 5 kHz2 125 kHz Note: 1.The EUT is a Service Key Reader with a built-in 21.85 kHz, 125 kHz RFID transceiver. 2.These tests were conducted on a sample of the equipment for the purpose of demonstrating complian ce with Part 15 Subpart C Paragraph 15.209. T est ModeMode 1: Transmit Report No.: 2020041R-RFUSP20V00 Page : 5 of 32 1.3. Test System Details The types for all equipment, plus descriptions of all cables used in the tested system (including inserted cards) are: Product Manufacturer Model No. Serial No. Power Cord 1 Adapter ANSMANN ANHG0609 N/A N/A 2 PC DELL D19M N/A N/A 3 Monitor DELL P2314H CN-0G9D5T-74445-620-295S-A01 N/A 4 Tag Card IB N/A N/A N/A 5 Mouse Logitech U0026 N/A N/A 6 Keyboard Logitech K12…

Text truncated - open the document above for the full version.

Report No.: 2020041R-RFUSP17V00 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 2020041R-RFUSP17V00 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 2020041R-RFUSP17V00 Page : 3 of 3 Front View of Radiated Test Back View of Radiated Test
