QPUWLAN6060EBK802.11(b) Radio

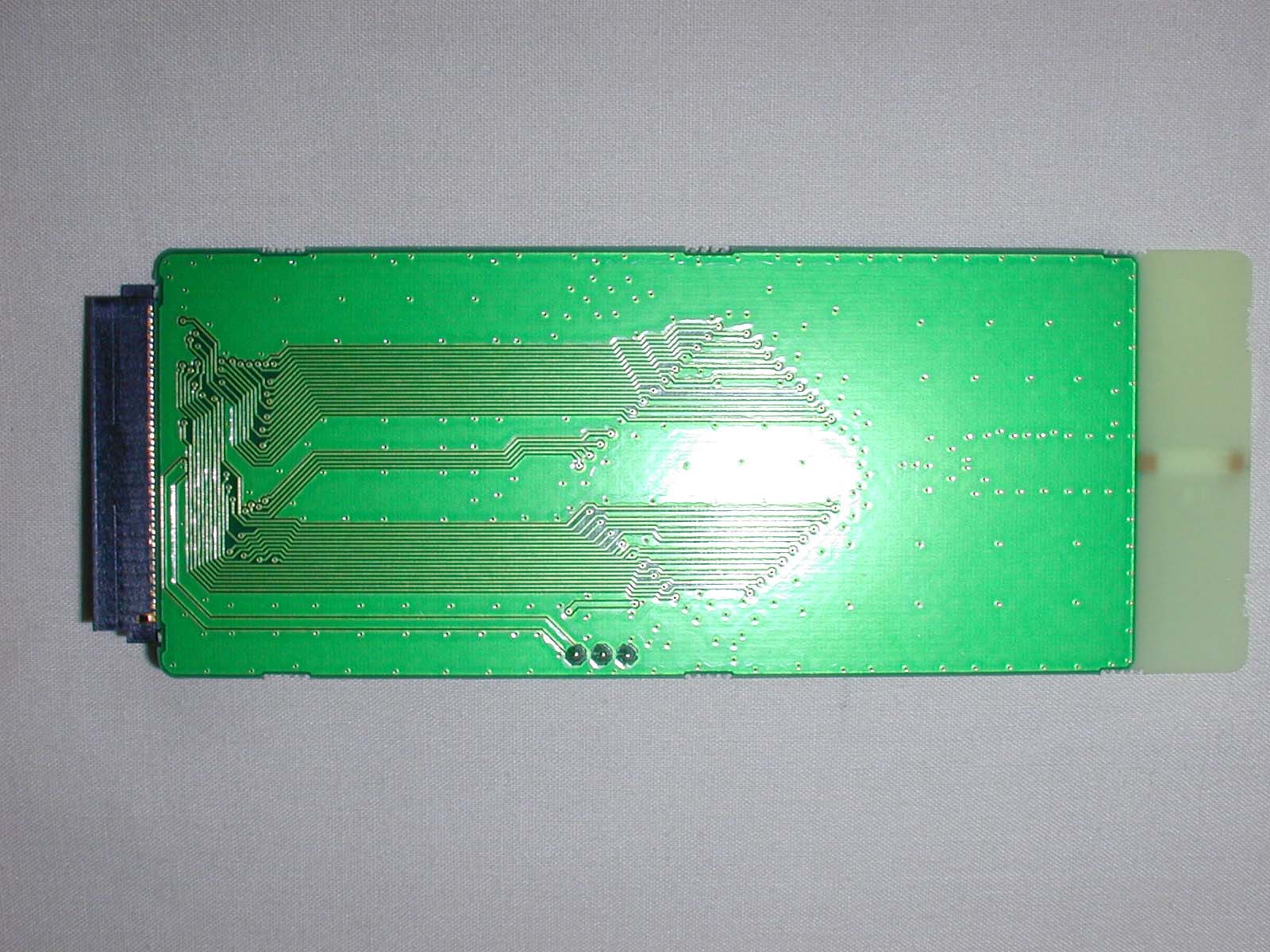

WLAN6060 Embedded Module Evaluation Kit User’s Guide 10/29/2002 (preliminary) Confidential Information Note: SyChip, Inc. reserves the right to make changes in specifications at anytime and without notice. The information furnished in this data sheet is believed to be accurate and reliable. However, no responsibility is assumed by SyChip for its use, nor any infringements of patents or other rights of third parties resulting from its use. No license is generated under any rights of SyChip or its supporters unless specifically agreed. WLAN6060EB EVK User’s Guide WLAN6060(EB/EC) EVK User’s Guide Revision Control Revision Date Author Engineering Approval Marketing Approval Operation Approval Mark Preliminary 10/29/2002 PG KS AM RC SyChip Confidential Page 2 of 17 SyChip_WLAN6060EB EVK WLAN6060EB EVK User’s Guide Table of Content 1 INTRODUCTION INFORMATION.......................................................................................................................4 1.1 Introduction....................................................................................................................................................................4 1.2 Scope................................................................................................................................................................................4 1.3 Preparation.....................................................................................................................................................................4 1.4 Supported Devices..........................................................................................................................................................5 2 INSTALLATION AND CONFIGURATION..........................................................................................................5 2.1 System Connection.........................................................................................................................................................5 2.2 Installing WLAN6060EB(EC) embedded module EVK and Software to Windows based notebook computer....5 2.3 Configuring WLAN6060EB(EC)..................................................................................................................................5 Status Tab..............................................................................................................................................6 Configuration Tab.................................................................................................................................7 Encryption Tab......................................................................................................................................8 About Tab..............................................................................................................................................9 2.4 Installing WLAN6060(EB/EC) embedded module and Software to Win CE devices..............................................9 2.5 Plug-in the module.........................................................................................................................................................9 2.6 Configuration................................................................................................................................................................10 2.6.1 Status Tab............................................................................................................................10 2.6.2 Configuration Tab...............................................................................................................11 2.6.3 Encryption Tab....................................................................................................................12 2.6.4 Advanced Setting Tab.........................................................................................................13 2.6.5 Host Scan Tab.....................................................................................................................14 2.6.6 About Tab............................................................................................................................16 2.7 Removing the EVK.......................................................................................................................................................16 3 TROUBLESHOOTING......................................................................................................................................16 4 DOCUMENTATION UPDATES........................................................................................................................17 5 CONTACT INFORMATION...............................................................................................................................17 SyChip Confidential Page 3 of 17 SyChip_WLAN6060EB EVK WLAN6060EB EVK User’s Guide 1 Introduction Information 1.1 Introduction WLAN6060 EVK from SyChip Inc provides a platform for testing SyChip WLAN embedded modules (WLAN6060EB for BGA version and WLAN6060EC for 60-pin connector version). Using easy to follow step by step directions, anyone can set up and configure a laptop computer to communicate with a host or enterprise hub. Some information will be needed about the network hub to enable communications. If you do not know your ESSID or your encryption algorithm, contact your in- house IT support person or system administrator. Warnings: THIS EQUIPMENT COMPLIES WITH PART 15 OF THE FCC RULES. ANY CHANGE OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. THIS DEVICE MUST BE INSTALLED IN A LOCATION THAT IS NOT ACCESIBLE TO THE GENERAL PUBLIC. INSTALL THE DEVICE SO THAT THE ANTENNA IS MORE THAN 5 cm FROM UNSUSPECTING PERSONNEL. FAILURE TO INSTALL THIS DEVICE AS DESCRIBED WILL RESULT IN A FAILURE TO COMPLY WITH FCC RULES FOR RF EXPOSURE AND IS DISCOURAGED. ONLY ANTENNAS APPROVED…

Text truncated - open the document above for the full version.

1) Why is this not a modular approval? May need modular approval. ANS: Device is an Evaluation Kit. 2) Conducted for power misspelled on grant note. ANS: Grant note Corrected 3) 2.5cm in grant note implies this is portable device where SAR limits apply. MPE estimate does not apply to show compliance for portable devices and may be misleading. Please clarify/harmonize grant notes and RFx evaluation if appropriate. ANS: MPE was provided for information purposes. Device is designed for use in computer on a desktop for evaluating 802.11 devices. 4) May need grant note that separate approval is required when installed in specific host devices for use in portable exposure conditions. ANS: Device is an Evaluation Kit, general public does not use the device. 5) May need grant note with 20cm instructions for use without additional evaluation in mobile exposure conditions. ANS: Please refer to #4 6) Why does grant list maximum antenna gain? Part 15 grants are only for specific antennas per 15.203 and 15.204(c). This grant note could imply that other antennas can be used without additional approvals. Please revise. ANS: After the recent TCB training, I discussed this with Joe Dichoso and I was informed the conducted power was listed for 15.247 devices and the antenna gain was listed in the notes. The grant note has been revised for clarity. 7) Is this grant for a BGA module, or for a module evaluation kit? Users manual exhibit is for eval. kit. Please submit installation and use instructions for BGA module. ANS: Device is an Evaluation Kit, used to evaluate 802.11 devices.

WLAN6060 Embedded Module Application Notes 09/27/2002 (Preliminary) Confidential Information Note: SyChip, Inc. reserves the right to make changes in specifications at anytime and without notice. The information furnished in this data sheet is believed to be accurate and reliable. However, no responsibility is assumed by SyChip for its use, nor any infringements of patents or other rights of third parties resulting from its use. No license is generated under any rights of SyChip or its supporters unless specifically agreed. WLAN6060 EMBEDDED MODULE APPICATION NOTES WLAN6060 Embedded Module Document Revision Control Revision Date Author Engineering Approval Marketing Approval Operation Approval Mark Preliminary 09/27/2002 PG KS AM RC WLAN6060 Product Series Product Footprint I/O to Host I/O to RF Antenna WLAN6060BB Embedded Module BGA/SMT CF/PCMCIACoaxial Connector External antenna required WLAN6060EB Embedded Module 60 pin interboard connector CF/PCMCIACoaxial Connector External antenna required WLAN6060SD Network Interface Card SDIO SDIO Internal No external antenna required SyChip Confidential Page 2 of 17 SyChip_WLAN6060 WLAN6060 EMBEDDED MODULE APPICATION NOTES Table of Contents 1. INTRODUCTION.............................................................................................................................4 2. ARCHITECTURE............................................................................................................................5 Block Diagram.............................................................................................................................................5 3. FUNCTIONAL DESCRIPTION.....................................................................................................6 4. SPECIFICATIONS...........................................................................................................................7 DC Electrical Specifications.......................................................................................................................7 RX/TX Specifications..................................................................................................................................7 Dimension.....................................................................................................................................................8 a) BGA version WLAN6060BB................................................................................................................8 b) 60-pin connector version WLAN6060EB........................................................................................... 11 5. TEST SETUP...................................................................................................................................13 Equipment Required.................................................................................................................................13 Test System................................................................................................................................................14 Receiver Test Procedure...........................................................................................................................14 Transmitter Test Procedure.....................................................................................................................15 6. TECHNICAL SUPPORT...............................................................................................................17 SyChip Confidential Page 3 of 17 SyChip_WLAN6060 WLAN6060 EMBEDDED MODULE APPICATION NOTES 1. Introduction SyChip Inc introduces the world smallest embedded Wireless LAN modules with the size of 25.0x22.5x3.0mm 3 (WLAN6060BB) and 25.0x25.0x4.5 mm 3 (WLAN6060EB). The module incorporates the popular wireless Ethernet standard, 802.11b. It supports BSS (Basic Service Set) and IBSS (Independent Basic Service Set) operation under DCF (Distributed Coordination Function), and operation under the optional PCF (Point Coordination Function). The module provides data rate of up 11Mbps. Through dynamic throughput management, the WLAN6060BB(EB) can adjust its transmit/receive speed to 1, 2, 5.5, or 11Mbps. This technique ensures that the module is performing at the optimal transmission rate for the range signal strength while consuming minimum power. With the form factor of 25.0x22.5x3.0mm 3 (WLAN6060BB) and 25.0x25.0x4.5 mm 3 (WLAN6060EB), the modules enable next generation PDAs, Cellular Phones, and Ultra-thin notebooks to access the Internet, transfer streaming video or audio, images or large files from a WLAN-enabled environment. Key Advantages: • World smallest WLAN(802.11b) modules with miniature size of 25.0x22.5x3.0mm 3 (WLAN6060BB) and 25.0x25.0x4.5 mm 3 (WLAN6060EB) • Firmware implements the full IEEE 802.11b Wireless LAN MAC protocol. • Internal WEP64/128 bit engine. • Programmable data rate: 1, 2, 5.5 and 11 Mbps. • Support short preamble. • Wi-Fi certifed SyChip Confidential Page 4 of 17 SyChip_WLAN6060 WLAN6060 EMBEDDED MODULE APPICATION NOTES 2. Architecture Block Diagram Figure 1. WLAN6060BB(EB) Block Diagram The design is robust. Utilizing separate chips for the Radio, Base band, and VCO functions enables SyChip to deliver a reliable, consistent product. The RF Transceiver integrated circuit includes an LNA, transmit pre-amplifier, quadrature up/down converter, synthesizer, low pass filter, and RX amplifier. It utilizes Direct Conversion technology, eliminating the need for intermediate-frequency mixer(s), amplifier and filter components. The versatile design of the WLAN6060BB(EB) enables programming of the RF channel frequency from 2.4 GHz to 2.5 GHz in steps of 1 MHz. This covers all of the RF channels frequencies specified in 802.11b standard. The Baseband Processor is a highly integrated Baseband/MAC . The host interface supports PCMCIA, and CF card applications. SyChip Confidential Page 5 of 17 SyChip_WLAN6060 WLAN6060 …

Text truncated - open the document above for the full version.

WLAN6060 Embedded Module Data Sheet 09/27/2002 (Preliminary) Confidential Information Note: SyChip, Inc. reserves the right to make changes in specifications at anytime and without notice. The information furnished in this data sheet is believed to be accurate and reliable. However, no responsibility is assumed by SyChip for its use, nor any infringements of patents or other rights of third parties resulting from its use. No license is generated under any rights of SyChip or its supporters unless specifically agreed. WLAN6060 EMBEDDED MODULE DATA SHEET WLAN6060 Embedded Module Document Revision Control Revision Date Author Engineering Approval Marketing Approval Operation Approval Mark Preliminary 09/27/2002 PG KS AM RC WLAN6060 Product Series Product Footprint I/O to Host I/O to RF Antenna WLAN6060BB Embedded Module BGA/SMT CF/PCMCIACoaxial Connector External antenna required WLAN6060EB Embedded Module 60 pin interboard connector CF/PCMCIACoaxial Connector External antenna required WLAN6060SD Network Interface Card SDIO SDIO Internal No external antenna required SyChip Confidential Page 2 of 12 SyChip_WLAN6060 WLAN6060 EMBEDDED MODULE DATA SHEET Table of Content 1. ARCHITECTURE............................................................................................................................4 Block Diagram.............................................................................................................................................4 Figure 1. WLAN6060BB(EB) Block Diagram.......................................................................................4 2. FUNCTIONAL DESCRIPTION.....................................................................................................5 3. SPECIFICATIONS...........................................................................................................................6 DC Electrical Specifications.......................................................................................................................6 RX/TX Specifications..................................................................................................................................6 Dimension.....................................................................................................................................................7 a) BGA version WLAN6060BB..............................................................................................................7 b) 60-pin connector version WLAN6060EB........................................................................................10 4. TECHNICAL SUPPORT...............................................................................................................12 SyChip Confidential Page 3 of 12 SyChip_WLAN6060 WLAN6060 EMBEDDED MODULE DATA SHEET 1. Architecture Block Diagram Figure 1. WLAN6060BB(EB) Block Diagram The design is robust. Utilizing separate chips for the Radio, Base band, and VCO functions enables SyChip to deliver a reliable, consistent product. The RF Transceiver integrated circuit includes an LNA, transmit pre-amplifier, quadrature up/down converter, synthesizer, low pass filter, and RX amplifier. It utilizes Direct Conversion technology, eliminating the need for intermediate-frequency mixer(s), amplifier and filter components. The versatile design of the WLAN6060BB(EB) enables programming of the RF channel frequency from 2.4 GHz to 2.5 GHz in steps of 1 MHz. This covers all of the RF channels frequencies specified in 802.11b standard. The Baseband Processor is a highly integrated Baseband/MAC . The host interface supports PCMCIA, and CF card applications. SyChip Confidential Page 4 of 12 SyChip_WLAN6060 WLAN6060 EMBEDDED MODULE DATA SHEET 2. Functional Description WLAN6060BB(EB) CF/PCMCIA Host Device (PC/PDA) Figure 2. WLAN6060BB(EB) Functional Interface Diagram WLAN6060BB(EB) is a completed WLAN(802.11b) system and only an external antenna needs to be implemented as a standalone unit or as a plug-and-play module in different applications. The RF function provides programming of the RF channel frequency from 2.4 GHz to 2.5 GHz in steps of 1 MHz. This covers all of the RF channels frequencies specified in 802.11b standard. The RF channel frequency for transmission and reception is stable with 25kHz of its final value, 0.75ms after reprogramming or switching from sleep mode to receive mode. WLAN6060BB(EB) delivers the wireless connection with data rates of 1Mbps, 2Mbps, 5.5Mbps, and 11Mbps in various environments. A control circuit within the module selects the data rate and power level ensuring optimum performance at the lowest possible power levels at all times. WLAN6060BB(EB) supports 802.11 WEP 64/128 bit security standard. Future versions will support LEAP and 802.1x. WLAN6060BB(EB) currently supports Windows 2000/NT/XP and Win CE3.0 Operating System. Future versions will include Win CE.NET and Palm OS. SyChip Confidential Page 5 of 12 SyChip_WLAN6060 WLAN6060 EMBEDDED MODULE DATA SHEET 3. Specifications DC Electrical Specifications Parameter Condition Min Typical Max Units Supply Voltage(Vcc) 3.0 3.3 3.6 V Current (Receiving) 3.3V TBD mA Current (Transmitting) Pout = 12.5dBm @3.3V TBD mA Current (Standby ) 3.3V TBD mA Current (Sleep) 3.3V TBD μA Logic high input 0.7Vcc V Logic low input 0.3Vcc V Logic high output Vcc – 0.2 V Logic low output 0.1 0.2 V Operating Temperature -30 +70 °C Storage Temperature -40 +85 °C I/O Interface PCMCIA/CF RX/TX Specifications Physical Layer Data Rate 1 Mbps 2 Mbps 5.5 Mbps 11 Mbps Frequency Range 2400 2500 MHz Step Size 1 MHz Output Power 3.3V, 25°C 12.5 dBm Transmit Spectral Mask 1 st Side-lobe, 3.3V -30 dBc Transmit Spectral Mask 2 nd Side-lobe, 3.3V -50 dB Sensitivity 1Mbps, FER 8%, 3.3V -80* -90 dBm 2Mbps, FER 8%, 3.3V -80* -88 dBm 5.5Mbps, FER 8%, 3.3V -76* -87 dBm 11Mbps, FER 8%, 3.3V -76* -83 dBm * IEEE802.11 compliant SyChip Confidential Page 6 of 12 SyChip_WLAN6060 WLAN6060 EMBEDDED MODULE DATA SHEET…

Text truncated - open the document above for the full version.

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:16.90(dBm) Maximum peak output power at antenna input terminal:48.97788(mW) Antenna gain(typical):3(dBi) Maximum antenna gain:1.995262(numeric) Prediction distance:5(cm) Prediction frequency:2400(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.311064(mW/cm^2) 2 4R PG S π =

Nemko Test Report: 2L0523RUS1 Applicant: Sychip, Inc 2805 North Dallas Parkway Suite 400 Plano, TX 75093 Equipment Under Test: WLAN 6060 BGAEVK (E.U.T.) In Accordance With: FCC Part 15, Subpart C, 15.247 Direct Sequence Spread Spectrum Transmitters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Tom Tidwell, RF Group Manager Date: 10/29/02 Total Number of Pages: 44 Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: WLAN 6060 BGAEVK PROJECT NO.: 2L0523RUS1 Page 2 of 2 Table of Contents Section 1. Summary of Test Results..................................................................3 Section 2. Equipment Under Test (E.U.T.)........................................................5 Section 3. Powerline Conducted Emissions.......................................................7 Section 4. Minimum 6 dB Bandwidth.............................................................11 Section 5. Maximum Peak Output Power........................................................15 Section 6. RF Exposure..................................................................................16 Section 7. Spurious Emissions (conducted).....................................................17 Section 8. Spurious Emissions (radiated)........................................................22 Section 9. Peak Power Spectral Density..........................................................26 Section 10. Test Equipment List.........................................................................30 ANNEX A - TEST DETAILS.............................................................................31 ANNEX B - TEST DIAGRAMS.........................................................................41 Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: WLAN 6060 BGAEVK PROJECT NO.: 2L0523RUS1 Page 3 of 3 Section 1. Summary of Test Results Manufacturer: Sychip, Inc. Model No.: WLAN 6060 BGAEVK Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.247 for Direct Sequence Spread Spectrum devices. Radiated tests were conducted is accordance with ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: WLAN 6060 BGAEVK PROJECT NO.: 2L0523RUS1 Page 4 of 4 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT Powerline Conducted Emissions 15.207(a) 48 dBμV Complies Minimum 6 dB Bandwidth 15.247(a)(2) >500 kHz Complies Maximum Peak Power Output 15.247(b)(1) <1 Watt Complies Spurious Emissions (Antenna Conducted) 15.247(c) -20 dBc/100kHz Complies Spurious Emissions (Restricted Bands) 15.247(c) < 74 dBuV/m Peak < 54 dBuV/m Avg Complies Peak Power Spectral Density 15.247(d) +8 dBm/3kHz Complies Footnotes: Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: WLAN 6060 BGAEVK PROJECT NO.: 2L0523RUS1 Page 5 of 5 Section 2. Equipment Under Test (E.U.T.) General Equipment Information Frequency Band: 902 – 928 MHz 2400 – 2483.5 MHz 5725 – 5850 MHz Tuning Range: 2412 – 2462 MHz Channel Spacing: 5 MHz User Frequency Adjustment: Software controlled Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: WLAN 6060 BGAEVK PROJECT NO.: 2L0523RUS1 Page 6 of 6 Description of EUT WLAN6060 EVK from SyChip Inc provides a platform for testing SyChip WLAN embedded modules (WLAN6060BB for BGA version and WLAN6060EB for 60-pin connector version). System Diagram Refer to separate exhibit. Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: WLAN 6060 BGAEVK PROJECT NO.: 2L0523RUS1 Page 7 of 7 Section 3. Powerline Conducted Emissions NAME OF TEST: Powerline Conducted Emissions PARA. NO.: 15.207(a) TESTED BY: David Light DATE: 10/28/2002 Test Results: Complies. Measurement Data: See attached plots. Measurement Uncertainty: +/- 1.7 dB Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: WLAN 6060 BGAEVK PROJECT NO.: 2L0523RUS1 Page 8 of 8 Test Data – Powerline Conducted Emissions Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of2 Complete X Job No.:2L0523R Date:10/28/2002Preliminary: Specification:15.207Temperature(°C):24 Tested By:David LightRelative Humidity(%)50 E.U.T.: Configuration: Sample Number:1 Location:Lab 2RBW:10 kHzMeasurement Detector Type:PeakVBW:10 kHz Distance: NAm Test Equipment Used Antenna: Directional Coupler: L.I.S.N.1258Cable #1:1988 Filter:1555Cable #2:1547 Receiver:1036Cable #3: Attenuator #1 Cable #4: Attenuator #2: Limiter:674 Additional equipment used: Measurement Uncertainty:+/-1.7 dB Notes: Powerline Conducted Emissions LINE L1 802.11B RADIO TX FULL POWER - INSTALLED IN LAPTOP Nemko Dallas FCC PART 15, SUBPART C DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER EQUIPMENT: WLAN 60…

Text truncated - open the document above for the full version.
