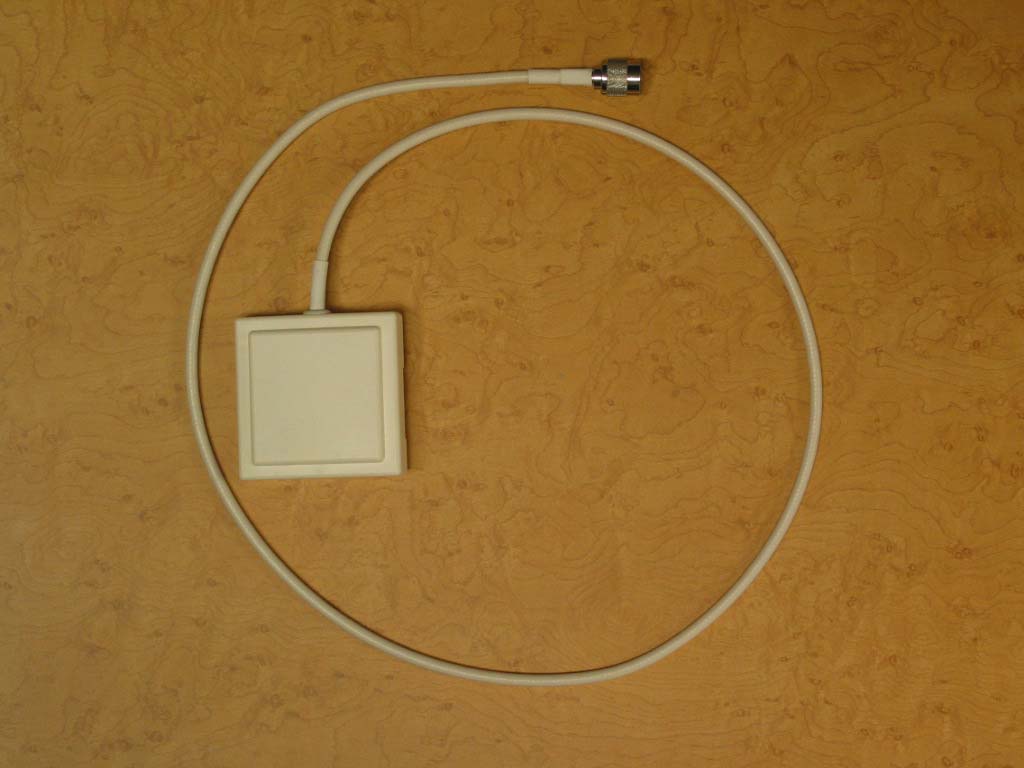

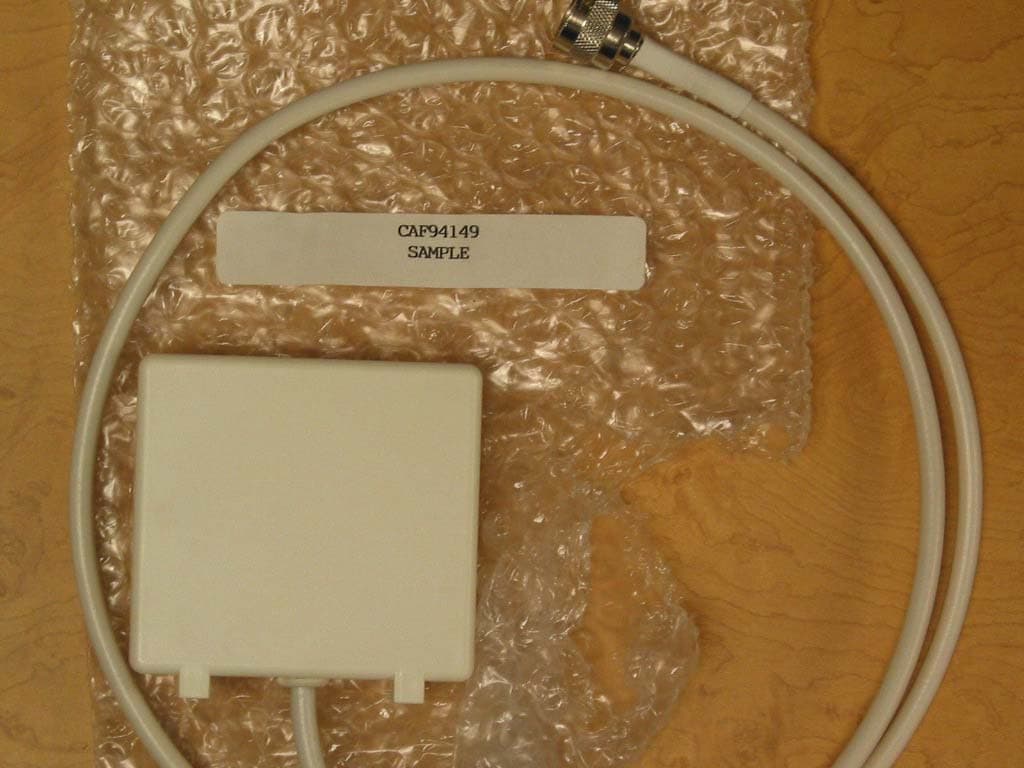

QTZWNAP1200B2.4 GHz 802.11 Access Point

3/18/03Copyright © 2003, Airespace, Inc. All Rights Reserved. Airespace AP 802.11a Radio Card Quick Installation Guide Airespace AP 802.11a Radio Card Quick Instal- lation Guide System Release 1.1 Overview This guide is designed to provide professional installers with the information needed to install an Airespace AP 802.11a Radio Card in a 1200B Airespace Access Point to create a 1200AB Airespace Access Point. WARNING: DO NOT attempt to install the Airespace AP 802.11a Radio Card if you are not a professional installer certified by Airespace, Inc. to perform this installation. If you perform this installation without Airespace, Inc. certification, you will void the FCC certification for the resulting 1200AB Airespace AP, and will be in violation of FCC regula- tions. (See FCC Statements for Airespace AP in the Airespace Product Guide for additional information.) The following figure shows a typical 802.11a Radio Card. Figure - Typical Airespace AP 802.11a Radio Card Continue with Step 1: Collecting Required Tools and Materials. 3/18/03Step 1: Collecting Required Tools and Materials2 Step 1: Collecting Required Tools and Materials Step 1: Collecting Required Tools and Materials •Airespace AP 802.11a Radio Card kit -- includes 802.11a Radio Card and replacement FCC label. •Correct Security Torx screwdriver (exact size to be determined). •1200B Airespace Access Point to be upgraded to a 1200AB Access Point. See Airespace AP Models for more information. •A power source for the Airespace AP: -Either an Airespace AP External Power Converter, or -A connection from an 802.3af-compliant Power Over Ethernet device. •A separate WiFi-approved device (such as Air Magnet) used to detect and verify 802.11a transmissions. Continue with Step 2: Setting up an ESD Workspace. 3/18/03Step 2: Setting up an ESD Workspace3 Step 2: Setting up an ESD Workspace Step 2: Setting up an ESD Workspace You need an Electrostatic Discharge (ESD) workspace to complete this instal- lation. Because the 802.11a Radio Card is very sensitive to electrostatic discharge, you can destroy it by not following ESD procedures. Caution: DO NOT attempt to install the Airespace AP 802.11a Radio Card if you do not have an ESD workplace, or you may destroy the 802.11a Radio Card. Continue with Step 3: Opening the Airespace AP Case. 3/18/03Step 3: Opening the Airespace AP Case4 Step 3: Opening the Airespace AP Case Step 3: Opening the Airespace AP Case •If necessary, remove any brackets and/or mounting bases from the bottom of the Airespace AP. •Use your Security Torx screwdriver to remove the two screws securing the Airespace AP door. Save the two screws for later reuse. Figure - Airespace AP Screw Locations 3/18/03Step 3: Opening the Airespace AP Case5 •Remove the Airespace AP door. Note that the 1200B has two RF cable ends taped to the inside of the case, one labeled “1” and the other labeled “2”. •Remove the tape to release the two RF cable ends. Figure - Airespace AP with Door Removed Continue with Step 4: Installing the 802.11a Radio Card. 3/18/03Step 4: Installing the 802.11a Radio Card6 Step 4: Installing the 802.11a Radio Card Step 4: Installing the 802.11a Radio Card •Take a moment to ensure that your ESD workspace is secure: wrist strap, desktop mat, floormat and/or heel strap properly grounded. Caution: Even if you are working at an ESD workspace, you can still damage the 802.11a Radio Card. Make sure you pick up the 802.11a Radio Card by the edges as shown in the following figure, and do not touch the connector fingers. Figure - Holding the 802.11 Radio Card by the Edges •Remove the 802.11a Radio Card from its kit and position the card on the edge of the Airespace AP case as shown in the previous figure. 3/18/03Step 4: Installing the 802.11a Radio Card7 •While holding the 802.11a Radio Card on the edge of the Airespace AP, gently snap the RF cable labeled “1” onto the RF connector nearest the corner of the 802.11a Radio Card. When you are done, the assembly should look as follows: Figure - 802.11a Radio Card with RF Cable "1" Attached 3/18/03Step 4: Installing the 802.11a Radio Card8 •Rotate the AP 802.11a Radio Card and position the card on the middle of the Airespace AP case as shown in the next figure. •While holding the 802.11a Radio Card on the middle of the Airespace AP, gently snap the RF cable labeled “2” onto the RF connector nearest the center of the 802.11a Radio Card. •When you are done, the assembly should look as follows: Figure - 802.11a Radio Card with RF Cables "1" and "2" Attached 3/18/03Step 4: Installing the 802.11a Radio Card9 •Carefully rotate the 802.11a Radio Card as shown in the following figure. •Make sure the RF cables are not pinched under the 802.11a Radio Card (small arrow). •Position the 802.11a Radio Card against its mating connector at a shallow angle (large arrow). •Gently press the 802.11a Radio Card all the way into its mating connector until it bottoms out in the connector (large arrow). Figure - Positioning the 802.11a Radio Card in the Airespace AP Case 3/18/03Step 4: Installing the 802.11a Radio Card10 •When you are done, make sure the RF cables are not pinched, and gently snap the 802.11a Radio Card into its retaining detents as shown in the next figure. Figure - Gently Snapping the 802.11a Radio Card into its Retaining Detents 3/18/03Step 4: Installing the 802.11a Radio Card11 •When you are done, the 802.11a Radio Card is secured in its retaining detents as shown in the following figure. Figure - 802.11a Radio Card Installed in the Airespace AP Case You have installed the 802.11a Radio Card in the Airspace AP. Continue with Step 5: Verifying 802.11a Operation. 3/18/03Step 5: Verifying 802.11a Operation12 Step 5: Verifying 802.11a Operation Step 5: Verifying 802.11a Operation You have added 802.11a functionality to a 1200B Airespace AP. Perform the following to verify correct 802.11a operation. •Enable the Site Survey function by placing the factory-supplied jumper across both of the Si…

Text truncated - open the document above for the full version.

Copyright © 2003 Airespace, Inc. All Rights Reserved. 1 Airspace Access Point (AP) Installation Guide Airespace System 1.0: March 17, 2003 Airespace, Inc. 110 Nortech Parkway San Jose, CA 95134 1-408-635-2000 www.airespace.com Copyright © 2003 Airespace, Inc. All Rights Reserved. 2 Legal Information Disclaimer Airespace™ and Airespace AP™ are trademarks of Airespace, Inc. All other trademarks, service marks, and product names used in this document are the property of their respective owners. U.S.A. Government Restricted Rights (tbd) Applicable Laws (tbd) Copyright © 2003 Airespace, Inc. All Rights Reserved. 3 FCC Statements This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. RF Radiation Hazard Warning To ensure compliance with FCC RF exposure requirements, this device must be installed in a location such that the antenna of the device will be greater than 20 cm (8 in.) from all persons. Using higher gain antennas and types of antennas not covered under the FCC certification of this product is not allowed. Note: No 802.11a external antennas are currently certified or available in this release. Contact Airespace, Inc. for a list of FCC-approved 802.11b external antennas. Installers of the radio and end users of the system must adhere to the installation instructions provided in this manual. Non-Modification Statement Use only the supplied internal antenna, or external antennas supplied by the manufacturer. Unauthorized antennas, modifications, or attachments could damage the badge and could violate FCC regulations and void the user’s authority to operate the equipment. Copyright © 2003 Airspace, Inc. All Rights Reserved. 4 Table of Contents Airspace Access Point (AP) Installation Guide 1 Legal Information 2 Disclaimer 2 Trademarks and Service Marks 2 U.S.A. Government Restricted Rights 2 Applicable Laws 2 FCC Statements 3 RF Radiation Hazard Warning 3 Non-Modification Statement 3 Table of Contents 4 About this Guide 5 About the Airespace Access Point 6 About Airespace AP Models and Upgrade Card 9 About the Airespace AP 802.11a Radio Card 10 About Internal and External Airespace AP Antennas 11 About Airespace AP LEDs 12 About Airespace AP Connectors 13 About Airespace AP Physical Security 14 About Power Over Ethernet 15 Installing Airespace APs 16 Planning Airespace AP Locations 17 Mounting Airespace APs 18 Copyright © 2003 Airespace, Inc. All Rights Reserved. 5 About this Guide The Airespace Access Point (AP) Installation Guide allows installation planners, network administrators, and installers to work together to install Airespace APs in a target environment. Refer to the following sections for more information about the Airespace AP. Copyright © 2003 Airespace, Inc. All Rights Reserved. 6 About the Airespace Access Point The Airespace AP is a part of the innovative Airespace System. When associated with an Airespace 4000 Switch as shown in the following figure, the Airespace AP provides advanced 802.11a and/or 802.11b AP functions in a single sleek enclosure, including unmatched scalability and security solutions for enterprises and Wireless ISPs. In the Airespace System, most of the processing power is removed from a traditional AP to the Airespace Switch. Airespace Switch and APs Copyright © 2003 Airspace, Inc. All Rights Reserved. 7 The following figure shows an Airespace AP with the optional ceiling mount base. Airespace AP with Ceiling Mount Base Refer to the following for more information on Airespace APs: • Airespace AP Models • Airespace AP 802.11a Radio Cards • Internal and External Airespace AP Antennas • About Ethernet Cabling • Airespace AP LEDs • Airespace AP Connectors • Airespace AP Power Requirements • Airespace AP External Power Converter • About Power Over Ethernet (PoE) • Airespace AP Physical Security • Airespace AP Automatic Software Upgrades • Airespace AP Specifications • Installing Airespace APs Copyright © 2003 Airspace, Inc. All Rights Reserved. 8 Copyright © 2003 Airespace, Inc. All Rights Reserved. 9 About Airespace AP Models and Upgrade Card The Airespace AP includes one 802.11a radio (1200A), one 802.11b radio (1200B), or one 802.11a and one 802.11b radio (1200AB). As an added feature, the 1200B Airespace AP can be updated by the customer with an 802.11a radio, allowing for current 802.11b coverage and future 802.11a coverage by the same Airespace AP. Refer to the Airespace AP 802.11a Radio Card section for information on the field-installable radio that adds 802.11a capability to an existing 802.11b Airespace AP. The Airespace AP comes in the following configurations: • Model 1200A - Airespace AP with one 802.11a radio and two high-gain internal antennas • Model 1200B - Airespace AP with one 802.11b radio and four high-gain internal antennas; can be upgraded to a 1200AB by adding an 802.11a Radio Card • Model 1200AB - Airespace AP with one 802.11a and one 802.11b radio and four high-gain internal antennas The following upgrade card is also available: • 802.11a Radio Card -Professionalinstallers can add this card to a 1200B to create a 1200AB Airespace AP The Airespace AP is shipped with a color-coordinated ceiling mount base, and projection and flush wall mount brackets. These brackets and base allow quick mounting to ceiling, wall or pole: • Ceiling Mounting Kit - Allows you to mount the Airespace AP on any horizontal surface • Flush Wall Mount Kit - Allow…
