B a nd pa ss F ilte r a nd Antennal Matching N et wor k Radio F r equency Amplif ie r Demodulator L o w Pa ss F ilte r Automa tic Ga in Control MODEL: 06302, 06702 Block Diagram CPU Antenna DRA W N: LINDA CHECKED: LAI APPROVED: LIBER T Y TECHNOLOGY CO., L T D.

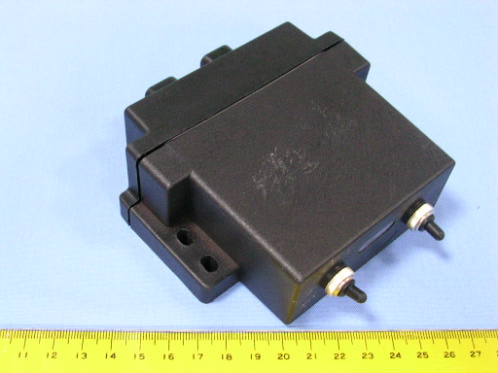

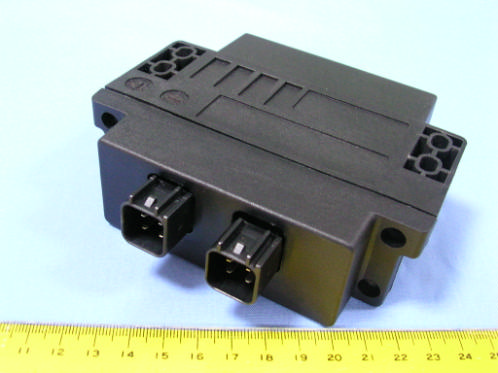

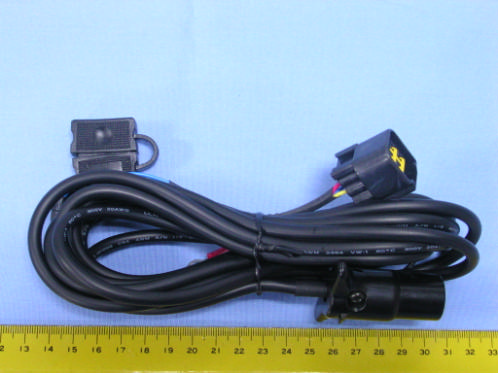

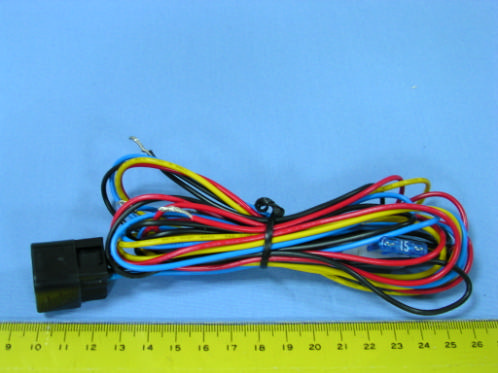

PHOTOS OF EUT PHOTOS OF EUT ANTENNA PHOTOS OF EUT CABLE (Model No.: 06702) (Model No.: 06302) PHOTOS OF EUT CABLE

Sample of FCC ID Label

PHOTOS OF EUT PHOTOS OF EUT ANTENNA

FCC ID: QUUWK37 Operational Description of the equipment This is a superregenerative receiver and the receiver part of a remote controller which is designed to use in a vehicle. The detailed circuit functions are described as below: PRODUCT Utility Winch Wireless Control MODEL NO. 06302, 06702 POWER SUPPLY DC 5V, 5mA CABLE 1.4m unshielded power cable, 2.7m unshielded antenna cable I/O PORT/INTERFACE N/A OPERATING FREQUENCY 433.92MHz NUMBER OF CHANNEL 1 MODULATION TYPE ASK MODE OF OPERATION Simplex BIT RATE OF TRANSMISSION 4KHz ANTENNA TYPE Integral antenna ANTENNA GAIN 0dBi NOTE: The EUT is the receiver part of a remote controller which is designed to use in a vehicle. The EUT has two model numbers as above on market. They are identical in all aspects except for winch cable. The model no.: 06702 was chosen as the representative for testing. For more detailed information, please refer to the EUT’s specification or user’s manual provided by manufacturer.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 Date: 23-Feb- 2004 Sheet of File: D:\ 賴的資 ~1\SCH_DWG\S203032.SCH Drawn By: WINCH RF ( 433.92M ) 1 Lai N OTE: ( 1 ) FRE Q UENCY : 433.92MHZ RX. A On board C1 2P7 C3 1P5 C22P7 C4 1P5 On board C5 27P Q1 PBR951 R2 560R R3 100K L1 1UH C8470P C6 2P7 Q2PBR951 R4 47K R6 15K L2 2.2UH C10 1P5 L3 1.5T C11 5P C7 47P R5 39K C12 330P R7 6K8 C9 470P R8 3K3 C14 472 ANTENNA U1 : LM358 R9 2K2 56 7 C15 68P R10 1M5 R12 2K2 C16105 R11 100K TEST POINT 1 23 R13 10K R15 10M C18104 R14 68K C17 102 C19 104 48 R16 2K2 DATA O/P +5V U1A U1B C13 47U/10V R1 56R +5V REVISIONS REV DESCRIPTION LIBERTY TECHNOLOGY CO., LTD.Model: PCB No.:Drg. No.: Date: RevisionSheet: OF Drawn By Enginner Checked By NOTE : 1234 5678 +5V 93C46 CS CLK DI DO VSSVDDNC U3 C2 1000uf/50V L1 120UH C3 1000uf/50V Vin 1 GND 3 +5V 2 U1 7805 C4 47uf/16V +5V +12VIN C1330K +5V R41K R510K Q1733 R647K D3 3.3V 1/4W XT4MHz C7104 +5V 5346789 1011121314 2003 12345 6 7 8 910 111213 141516 17 18 RA0 RA1 RA2RA3 RB0RB1RB2RB3RB4 RB5RB6RB7 T0CKI /MCLR/VPPVSS VDD OSC1 OSC2 PIC16C54C U2 U4 S2040381 A KIT#3,KIT#7 93/07/13 +5V R1147K RF R7 100R RL1 RL2 IGN IGN ORW-SS-112D ORW-SS-112D COM1 ( MOTOR 1 )COM2 ( MOTOR 2 ) R12N/CR1347K +5V 215116 R1410K R310K R233K D6 1N4004 D4 1N4004 LED2 R15 1K C5104 D24.7V R1 100K R1047K R947K R847K C6104 D51N5398 D7 1N5398 +5V +5V 1/2W D8 1N4004 NC NC 11 RED 4.8mm, w/90 holder P2040291 C8104 NCNCNCNC NC NC NCNCNCNC +12VIN +12VIN R16 100R 2W/F D1 27V/1W NC IGN Linda 93 07 13 SW1 7011-K1C1T1U+W-70A-BK +12VIN Module R1922R SW27016-K1C1T1U+W-70A-BK IGN NO NO R183K3 LED3 DUAL COLOR C9 1000uf/25V R171K LED1GREEN

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04092302 Report No.: FCCA04092302 Page: 2 of 15 Date:Oct. 08, 2004 FCC ID: QUUWK37 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................3 1.1 DOCUMENT POLICY.........................................................................................3 1.2 TEST STATEMENT............................................................................................3 1.3 EUT MODIFICATION..........................................................................................3 2. DESCRIPTION OF EUT AND TEST MODE.......................................................4 2.1 GENERAL DESCRIPTION OF EUT...................................................................4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE....................................................4 2.3 DESCRIPTION OF TEST MODE.......................................................................4 2.4 DESCRIPTION OF SUPPORT UNIT..................................................................5 3. DESCRIPTION OF APPLIED STANDARDS......................................................5 4. CONDUCTED EMISSION TEST........................................................................6 4.1 CONDUCTED EMISSION LIMIT........................................................................6 4.2 TEST EQUIPMENT............................................................................................6 4.3 TEST SETUP.....................................................................................................7 4.4 TEST PROCEDURE..........................................................................................7 4.5 EUT OPERATING CONDITION.........................................................................7 4.6 TEST RESULT...................................................................................................8 5. RADIATED EMISSION TEST.............................................................................9 5.1 RADIATED EMISSION LIMIT.............................................................................9 5.2 TEST EQUIPMENT............................................................................................9 5.3 TEST SET-UP..................................................................................................10 5.4 TEST PROCEDURE........................................................................................11 5.5 EUT OPERATING CONDITION.......................................................................11 5.6 RADIATED EMISSION TEST RESULT............................................................12 5. PHOTOS OF TESTING....................................................................................13 6. TERMS OF ABRIVATION.................................................................................15 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04092302 Report No.: FCCA04092302 Page: 3 of 15 Date:Oct. 08, 2004 FCC ID: QUUWK37 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - DC power source, 5V, was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04092302 Report No.: FCCA04092302 Page: 4 of 15 Date:Oct. 08, 2004 FCC ID: QUUWK37 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Utility Winch Wireless Control MODEL NO. 06302, 06702 POWER SUPPLY DC 5V, 5mA CABLE 1.4m unshielded power cable, 2.7m unshielded antenna cable I/O PORT/INTERFACE N/A OPERATING FREQUENCY 433.92MHz NUMBER OF CHANNEL 1 MODULATION TYPE ASK MODE OF OPERATION Simplex BIT RATE OF TRANSMISSION 4KHz ANTENNA TYPE Integral antenna ANTENNA GAIN 0dBi NOTE: The EUT is the receiver part of a remote controller which is designed to use in a vehicle. The EUT has two model numbers as above on market. They are identical in all aspects except for winch cable. Pre-scan had been performed and the worst-case cable, model: 06302 (longer one), was selected for the final test. For more detailed information, please refer to the EUT’s specification or user’s manual provided by manufacturer. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKER MODEL # FCC ID/DOC REMARK N/A 2.3 DESCRIPTION OF TEST MODE N/A (It is only applicable to more than one test mode.) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04092302 Report No.: FCCA04092302 Page: 5 of 15 Date:Oct. 08, 2004 FCC ID: QUUWK37 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4: 2003. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. NO DEVICE BRAND MODEL # FCC ID/DOC CABLE 1 FAN GLOBE FAN B011388 N/A 0.1m unshielded power cable 2 FAN GLOBE FAN B011388 N/A 0.1m unshielded power cable 3 CW SIGNAL GENERATOR AGILENT 8648D N/A 1.5m unshielded power cable NOTE: For the actual test configuration, please refer to the photos of testing. 3. DESCRIPTION OF APPLIED STANDARDS The EUT is a superregenerative receiver and per ANSI C63.4:2003 and IC RSS- 210:2001, an external CW signal generator was used to cohere the receiver. Spectrum Research & Testing L…
