1 Steve Cheng 寄件者: [email protected] 寄件日期: 2004年10月14日星期四 上午 11:08 收件者: [email protected] 副本: [email protected] 主旨: RE(2): application FCC ID (Superwinch Inc. - Wireless Power Drive Control - FCC ID: QUUWK4) 附件: MANUAL.doc MANUAL.doc (1 MB) Applicant: Superwinch Inc. EUT: Wireless Power Drive Control FCC ID: QUUWK4 Dear Steve, The EUT was tested according to the requirement of ANSI C63.4. The cohere signal was used single-tone CW Signal Generator to trigger the receiver circuit. Also, the power is adaptive strength enough to enable the receiver accurate action. We have corrected users manual, please see the attached file: MANUAL.doc Please feel free to contact us if you have any questions. Meantime, your help will be deeply appreciated. Thank you! Best Regards, SRT/Joanne^O^ (See attached file: MANUAL.doc) ----- 轉呈者 joanne wang/srt1 於 2004/10/13 01:32 PM ----- Steve Cheng <stevecheng@shaw. 收件人： [email protected] ca> 副本抄送： Ho Johnson <[email protected]> 主旨： 申請ID問題 - 利寶A04082014 - FCC ID: QUUWK4 2004/09/18 10:46 AM TCB Review Questions for Superwinch QUUWK4 -EMC- Question #1: Per ANSI C63.4 a cohere signal need to use in order to trigger the receiving circuit. However test setup seems does not show this setup. Please explain if this test scheme has been used in the test? 2 Question #2: Users manual Missing 15.21 & 15.105 information to the user. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best Regards Steve Cheng / Technical Reviewer FCC TCB, IC FCB, EU CAB (Notify Body) Bay Area Compliance Laboratory Corp. 230 Commercial Street Sunnyvale, CA 94085 Tel: 408-732-9162 or 403-241-8826 Fax: 408-732-9164 [email protected]

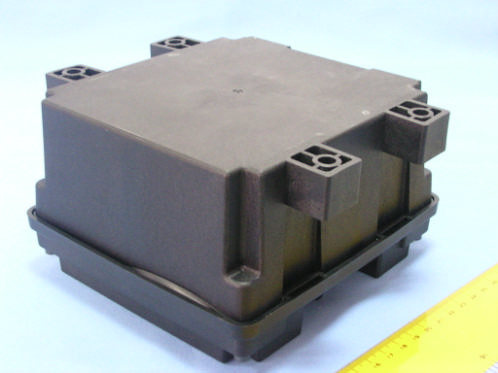

PHOTOS OF EUT

Sample of FCC ID Label This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference and (2) Tis device must accept any interference received, including interference that cause undesired operation. FCC ID: QUUWK4

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 1 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 2 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 3 PHOTOS OF EUT

FCC ID: QUUWK4 Operational Description of the equipment This is a superregenerative receiver and the receiver part of a remote controller which is designed to use in a vehicle. The detailed circuit functions are described as below: PRODUCT Wireless Power Drive Control MODEL NO. 06402 POWER SUPPLY DC 5V, 8.5mA CABLE N/A I/O PORT/INTERFACE N/A OPERATING FREQUENCY 433.92MHz NUMBER OF CHANNEL 1 MODULATION TYPE ASK MODE OF OPERATION Simplex BIT RATE OF TRANSMISSION 4KHz ANTENNA TYPE Helical antenna ANTENNA GAIN -2dBi NOTE: The EUT is the receiver part of a remote controller which is designed to use in a vehicle.

REVISIONS REV DESCRIPTION LIBERTY TECHNOLOGY CO., LTD.Model: PCB No.:Drg. No.: Date: RevisionSheet: OF Drawn By Enginner Checked By NOTE : 1234 5678 +5V 93C46 CS CLK DI DO VSSVDDNC U3 C2 1000uf/50V L1 120UH C3 1000uf/50V Vin 1 GND 3 +5V 2 U1 7805 C4 47uf/16V +5V +12V C1330K +5V R41K R510K Q1733 R647K D3 3.3V 1/4W XT4MHz C7104 +5V 5346789 1011121314 2003 12345 6 7 8 910 111213 141516 17 18 RA0 RA1 RA2RA3 RB0RB1RB2RB3RB4 RB5RB6RB7 T0CKI /MCLR/VPPVSS VDD OSC1 OSC2 PIC16C54C U2 U4 S2040272 A WINCH KIT#4 Main board 93/04/21 +5V R1147K RF R7 100R RL1 RL2 IGN IGN ORW-SS-112D ORW-SS-112D COM1 ( MOTOR 1 ) COM2 ( MOTOR 2 ) R12N/CR1347K +5V 215116 R1410K R310K R233K D6 1N4004 D4 1N4004 LED R15 1K C5104 D24.7V R1100K R1047K R947K R847K C6104 D51N5398 D7 1N5398 +5V +5V 1/2W D8 1N4004 NC NC 11 ( 5mm / RED ) P2040183 C8104 [1] RF module Frequency: 433.92MHz [2] RX Circuit Reference P2030362/S203032.[3] TX Circuit Reference P2040152/S204020. NCNCNCNC NC NC NCNCNCNC +12V +12V R16 100R 2W/F D1 27V/1W NC IGN Linda 93 04 22 15AF1 +12VIN BATTERY SW1 7011-K1C1T1U+W-70A-BK +12V Module R1722R SW2 7016-K1C1T1U+W-70A-BK IGN C9 1000uf/50V NO NO OUTSIDERELAY NC NO NC NO R1822R/2W C10105/250V TO Winch MotorTO Winch Motor +12VIN COM2COM1 5mmX23mm HOLDER

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04082014 Report No.: FCCA04082014 Page: 2 of 5 5 Date:Sep. 16, 2004 FCC ID: QUUWK4 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT......................................................3 1.1 DOCUMENT POLICY....................................................................................................3 1.2 TEST STATEMENT........................................................................................................3 1.3 EUT MODIFICATION.....................................................................................................3 2. DESCRIPTION OF EUT AND TEST MODE.............................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE...........................................................4 2.3 DESCRIPTION OF TEST MODE.................................................................................4 2.4 DESCRIPTION OF SUPPORT UNIT..........................................................................5 3. DESCRIPTION OF APPLIED STANDARDS.............................................................5 4. RADIATED EMISSION TEST......................................................................................6 4.1 RADIATED EMISSION LIMIT.......................................................................................6 4.2 TEST EQUIPMENT........................................................................................................6 4.3 TEST SET-UP.................................................................................................................7 4.4 TEST PROCEDURE......................................................................................................8 4.5 EUT OPERATING CONDITION...................................................................................8 4.6 RADIATED EMISSION TEST RESULT......................................................................9 5. PHOTOS OF TESTING..............................................................................................10 6. TERMS OF ABRIVATION...........................................................................................11 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04082014 Report No.: FCCA04082014 Page: 3 of 5 5 Date:Sep. 16, 2004 FCC ID: QUUWK4 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - DC power source, 5V, was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04082014 Report No.: FCCA04082014 Page: 4 of 5 5 Date:Sep. 16, 2004 FCC ID: QUUWK4 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Power Drive Control MODEL NO. 06402 POWER SUPPLY DC 5V, 8.5mA CABLE N/A I/O PORT/INTERFACE N/A OPERATING FREQUENCY 433.92MHz NUMBER OF CHANNEL 1 MODULATION TYPE ASK MODE OF OPERATION Simplex BIT RATE OF TRANSMISSION 4KHz ANTENNA TYPE Helical antenna ANTENNA GAIN -2dBi NOTE: The EUT is the receiver part of a remote controller which is designed to use in a vehicle. For more detailed information, please refer to the EUT’s specification or user’s manual provided by manufacturer. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKER MODEL # FCC ID/DOC REMARK N/A 2.3 DESCRIPTION OF TEST MODE N/A (It is only applicable to more than one test mode.) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04082014 Report No.: FCCA04082014 Page: 5 of 5 5 Date:Sep. 16, 2004 FCC ID: QUUWK4 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4: 2003. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. NO DEVICE BRAND MODEL # FCC ID/DOC CABLE 1 FAN NMB 3110KL-04W-B57 N/A 0.1m Unshielded Power Cable 2 FAN NMB 3110KL-04W-B57 N/A 0.1m Unshielded Power Cable NOTE: For the actual test configuration, please refer to the photos of testing. 3. DESCRIPTION OF APPLIED STANDARDS The EUT is a kind of receiver and according to the specifications provided by the applicant, must comply with the requirements of the following standards: 47 CFR Part 15 Subpart B, Class B All tests have been performed and recorded as per the above standards. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04082014 Report No.: FCCA04082014 Page: 6 of 6 6 Date:Sep. 16, 2004 FCC ID: QUUWK4 4. RADIATED EMISSION TEST 4.1 RADIATED EMISSION LIMIT FCC Part 15, Subpart B limit of radiated emission : Class B (at 3m) Frequency (MHz) dBμV/m 30 – 88 40.0 88 – 216 43.5 216 – 960 46.0 Above 960 54.0 NOTE: 1. The lower limit shall apply at the transition frequencies. 2. Emission level (dBμV/m) = 20 log Emission level (μV/m). 4.2 TEST EQUIPMENT The following test equipment was used during the radiated emission test : EQUIPMENT/ FACILITIES SPECIFICATIONS MANUFACTURER MODEL#/ SERIAL# DUE DATE OF CAL. & CAL. CENTER EMI TEST RECEIVER 20 MHz TO 1 GHz ROHDE & SCHWARZ ESVS30/ 841977/003 SEP. 2004 ETC BI-LOG ANTENNA 25 MH…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04082014 Report No.: FCCA04082014 Page: 10 of 10 Date:Sep. 16, 2004 FCC ID: QUUWK4 5. PHOTOS OF TESTING - Radiated test
