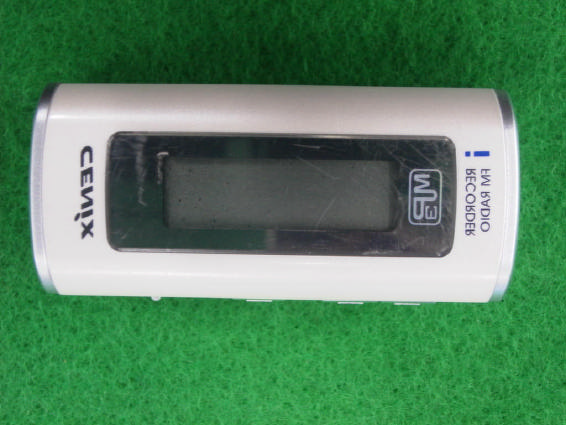

QW6MMPR630MP3 Player

Safety Instructions These instructions describe the precautions and about how to deal with the product to prevent personal injury or property loss. Please read the following safety precautions carefully. Keep this instruction in the place which you can find easily whenever you need. Warning and Caution This symbol indicates that personal injury may occur or the product may be damaged when you fail to follow the given instruction. Warning Caution This symbol indicates that property loss may occur or the product may malfunction when you fail to follow the given instruction. Contents Safety Instruction Precautions Product Features Names of Parts Before Using - Inserting Battery - Powering On/Off - Button Functions MP3 Mode - Playback - Scanning File(FF/REW) - Deleting MP3 File - MP3 Playback Functions - Scan and Playback - Resume - A-B Repeat - Setting Menu - EQ(Equalizer) - USER EQ mode - Repeating - Erasing Voice Mode - Switching to Voice Mode - Recording - Playback - Scanning File(FF/REW) - Deleting File - Recording Function - Index Added Recording - Playback Functions - Scan and Playback - A-B Repeat - Setting Menu - Repeating - Erasing Radio Mode - Switching to Radio Mode - Scanning Frequency - Preset Memory - Using Frequency Preset Memory - Deleting Preset Frequency - Recording Broadcast - Setting Menu - Area PC Interface - Installing Driver - Download - Upload - Deleting File Trouble Shooting Specifications Warranty Precautions Precautions for use of the product Do not install the product in a place exposed to these conditions: * Does not have any responsibility for property loss due to your use of the product even if you use the product correctly. Also does not have any responsibility for demanding any compensation from others. * Does not have any responsibility for memory data corruptions and resulted property loss due to product malfunction or fault, repair, and/or other reasons. High temperature (above 40) Poorly ventilated or closed (car inside, especially summer) Much moisture (humidity, above 75%) Dusty place Make sure not to place cash cards or pass cards, susceptible to magnetic influences, near to the speaker of the product. Do not clean using chemicals such as alcohol, benzene, or sinner, etc. Place the battery in a location that your children or infants cannot access to. Do not drop down any materials on the product or impact against the product. Do not impact against the LCD of the product. Precautions Precautions for use of the battery Make sure to use the specified standard battery. (‘AAA’ Alkaline battery) Do not impose heat on it. Do not disassemble or short-circuit. Otherwise, it may cause damages or malfunctionsto the product. Do not place the metals such as coins and keys with the battery. Otherwise, it may cause a fire due to frictional heat. Make sure that the polarities are correct when inserting a battery. Warning When your skin or clothes is stained with electrolyte: Wash them with clean water immediately. When your skin has been hurt, make sure to consult your doctor. When electrolyte enters your eye; Do not rub your eye. Wash it with clean water immediately and make sure to consult your doctor. Place the battery in a location that your children or infants cannot access to. Make sure to remove the battery when you do not use the product for a long time. Do not mix a new battery with the old one. Precautions Safety Precautions Do not use earphone during driving or walking. Otherwise it may cause a traffic accident. If the product smokes or any modification occurs due to heating, remove the battery immediately. Do not use the product in an airplane or a place where electronic devices should not be used. Do not listen to with a loud volume. Otherwise it may damage your hearing. Control the volume again. Do not disassemble the product arbitrarily. Product Features Compact Size Handy to carry due to compact size and light-weight. Adapting flash memory Recorded sound is preserved even if the power is cut off. Automated Power Break Automated power break reduces battery consumption. EL lighting You can see the message on the LCD screen even if the place is dark. EQ(Equalizer) Function You can listen to a MP3 file in the Flat, Pop, Rock or User EQ mode. MP3 and WMA playback Both MP3 files and WAM files are supported. VBR playback Various MP3 files are supported from 8Kbps to VBR. Semi Mass Storage Only installing driver uploading and downloading is available without software. Receiving and Recording FM Radio You can receive and record an FM radio. Names of Parts Left Front LCD Back HOLD Battery Cover Right FF/MENU/REW POWER/PLAY/STOP VOLUME Top Built-in Microphone RECORD/STOP Bottom USB Socket Earphone Jack Description of LCD Playback Mode Icon Operating Mode Icon Volume Icon Battery Indicator File No./Playback Time Recording Time/Frequency Repeat Mode Stereo Mode EQ mode HOLD ON Before Using Inserting Battery 1. Push the battery cover slightly and slide it in the arrow direction. 2. Insert one AAA alkaline battery. Make sure that the polarities (+, -) are correct. 3. Close the battery cover. Battery Usage Icon Full Little consumed Much consumed Time to replace Caution Make sure to replace the batteries in stop mode. Make sure that the polarities (+, -) are correct. Note "LO Batt" is displayed when the voltage is low due to consumption. Before Using Battery Lifetime ("AAA" Alkaline) Powering On/Off 1. Set the HOLD button to OFF (HOLD OFF). 2. Press the POWER/PLAY/STOP button shortly once to turn the power on. 3. Press the POWER/PLAY/STOP button longer once to turn the power off. Button Functions MENU : Selecting MENU and switching functions(MP3/Voice/Radio) REC/STOP : Recording and stop, preset memory PLAY/STOP/POWER : Playback and stop, power On/Off and using frequency preset memory REW/FF : Rewind and fast forward HOLD : Button hold on/off to prevent unwanted operations VOLUME: Volume control ERASE : Deleting files Battery MP3 Playback Voice Recording FM Mode Playb…

Text truncated - open the document above for the full version.

A A B B C C D D 11 22 33 44 TitleSize No. Rev. File Date Time of Top CircuitA3 .docno. .rev. C:\...\MMP-R330\BLOCK.sch 2003/02/25 22:22 1 1 note1note2note3note4note5 STMP 3410 (MICOM,USB DRIVE,DSP) KEY LINE OUT L-CH VDDD 1.8V VDDIO 3.3V JACK H/P 24.576MHZX-TAL LCD MIC LCD DRIVE (HT1621B) LCD CONTROL CE MEMORY CONTROL USB INTERFACE USB JACK FLASH MEMORY VDDIO (D355B) E/L DRIVE EL ON (DA-101) TUNER C-MIC TUNER CONTROL LCD DATA L-CHR-CHLINE OUT R-CH BATT1.5V MUTE BATT IN FET POWER SW

EMI COMPLIANCE REPORT Emission of electromagnetic disturbance Test Report No. : ERI-FCC03-0012 Equipment : MP3 PLAYER Name of basic model : MMP-R630 FCC ID : QW6MMPR630 Family model : MMP-L330, MMP-L630, MMP-R330 Manufacturer : CENIX DIGICOM CO., LTD. Applicant : Gi-Yeon, Lee Tested date : 2003. 2. 20 Issued date : 2003. 2. 26 Test results : PASS Test Standards : FCC Part 15 Subpart B (Class B) Test Procedure and Items : - AC Power line Conducted emissions measurement : ANSI C63.4-1992 - Radiated emissions measurement : ANSI C63.4-1992 Tested by: GWEON, HUR Approved by: UK-CHO, RIM The results in this report apply only to the sample tested. This test report shall not be reproduced except in full, without the written approval of ERI Laboratory. ERIELECTROMAGNETIC RESEARCH INSTITUTE CONTENTS 1. CLIENT INFORMATION............................................................................................... 3 2. LABORATORY INFORMATION................................................................................... 3 3. EQUIPMENT UNDER TEST INFORMATION(EUT) ............................................. 3 3.1 Identification of the EUT.................................................................................... 3 3.2 Additional information about the EUT............................................................. 4 3.3 Peripheral equipment.......................................................................................... 4 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL........................... 5 4.1 Operating environment....................................................................................... 5 4.2 Test set-up and test procedures........................................................................ 5 4.3 Test instrument...................................................................................................... 5 4.4 Test results.............................................................................................................. 6 5. RADIATED DISTURBANCE : 30MHz – 1000MHz ......................................... 8 5.1 Operating environment....................................................................................... 8 5.2 Test set-up ............................................................................................................ 8 5.3 Test conditions...................................................................................................... 8 5.4 Test instrument..................................................................................................... 8 5.5 Test results(download mode)............................................................................ 9 5.6 Test results(play mode).................................................................................... 9 5.6 Test results(FM tuner)....................................................................................... 10 ERIELECTROMAGNETIC RESEARCH INSTITUTE 1. CLIENT INFORMATION The EUT has been tested by request of : Company : CENIX DIGICOM CO., LTD. Address : #584-4 PAJANG-DONG, JANGAN-KU, SUWON-CITY, KYUNGGI-DO, KOREA Name of contact : Gi-Yeon, Lee Telephone : +82-31-245-2900 Facsimile : +82-31-251-6425 2. LABORATORY INFORMATION The 10m semi-anechoic chamber and/or EMC facilities are used for these testing. These facilities were accredited by KOLAS, EK, MIC of Korea and FCC of USA. Address ELECTROMAGNETIC RESEARCH INSTITUTE. 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone No. : +82-31-336-1186~7 Facsimile No. : +82-31-336-1184 Registered No. KOLAS : 111 EK : J MIC : KR0030 FCC Filing No. : 302567 3. EQUIPMENT UNDER TEST INFORMATION(EUT) 3.1 Identification of the EUT Type of equipment : MP3 PLAYER Model name : MMP-R630 Brand name : N/A Manufacturer : CENIX DIGICOM CO., LTD. Address : #584-4 PAJANG-DONG, JANGAN-KU, SUWON-CITY, KYUNGGI-DO, KOREA Telephone : +82-31-245-2900 Facsimile : +82-31-251-6425 Country of origin : KOREA Rating : DC 1.5V ERIELECTROMAGNETIC RESEARCH INSTITUTE 3.2 Additional information about the EUT Class B Family Models List: Basic Model Variant Model Differential point Memory size - Memory size, Radio 128MB MMP-L630 Memory size 128MB MMP-L330 Memory size 64MB MMP-R630 MMP-R330 Memory size, Radio 64MB 3.3 Peripheral equipment Defined as equipment needed for correct operation of the EUT. Description Model No. Serial No. Manufacture PC Emaschincs/J 50010 804 00808 - MONITOR 55E N/A Samsung electronics Co., Ltd. KEYBOARD SDM4510UH 4M020619 - PRINTER C6427A CN13V1B1SZ HP EARPHONE N/A N/A N/A SPEAKER CAMAC G7 N/A FENGSHIN ELECTRONICS MOUSE MOSXUB - - ERIELECTROMAGNETIC RESEARCH INSTITUTE 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL : Frequency range 0.15 MHz to 30 MHz 4.1 Operating environment Temperature : 25.0 Relative Humidity : 65.0 % 4.2 Test set-up and test procedures The mains terminal disturbance voltage was measured with the equipment under test(EUT) in a shield room. The EUT was connected to an artificial mains network(LISN) placed on the floor. The EUT was placed on non-metallic table 0.8m above the metallic, grounded floor. The distance to other metallic surface was at least 0.8m. Amplitude measurements were performed with a quasi-peak detector and an average detector. Operation condition : Data download mode 4.3 Test instrument Instrument Model No Serial No. Makers Next cal.date Used Test receiver ESCS30 100022 R&S 2003. 3. 25 ESH3-Z5 827246/008 R&S 2003. 3. 12 L.I.S.N. ESH3-Z5 831887/018 R&S 2003. 3. 12 Shield room 8 6 3.3m/H - - - EUT Printer Keyboard PC Earphone LISN LISN Mouse Monitor Speaker ERIELECTROMAGNETIC RESEARCH INSTITUTE 4.4 Test results Date of test : Feb 20, 2003. An overview sweep performed with peak detector & average detector are included in the report as test reports. Frequency Tested LISN Meter Range Freq. Reading Limits Margin QP AV QP AV QP AV [MHz] [MHz] [dBuV] [dBuV] [dBuV] 0.192 N 45.6 39.4 63.9 53.9 18.3 14.5 0.264 N 27.7 24.5 61.2 51.2 33.5 26.7 0.15…
