QW6MP-400DMP3 PLAYER

A A B B C C D D 11 22 33 44 TitleSize No. Rev. File Date Time of Top CircuitA3 .docno. .rev. C:\...\Down\MP-400_BLOCK.sch 2003/10/20 09:32 1 1 note1note2note3note4note5 STMP 3410 (MICOM,USB DRIVE,DSP) KEY VDDD 1.8V VDDIO 3.3V JACK H/P C-MIC GRAPHIC LCD LCD DATA FLASH MEMORY_1FLASH MEMORY_2 24.576MHZX-TAL VBUS D+,D- FET MUTE CE_1CE_2 LINE OUT R-CHLINE OUT L-CH R-CHL-CHMIC VDDIO MEMORY CONTROL USB INTERFACE POWER SW 1.5V BATT BATT IN USB JACK 7-COLOR_LED (DA-201) TUNER TUNER CONTROL LED DRIVE (LT1932) I2C,I2D LED ON LED_COLOR_CONTROL REG. MP-400_BLOCK_DIAGRAM A A B B C C D D 11 22 33 44 TitleSize No. Rev. File Date Time of Top CircuitA3 .docno. .rev. C:\...\Down\MP-400_BLOCK.sch 2003/10/20 09:32 1 1 note1note2note3note4note5 STMP 3410 (MICOM,USB DRIVE,DSP) KEY VDDD 1.8V VDDIO 3.3V JACK H/P C-MIC GRAPHIC LCD LCD DATA FLASH MEMORY_1FLASH MEMORY_2 24.576MHZX-TAL VBUS D+,D- FET MUTE CE_1CE_2 LINE OUT R-CHLINE OUT L-CH R-CHL-CHMIC VDDIO MEMORY CONTROL USB INTERFACE POWER SW 1.5V BATT BATT IN USB JACK 7-COLOR_LED (DA-201) TUNER TUNER CONTROL LED DRIVE (LT1932) I2C,I2D LED ON LED_COLOR_CONTROL REG. MP-400_BLOCK_DIAGRAM

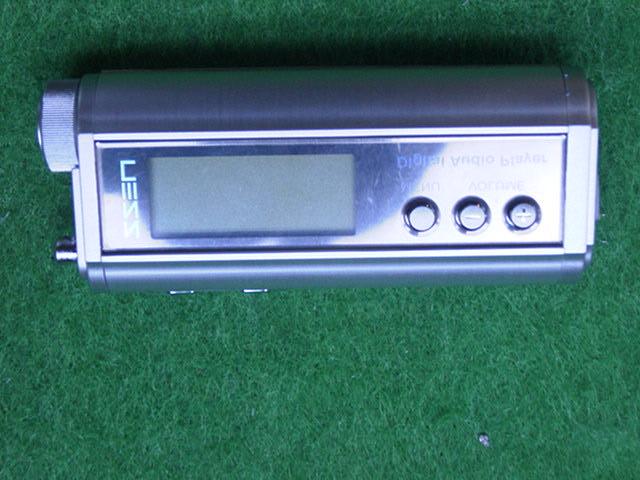

EMI TEST REPORT Emission of electromagnetic disturbance Test Report No. : ERI-FCC03-0066 Equipment : MP3 Player Name of basic model : MP-400D Family model : MP-400E, MP-400F, MP-400G, SSF Manufacturer : CENIX DIGICOM CO., LTD. Applicant : CENIX DIGICOM CO., LTD. Tested date : 2003. 9. 30 – 10.1 Issued date : 2003. 10. 16 Test results : PASS Test Standards : FCC Part 15 Subpart B (Class B) /digital devices & peripherals Test Procedure and Items: - AC Power line Conducted emissions measurement : ANSI C63.4-1992 - Radiated emissions measurement : ANSI C63.4-1992 Tested by: GWEON, HUR Approved by: UK-CHO, RIM The results in this report apply only to the sample tested. This test report shall not be reproduced except in full, without the written approval of ERI Laboratory. ELECTROMAGNETIC RESEARCH INSTITUTE CONTENTS 1. CLIENT INFORMATION 2. LABORATORY INFORMATION 3. EQUIPMENT UNDER TEST INFORMATION(EUT) 3.1 Identification of the EUT 3.2 Additional information about the EUT 3.3 Peripheral equipment 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL 4.1 Operating environment 4.2 Test set-up and test procedures 4.3 Operation Conditions 4.4 Test instrument 4.5 Test results 5. RADIATED DISTURBANCE : 30MHz – 1000MHz 5.1 Operating environment 5.2 Test set-up 5.3 Test conditions 5.4 Test instrument 5.5 Test results(Test mode: Up & download mode) 5.6 Test results(Test mode: Play mode) 5.7 Test results(Test mode : FM Tuner, Others) APPENDIX (None) ELECTROMAGNETIC RESEARCH INSTITUTE 1. CLIENT INFORMATION The EUT has been tested by request of : Company : CENIX DIGICOM CO., LTD. Address : #584-4 PAJANG-DONG, JANGAN-KU, SUWON-CITY, KYUNGGI-DO, KOREA Name of contact : - Telephone : +82-31-245-2900 Facsimile : +82-31-251-6425 2. LABORATORY INFORMATION The 10m full-anechoic chamber and/or EMC facilities are used for these testing. These facilities were accredited by KOLAS, EK, MIC of Korea and FCC of USA. Address ELECTROMAGNETIC RESEARCH INSTITUTE. 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone No. : +82-31-336-1186~7 Facsimile No. : +82-31-336-1184 Registered No. KOLAS : 111 EK : J MIC : KR0030 FCC Filing No. : 302567 3. EQUIPMENT UNDER TEST INFORMATION(EUT) 3.1 Identification of the EUT Type of equipment : MP3 Player Model name : MP-400D Brand name : - Manufacturer : CENIX DIGICOM CO., LTD. Address : #584-4 PAJANG-DONG, JANGAN-KU, SUWON-CITY, KYUNGGI-DO, KOREA Telephone : +82-31-245-2900 Facsimile : +82-31-251-6425 Country of origin : KOREA Rating : DC 1.5V ELECTROMAGNETIC RESEARCH INSTITUTE 3.2 Additional information about the EUT Class B, Family Models List: Basic Model Variant Model Differential point MP-400E Model name MP-400F Model name MP-400G Model name MP-400D SSF Model name 3.3 Peripheral equipment Defined as equipment needed for correct operation of the EUT. Description Model No. Serial No. Manufacture Printer C6427A CN13V1B1SZ HP Joystick - LCA70651918 LOGITECH Mouse M-S48 LZA82142279 LOGITECH Keyboard SDM4510UH 4M020619 SAMSUNG PC Dreamsys EZ/AC 5004135400304 SAMBO COMPUTER Monitor PN15VT P181H80R907989 - Earphone - - - ELECTROMAGNETIC RESEARCH INSTITUTE 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL : Frequency range 0.15 MHz to 30 MHz 4.1 Operating environment Temperature : 19.0 Relative Humidity : 58.0 % 4.2 Test set-up and test procedures The mains terminal disturbance voltage was measured with the equipment under test(EUT) in a shield room. The EUT was connected to an artificial mains network(LISN) placed on the floor. The EUT was placed on non-metallic table 0.4m above the metallic, grounded floor. The distance to other metallic surface was at least 0.8m. Amplitude measurements were performed with a quasi-peak detector and an average detector. 4.3 Operation Conditions Up & download mode, play mode 4.4 Test instrument Instrument Model No Serial No. Makers Next cal.date Used Test receiver ESCS30 100021 R&S 2004. 1. 24 ESH3-Z5 827246/008 R&S 2004. 3. 19 L.I.S.N. ESH3-Z5 831887/018 R&S 2004. 3. 19 Shield room 8 6 3.3m/H - - - AC Main LISN Monitor PC LISN Mouse Earphone EUT Printer Keyboard Joystick ELECTROMAGNETIC RESEARCH INSTITUTE 4.5 Test results Date of test: Sep 30, 2003 An overview sweep performed with peak detector & average detector are included in the report as test reports. Frequency Tested LISN Meter Limits Range Freq. Reading QP AV QP AV [MHz] [MHz] [dBuV] [dBuV] 0.150 H 42.9 16.5 66.0 56.0 0.195 N 55.8 45.8 63.9 53.9 0.258 H 42.1 32.2 61.5 51.5 0.324 H 36.9 34.3 59.5 49.5 0.654 N 36.5 35.8 56.0 46.0 0.720 N 36.9 36.9 56.0 46.0 1.242 N 37.0 36.0 56.0 46.0 1.308 N 36.9 35.8 56.0 46.0 11.982 N 41.3 34.5 60.0 50.0 0.15 - 30(MHz) 18.000 H 42.2 15.2 60.0 50.0 <5 : mean less than 5dB Other frequency keep over 20dB margin. Result: Pass The measured emissions level of the EUT have found the below of the specified limit. ELECTROMAGNETIC RESEARCH INSTITUTE [Live line] [Neutral line] ELECTROMAGNETIC RESEARCH INSTITUTE 5. RADIATED DISTURBANCE : 30MHz – 1000MHz 5.1 Operating environment Temperature : 22.0 Relative Humidity : 55.0 % 5.2 Test set-up The frequency range investigated was 30 MHz to 1000 MHz. All readings are quasi-peak unless stated otherwise. The half-wave dipole antenna was tuned to the frequency found during Preliminary radiated measurements. The EUT, support equipment and Interconnecting cables were re-configured to the set-up to the producing the Maximum emission for the frequency and were placed on top of a 0.8 meter High non-metallic 1 X 1.5 meter table. The EUT, support equipment, and interconnecting cables were re-arranged and manipulated to maximize each EME emission. The turntable containing the system was rotated the antenna height was varied 1 to 4 meters and stopped at the azimuth or height producing the maximum emission. And this device(EUT) was tested in 3 orthogonal planes. The antenna measured both horizontal and vertical polarization. <General test set-up for radiated emissions> 5.3 Operation Conditions Up & download mode, play mode ELECTROMA…
