QY4265900 MHz Audio Transmitter Module

Applied Wireless products are designed and manufactured with pride in the United States of America © Copyright 2007 by Applied Wirele ss, Inc. All rights reserved. Specifications subject to change without notice. A PPLIED W IRELESS , I NC . 1250 Avenida Acaso, Camarillo, CA 93012 Phone: 805-383-9600 Fax: 805-383-9001 Email: [email protected] www.appliedwireless.com Pub. # UG-ATR90032 Rev. date 02/07 Instructions for Installation and Operation 900 MHz Stereo Audio Receiver Model AR900-32 900 MHz Stereo Audio Transmitter Model AT900-32 Long Range Wireless Applications User’s Guide ( This page intenti onally left blank) User’s Guide – 900MHz Stereo Audio Transmitter & Receiver 17 O NE Y EAR L IMITED W ARRANTY (USA), cont. • HOW TO OBTAIN WARRANTY SERVICE : If a product covered by this warranty and sold in t he USA by AW proves to be defective during the warranty period AW will, at its sole option, r epair it or replace it with a comparable new or reconditioned product without charge for parts and labor , when said product is returned in compliance with the following requirements: 1. You must first contact AW at the following address/phone for assistance: APPLIED WIRELESS, INC. 1250 Avenida Acaso, Suite F Camarillo, CA 93012 Phone: (805) 383-9600 If you are instructed to return your product directly to the factory, a Return Merchandise Authorization number (RMA) will be issued to you. 2. You must package the product carefully and ship it insured and prepaid. The RMA number must be clearly indicated on the outside of the shipping container. Any product returned without an RMA number will be refused delivery. 3. In order for AW to perform service under warranty, you must include the following: (a) Your name, return shipping address (not a PO Box), and daytime telephone number. (b) Proof of purchase showing the date of purchase. (c) A detailed description of the defect or problem. Upon completion of service, AW will ship the pro duct to the specified return shipping address. The method of shipping shall be at AW’s sole discretion. The cost of return shipping (within USA) shall be borne by AW. 16 Applied Wireless, Inc. O NE Y EAR L IMITED W ARRANTY (USA) Products manufactured by APPLIED WIRELESS, INC. (AW) and sold to purchasers in the USA are warranted by AW according to the following terms and conditions. You should read this Warranty thoroughly. • WHAT IS COVERED , AND DURATION OF COVERAGE : AW warrants the product to be free from defects in materials and workmanship for one (1) year from the date of purchase by the original end user purchaser. • WHAT IS NOT COVERED : This warranty does not apply to the following: 1. Damage caused by accident, physical or electrical misuse or abuse, improper installation, failure to follow instructions contained in the User’s Guide, any use contrary to the product’s intended function, unauthorized se rvice or alteration (i.e. service or alteration by anyone other than AW). 2. Damage occurring during shipment. 3. Damage caused by acts of God, including without limitation: earthquake, fire, flood, storms, or other acts of nature. 4. Damage or malfunction caused by the intrusion of moisture or other contamination within the product. 5. Batteries supplied by AW in or for the product. 6. Cosmetic deterioration of chassis, cases, or pushbuttons resulting from wear and tear typical of normal use. 7. Any cost or expense related to trouble- shooting to determine whether a malfunction is due to a defect in the product itself, in the installation, or any combination thereof. 8. Any cost or expense related to repairing or correcting the installation of an AW product. 9. Any cost or expense related to the removal or reinstallation of the product. 10. Any product whose serial number or date code is altered, defaced, obliterated, destroyed, or removed. This warranty is extended to the original purchaser of the product(s) only, and is not transferable to any subsequent owner or owners of the product(s). AW reserves the right to make changes or improvements in its products without incurring any obligation to similarly alter products previously purchased. • EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES : AW expressly disclaims liability for incidental and consequential damages caused (or allegedly caused) by the product. The term “incidental or consequent ial damages” refers (but is not limited) to: 1. Expenses of transporting the product to AW to obtain service. 2. Loss of use of the product. 3. Loss of the original purchaser’s time. • LIMITATION OF IMPLIED WARRANTIES : This warranty limits AW’s liability to the repair or replacement of the product. AW makes no express warranty of merchantability or fitness for use. Any implied warranties, including fitness for use and merchantability, are limited in duration to the period of the one (1) year express limited warranty set forth herein. The remedies provided under this warranty are exclusive and in lieu of all others. AW neither assumes nor authorizes any person or organization to make any warranties or assume any liability in connection with the sale, installation, or use of this product. Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of liability for incidental or consequential damages so the limitations or exclusions stated herein may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary from state to state. (continued on next page) User’s Guide – 900MHz Stereo Audio Transmitter & Receiver 1 900 MHz Stereo Audio Transmitter Model AT900-32 900 MHz Stereo Audio Receiver Model AR900-32 Introduction / Product Descriptions Model AT900-32 from Applied Wireless, Inc. is a high quality transmitter designed to broadcast exce llent quality low noise stereo audio from any line level source, to the Applied Wireless model AR900-32 receiver. The AT900-32 transmitter is compatible with line leve…

Text truncated - open the document above for the full version.

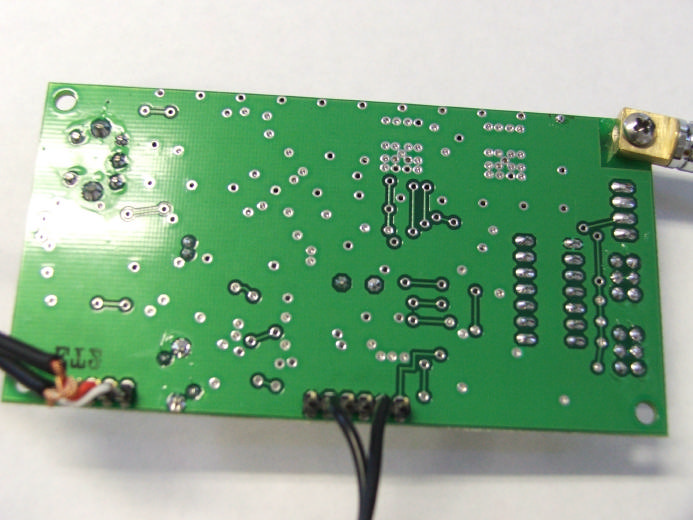

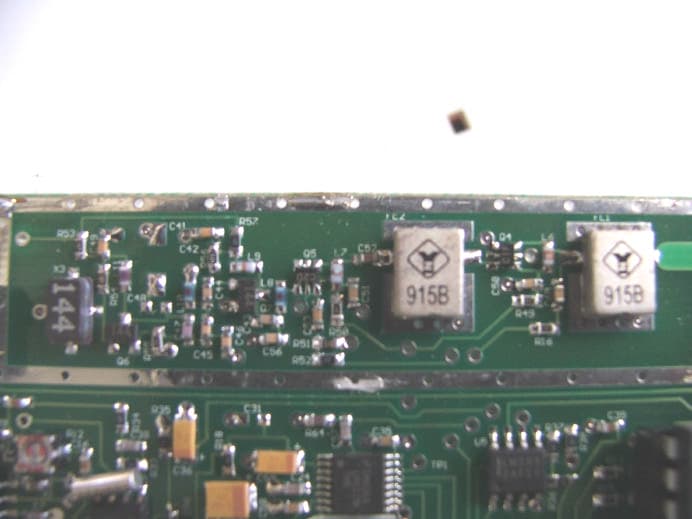

FCC ID: QY4265 INTERNAL TOP VIEW WITH RF SHIELD FCC ID: QY4265 INTERNAL TOP VIEW UNDER RF SHIELD FCC ID: QY4265 INTERNAL BOTTOM VIEW

Long Range Wireless Applications Applied Wireless, Inc. ● 1250 Avenida Acaso, Suite F ● Camarillo, CA 93012 Phone (805) 383-9600 ● Fax (805) 383-9001 email: [email protected] ● www.appliedwireless.com 900 MHz 32 Channel Stereo Audio Transmitter Module FCC ID: QY4265 FCC Identifier Label Placement (drawing scale: 2:1) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: QY4265 Transmitter Module PCB (Perimeter dimensions: 3.8” x 2.0”) RF Shield (Perimeter dimensions: 2.53” x 0.65”) FCC Identifier Label (Perimeter dimensions: 2.0” x .51”)

FCC ID: QY4265 INTERNAL TOP VIEW WITH RF SHIELD FCC ID: QY4265 INTERNAL TOP VIEW UNDER RF SHIELD FCC ID: QY4265 INTERNAL BOTTOM VIEW

FCC ID: QY4265 Report Number: A70223F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA, 91301 • PH: (818) 597-0600 FX: (818) 597-1187 Page 1 of 17 FCC PART 15, SUBPART C TEST REPORT for 900 MHZ FM STEREO TRANSMITTER MODULE Model: AT900-32 FCC ID: QY4265 Prepared for APPLIED WIRELESS, INC. 1250 AVENIDA ACASO, UNIT F CAMARILLO, CA 93012 Prepared by: _____________________ REYNALD O. RAMIREZ Approved by: ____________________ RUBY A. HALL COMPATIBLE ELECTRONICS INC. 2337 TROUTDALE DRIVE AGOURA, CALIFORNIA 91301 (818) 597-0600 DATE: MARCH 5, 2007 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 13 19 55 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC ID: QY4265 Report Number: A70223F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA, 91301 • PH: (818) 597-0600 FX: (818) 597-1187 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Photograph of Test Configuration – EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions Test 14 7.1.3 RF Emissions Test Results 15 7.1.4 Sample Calculations 16 7.1.5 Video Averaging 16 8. TEST PROCEDURE DEVIATIONS 17 9. CONCLUSIONS 17 FCC ID: QY4265 Report Number: A70223F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA, 91301 • PH: (818) 597-0600 FX: (818) 597-1187 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts and Photos • Test Setup Diagrams • Antenna and Preamplifier Gain Factors • Radiated and Conducted Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Test Setup 2 Plot Map And Layout of Test Site FCC ID: QY4265 Report Number: A70223F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA, 91301 • PH: (818) 597-0600 FX: (818) 597-1187 Page 4 of 17 GENERAL REPORT SUMMARY This electromagnetic emission report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form except in full, without the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: 900 MHz FM Stereo Transmitter Module Model: AT900-32 S/N: None Product Description: This is a “900 MHz” FM Stereo audio transmitter module with 32 channel capability. Modifications: The EUT was not modified during the testing. Manufacturer: Applied Wireless, Inc. 1250 Avenida Acaso, Unit F Camarillo, CA 93012 Test Date: Feb. 23, 2007 Test Specifications: EMI requirements FCC CFR Title 47, Part 15 Subpart C Test Procedure: ANSI C63.4: 2003. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Radiated RF Emissions, 9 kHz to 9230 MHz Complies with the limits of FCC CFR Title 47, Part 15 Subpart C 15.205, 15.209 & 15.249, and the requirements of 15.31(e). 2 Conducted Emissions 150 KHz to 30 MHz Complies with the limits of FCC CFR Title 47, Part 15 Subpart C 15.207. FCC ID: QY4265 Report Number: A70223F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA, 91301 • PH: (818) 597-0600 FX: (818) 597-1187 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the 900 MHz FM Stereo Transmitter Module Model: AT900-32. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 2003. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits and requirements defined in FCC CFR Title 47, Part 15 Subpart A (15.31e), Subpart B and Subpart C (15.205, 15.209 and 15.249). FCC ID: QY4265 Report Number: A70223F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA, 91301 • PH: (818) 597-0600 FX: (818) 597-1187 Page 6 of 17 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 2337 Troutdale Drive, Agoura, California 91301. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST). 2.3 Cognizant Personnel Applied Wireless, Inc. Lee Fleishman Director of Marketing Mark Simon V. P. of Engineering Compatible Electronics Inc. Reynald O. Ramirez Sr. Test Engineer Ruby A. Hall Lab Manager 2.4 Date Test Sample was Received The test sample was received on Feb. 23, 2007. 2.5 Disposition of the Test Sample The test sample remains at Compatible Electronics, Inc. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RF Radio Frequency EMI Electromagnetic Interference EUT Equipment Under Test P/N Part Number S/N Serial Number HP Hewlett Packard ITE Information Technology Equipment CML Corrected Meter Limit LISN Line Impedance Stabilization Network FCC ID: QY4265 Report Nu…

Text truncated - open the document above for the full version.

COMPATIBLECOMPATIBLE ELECTRONICSELECTRONICS Test Location:Page:Compatible Electronics 1/1 Customer:Date:David Nichols 03/12/2007 Manufacturer:Time:Applied Wireless 11:18:03 AM Eut name:Lab:Audio Transmitter F Model:Test Distance:AT900-32 3.00 Meters Serial #:none Specification:FCC Pt. 15- Class B Distance correction factor (20 * log(test/spec)): 0.00 Test Mode:Qualification temp: 74F humid: 39% Upper Band Edge Pol Freq Reading Cable Antenna Amplifier Corr'd Limit Delta loss factor gain rdg = R = L R-L MHz dBuV dB dB dB dBuV/m dBuV/m dB 1V 928.001 34.00 7.00 25.22 26.57 39.64 46.00 -6.36 -------------------------------------------------------------------------

FCC ID: QY4265 RADIATED FRONT VIEW FCC ID: QY4265 RADIATED REAR VIEW FCC ID: QY4265 CONDUCTED FRONT VIEW FCC ID: QY4265 CONDUCTED REAR VIEW
