QYPPWA0801Bluetooth Access Point

Polytel ® Data Transmission System USER MANUAL Version: R Polymap Wireless 310 S. Williams Blvd. Ste. 346 Tucson, Arizona 85711 Polytel ® Data Transmission System 8-1500-R - 2 - Table of Contents 1 INTRODUCTION......................................................................................................................................... 4 1.1 SYSTEM OVERVIEW................................................................................................................................. 4 1.2 INTENDED USE AND USER........................................................................................................................ 4 2 SYSTEM COMPONENTS AND ACCESSORIES .................................................................................... 4 2.1 PWA-08-01 ACCESS POINT..................................................................................................................... 5 2.2 REMOTE ACCESSORIES............................................................................................................................. 5 2.3 PWR-08-01 REMOTE...............................................................................................................................6 2.4 PWR-08-02 REMOTE...............................................................................................................................6 2.5 PWR-08-03.............................................................................................................................................. 6 3 IDENTIFICATION OF MAJOR PARTS .................................................................................................. 7 4 OPERATING INSTRUCTIONS ................................................................................................................. 9 4.1 INSTALLATION AND SETUP....................................................................................................................... 9 4.2 LOCATION OF DEVICES............................................................................................................................. 9 4.3 A NOTE ON TELEPHONE LINES................................................................................................................ 10 4.4 BATTERIES FOR THE PWR-08-03 ........................................................................................................... 10 4.5 USAGE OF PWA-08-01 ACCESS POINT................................................................................................... 10 4.6 INDICATOR LIGHT ON PWR-08-03 ......................................................................................................... 11 4.7 RETRY SCHEDULE.................................................................................................................................. 11 4.8 OPERATION IN FRANCE, SPAIN OR JAPAN............................................................................................... 11 4.9 TROUBLESHOOTING...............................................................................................................................12 4.9.1 PWA-08-01 Access Point............................................................................................................... 12 4.9.2 PWR-08-03 accessory ................................................................................................................... 13 5 SAFETY INFORMATION ........................................................................................................................ 13 5.1 PATIENT SAFETY.................................................................................................................................... 13 5.2 ELECTRICAL SAFETY.............................................................................................................................. 14 5.3 COMPLIANCE INFORMATION.................................................................................................................. 14 5.3.1 Compliance Requirements............................................................................................................. 14 5.3.2 Compliance Statement ................................................................................................................... 14 5.4 LABEL DEPICTIONS AND LOCATIONS...................................................................................................... 15 5.4.1 Label locations .............................................................................................................................. 15 5.4.2 Nameplate and Symbols ................................................................................................................ 16 6 OPERATOR MAINTENANCE ................................................................................................................ 18 6.1 VISUAL INSPECTION...............................................................................................................................18 6.2 CLEANING YOUR PWA-08-01 AND PWR-08-03: ................................................................................... 18 7 TECHNICAL SPECIFICATIONS ........................................................................................................... 19 7.1 ELECTRICAL INPUT REQUIREMENTS....................................................................................................... 19 7.1.1 PWA-08-01 Access Point............................................................................................................... 19 7.1.2 PWR-08-03 .................................................................................................................................... 19 7.1.3 PWR-08-01 and PWR-08-02 ......................................................................................................... 19 7.2 OPERATING AND STORING YOUR ACCESS POINT AND ACCESSORIES...................................................... 19 CONSULT WITH YOUR LOCAL GARBAGE DISPOSAL …

Text truncated - open the document above for the full version.

March 13, 2007 TUV Rheinland of North America 762 Park Avenue Youngsville, NC 27596 RE: Certification Application FCCID: QYPPWA0801 In reference to the application under FCC ID: QYPPWA0801 and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: o Schematics o Block Diagrams o Theory of Operation These documents contain detailed system and equipment description and related information about the product that Polymap Wireless considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Polymap Wireless considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market Sincerely, Pierre Landau, Ph.D. President 310 S. Williams Blvd. Suite 346 Tucson, AZ 85711 t: 520.747.1811 f: 520.747.9408 www.polymap.net

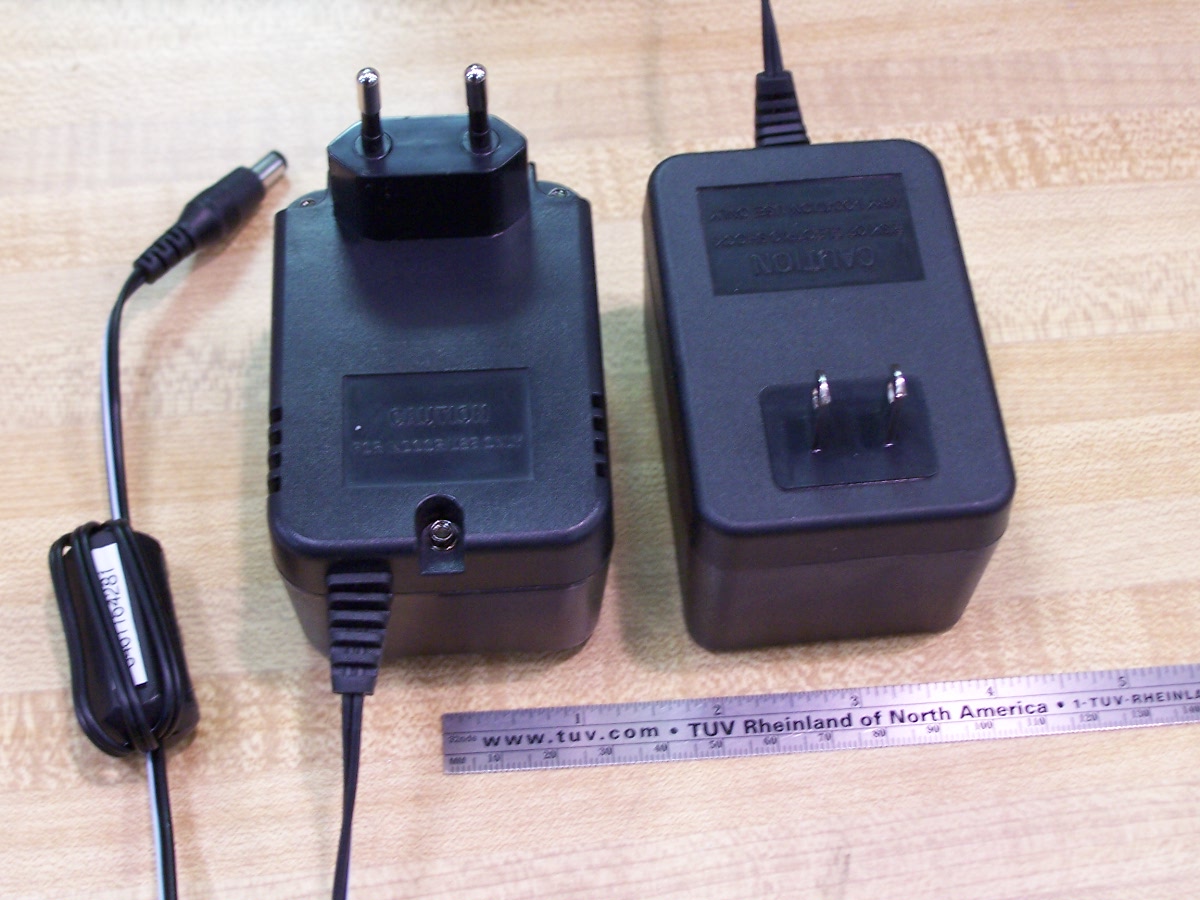

TUV Rheinland FCC ID: QYPPWA0801 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 External Photo Exhibit Page 1 of 1 EUT: PWA-08-01 Model: Access Point FCC ID: QYPPWA0801 Figure 1 – Overall view of EUT Figure 2 – View of power modules – 230V/50Hz, and 120V/60Hz shown

TUV Rheinland FCC ID: QYPPWA-08-01 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Label Artwork Page 1 of 1 Label Artwork for PWA-08-01

TUV Rheinland FCC ID: QYPPWA-08-01 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Label Location Page 1 of 1 Label location on PWA-08-01

TUV Rheinland FCC ID: QYPPWA0801 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Internal Photo Exhibit Page 1 of 1 EUT: PWA-08-01 Model: Access Point FCC ID: QYPPWA0801 Figure 1 – Overall view of EUT Figure 2 – View of power modules Antenna External Antenna connector (for conducted RF measurements)

Report Number: 30683466.004 Page 1 of 68 EUT: Access Point Model: PWA-08-01 FCC ID: QYPPWA0801 FCCID: QYPPWA0801 Emissions Test Report EUT Name: Access Point EUT Model: PWA-08-01 FCC Title 47, Part 15, Subpart C, RSS-210 Issue 6 Prepared for: Pierre Landau, Ph.D. Polymap Wireless LLC 310 S. Williams Blvd, Suite 346 Tucson, AZ 85711 Tel: 520-747-1811 Fax: None Prepared by: TUV Rheinland 762 Park Avenue Youngsville, NC 27596 Tel: (919) 554-0901 Fax: (919) 556-2043 http://www.tuv.com/ Report/Issue Date: 3 May 2007 Report Number: 30683466.004 Statement of Compliance Report Number: 30683466.004 Page 2 of 68 EUT: Access Point Model: PWA-08-01 FCC ID: QYPPWA0801 Manufacturer: Polymap Wireless LLC 310 S. Williams Blvd, Suite 346 Tucson, AZ 85711 520-747-1811 Requester / Applicant: Pierre Landau, Ph.D. Name of Equipment: Access Point Model No. PWA-08-01 Type of Equipment: Intentional Radiator Application of Regulations: FCC Title 47, Part 15, Subpart C, RSS-210 Issue 6 Test Dates: 18 January 2007 to 27 Feburary 2007 Guidance Documents: Emissions: FCC 47 CFR Part 15, RSS-210 Issue 6 Test Methods: Emissions: ANSI C63.4:2005 The electromagnetic compatibility test and documented data described in this report has been performed and recorded by TUV Rheinland, in accordance with the standards and procedures listed herein. As the responsible authorized agent of the EMC laboratory, I hereby declare that a sample of one, of the equipment described above, has been shown to be compliant with the EMC requirements of the stated regulations and standards based on these results. If any special accessories and/or modifications were required for compliance, they are listed in the Executive Summary of this report. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. This report contains data that are not covered by NVLAP accreditation. This report shall not be reproduced except in full, without the written authorization of the laboratory. 3 May 2007 Test Engineer: Mark Ryan Date Industry Canada 200094-0 90552 and 100881 IC3755 TUV Rheinland FCC ID: QYPPWA0801 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: 30683466.004 Page 3 of 68 EUT: Access Point Model: PWA-08-01 FCC ID: QYPPWA0801 1 EXECUTIVE SUMMARY .................................................................................................................4 1.1 SCOPE............................................................................................................................................4 1.2 PURPOSE........................................................................................................................................4 1.3 SUMMARY OF TEST RESULTS........................................................................................................4 1.4 SPECIAL ACCESSORIES OR EQUIPMENT MODIFICATIONS..............................................................4 2 LABORATORY INFORMATION....................................................................................................5 2.1 ACCREDITATIONS & ENDORSEMENTS...........................................................................................5 2.2 TEST FACILITIES............................................................................................................................6 2.3 MEASUREMENT UNCERTAINTY.....................................................................................................7 2.4 CALIBRATION TRACEABILITY.......................................................................................................7 3 PRODUCT INFORMATION.............................................................................................................8 3.1 PRODUCT DESCRIPTION.................................................................................................................8 3.2 EQUIPMENT CONFIGURATION........................................................................................................9 3.3 OPERATION MODE.........................................................................................................................9 4 EMISSIONS.......................................................................................................................................10 4.1 CHANNEL SEPARATION PART 15.247(A)(1) ................................................................................10 4.2 PSEUDORANDOM HOPPING ALGORITHM FCC PART 15.247(A)(1)..............................................11 4.3 TIME OF OCCUPANCY FCC PART 15.247(A)(1)(III) .....................................................................13 4.4 20DB BANDWIDTH; §15.247(A)(1) ..............................................................................................16 4.5 99% POWER BANDWIDTH; RSS-210 §5.9.1.................................................................................18 4.6 PEAK OUTPUT POWER FCC PART 15.247(B)(1) ..........................................................................22 4.7 MAXIMUM PERMISSIBLE EXPOSURE; FCC §15.247(B)(5), RSS-210 §14....................................24 4.8 BAND-EDGE MEASUREMENT FCC §15.247(D), RSS-210 §6.2.2(O)(E1) ...................................25 4.9 SPURIOUS EMISSIONS; FCC §15.247(D), RSS-210 §6.2.2(Q1) ....................................................29 4.10 FREQUENCY HOPPING SPREAD SPECTRUM SYSTEMS FCC PART 15.247(G)...............................38 4.11 INCORPORATION OF INTELLIGENCE FCC PART 15.247(H) ..........................................................38 4.12 FREQUENCY STABILITY FCC PART 15.215(C) ............................................................................39 4.13 RADIATED EMISSIONS WHEN NOT TRANSMITTING FCC PART 15.109(A) ...................................41 4.14 CONDUCTED EMISSIONS FCC PART 15.107(A) AND 15.207........................................................45 5 TEST EQUIPMENT USE LIST .................................................…

Text truncated - open the document above for the full version.

TUV Rheinland FCC ID: QYPPWA0801 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Internal Photo Exhibit Page 1 of 6 EUT: PWA-08-01 Model: Access Point FCC ID: QYPPWA0801 Figure 1 – Radiated emissions test setup (worse case orientation) EUT Computer interface Figure 2 – Radiated emissions test setup (30MHz – 1GHz) TUV Rheinland FCC ID: QYPPWA0801 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Internal Photo Exhibit Page 2 of 6 EUT: PWA-08-01 Model: Access Point FCC ID: QYPPWA0801 Figure 3 – Radiated emissions test setup (1GHz – 18GHz) Figure 4 – Radiated emissions test setup (18 – 26.5GHz) TUV Rheinland FCC ID: QYPPWA0801 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Internal Photo Exhibit Page 3 of 6 EUT: PWA-08-01 Model: Access Point FCC ID: QYPPWA0801 Figure 5 – Radiated emissions test setup (Investigating 2 nd orientation) Figure 6 – Radiated emissions test setup (Investigating 3 rd orientation) TUV Rheinland FCC ID: QYPPWA0801 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Internal Photo Exhibit Page 4 of 6 EUT: PWA-08-01 Model: Access Point FCC ID: QYPPWA0801 Figure 7 – Conducted emissions test setup (18 – 26.5GHz) Figure 8 – Typical Conducted RF measurements using spectrum analyzer TUV Rheinland FCC ID: QYPPWA0801 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Internal Photo Exhibit Page 5 of 6 EUT: PWA-08-01 Model: Access Point FCC ID: QYPPWA0801 Figure 9 – Typical Conducted RF measurements using EMC receiver Figure 10 – Extreme Temperature test setup TUV Rheinland FCC ID: QYPPWA0801 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Internal Photo Exhibit Page 6 of 6 EUT: PWA-08-01 Model: Access Point FCC ID: QYPPWA0801 Figure 11 – Extreme Temperature test setup Figure 12 – Typical Extreme Voltage test setup RF Probe to Spectrum Anal yzer Thermocouple ta ped to the EUT
