R4G20106M6001P&F Walkie Talkie

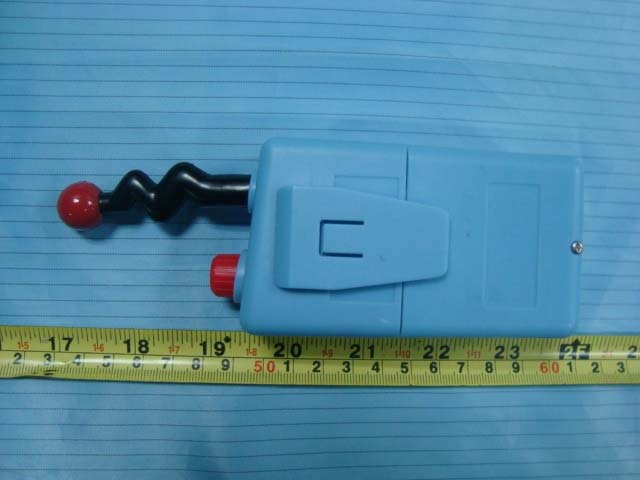

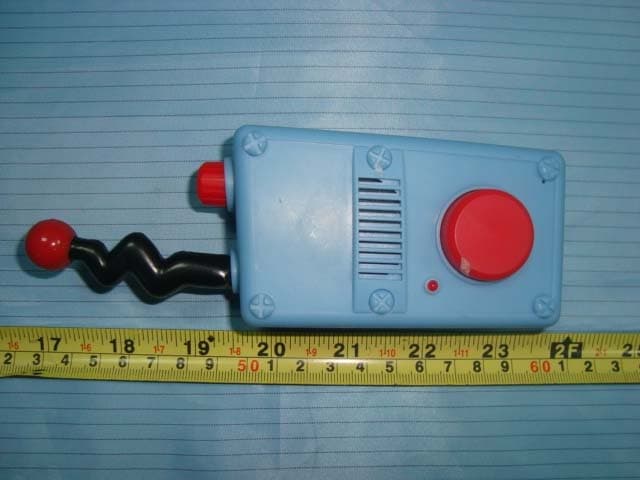

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT– Front View EUT– Rear View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label Location

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT- Battery off View EUT- Cover off View 1 EUT- Cover off View 2 EUT- Cover off View 3 EUT- Main Board Top View EUT- Main Board without RF Module Metal Top View EUT- Main Board Bottom View EUT- Antenna View

Circuit Description 1．Receiver Part RF signal from antenna is amplified by Q7.Then the RF signal(F1) mixs with LO(462.2124M HZ+/-1K HZ). LO(F2) is produced by X3 crystal(77.0354 M HZ). Q8 act as mixer. IF(F1-F2) is sent to U1(SL5018). Demodulated by U1. Then Audio signal is amplified by audio amplifier(U2 SIT8602). 2．Transmitter Part Oscillating circuit consists of X4 crystal(77.1104M HZ),transistor Q2,Resistors,Capacitors etc. It produces LO(fo=462.6624M Hz)+/-1K HZ). Audio signal is amplified by amplifier. The signal is sent to modulation circuit. Implement FM. FM signal is amplified by Q5,Q4. And filtered by two BPF filters. The higher FM signal is to Q6. The FM signal is amplified by Q6 again. Then the FM signal enough is transmitted by antenna.

Tune-Up Procedure 1．Transmitter Part Connect with RF cable between RF output port(PCBA) and HP8920A in/out port. Press SW1 key and make it work on transmitting status. Then adjust L1(Variable inductor). Frequency range is 462.6625M Hz+/-1KHz. 2．Receiver Part Connect with RF cable between RF output point(PCBA) and HP8920A in/out port. It is on receiver mode when you turn on power supply. Then adjust L2（Variable inductor). Frequency range is 462.2125M Hz+/-1KHz.

NO. PART CODE TITLE Value Type Qty Ref Designators 1 CAP-05040507-02 Chip Cap GJM1555C1HR50CB01 0.5pF 0402 0.5pF 7 C31,C43,C46,C150,C151,C39,C41 2 CAP-20940507-02 Chip Cap Chip Cap 0402,Value 2pF +/-0.25p COG 50V 2pF 12 C28,C34,C35,C37,C48,C66,C67,C70,C76,C68,C71,C113 3 CAP-30940507-02 Chip Cap Chip Cap 0402,Value 3pF +/-0.25p COG 50V 3pF 3 C50,C52,C22 4 CAP-60940507-05 Chip Cap GJM1555C1H6R0DB01 6pF 0402 6pF 1 C30 5 CAP-80940507-05 Chip Cap GJM1555C1H8R0DB01 8pF 0402 8pF 6 C78,C81,C44,,C45,C38,C40, 6 CAP-10050507-05 Chip Cap GJM1555C1H100JB01 10pF 0402 10pF 3 C80,C77, 7 CAP-10940507-02 Chip Cap Chip Cap 0402,Value 1pF +/-0.25p COG 50V 1pF 3 C26,C24,C47, 8 Chip Cap 0 9 CAP-22050507-02 Chip Cap Chip Cap 0402,Value 22pF +/-5% 50V 22pF 2 C1,C20 10 CAP-47050507-02 Chip Cap Chip Cap 0402,Value 47pF +/-5% 50V 47pF 3 C54,C74,C19 11 CAP-68050507-02 Chip Cap Chip Cap 0402,Value 68pF +/-5% 50V 68pF 1 C5, 12 CAP-10150507-02 Chip Cap Chip Cap 0402,Value 100pF +/-5% 50V 100pF 2 C55,C103, 13 CAP-33150507-02 Chip Cap Chip Cap 0402,Value 330pF +/-5% 50V 330pF 2 C89,C90 14 CAP-47010507-03 Chip Cap Chip Cap 0402,Value 470pF +/-10% 50V 470pF 2 C27,C56, 15 CAP-10210507-03 Chip Cap Chip Cap 0402,Value 102pF +/-10% 16V 102pF 15 C14,C18,C21,C23,C36,C49,C69,C73,C75,C92,C98,C112,C118,C120,C126 16 CAP-33210507-03 Chip Cap Chip Cap 0402,Value 332pF +/-10% 50V 332pF 2 C13, C93, 17 CAP-10310507-03 Chip Cap Chip Cap 0402,Value 103pF +/-10% 50V 103pF 1 C99 18 CAP-22320507-03 Chip Cap Chip Cap 0402,Value 223pF +/-20% 50V 223pF 1 C91 19 CAP-10430507-03 Chip Cap Chip Cap 0402,Value 104pF +80/-20% 50V 104pF 15 C11,C12,C15,C53,C83,C84,C85,C86,C88,C95,C97,C109,C125,R69,C104 20 CAP-10510637-02 Chip Cap Chip Cap 0402,Value 1UF +80/-20% 6.3V 1UF 3 C16,C94,C96 21 CAP-22520503-03 Chip Cap Chip Cap 0603,Value 225pF +/-20% 6.3V 2.2uF 9 C57,C87,C100,C101,C102,C108,C119,C152,C153 22 IND-18325003-01 Chip Inductor LQG18HN18NJ00 18nH +-5% 0603 COIL 0603 8 L10,L11,L16,L23,L24,L25,L27,L28, 23 IND-12325003-01 LQG18HN12NJ00 12nH +-5% 0603 COIL 0603 2 L12,L13 24 IND-27325003-01 Chip Inductor LQG18HN27NJ00 27nH +-5% 0603 COIL 0603 2 L19,L20, ELECTRONIC BILL OF MATERIAL 6M6V2_BOMSMT NO. PART CODE TITLE Value Type Qty Ref Designators ELECTRONIC BILL OF MATERIAL 6M6V2_BOM 25 IND-47325003-01 Chip Inductor Chip Inductor 0603 Value 47nH +/-5% COIL 0603 1 L17, 26 DIO-41480004-01 Diode 4148 SOD323 SMD 1 D3 27 DIO-BA591004-01 Diode BA591 DIODE SOD323 2 D1,D2, 28 DIO-14900003-01 Diode BB149A DIODE SOD323 1 VD1 29 0IC-86020004-01 IC S1T8602 IC SO8 1 U2 30 0IC-50180004-01 IC SL5018 IC SO16 1 U1 31 IND33325003-01 Chip Inductor 33nH +/-5% SMD0603 1 L14 32 CAP-10050503-02 Chip Cap 10pF +/-5% 50V 0603 SMD0603 1 L18 33 RES-03725707-01 Resistor 3K7 +/-5% 0402 SMD0402 1 R36 34 RES00005707-01 Resistor Chip Resistor 0402 Value 0R R0 1 R1 35 RES-01005707-01 Resistor Chip Resistor 0402 Value 10R +/-5% 10R 4 R2,R3,R53,C72 36 RES-01505707-01 Resistor Chip Resistor 0402 Value 15R +/-5% 15R 2 R22,R54 37 RES-04705707-01 Resistor Chip Resistor 0402 Value 47R +/-5% 47R 1 R15, 38 RES-01015707-01 Resistor Chip Resistor 0402 Value 100R +/-5% 100R 5 R18,R20,R32,R66,R23 39 RES-01515707-01 Resistor Chip Resistor 0402 Value 150R +/-5% 150R 1 R27 40 RES-02215707-01 Resistor Chip Resistor 0402 Value 220R +/-5% 220R 3 R17,R31,R14 41 RES-04715707-01 Resistor Chip Resistor 0402 Value 470R +/-5% 470R 1 R24 42 RES-01025707-01 Resistor Chip Resistor 0402 Value 1K +/-5% 1K 4 R8,R34,R46,R63, 43 RES-01825707-01 Resistor Chip Resistor 0402 Value 1K8 +/-5% 1K8 1 R25 44 RES-02225707-01 Resistor Chip Resistor 0402 Value 2K2 +/-5% 2K2 2 R38,R50 45 RES-02725707-01 Resistor Chip Resistor 0402 Value 2K7 +/-5% 2K7 2 R30,R40 46 RES-03325707-01 Resistor Chip Resistor 0402 Value 3K3 +/-5% 3K3 2 R43 ， R55 47 RES-03925707-01 Resistor Chip Resistor 0402 Value 3K9 +/-5% 3K9 1 R51 48 RES-04725707-01 Resistor Chip Resistor 0402 Value 4K7 +/-5% 4K7 2 R41,R48 49 RES-05125707-01 Resistor Chip Resistor 0402 Value 5K1 +/-5% 5K1 2 R5 ， R45, 50 RES-06825707-01 Resistor Chip Resistor 0402 Value 6K8 +/-5% 6K8 1 R12, 51 RES-01035707-01 Resistor Chip Resistor 0402 Value 10K +/-5% 10K 3 R33,R67,R68 52 RES-01535707-01 Resistor Chip Resistor 0402 Value 15K +/-5% 15K 2 R37,R13 NO. PART CODE TITLE Value Type Qty Ref Designators ELECTRONIC BILL OF MATERIAL 6M6V2_BOM 53 RES-02235707-01 Resistor Chip Resistor 0402 Value 22K +/-5% 22K 1 R49 54 RES-02735707-01 Resistor Chip Resistor 0402 Value 27K +/-5% 27K 3 R19,R21,R56 55 RES-03335707-01 Resistor Chip Resistor 0402 Value 33K +/-5% 33K 4 R4 ， R6,R42,R44, 56 RES-03935707-01 Resistor Chip Resistor 0402 Value 39K +/-5% 39K 1 R16 57 RES-06835707-01 Resistor Chip Resistor 0402 Value 68K +/-5% 68K 2 R9 ， R26, 58 RES-01045707-01 Resistor Chip Resistor 0402 Value 100K +/-5% 100K 3 R35,R11,C117 59 RES-02245707-01 Resistor Chip Resistor 0402 Value 220K +/-5% 220K 1 R52 60 RES-03045707-01 Resistor Chip Resistor 0402 Value 300K +/-5% 300K 2 R29, R64 61 RES-08245707-01 Resistor Chip Resistor 0402 Value 820K +/-5% 820K 1 R39 62 RES-01055707-01 Resistor Chip Resistor 0402 Value 1M +/-5% 1M 2 R7 ， R47, 63 TRA-54000002-01 Transistor BFG540/X TRAN SOT143 1 Q6, 64 TRA-39040002-01 Transistor 3904 TRAN SOT23 2 Q1,Q9 65 PCB-6M6000W1-22 PCB 6M6-V2 PCB PCB 2-LAYER 1 PCB2 66 TRA-42260002-01 Transistor NEC 2SC4226 2SC4226/R25 6 Q2,Q3,Q4,Q5,Q7,Q8 67 FEB-12102506-01 Magnetic Bead Magnetic Bead 0603 0603 1 L26 68 IND-68425003-01 Chip Inductor LQG18HN6R8J00 6.8nH +-5% 0603 COIL 0603 1 C79, 69 IND-15321003-01 Chip Inductor LQG18HN15NJ00 15nH +-5% 0603 COIL 0603 2 L22,L21 70 IND-18321003-03 Chip Inductor 18nH +-5% 0402 COIL 0402 2 L9,L15 71 NC NC NC 16 C51,C6,C65,C110,C114,R10,C106,C124,C121,C105,C107,C154,C32,L29,C17,C42 72 OIC-LC120704-01 IC LC1207CB37R40/SOT23 SOT23 1 Q10 73 CAP-70940507-05 Chip Cap GJM1555C1H7R0DB01 7pF 7pF 1 C33 74 CAP-47520634-01 Chip Cap 4.7uF/0805/6.3V 4.7uF 1 C155 75 FEB-10212505-01 Magnetic Bead Magnetic Bead 0402 7 R28 ， R57,R58,R59,R60,R62,R65, 76 IFT-FTC61001-01 CERAMICDISCRIMI…

Text truncated - open the document above for the full version.

6M6V10.SCH-1 - Fri Jul 30 09:13:59 2010

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 95 EMI MEASUREMENT AND TEST REPORT For JOYO Electronics Company Limited Unit D, 13/F, World Tech Centre, 95 How Ming Street, Kwun Tong, Kowloon, Hong Kong FCC ID: R4G20106M6001 Report Type: Original Report Product Type: P&F Walkie Talkie Test Engineer: Sula Huang Report Number: RSZ10080303 Report Date: 2010-08-25 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 JOYO Electronics Company Limited FCC ID: R4G20106M6001 Report #: RSZ10080303 Page 2 of 20 FCC Part 95 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 FCC §1.1307(b)(1) - RF EXPOSURE ..........................................................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 MEASUREMENT RESULT: .............................................................................................................................................7 FCC §2.1046, §95.639(a) & §95.639(d) - RF OUTPUT POWER ..............................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST DATA..................................................................................................................................................................8 FCC §2.1047 & §95.637(a) - MODULATION CHARACTERISTIC .....................................................................10 APPLICABLE STANDARD............................................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST DATA................................................................................................................................................................10 FCC §2.1049 & §95.633(a)(c) - OCCUPIED BANDWIDTH AND EMISSION MASK........................................14 APPLICABLE STANDARD............................................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST DATA................................................................................................................................................................14 FCC §2.1053 & §95.635(b)(7) - RADIATED SPURIOUS EMISSION ....................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View (Below 1GHz) Radiated Emission - Rear View (Below 1GHz) Radiated Emission - Front View (Above 1GHz) Radiated Emission - Rear View (Above 1GHz) Frequency Stability View
