R932039010915MHz Transmitter

Instruction manual to teach a new transmitter’s code to a receiver The user’s manual applies to the following units: Trans mitter FCC ID: R932039010 IC: 6268A-2039010 Model Number: 2039-010-9 Receive r FCC ID: R932039500 IC: 6268A-2039500 Model Number: 2039-500-9 Product Description The FreeRein™ wireless control system includes a receiver box with either two or four outputs and a transmitter requiring a single CR2032 coin cell. The system is designed for 12- 24volt DC systems only. 1. Physically attach the receiver box*, if not already done. 2. Make sure the power line of the receiver is disconnected. 3. Press and hold any of the transmitter’s buttons and simultaneously reconnect the power line of the receiver to the 12V power source. 4. There will be an audible click in the relay if the receiver has learned the new trans mitter’s code.**. 5. The device is activated and ready for use. 6. Refer to the diagram for electrical connections. *Note: For optimum performance affix the receiver box as far away from electric noise as possible. (Example: Electric motors) **Note: A receiver can learn the code for and be controlled by up to four different trans mitters. (Not controlled simultaneously, however)

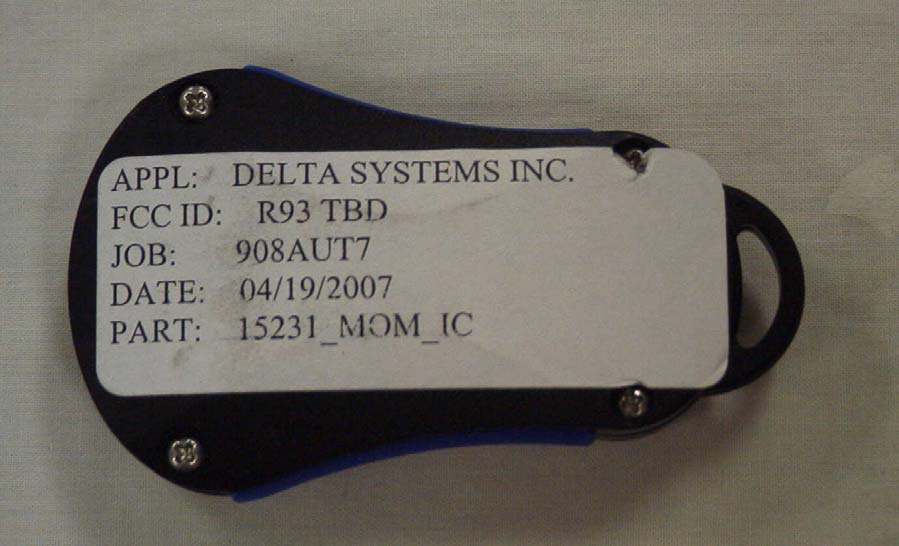

External photos

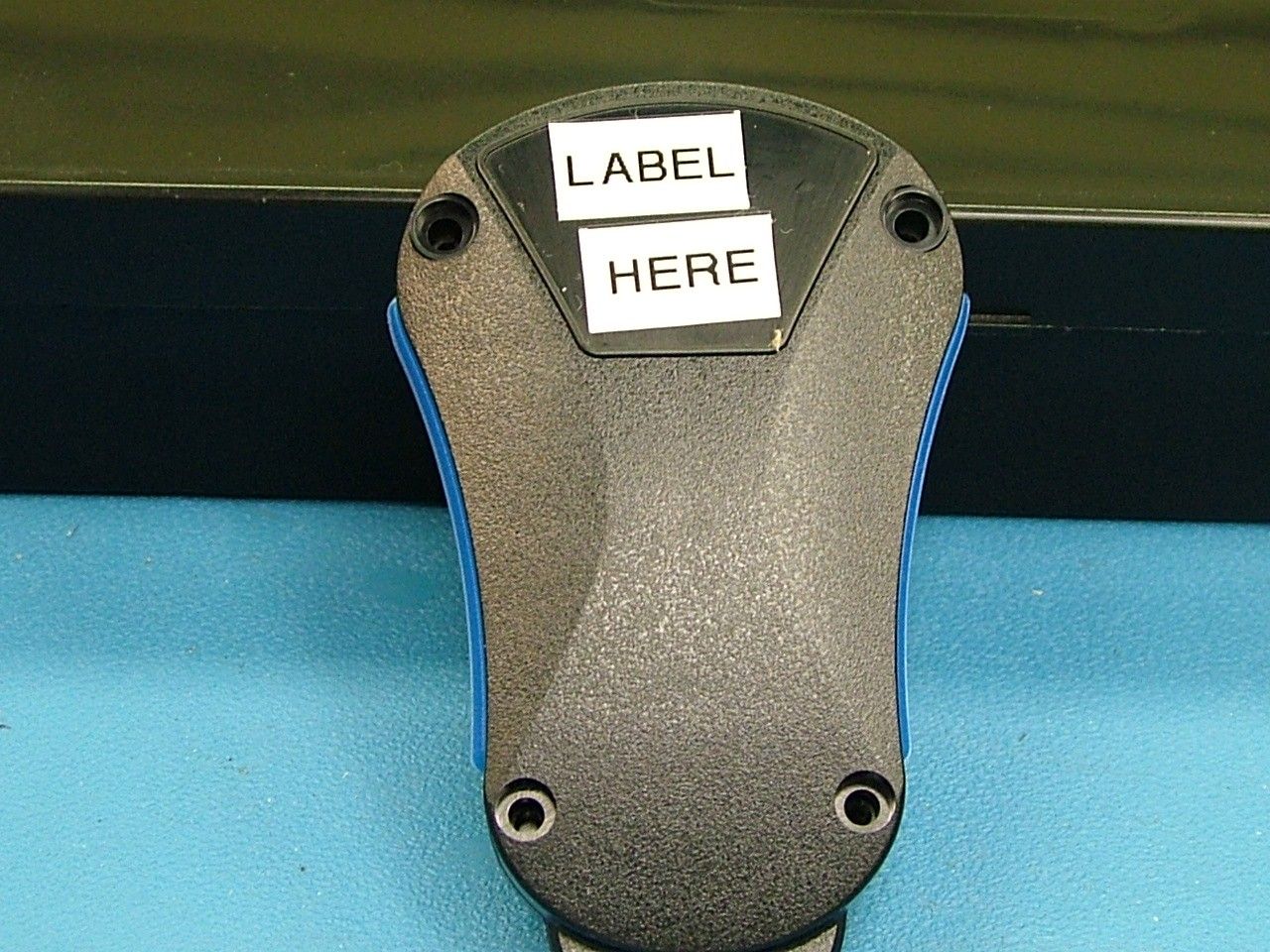

For Transmitter FCC ID: R932039010 IC: 6268A-2039010 M/N: 2039-010-9 FreeRein Delta Systems, Inc. Patent Pending Date Code

FCC ID: R932039100 / IC: 6268A-2039010 Tx Internal Photos

1 FCC PART 15.231 TEST REPORT Applicant DELTA SYSTEMS INC. Address 10036 Aurora - Hudson Road 1734 Frost Road Streetsboro, OH 44241 USA FCC ID R932039010 IC Label IC: 6268A-2039010 Product Description 915MHz Remote Control Date Sample Received April 16, 2007 Date Tested April 24, 2007 Tested By Nam Nguyen Approved By Mario de Aranzeta Timco Report No. 908AUT7TestReport.pdf Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: Delta System. FCC ID: R932039010 REPORT: W:\D\DELTA SYSTEMS\908AUT7\908AUT7TestReport.doc Page 2 of 17 TABLE OF CONTENTS ATTESTATION STATEMENT....................................................................................... 3 REPORT SUMMARY................................................................................................... 4 TEST ENVIRONMENT AND SYSTEM .......................................................................... 4 DUT SPECIFICATION................................................................................................. 5 EMC EQUIPMENT LIST ............................................................................................. 6 TEST PROCEDURE ................................................................................................... 8 RADIATION INTERFERENCE ..................................................................................... 9 CALCULATION OF DUTY CYCLE ............................................................................. 12 OCCUPIED BANDWIDTH ......................................................................................... 16 POWER LINE CONDUCTED INTERFERENCE........................................................... 14 APPLICANT: Delta Systems FCC ID: R932039010 REPORT: W:\D\DELTA SYSTEMS\908AUT7\908AUT7TestReport.doc Page 3 of 17 ATTESTATION STATEMENT This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. that the equipment does not comply with the appropriate standards. Certificate #0955-01 All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta Signature: On file Function: Engineer Date: April 26, 2007 Tested by: Nam Nguyen Signature: on file Date: April 24, 2007 APPLICANT: Delta Systems FCC ID: R932039010 REPORT: W:\D\DELTA SYSTEMS\908AUT7\908AUT7TestReport.doc Page 4 of 17 REPORT SUMMARY Disclaimer The test result only related to the item tested. Purpose of Test Report To demonstrate compliance with FCC Par15.231 requirements for a 915 MHz remote control radio. Applicable Rule(s) FCC Pt 15.231, ANSI C63.4 2003, RSS-210 Related Report 908BUTTestReport.pdf (RSS-210) 908CUT7TestReport.pdf (FCC Pt 15 B Verification) TEST ENVIRONMENT AND SYSTEM Test Facility The test sites used by Timco Engineering Inc. are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: The temperature was 26ºC with a relative humidity of 50%. Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Supporting Peripheral Equipment Not applicable. The device is a stand-alone remote control radio. Deviation to the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. APPLICANT: Delta Systems FCC ID: R932039010 REPORT: W:\D\DELTA SYSTEMS\908AUT7\908AUT7TestReport.doc Page 5 of 17 DUT SPECIFICATION Manufacturer Delta Systems Description Remote Control Transmitter FCC ID R932039010 IC Label IC: 6268A-2039010 Model Name 2039-010 Tx Frequency 915MHz 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Integral APPLICANT: Delta Systems FCC ID: R932039010 REPORT: W:\D\DELTA SYSTEMS\908AUT7\908AUT7TestReport.doc Page 6 of 17 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 3/10-Meter OATS TEI N/A N/A Listed 3/20/07 3/19/10 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 [Continued] APPLICANT: Delta Systems FCC ID: R932039010 REPORT: W:\D\DELTA SYSTEMS\908AUT7\908AUT7TestReport.doc Page 7 of 17 Analyzer Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 10/30/06 10/30/08 Analyzer Silver Tower RF Preselector HP 85685A 2620A00294 CAL 3/6/07 3/6/09 Analyzer Silver Tower Quasi-Peak Adapter HP 85650A 3303A01844 CAL 10/30/06 10/30/08 Analyzer Open-Frame Tower Preamplifier HP 8449B 3008A01075 CAL 8/8/05 8/8/07 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Log-Periodic Electro- Metrics LPA-25…

Text truncated - open the document above for the full version.

FCC ID: R932039100 / IC: 6268A-2039010 / Test Setup
