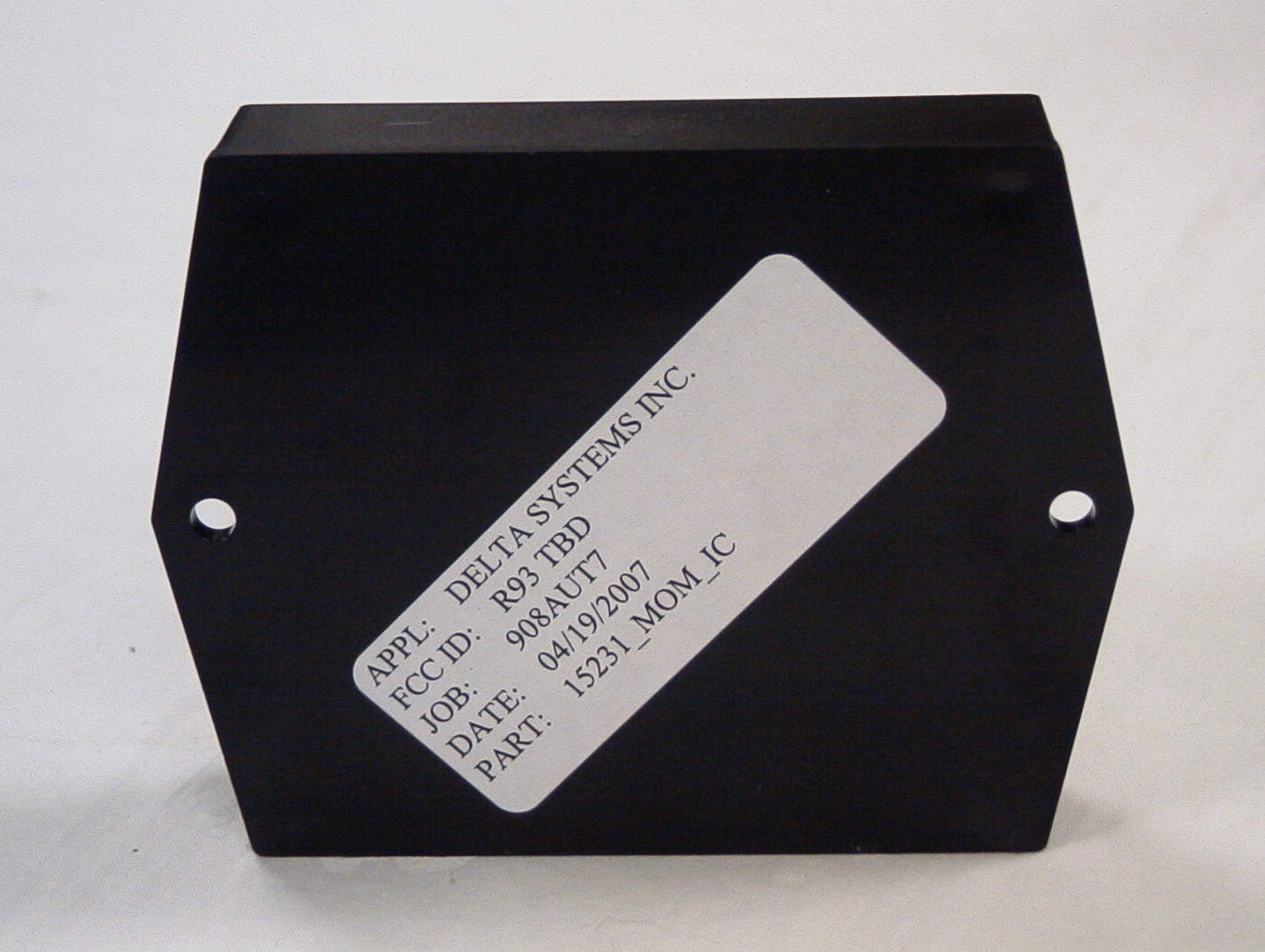

R932039500915MHz RECEIVER

Instruction manual to teach a new transmitter’s code to a receiver The user’s manual applies to the following units: Transmitter FCC ID: R932039010 IC: 6268A-2039010 Model Number: 2039-010 Receiver FCC ID: R932039500 IC: 6268A-2039500 Model Number: 2039-500 Product Description The FreeRein™ wireless control system includes a receiver box with either two or four outputs and a transmitter requiring a single CR2032 coin cell. The system is designed for 12- 24volt DC systems only. 1. Physically attach the receiver box*, if not already done. 2. Make sure the power line of the receiver is disconnected. 3. Press and hold any of the transmitter’s buttons and simultaneously reconnect the power line of the receiver to the 12V power source. 4. There will be an audible click in the relay if the receiver has learned the new transmitter’s code.**. 5. The device is activated and ready for use. 6. Refer to the diagram for electrical connections. *Note: For optimum performance affix the receiver box as far away from electric noise as possible. (Example: Electric motors) **Note: A receiver can learn the code for and be controlled by up to four different transmitters. (Not controlled simultaneously, however) FCC and IC Compliance This device complies with part 15 of the FCC rules and RSS-210 of the IC. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Request for Confidentiality To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Delta Systems Inc. 1734 Frost Road Streetsboro, OH 44241 RE: Confidentiality Request Gentleman: This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. Delta Systems Inc requests that the following documents regarding this submission for FCC ID R932039500 be kept confidential: 1) Schematics (file name: Rx_schematic.pdf) 2) Block Diagram (file name: Rx block diagrams.pdf) 3) Circuit/ Technical description (file name: circuit technical description.pdf) The material above contains technical data, which would customarily be guarded from competitors. Sincerely, L.Chop Kramer RF Engineer Delta Systems Inc

FCC ID: R932039500 IC: 6268A-2039500 M/N: 2039-500-9 Trade Name: FreeRein Delta Systems, Inc. Patent Pending Date Code This device complies with part 15 of the FCC rules and RSS-210 of IC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IC: 6268A-2039500 Label Here

FCC PART 15 SUB PART B RECEIVER TEST REPORT Applicant DELTA SYSTEMS INC. Address 10036 AURORA - HUDSON ROAD 1734 FROST ROAD STREETSBORO OH 44241 USA Model Number 2039-500-9 FCC ID R932039500 Product Description 915MHz Receiver Date Sample Received 4/16/2007 Date Tested 4/24/2007 Tested By Nam Nguyen Approved By Mario de Aranzeta Report Number 909AUT7TestReport.pdf Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 Company: Delta System FCC ID: R932039500 Report: W:\D\DELTA SYSTEMS\909AUT7\909AUT7TestReport.doc Page 2 of 9 TABLE OF CONTENTS ATTESTATION STATEMENT..................................................................................................... 3 REPORT SUMMARY .................................................................................................................4 TEST ENVIRONMENT AND SYSTEM ........................................................................................ 4 DUT SPECIFICATION ...............................................................................................................5 TEST EQUIPMENT LIST....................................................................................................... 6 TEST PROCEDURE..................................................................................................................7 RADIATED SPURIOUS EMISSIONS.......................................................................................... 8 POWER LINE CONDUCTED INTERFERENCE........................................................................... 9 Company: Delta System FCC ID: R932039500 Report: W:\D\DELTA SYSTEMS\909AUT7\909AUT7TestReport.doc Page 3 of 9 ATTESTATION STATEMENT This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. Certificate #0955-01 All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made by me or under my supervision, at TIMCO ENGINEERING, INC. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta Function: Chief Testing Engineer Date: April 26, 2007 Company: Delta System FCC ID: R932039500 Report: W:\D\DELTA SYSTEMS\909AUT7\909AUT7TestReport.doc Page 4 of 9 REPORT SUMMARY Disclaimer The test result only related to the item tested. Purpose of Test Report To demonstrate the compliance with FCC Par15.109 requirements for a receiver. Applicable Rule(s) FCC Pt 15.109, ANSI C63.4 2003, RSS-210 Related Report 909BUT7TestReport.pdf (RSS-210) TEST ENVIRONMENT AND SYSTEM Test Facility The test sites used by Timco Engineering Inc. are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: The temperature was 26ºC with a relative humidity of 50%. Test Exercise (e.g software description, test signal, etc.): The DUT was placed in normal operation mode. Supporting Peripheral Equipment Not applicable. The device is a stand-alone device. Deviation to the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. Company: Delta System FCC ID: R932039500 Report: W:\D\DELTA SYSTEMS\909AUT7\909AUT7TestReport.doc Page 5 of 9 DUT SPECIFICATION Manufacturer Delta Systems Description Receiver FCC ID R932039500 Model Name 2039-500-9 Family Model(s) N/A Operating Frequency 915MHz 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Company: Delta System FCC ID: R932039500 Report: W:\D\DELTA SYSTEMS\909AUT7\909AUT7TestReport.doc Page 6 of 9 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/20/07 3/19/10 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro- Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log-Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 Company: Delta System FCC ID: R932039500 Report: W:\D\DELTA SYSTEMS\909AUT7\909AUT7TestReport.doc Page 7 of 9 TEST PROCEDURE Radiation Interference: The test procedure used was ANSI C63.4-2003 using a spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The video bandwidth was always greater than or equal to the RBW. Formula Of Conversion Factors: The field strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the preselector was accounted for in the spectrum analyzer meter reading. Example: Freq (MHz) Meter Reading + ACF +CL = FS 33 20 dBuV + 10.36 dB/m +0.40 dB =30.36 dBuV/m @ 3m ANSI C63.4-2003 Measurement Procedures: The DUT was placed on a table 80 cm high and with dimensions of 1mby 1.5m. The table used for radiated measurements is capable of continuous rotati…
