203CWAS Wireless Transmitting Camera User Manual Thank you for using 203CA Wireless camera. Please read this manual carefully before you use it. And it will benefit you to use this product better. OPERATING RESTRICTION ‹ DO NOT use the product to monitor products or activities that are relevant to people’s life. 1. Monitoring or products or activities concerned directly with people’s life. 2. Monitoring related to people’s security, antiques or rare articles. *For it is not designed and manufactured for these purposes. ‹ DO NOT put the product too close to medical equipment. 1. Radio waves might cause breakdown of medical electrical equipment thus causing incidents. 2. Place the product at least 22cm away form a heart pacemaker. Radio waves may influence heart pacemakers and lead to respiratory disturbance. ‹ DO NOT use the product to carry out any illegal activities (such as sneak preview, etc.) ‹ DOMEMEIE NOT put the package plastic bags in reach of children or babies. * It might cause asphyxia if children or babies put the bags into their mouths. ‹ DO NOT plug the AC adapter into the outlet in improper situation. *Plucking or plugging AC adapter by Wet hand might cause electric shock. Plugging AC adapter unsteadily might cause fire or electric shock. ‹ DOT NOT cover the AC adapter when it is connected to power socket DO NOT place the adapter near heaters and DO NOT put it on the floor which is equipped with a heater. *The above mentioned operations might cause fire or incidents. ‹ DO NOT use it aboard; please abide by the airway’s provision. * It might influence communications aboard and flying apparatus. This will result in accident, possible death and severe physical hurt. ‹ DO NOT put the camera in a wet place where water might splash or where rainwater and mist might cause corrosion (Except for weather-proof series). *Such a place might cause fire, shock, short circuit, etc. ‹ DO NOT disassemble or repair the camera, the receiver and other relevant peripherals. *Improper disassembly might cause damage to the product or the peripherals. ‹ DO NOT put the camera in quaky places. * The camera may be unstable or out of operation if installed improperly. Such installation may also cause breakdown. ‹ DO NOT use the receiver on the surface of thermolabile material. *Please embed thermal insulating material when using on the surface of any thermolabile material. ‹ DO NOT place or use the AC adapter on temperature sensitive materials. * The above practice might cause plastic distortion, fading or sticking on the surface. ‹ DO NOT use several cameras with neighbouring frequencies working to close at the same time. *The electromagnetic wave signals of the neighbouring frequencies might cause slight interferences and so influence the receiving effect. ‹ DO NOT let several cameras with the same frequency work at the same time. *The overlap of the electromagnetic wave signals of the same frequency might cause severe interferences and so result in failure to receive signals. ‹ DO NOT use the camera in places which are covered by metal. * The surrounding metal such as elevator, cabin, might shield the electromagnetic waves, and result in failure to receive signals. ‹ NO NOT use the camera in complex environment. The obstruction of stumbling blocks will affect the electromagnetic wave and influence the receiving range. *Wall, tree and other stumbling blocks might absorb, reflect the electromagnetic waves, and influence the receiving rang. 1. Specification Parameters:: 203CA Wireless transmitter specification Parameters Image Device 1/3” CMOS image sensor TV System PAL/CCIR NTSC/EIA Validity Pixel PAL: 628×582 NTSC: 510×492 Image Area PAL: 5.78×4.19mm NTSC: 4.69×3.45mm Horizontal Defination 320Line Scan Frenquency PAL/CCIR: 50Hz NTSC/EIA: 60Hz Minimum Illumination 3LUX Sensitivity 18 dB/AGC OFF Output Frequency 2.4GHz (2.414GHz 、 2.432GHz 、 2.450GHz 、 2.468GHz) Frequency Controller Adapt to MPU and phase locked loop to control frequency exactly, which possesses high stability. Transmitter Signal Audio, video Open Transmission Distance 20-30m Fixed Voltage DC+8V Fixed Current 200mA Power Consumption ≤150mW Working temperature Size Weight -10～+50°C 20x20x15 mm 45g 2. Diagram . . . Antenna Camera lens Power tie-in 3. Operation Instruction: 1) Put the camera in the direction you want to monitor. 2) Insert DC8V/200mA power adapter into the interflow power plug, and insert its DC output plug into the DC input plug of the camera and turn power on. 3) Please put cameras 2 meters away from each other when two or more cameras used simultaneously. The distance between receiver and cameras should be more than 2 Meters too, otherwise signal interference would influence receiving result. 4) Fix 2.4G antenna to the camera ANT jack and screw down. 5) Connect receiver and TV or monitor with AV cable; 6) Insert DC12V/500mA power adapter into the interflow power plug, and insert its DC output plug into receiver’s input plug, then turn power on. 7) Choose proper receiving channel to make the frequency be the same with frequency of transmitter. 8) Connect camera and TV or monitor with AV cable, you may get audio and video signals. 4. Problems and solving： 1) There is no image on TV or monitor screen ▲Please check whether the TV or monitor’s power adapter has been installed well or not. ▲Please Check whether the key of the power adapter has been turn on or not ▲Please check whether power adapter has been insert to receiver’s input power jack. 2) There is no image or the image is not clear ▲ Please check camera power adapter has been switched. ▲ Please check if the distance is too long between the camera and receiver (The direct distance should be within 500-800m), or if there are any electromagnetism obstruction around (e.g. steel construction will counteract transmitting signals.) ▲ Please make sure the frequency of the wireless camera is the same as that of receiver. (Two cameras with the same frequency can not work pr…

Text truncated - open the document above for the full version.

203CWAS Block Diagram ANT Video Audio Power DC8V CMOS Camera 2414 MHz Modulator RF Power AMP Microphone 6.0MHz Modulator Audio AMP 5V Regulator

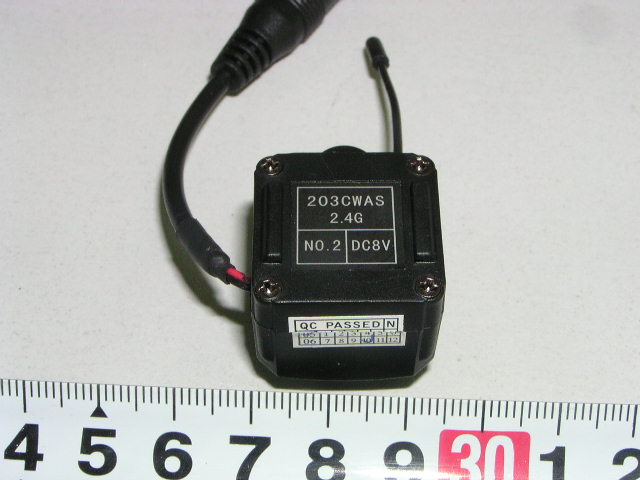

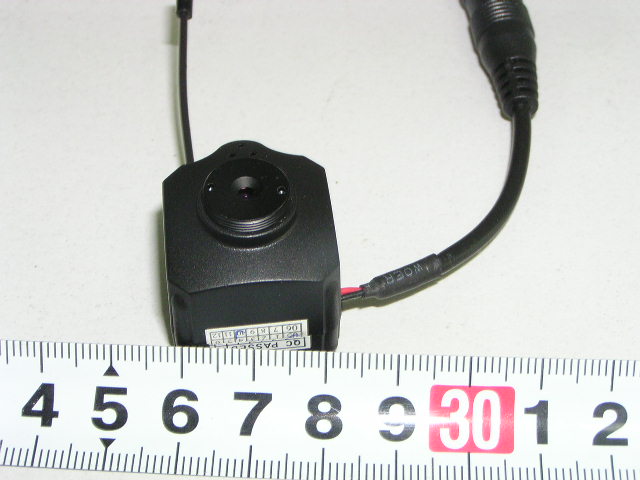

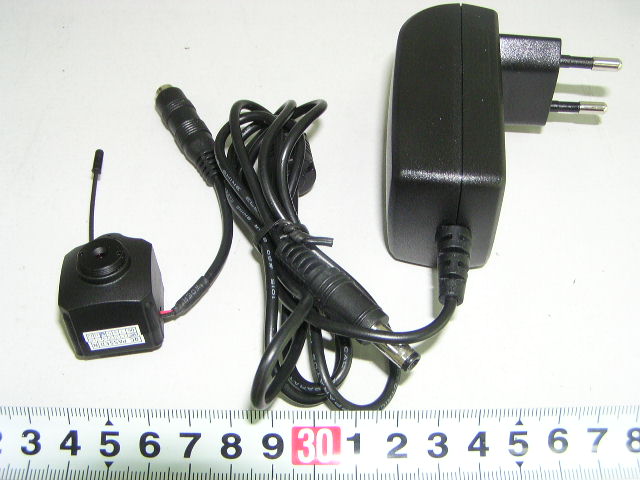

External Photos EUT-All View EUT-Front View EUT-Rear View EUT-Adaptor Label View

ID Label Label FCC ID: RAWLYD2G4CWAS

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location

Internal Photos EUT-Inside View EUT-PCB View (1) EUT-PCB View (2) EUT-PCB View (3)

Operational Description 223CA wireless transmitter module intended for in 2414MHz wireless A/V signal Sender and Receive set as RF output modulator, which converts the FM video and audio signal into the RF signal for TV or monitor. This device has a outside antenna. You can fixed the device on a table or wall by screwed the mounting base. To fix the device, please follow the installation. And please make sure the supervision and monitor are set the same band before in use.

TX2401B-20050219.sch-1 - Mon Oct 10 20:30:50 2005 223C_050520.sch-1 - Mon Oct 10 20:29:21 2005 NUMBER EXAMINER APPROVED RATEPAGE WEIGHT 1-11:1 NAME ACCESSORY MATERIAL COLOR NO MARK PLACE NUMBER SIGNATORY DATE ASSEMBLE ACCESSORY NUMBER PRODUCT DESIGNER SHENZHEN LIANYIDA SCIENCE CO; LTD 223CA R9 10K R15 1M R6 10K R3 4.7K R2 470K 1 SGND 2 SVDD 3 VCBRT 4 BPAVE 5 RSVD5 6 AGND 7 AVDD 8 RGSW 9 CEXP 10 HSAT 11 RGAMMA 12 SMTAWB 13 EVDD 14 EGND 15 BVCO 16 GYYO 17 RVCVO 18 OVDD 19 G2X 20 HGAIN 21 BKLT 22 XCLK1 23 XCLK2 24 PAL 25 DVDD 26 DGND 27 GAMMA 28 AGCEN 29 AWBEN 30 AWBTM 31 VAXPXO 32 VSYNC/MIR 33 FSO/VSFR 34 FODD/12CEN 35 PALSW 36 FSI 37 PWDN 38 AMDO0 39 AMOD1 40 HSHP 41 DEVDD 42 DEGND 43 SIO-0 44 SIO-1 45 VREF1 46 VREF2 47 VREF3 48 VREF4 U1 OV7910 C12 33pF C11 33pF C4 0.1uF C3 0.1uF C2 0.1uF C10 1uF C5 0.1uF X1 P:17.7344MHz;N:14.3181MHz R51 5.6K Q1 KTC3875S R8 10K R1347R CE1 10uF/16V R101 10R C6 0.1uF R7 open R1 open R10 10K R11 open 21 MIC R12 10K R14 open R16 open R17 open VR1 1K Q2 KTC3875S R4 39K R51M CE2 10uF/16V C8 1uF J1 J2 J3J4 C9 1uF C13 1uF J5 CE3 open L1 1uH C7 360PF C14 360PF C15 360PF C16 360PF AUDIO +5V +5V VIDEO +5V VIDEOAUDIO

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Shenzhen Lian Yi Da Science Co., Ltd. #2009A, Saige Building, HuaQiang Road North Shenzhen,China FCC ID: RAWLYD2G4CWAS November 2, 2005 This Report Concerns: Original Report Equipment Type: Transmitter, Wireless Camera Test Engineer: Merry Zhao and Davis Ma Report No.: RSZ05101001 Test Date: October 20-27, 2005 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Shenzhen Lian Yi Da Science Co., Ltd. FCC ID: RAW LYD2G4CWAS Report # RSZ05101001 Page 2 of 30 FCC PART 15.249 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 §15.203 - ANTENNA APPLICATION ........................................................................................................................8 STANDARD APPLICABLE..............................................................................................................................................8 §15.207 - CONDUCTED EMISSION ..........................................................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 TEST RECEIVER SETUP...............................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................11 TEST DATA................................................................................................................................................................11 PLOT(S) OF TEST DATA..............................................................................................................................................13 §15.205 §15.209(A) §15.249(A) - RADIATED EMISSION ......................................................................................20 M EASUREMENT U NCERTAINTY ..................................................................................................................................20 EUT S ETUP ................................................................................................................................................................20 T EST R ECEIVER S ETUP ...............................................................................................................................................20 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................21 TEST PROCEDURE......................................................................................................................................................21 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................21 TEST RESULTS SUMMARY...........................................................................................…
