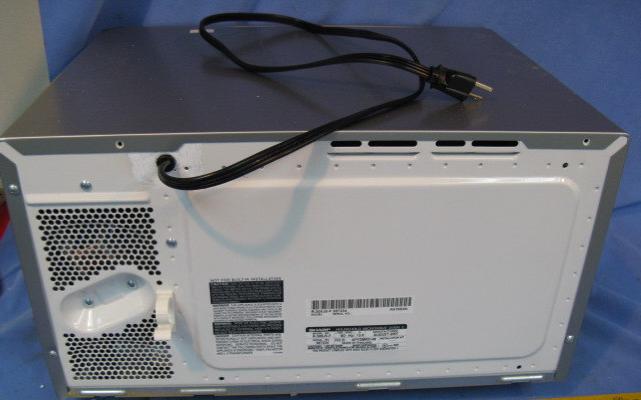

R307NW External photo R307NW Internal photo

FCC ID: RBJ-R3XXX Report Number: 64.710.07.385.01 Page 1 of 18 Rev.No 1.7 TÜV SÜD Group China Guangzhou Branch 26/F, Dongbao Tower, #767 Dongfeng Road East. (510600) Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 E M I S S I O N - T E S T R E P O R T Report Number : 64.710.07.385.01 Date of Issue: 22 January 2008 Model / Serial No. : R307NW / NIL Product Type : Microwave oven Applicant : Tsann Kuen Enterprise Co., Ltd. Manufacturer : Tsann Kuen (Zhangzhou) Enterprise Co., Ltd. License holder : Tsann Kuen Enterprise Co., Ltd. Address : 3 Kai Fa 2 nd Rd, Pao An Industrial District, Ren Teh. Hsiang, : Tainan, Taiwan Test Result :



Positive    Negative Total pages including Appendices : 18 The test result only responds to the tested sample. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. FCC ID: RBJ-R3XXX Report Number: 64.710.07.385.01 Page 2 of 18 Rev.No 1.7 TÜV SÜD Group China Guangzhou Branch 26/F, Dongbao Tower, #767 Dongfeng Road East. (510600) Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 D I R E C T O R Y Pages A) Documentation Directory 2 Test Regulations 3 General information 3 - 4 Equipment under Test 5 B) Test Data Radiation Hazard Measurement 6 Input Power Measurement 7 RF Output Power Measurement 8 Operating Frequency Measurement 9 Conducted Emission 10 - 12 Radiated Emission 13 - 14 C) Photographs of The Test Set-Up Set-up for radiation measurement below 1GHz 17 Set-up for radiation measurement above 1GHz 18 FCC ID: RBJ-R3XXX Report Number: 64.710.07.385.01 Page 3 of 18 Rev.No 1.7 TÜV SÜD Group China Guangzhou Branch 26/F, Dongbao Tower, #767 Dongfeng Road East. (510600) Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 TEST REGULATIONS : The tests were performed according to the following regulations:
- 47 CFR Part 18 Test Facilities
- Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory. Add: Bldg, of Shenzhen Metrology & Quality Inspection Institute, Longzhu Road, Nanshan, Shenzhen 518055 P.R.C. Environmental Conditions Temperature: : 25 °C Relative Humidity: : 66 % Atmospheric Pressure: : 1006 mBar Power Supply System Utilized: Power supply system : 120V/60Hz/1ø STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Short Description of the Equipment under Test(EUT) R307NW is a microwave oven operates in the frequency 2.450GHz. Communication type: R307NW Power Consumption: 120V~60Hz, 1530W (microwave) Output power: 1100W Operation Frequency: 2450MHz Magnetron Manufacturer: Panasonic Magnetron Model Number: 2M167B-M52 Power Cable: 110cm FCC ID: RBJ-R3XXX Report Number: 64.710.07.385.01 Page 4 of 18 Rev.No 1.7 TÜV SÜD Group China Guangzhou Branch 26/F, Dongbao Tower, #767 Dongfeng Road East. (510600) Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 R3XXX Derived Types: Model No. Cosmetic Colors Construction R307NK Black R307NW White R308NK Black R308NW White R308NS Silver R308NP Pewter R307 series are same as R308 series except shape of Key sheet, Control panel enclosure, Door open button, Door frame sash, Outside door screen and Inner door frame sash. Definitions For Symbols Used In This Test Report
- Black box indicates that the listed condition, standard or equipment is applicable for this report  - Blank box indicates that the listed condition, standard or equipment was not applicable for this report. Status of Facility Used for Testing Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory located at Bldg, of Shenzhen Metrology & Quality Inspection Institute, Longzhu Road, Nanshan, Shenzhen, Guangdong,China is listed in the US Federal Communications Commission list of facilities approved to perform measurements. Load for Microwave Ovens For all measurements, the energy developed by the oven was absorbed by a dummy load consisting of a quantity of tap water in a beaker. If the oven was provided with a shelf or other utensil support, this support was in its initial normal position. For ovens rated at 1000 watts or less power output, the beaker contained quantities of water as listed in the following subparagraphs. For ovens rated at more than 1000 watts output, each quantity was increased by 50% for each 500 watts or fraction thereof in excess of 1000 watts. Additional beakers were used if necessary.
Load for power Input and output measurement: 1000 milliliters of water in the beaker located in the center of the oven.
Load for frequency measurement: 1000 milliliters of water in the beaker located in the center of the oven.
Load for radiation hazard measurement: 1000 milliliters of water in the beaker located in the center of the oven.
Load for measurement of radiation on second and third harmonic: Two loads, one of 700 and the other of 300 milliliters, of water are used. Each load is tested both with the beaker located in the center of the oven and with it in the right front corner.
Load for other measurement: 700 milliliters of water in the beaker located in the center of the oven. FCC ID: RBJ-R3XXX Report Number: 64.710.07.385.01 Page 5 of 18 Rev.No 1.7 TÜV SÜD Group China Guangzhou Branch 26/F, Dongbao Tower, #767 Dongfeng Road East. (510600) Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Test Equipment Used: Serial No. Equipment Manufacturer Model No. Last Cal. Cal. Interval 99171 Microwave survey meter Holaday HI-1501 06 Dec. 2006 1 Year 508015 power m…
