MICROWAVE OVEN 1 MICROWAVE OVEN USER MANUAL PLEASE READ THIS MANUAL THOROUGHLY BEFORE OPERATING MICROWAVE OVEN 2 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY a. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. b. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. c. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. d. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be followed including the following: WARNING –To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ” found on page 1. 3. This appliance must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS ” found on page 3. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs with / without shells and sealed containers – for example, closed glass jars – are able to explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. MICROWAVE OVEN 3 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9.This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water – for example ,near a kitchen sink, in a wet basement or near a swimming pool or similar locations. 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surfaces. 14. Do not let cord hang over edge of table or counter. 15. See surface door cleaning instructions on page 16. 16. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven ignite, keep oven door closed, turn oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 17. Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. SAVE THESE INSTRUCTIONS MICROWAVE OVEN 4 ADDITIONAL IMPORTANT SAFETY INSTRUCTIONS 1. Oversize foods or oversize metal utensils should not be inserted in a microwave oven as they may create a fire or risk of electric shock. 2. Do not clean with metal scouring pads. 3. Do not store any materials other than manufacturer ’s recommended accessories in this oven when not in use. WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS: 1. Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. 2. Do not use narrow necked containers to boil or reheat liquids. 3. To reduce the risk of injury, stir the liquid several times before heating. 4. The liquid may splash out during or after heating or when adding ingredients (instant coffee, etc) resulting in possible harm or injury to persons. 5. After heating, allow the container to stand in microwave oven for at least 40 seconds before removing the container. 6. Do not heat water and oil, or a fat together, which may cause a violent eruption. SHORT POWER-SUPPLY CORD WARNING: a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. c) If a long detachable power-supply cord or extension cord is used. 1) The marked electrical rating of the detachable power-supply cord or extension cord should be least as the electrical rating of the appliance. 2) If the appliance is of the grounded type, the extension cord should be grounding-type 3-wire MICROWAVE OVEN 5 cord, and 3) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over, GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING – Improper use of the gr…

Text truncated - open the document above for the full version.

MICROWAVE OVEN USER MANUAL PLEASE READ THIS MANUAL THOROUGHLY BEFORE OPERATING MICROWAVE OVEN 1 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY a. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. b. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. c. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. d. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be followed including the following: WARNING –To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ” found on page 1. 3. This appliance must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS ” found on page 3. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs with / without shells and sealed containers – for example, closed glass jars – are able to explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. MICROWAVE OVEN 2 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9.This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water – for example ,near a kitchen sink, in a wet basement or near a swimming pool or similar locations. 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surfaces. 14. Do not let cord hang over edge of table or counter. 15. See surface door cleaning instructions on page 16. 16. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven ignite, keep oven door closed, turn oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 17. Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. SAVE THESE INSTRUCTIONS MICROWAVE OVEN 3 ADDITIONAL IMPORTANT SAFETY INSTRUCTIONS 1. Oversize foods or oversize metal utensils should not be inserted in a microwave oven as they may create a fire or risk of electric shock. 2. Do not clean with metal scouring pads. 3. Do not store any materials other than manufacturer ’s recommended accessories in this oven when not in use. WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS: 1. Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. 2. Do not use narrow necked containers to boil or reheat liquids. 3. To reduce the risk of injury, stir the liquid several times before heating. 4. The liquid may splash out during or after heating or when adding ingredients (instant coffee, etc) resulting in possible harm or injury to persons. 5. After heating, allow the container to stand in microwave oven for at least 40 seconds before removing the container. 6. Do not heat water and oil, or a fat together which may cause a violent eruption. SHORT POWER-SUPPLY CORD WARNING: a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. c) If a long detachable power-supply cord or extension cord is used. 1) The marked electrical rating of the detachable power-supply cord or extension cord should be least as the electrical rating of the appliance. 2) If the appliance is of the grounded type, the extension cord should be grounding-type 3-wire MICROWAVE OVEN 4 cord, and 3) The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over, GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING – Improper use of the grounding can resul…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: Jul. 28, 2005 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding Application for certification of FCC ID: RBJ-TSKM840X Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: u Functional Block Diagram u Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ____________________________________ Yu-Ming Lin Tsann Kuen Enterprise Co., Ltd.

1 To:monica; leon Subject:RE: TSANN KUEN GROUP, FCC ID: RBJ-TSKM840X, Assessment NO.: AN05T5082, Notice#1 From: monica Sent: Tuesday, August 23, 2005 2:12 AM To: Helen Zhao; leon Subject: Re: TSANN KUEN GROUP, FCC ID: RBJ-TSKM840X, Assessment NO.: AN05T5082, Notice#1 Dear Helen, Question #1: The test report (page 4) indicates that all the four test samples use the same Fan motor: Heng Cheng, Type No. YJF62A-120, while the model difference table indicates that other two fan motors 1) Tsann Kuen, Type No. TKM-M01 2) Tsann Kuen, Type No. TKM-M02 will be used alternatively. Please explain why no test configuration using the other two options was ever selected for compliance testing. Answer #1: The three fan motors have been previewed to identify the worst case for the final test. The worst case (Heng Cheng, Type No. YJF62A-120) was selected to test and report in this report for compliance testing. Question #2: Please explain the model difference between TSK-8403EMM and TSK-8403E, and TSK-8404EMM and TSK-8404E. Answer #2: TSK-8403EMM and TSK-8403E are identical except model no., TSK-8404EMM and TSK-8404E are identical except model no. I have reviesd test report. (Page 4). Attached please find revised test report. Question #3: Please check page 81 for configuration of TSK-8402AMM, it does not agree with description in other sections of the test report. Answer #3: I have reviesd test report. (Page 81). Attached please find revised test report. Page 81). Thank you very much for your assistance Best Regards Monica Chang

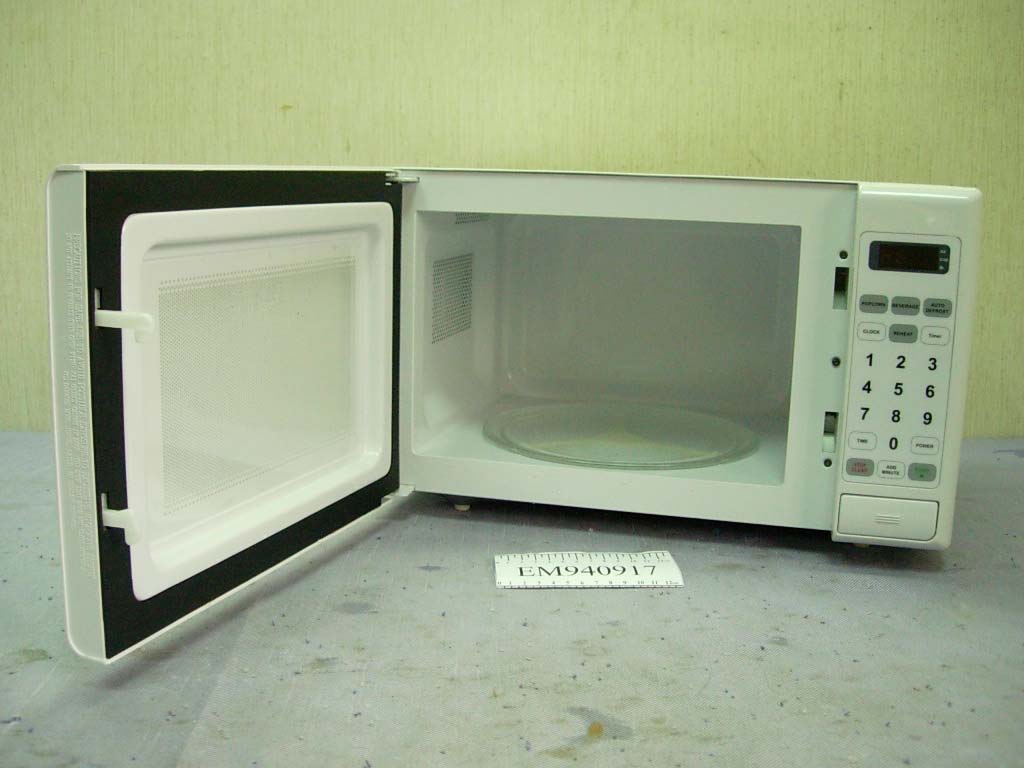

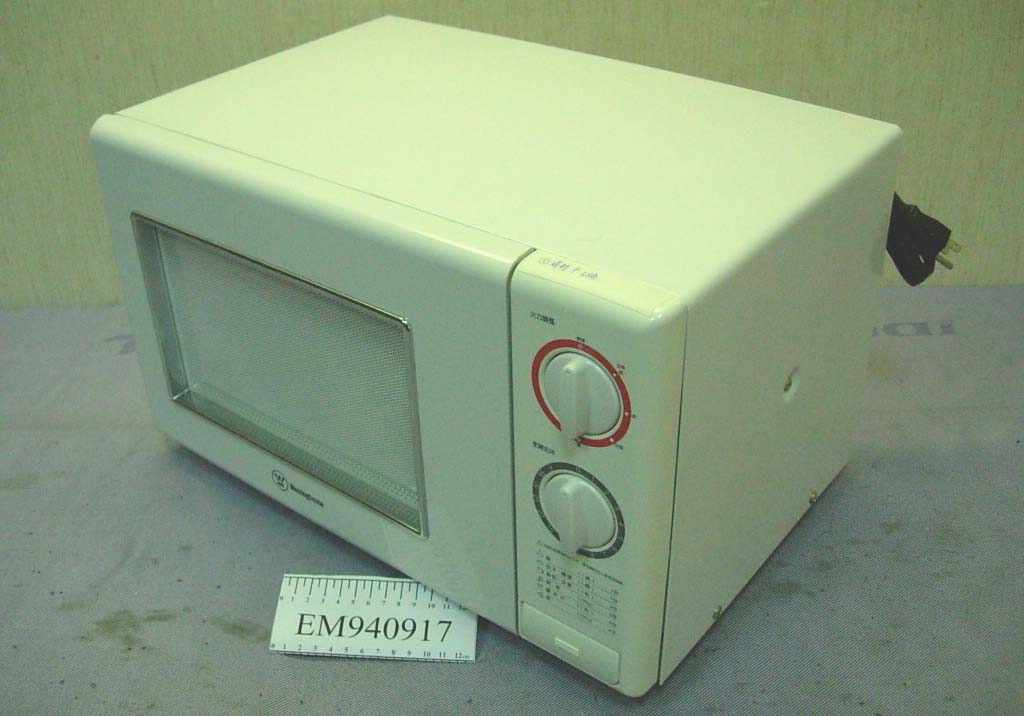

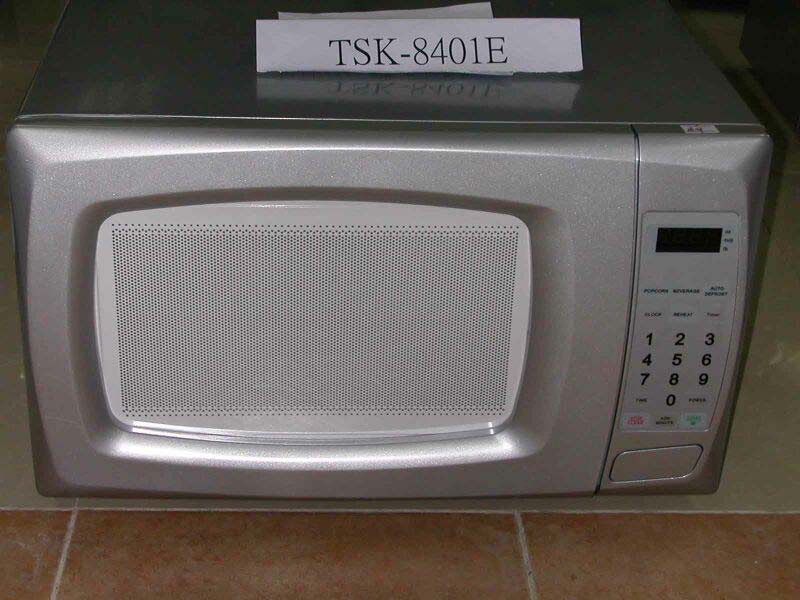

FCC ID. RBJ-TSKM840X EUT External Photos Photo 1 M/N TSK-8402AMM, General Appearance (Front, Top & Side View) Photo 2 M/N TSK-8402AMM, General Appearance (Back, Bottom & Side View) FCC ID. RBJ-TSKM840X Photo 3 M/N TSK-8402AMM, General Appearance (Open the Front Door) Photo 4 M/N TSK-8402EMM, General Appearance (Front, Top & Side View) FCC ID. RBJ-TSKM840X Photo 5 M/N TSK-8402EMM, General Appearance (Back, Bottom & Side View) Photo 6 M/N TSK-8402EMM, General Appearance (Open the Front Door) FCC ID. RBJ-TSKM840X Photo 7 M/N TSK-8401AMM, General Appearance (Front View) Photo 8 M/N TSK-8403AMM, General Appearance (Front View) FCC ID. RBJ-TSKM840X Photo 9 M/N TSK-8404AMM, General Appearance (Front View) Photo 10 M/N TSK-8401EMM, Internal View (Front View) FCC ID. RBJ-TSKM840X Photo 11 M/N TSK-8403EMM & TSK-8403E, General Appearance (Front View) Photo 12 M/N TSK-8404EMM & TSK-8404E, General Appearance (Front View)

FCC ID. RBJ-TSKM840X FCC ID Label Format and Location z FCC Label Format z Label Placement Location (Back Side of EUT) FCC Label Placement Location

FCC ID. RBJ-TSKM840X EUT Internal Photos Photo 13 M/N TSK-8402AMM, Internal View (With Witol Magnetron and Yunlu H.V. Transformer ) Photo 14 M/N TSK-8402AMM, Internal View (With Witol Magnetron and Yunlu H.V. Transformer ) FCC ID. RBJ-TSKM840X Photo 15 M/N TSK-8402AMM, Internal View (With Witol Magnetron and Yunlu H.V. Transformer ) Photo 16 M/N TSK-8402AMM, Label of Magnetron (Witol, Type No. 2M315H) FCC ID. RBJ-TSKM840X Photo 17 M/N TSK-8402AMM, Internal View (With Yunlu H.V. Transformer) Photo 18 M/N TSK-8402AMM, Label of H.V. Transformer (Yunlu, Type No. KHT-R701ACK) FCC ID. RBJ-TSKM840X Photo 19 M/N TSK-8402AMM, H.V. Capacitor Photo 20 M/N TSK-8402AMM, Label of H.V. H.V. Capacitor FCC ID. RBJ-TSKM840X Photo 21 M/N TSK-8402AMM,Bulb Photo 22 M/N TSK-8402AMM, Fuse and Filter Board (Component Side) FCC ID. RBJ-TSKM840X Photo 23 M/N TSK-8402AMM, Fuse and Filter Board (Foil Side) Photo 24 M/N TSK-8402AMM, Controller FCC ID. RBJ-TSKM840X Photo 25 M/N TSK-8402AMM, Controller Photo 26 M/N TSK-8402AMM, Fan Device FCC ID. RBJ-TSKM840X Photo 27 M/N TSK-8402AMM, Label of Fan Motor Photo 28 M/N TSK-8402AMM, Synchronous Motor FCC ID. RBJ-TSKM840X Photo 29 M/N TSK-8402EMM, Internal View (With Toshiba Magnetron and DPC H.V. Transformer) Photo 30 M/N TSK-8402EMM, Internal View (With Toshiba Magnetron and DPC H.V. Transformer) FCC ID. RBJ-TSKM840X Photo 31 M/N TSK-8402EMM, Internal View (With Toshiba Magnetron and DPC H.V. Transformer) Photo 32 M/N TSK-8402EMM, Label of Magnetron (Toshiba, Type No. 2M231CH(EP)-A) FCC ID. RBJ-TSKM840X Photo 33 M/N TSK-8402EMM, Internal View (With Matsushita Magnetron and DPC H.V. Transformer) Photo 34 M/N TSK-8402EMM, Internal View (With Matsushita Magnetron and DPC H.V. Transformer) FCC ID. RBJ-TSKM840X Photo 35 M/N TSK-8402EMM, Internal View (With Matsushita Magnetron and DPC H.V. Transformer) Photo 36 M/N TSK-8402EMM, Label of Magnetron (Matsushita, Type No. 2M211A-M2J) FCC ID. RBJ-TSKM840X Photo 37 M/N TSK-8402EMM, Internal View (With Matsushita Magnetron and Yunlu H.V. Transformer) Photo 38 M/N TSK-8402EMM, Internal View (With DPC H.V. Transformer) FCC ID. RBJ-TSKM840X Photo 39 M/N TSK-8402EMM, Label of H.V. Transformer (DPC, Type No. EUPA-700A) Photo 40 M/N TSK-8402EMM, Internal View (With Yunlu H.V. Transformer) FCC ID. RBJ-TSKM840X Photo 41 M/N TSK-8402EMM, Label of H.V. Transformer (Yunlu, Type No. KHT-R701ACK) Photo 42 M/N TSK-8402EMM, H.V. Capacitor FCC ID. RBJ-TSKM840X Photo 43 M/N TSK-8402EMM, H.V. Capacitor Photo 44 M/N TSK-8402EMM, Bulb FCC ID. RBJ-TSKM840X Photo 45 M/N TSK-8402EMM, Fuse and Filter Board (Component Side) Photo 46 M/N TSK-8402EMM, Fuse and Filter Board (Foil Side) FCC ID. RBJ-TSKM840X Photo 47 M/N TSK-8402EMM, Main Board (Component Side) Photo 48 M/N TSK-8402EMM, Main Board (Foil Side) FCC ID. RBJ-TSKM840X Photo 49 M/N TSK-8402EMM, Fan Device Photo 50 M/N TSK-8402EMM, Fan Motor FCC ID. RBJ-TSKM840X Photo 51 M/N TSK-8402EMM, Synchronous Motor

FCC ID.RBJ-TSKM840X Page 1 of 172 Audix Corporation Report No. EM-F940179 APPLICATION FOR CERTIFICATION On Behalf of Tsann Kuen Enterprise Co., Ltd. Microwave Oven Model : (1)TSK-8401AMM (2)TSK-8402AMM (3)TSK-8403AMM (4)TSK-8404AMM (5)TSK-8401EMM (6)TSK-8402EMM (7)TSK-8403EMM (8)TSK-8404EMM (9)TSK-8403E (10)TSK-8404E FCC ID：RBJ-TSKM840X Prepared for : Tsann Kuen Enterprise Co., Ltd. 3, Kai Fa 2 nd Road, Pao An Industrial District, Ren Teh Hsiang, Tainan, Taiwan Prepared By : Audix Corporation Technical Division EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou, Taipei County, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number ： EM940917 Report Number ： EM-F940179 Date of Test ： Aug. 04 ~ 12, 2005 Date of Report ： Aug. 15, 2005 FCC ID.RBJ-TSKM840X Page 2 of 172 Audix Corporation Report No. EM-F940179 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................3 1.GENERAL INFORMATION ..............................................................................................................4 1.1.Description of Device (EUT)...................................................................................................................... 4 1.2.Description of Test Facility ........................................................................................................................ 6 1.3.Measurement Uncertainty........................................................................................................................... 6 2.INPUT POWER MEASUREMENT ...................................................................................................7 2.1.Test Equipment ........................................................................................................................................... 7 2.2.Test Setup ................................................................................................................................................... 7 2.3.Operating Condition of EUT and Measurement Procedure........................................................................7 2.4.Measurement Results.................................................................................................................................. 7 3.OUTPUT POWER MEASUREMENT ...............................................................................................9 3.1.Test Equipment ........................................................................................................................................... 9 3.2.Test Setup ................................................................................................................................................... 9 3.3.Operating Condition of EUT and Measurement Procedure........................................................................9 3.4.Measurement Results.................................................................................................................................. 9 4.OUTPUT FREQUENCY MEASUREMENT ...................................................................................12 4.1.Test Equipment ......................................................................................................................................... 12 4.2.Test Setup ................................................................................................................................................. 12 4.3.Operating Condition of EUT and Measurement Procedure...................................................................... 12 4.4.Measurement Results................................................................................................................................ 12 5.FREQUENCY MEASUREMENT ....................................................................................................14 5.1.Test Equipment ......................................................................................................................................... 14 5.2.Test Setup ................................................................................................................................................. 14 5.3.Operating Condition of EUT and Measurement Procedure...................................................................... 14 5.4.Measurement Results................................................................................................................................ 15 6.CONDUCTED EMISSION MEASUREMENT................................................................................31 6.1.Test Equipment ......................................................................................................................................... 31 6.2.Test Setup ................................................................................................................................................. 31 6.3.Conduction Limits [18.307(b)] ................................................................................................................. 31 6.4.Operating Condition of EUT .................................................................................................................... 32 6.5.Test Procedure .......................................................................................................................................... 32 6.6.Conducted Emission Measurement Results.............................................................................................. 32 7.RADIATED EMISSION MEASUREMENT....................................................................................80 7.1.Test Equipment ......................................................................................................................................... 80 7.2.Test Setup ..................................................................................................................................…
