Microwave oven TSK-M1601MA Instruction manual PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY a. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. b. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. c. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. d. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be followed including the following: WARNING –To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific “ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ”found on page 2 3. This appliance must be grounded. Connect only to properly grounded outlet. See “ GROUNDING INSTRUCTIONS ” found on page 4. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs with / without shells and sealed containers – for example, closed glass jars – are able to explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water – for example ,near a kitchen sink, in a wet basement or near a swimming pool or similar locations. 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surfaces. 14. Do not let cord hang over edge of table or counter. 15. See surface door cleaning instructions on page 16. 16. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven ignite, keep oven door closed, turn oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 17. Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. SAVE THESE INSTRUCTIONS For Household Use Only ADDITIONAL IMPORTANT SAFETY INSTRUCTIONS 1. Oversize foods or oversize metal utensils should not be inserted in a microwave oven as they may create a fire or risk of electric shock. 2. Do not clean with metal scouring pads. 3. Do not store any materials other than manufacturer’s recommended accessories in this oven when not in use. 4. a) A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. b) Longer cord sets or extension cords are available and may be used if care is exercised in their use. c) If a long cord or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance; 2) The extension cord must be a grounding-type 3-wire cord; and 3) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS: 1. Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. 2. Do not use narrow necked containers to boil or reheat liquids. 3. To reduce the risk of injury, stir the liquid several times before heating. 4. The liquid may splash out during or after heating or when adding ingredients (instant coffee, etc) resulting in possible harm or injury to persons. 5. After heating, allow the container to stand in microwave oven for at least 40 seconds before removing the container. 6. Do not heat water and oil, or a fat together which may cause a violent eruption. GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING – Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exist as to whether the appliance is properly grounded. • Do not use an e…

Text truncated - open the document above for the full version.

MICROWAVE OVEN MODEL: TSK-M1601ME PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY a. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. b. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. c. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. d. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be followed including the following: WARNING –To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ” found on page 2 3. This appliance must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS ” found on page 4. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs with / without shells and sealed containers – for example, closed glass jars – are able to explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water – for example ,near a kitchen sink, in a wet basement or near a swimming pool or similar locations. 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surfaces. 14. Do not let cord hang over edge of table or counter. 15. See surface door cleaning instructions on page 16. 16. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven ignite, keep oven door closed, turn oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 17. Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. SAVE THESE INSTRUCTIONS For Household Use Only ADDITIONAL IMPORTANT SAFETY INSTRUCTIONS 1. Oversize foods or oversize metal utensils should not be inserted in a microwave oven as they may create a fire or risk of electric shock. 2. Do not clean with metal scouring pads. 3. Do not store any materials other than manufacturer ’s recommended accessories in this oven when not in use. 4.a) A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. b) Longer cord sets or extension cords are available and may be used if care is exercised in their use. c) If a long cord or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance; 2) The extension cord must be a grounding-type 3-wire cord; and 3) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS: 1. Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. 2. Do not use narrow necked containers to boil or reheat liquids. 3. To reduce the risk of injury, stir the liquid several times before heating. 4. The liquid may splash out during or after heating or when adding ingredients (instant coffee, etc) resulting in possible harm or injury to persons. 5. After heating, allow the container to stand in microwave oven for at least 40 seconds before removing the container. 6. Do not heat water and oil, or a fat together which may cause a violent eruption. GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING – Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exist as to whether the appliance is properly grounded. • Do not use an extension cord…

Text truncated - open the document above for the full version.

Microwave oven TSK-M1602MA Instruction manual PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY a. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. b. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. c. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. d. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be followed including the following: WARNING –To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific“PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ”found on page 2 3. This appliance must be grounded. Connect only to properly grounded outlet. See“GROUNDING INSTRUCTIONS ”found on page 4. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs with / without shells and sealed containers – for example, closed glass jars – are able to explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water – for example ,near a kitchen sink, in a wet basement or near a swimming pool or similar locations. 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surfaces. 14. Do not let cord hang over edge of table or counter. 15. See surface door cleaning instructions on page 16. 16. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven ignite, keep oven door closed, turn oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 17. Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. SAVE THESE INSTRUCTIONS For Household Use Only ADDITIONAL IMPORTANT SAFETY INSTRUCTIONS 1. Oversize foods or oversize metal utensils should not be inserted in a microwave oven as they may create a fire or risk of electric shock. 2. Do not clean with metal scouring pads. 3. Do not store any materials other than manufacturer’s recommended accessories in this oven when not in use. 4. a) A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. b) Longer cord sets or extension cords are available and may be used if care is exercised in their use. c) If a long cord or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance; 2) The extension cord must be a grounding-type 3-wire cord; and 3) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS: 1. Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. 2. Do not use narrow necked containers to boil or reheat liquids. 3. To reduce the risk of injury, stir the liquid several times before heating. 4. The liquid may splash out during or after heating or when adding ingredients (instant coffee, etc) resulting in possible harm or injury to persons. 5. After heating, allow the container to stand in microwave oven for at least 40 seconds before removing the container. 6. Do not heat water and oil, or a fat together which may cause a violent eruption. GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING – Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exist as to whether the appliance is properly grounded. • Do not use an extens…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: Jun. 27, 2006 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding Application for certification of FCC ID: RBJ-TSKM160X Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ‹ Functional Block Diagram ‹ Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ____________________________________ Yu-Ming Lin Tsann Kuen Enterprise Co., Ltd.

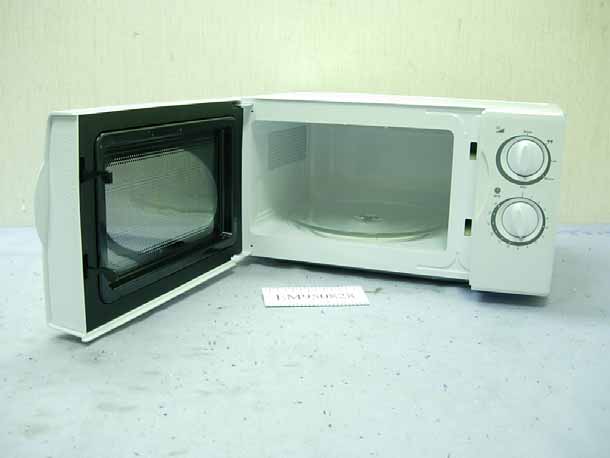

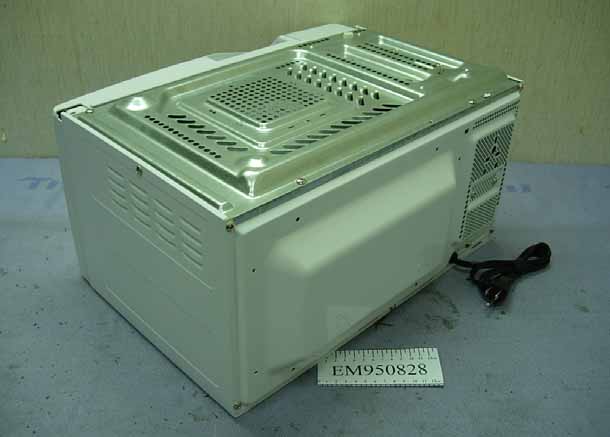

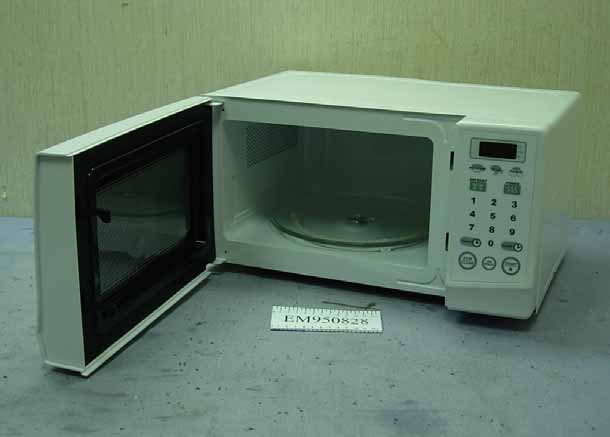

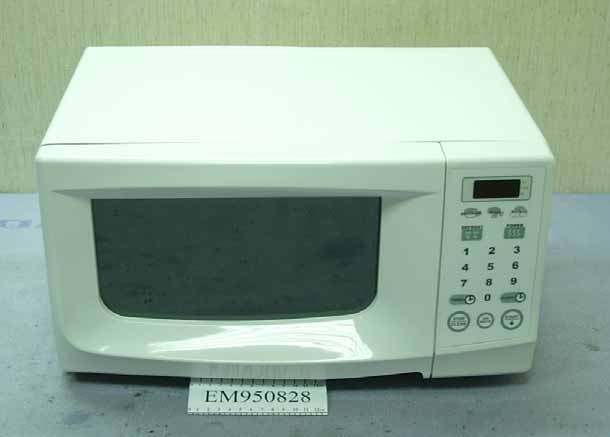

FCC ID. RBJ-TSKM160X EUT External Photos Photo 1 TSK-M1601ME General Appearance (Front View) Photo 2 TSK-M1601ME General Appearance (Front, Top & Side View) FCC ID. RBJ-TSKM160X Photo 3 TSK-M1601ME General Appearance (Back, Bottom & Side View) Photo 4 TSK-M1601ME Internal View (Open the Door) FCC ID. RBJ-TSKM160X Photo 5 TSK-M1602MA General Appearance (Front View) Photo 6 TSK-M1602MA General Appearance (Front, Top & Side View) FCC ID. RBJ-TSKM160X Photo 7 TSK-M1602MA General Appearance (Back, Bottom & Side View) Photo 8 TSK-M1602MA Internal View (Open the Door) FCC ID. RBJ-TSKM160X Photo 9 TSK-M1601MA Appearance (Front Cover View)

FCC ID. RBJ-TSKM160X FCC ID Label Format and Location z Label Placement Location (Back Side of EUT) z FCC Label Format FCC Label Placement Location TSK-M1602ME

FCC ID. RBJ-TSKM160X EUT Internal Photos Photo 10 TSK-M1601ME Internal View (Upper Cover Removed) Photo 11 TSK-M1601ME Internal View (Side) FCC ID. RBJ-TSKM160X Photo 12 TSK-M1601ME Filter Board (Component View) Photo 13 TSK-M1601ME Filter Board (Foil View) FCC ID. RBJ-TSKM160X Photo 14 TSK-M1601ME Magnetron Photo 15 TSK-M1601ME Lighting Lamp FCC ID. RBJ-TSKM160X Photo 16 TSK-M1601ME Internal View (Frame of Internal) Photo 17 TSK-M1601ME Internal View (Removed the Control Panel Cover) FCC ID. RBJ-TSKM160X Photo 18 TSK-M1601ME Main Board (Component View) Photo 19 TSK-M1601ME Main Board (Foil View) FCC ID. RBJ-TSKM160X Photo 20 TSK-M1601ME Internal View (H.V. Transformer & H.V. Capacitor) Photo 21 TSK-M1601ME Label of H.V. Transformer FCC ID. RBJ-TSKM160X Photo 22 TSK-M1601ME Label of H.V. Capacitor Photo 23 TSK-M1601ME Fan Motor FCC ID. RBJ-TSKM160X Photo 24 TSK-M1601ME Label of Fan Motor Photo 25 TSK-M1601ME Turntable Motor FCC ID. RBJ-TSKM160X Photo 26 TSK-M1602MA/TSK-M1601MA Internal View (Upper Cover Removed) Photo 27 TSK-M1602MA/TSK-M1601MA Internal View (Side) FCC ID. RBJ-TSKM160X Photo 28 TSK-M1602MA/TSK-M1601MA Filter Board (Component View) Photo 29 TSK-M1602MA/TSK-M1601MA Filter Board (Foil View) FCC ID. RBJ-TSKM160X Photo 30 TSK-M1602MA/TSK-M1601MA Lighting Lamp Photo 31 TSK-M1602MA/TSK-M1601MA Magnetron & H.V. Transformer & H.V. Capacitor & Fan Motor View FCC ID. RBJ-TSKM160X Photo 32 TSK-M1602MA/TSK-M1601MA Label of Magnetron Photo 33 TSK-M1602MA/TSK-M1601MA Label of H.V. Transformer FCC ID. RBJ-TSKM160X Photo 34 TSK-M1602MA/TSK-M1601MA Label of H.V. Capacitor Photo 35 TSK-M1602MA/TSK-M1601MA Label of Fan Motor FCC ID. RBJ-TSKM160X Photo 36 TSK-M1602MA/TSK-M1601MA Internal View (Frame of Internal) Photo 37 TSK-M1602MA/TSK-M1601MA Internal View (Operating button & Timer Motor) FCC ID. RBJ-TSKM160X Photo 38 TSK-M1602MA/TSK-M1601MA Timer Motor Photo 39 TSK-M1602MA/TSK-M1601MA Turntable Motor

FCC ID.RBJ-TSKM160X Page 1 of 86 APPLICATION FOR CERTIFICATION On Behalf of Tsann Kuen Enterprise Co., Ltd. Microwave Oven Model：(1)TSK-M1601ME (2)TSK-M1602MA (3)TSK-M1601MA FCC ID：RBJ-TSKM160X Prepared for : Tsann Kuen Enterprise Co., Ltd. 3, Kai Fa 2 nd Road, Pao An Industrial District, Ren Teh Hsiang, Tainan, Taiwan Prepared By : Audix Corporation Technical Division EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou, Taipei County, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number ： EM950828 Report Number ： EM-F950257 Date of Test ： Jun. 20 ~ 23, 2006 Date of Report ： Jul. 07, 2006 Audix Corporation Report No. EM-F950257 FCC ID.RBJ-TSKM160X Page 2 of 86 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION......................................................................................................3 1. GENERAL INFORMATION........................................................................................................... 4 1.1. Description of Device (EUT)..................................................................................................................4 1.2. Description of Test Facility ....................................................................................................................5 1.3. Measurement Uncertainty.......................................................................................................................5 2. INPUT POWER MEASUREMENT................................................................................................6 2.1. Test Equipment.......................................................................................................................................6 2.2. Test Setup...............................................................................................................................................6 2.3. Operating Condition of EUT and Measurement Procedure....................................................................6 2.4. Measurement Results..............................................................................................................................6 3. OUTPUT POWER MEASUREMENT............................................................................................7 3.1. Test Equipment.......................................................................................................................................7 3.2. Test Setup...............................................................................................................................................7 3.3. Operating Condition of EUT and Measurement Procedure....................................................................7 3.4. Measurement Results..............................................................................................................................7 4. OUTPUT FREQUENCY MEASUREMENT..................................................................................8 4.1. Test Equipment.......................................................................................................................................8 4.2. Test Setup...............................................................................................................................................8 4.3. Operating Condition of EUT and Measurement Procedure....................................................................8 4.4. Measurement Results..............................................................................................................................8 5. FREQUENCY MEASUREMENT.................................................................................................10 5.1. Test Equipment.....................................................................................................................................10 5.2. Test Setup.............................................................................................................................................10 5.3. Operating Condition of EUT and Measurement Procedure..................................................................10 5.4. Measurement Results............................................................................................................................11 6. CONDUCTED EMISSION MEASUREMENT.............................................................................17 6.1. Test Equipment.....................................................................................................................................17 6.2. Test Setup.............................................................................................................................................17 6.3. Conduction Limits [18.307(b)].............................................................................................................17 6.4. Operating Condition of EUT ................................................................................................................18 6.5. Test Procedure......................................................................................................................................18 6.6. Conducted Emission Measurement Results..........................................................................................18 7. RADIATED EMISSION MEASUREMENT.................................................................................34 7.1. Test Equipment.....................................................................................................................................34 7.2. Test Setup.............................................................................................................................................34 7.3. Radiation Limits...................................................................................................................................35 7.4. Operating Condition of EUT ...........................................................................…

Text truncated - open the document above for the full version.

FCC ID.RBJ-TSKM160X Page 78 of 86 Audix Corporation Report No. EM-F950257 9. PHOTOGRAPHS 9.1. Photo of Input Power Measurement Test Model: TSK-M1601ME Test Model: TSK-M1602MA FCC ID.RBJ-TSKM160X Page 79 of 86 Audix Corporation Report No. EM-F950257 9.2. Photo of Output Frequency Measurement Test Model: TSK-M1601ME Test Model: TSK-M1602MA FCC ID.RBJ-TSKM160X Page 80 of 86 Audix Corporation Report No. EM-F950257 9.3. Photo of Frequency Measurement Test Model: TSK-M1601ME Test Model: TSK-M1602MA FCC ID.RBJ-TSKM160X Page 81 of 86 Audix Corporation Report No. EM-F950257 9.4. Photos of Conducted Eemission Measurement Test Model: TSK-M1601ME FRONT VIEW OF CONTUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID.RBJ-TSKM160X Page 82 of 86 Audix Corporation Report No. EM-F950257 Test Model: TSK-M1602MA FRONT VIEW OF CONTUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID.RBJ-TSKM160X Page 83 of 86 Audix Corporation Report No. EM-F950257 9.5. Photos of Radiated Measurement at Semi-Anechoic Chamber (Below 1GHz) Test Model: TSK-M1601ME FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID.RBJ-TSKM160X Page 84 of 86 Audix Corporation Report No. EM-F950257 Test Model: TSK-M1602MA FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID.RBJ-TSKM160X Page 85 of 86 Audix Corporation Report No. EM-F950257 9.6. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) Test Model: TSK-M1601ME FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID.RBJ-TSKM160X Page 86 of 86 Audix Corporation Report No. EM-F950257 Test Model: TSK-M1602MA FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT
