RBJ-TSKM281XMicrowave Oven

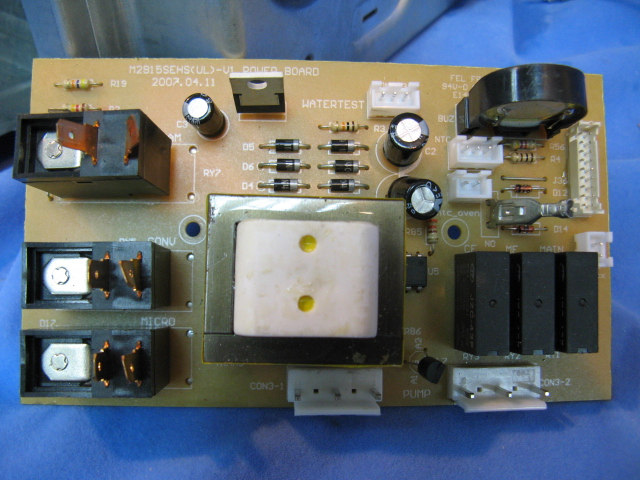

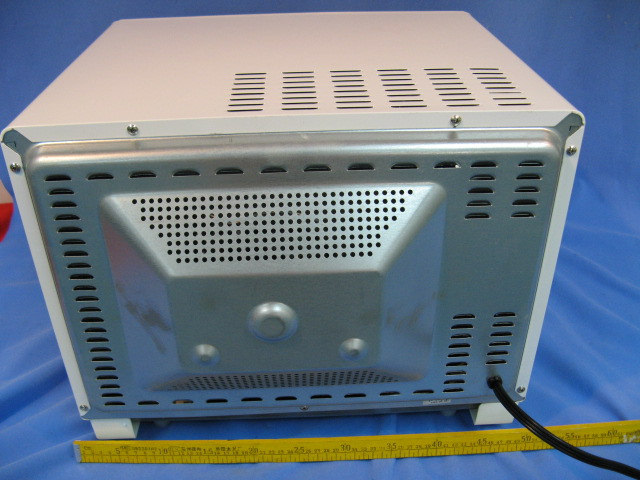

TSK-M2815SEHS External photo TSK-M2815SEHS Internal photo

ID Label HOUSEHOLD MICROWAVE OVEN MODEL NO. TSK-M2815SEHS MANUFACTURED 2007 Serial Number INPUT 120 V AC, 15 A, 60 Hz OUTPUT 2450 MHz DISTRIBUTED BY: Tsann Kuen Industrial Park, Longchi Development District, Zhangzhou, Fujian 363000, China THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J. 49DT FCC: RBJ-TSKM281X MADE IN CHINA (TKL) NOT FOR BUILT-IN INSTALLATION WARNING – CERTAIN INTERNAL PARTS ARE INTENTIONALLY NOT GROUNDED AND MAY PRESENT A RISK OF ELECTRIC SHOCK ONLY DURING SERVICING. SERVICE PERSONNEL – DO NOT CONTACT THE FOLLOWING PARTS WHILE THE APPLIANCE IS ENERGIZED: FAN MOTOR, TURNTABLE MOTOR, OR LOW VOLTAGE TRANSFORMER. WARNING – RISK OF ELECTRIC SHOCK. NON-REMOVABLE FASTENERS ARE PROVIDED BECAUSE OF INTERNAL HIGH VOLTAGES. DO NOT REMOVE FASTENERS. WARNING – TO PROVIDE CONTINUED PROTECTION AGAINST ELECTRIC SHOCK, CONNECT TO PROPERLY GROUNDED OUTLETS ONLY. DISCONNECT APPLIANCE BEFORE SERVICING. REMOVAL OF OUTER ENCLOSURE WITH PRODUCT ENERGIZED MAY EXPOSE SERVICEMAN TO HAZARDOUS HIGH VOLTAGE POTENTIALS. CAUTION – THIS DEVICE IS TO BE SERVICED ONLY BY PROPERLY QUALIFIED SERVICE PERSONNEL. CONSULT THE SERVICE MANUAL FOR PROPER SERVICE PROCEDURES TO ASSURE CONTINUED COMPLIANCE WITH THE FEDERAL PERFORMANCE STANDARD FOR MICROWAVE OVENS AND FOR PRECAUTIONS TO BE TAKEN TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY. Label Location Label

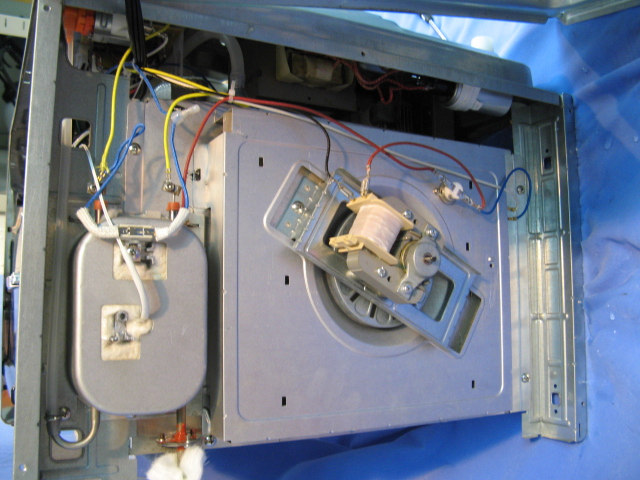

TSK-M2815SEHS External photo TSK-M2815SEHS Internal photo

FCC ID: RBJ-TSKM281X Report Number: 64.710.07.324.01 – (E) Page 1 of 18 Rev.No 1.7 TÜV SÜD Group China Guangzhou Branch 26/F, Dongbao Tower, #767 Dongfeng Road East. (510600) Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 E M I S S I O N - T E S T R E P O R T Report Number : 64.710.07.324.01 – (E) Date of Issue: 22 October 2007 Model / Serial No. : TSK-M2815SEHS / NIL Product Type : Microwave oven Applicant : Tsann Kuen Enterprise Co., Ltd. Manufacturer : Tsann Kuen (Zhangzhou) Enterprise Co., Ltd. License holder : Tsann Kuen Enterprise Co., Ltd. Address : 3 Kai Fa 2 nd Rd, Pao An Industrial District, Ren Teh. Hsiang, : Tainan, Taiwan Test Result :



Positive    Negative Total pages including Appendices : 18 The test result only responds to the tested sample. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. FCC ID: RBJ-TSKM281X Report Number: 64.710.07.324.01 – (E) Page 2 of 18 Rev.No 1.7 TÜV SÜD Group China Guangzhou Branch 26/F, Dongbao Tower, #767 Dongfeng Road East. (510600) Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 D I R E C T O R Y Pages A) Documentation Directory 2 Test Regulations 3 General information 3 - 4 Equipment under Test 5 B) Test Data Radiation Hazard Measurement 6 Input Power Measurement 7 RF Output Power Measurement 8 Operating Frequency Measurement 9 Conducted Emission 10 - 12 Radiated Emission 13 - 14 C) Photographs of The Test Set-Up Set-up for radiation measurement below 1GHz 17 Set-up for radiation measurement above 1GHz 18 FCC ID: RBJ-TSKM281X Report Number: 64.710.07.324.01 – (E) Page 3 of 18 Rev.No 1.7 TÜV SÜD Group China Guangzhou Branch 26/F, Dongbao Tower, #767 Dongfeng Road East. (510600) Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 TEST REGULATIONS : The tests were performed according to the following regulations:
- 47 CFR Part 18 Test Facilities
- Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory. Add: Bldg, of Shenzhen Metrology & Quality Inspection Institute, Longzhu Road, Nanshan, Shenzhen 518055 P.R.C. Environmental Conditions Temperature: : 25 °C Relative Humidity: : 66 % Atmospheric Pressure: : 1006 mBar Power Supply System Utilized: Power supply system : 120V/60Hz/1ø STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Short Description of the Equipment under Test(EUT) TSK-M2815SEHS is a microwave oven operates in the frequency 2.450GHz. Communication type: TSK-M2815SEHS Power Consumption: 120V~60Hz, 1500W (microwave) Output power: 900W Operation Frequency: 2450MHz Magnetron Manufacturer: Witol Magnetron Model Number: 2M219H920 Power Cable: 75cm FCC ID: RBJ-TSKM281X Report Number: 64.710.07.324.01 – (E) Page 4 of 18 Rev.No 1.7 TÜV SÜD Group China Guangzhou Branch 26/F, Dongbao Tower, #767 Dongfeng Road East. (510600) Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Definitions For Symbols Used In This Test Report
- Black box indicates that the listed condition, standard or equipment is applicable for this report  - Blank box indicates that the listed condition, standard or equipment was not applicable for this report. Status of Facility Used for Testing Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory located at Bldg, of Shenzhen Metrology & Quality Inspection Institute, Longzhu Road, Nanshan, Shenzhen, Guangdong,China is listed in the US Federal Communications Commission list of facilities approved to perform measurements. Load for Microwave Ovens For all measurements, the energy developed by the oven was absorbed by a dummy load consisting of a quantity of tap water in a beaker. If the oven was provided with a shelf or other utensil support, this support was in its initial normal position. For ovens rated at 1000 watts or less power output, the beaker contained quantities of water as listed in the following subparagraphs. For ovens rated at more than 1000 watts output, each quantity was increased by 50% for each 500 watts or fraction thereof in excess of 1000 watts. Additional beakers were used if necessary.
Load for power Input and output measurement: 1000 milliliters of water in the beaker located in the center of the oven.
Load for frequency measurement: 1000 milliliters of water in the beaker located in the center of the oven.
Load for radiation hazard measurement: 1000 milliliters of water in the beaker located in the center of the oven.
Load for measurement of radiation on second and third harmonic: Two loads, one of 700 and the other of 300 milliliters, of water are used. Each load is tested both with the beaker located in the center of the oven and with it in the right front corner.
Load for other measurement: 700 milliliters of water in the beaker located in the center of the oven. FCC ID: RBJ-TSKM281X Report Number: 64.710.07.324.01 – (E) Page 5 of 18 Rev.No 1.7 TÜV SÜD Group China Guangzhou Branch 26/F, Dongbao Tower, #767 Dongfeng Road East. (510600) Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 Test Equipment Used: Serial No. Equipment Manufacturer Model No. Last Cal. Cal. Interval 93926 Microwave leakage meter Holaday ----- 27 Apr. 2007 1 Year 508015 power meter EVERFINE PF9808B 04 Jun.2007 1 Year SB2552 Digital thermometer Anritsu HFT-90V/90 14 Mar. 2007 1 year 100003 EMI Test Receiver Rohde & Schwarz ESCS30 30 Jan. 2007 1 Year 100002 AMN Rohde & Schwarz ESH2-Z5 30 Jan. 2007 1 Year 838786/013 EMI T…
