RBJ-TSKM1602MEMicrowave Oven

MICROWAVE OVEN MODEL: TSK-M1602ME PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY a. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. b. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. c. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. d. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be followed including the following: WARNING –To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ” found on page 2 3. This appliance must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS ” found on page 4. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs with / without shells and sealed containers – for example, closed glass jars – are able to explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water – for example ,near a kitchen sink, in a wet basement or near a swimming pool or similar locations. 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surfaces. 14. Do not let cord hang over edge of table or counter. 15. See surface door cleaning instructions on page 16. 16. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven ignite, keep oven door closed, turn oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 17. Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. SAVE THESE INSTRUCTIONS For Household Use Only ADDITIONAL IMPORTANT SAFETY INSTRUCTIONS 1. Oversize foods or oversize metal utensils should not be inserted in a microwave oven as they may create a fire or risk of electric shock. 2. Do not clean with metal scouring pads. 3. Do not store any materials other than manufacturer ’s recommended accessories in this oven when not in use. WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS: 1. Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. 2. Do not use narrow necked containers to boil or reheat liquids. 3. To reduce the risk of injury, stir the liquid several times before heating. 4. The liquid may splash out during or after heating or when adding ingredients (instant coffee, etc) resulting in possible harm or injury to persons. 5. After heating, allow the container to stand in microwave oven for at least 40 seconds before removing the container. 6. Do not heat water and oil, or a fat together which may cause a violent eruption. GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING – Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exist as to whether the appliance is properly grounded. • Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or service man install an outlet near the appliance. Testing Containers and Utensils Some non-metallic containers and utensils become extremely hot when used in a microwave oven. To avoid risk of scalding, use the following procedure to determine if a container or utensil is safe for microwave use: 1. Fill a microwave-safe container with 1 cup (250 ml) of cold water. Place it in the microwave oven along with the container or utensil in question. 2. Turn the oven on maximum power for 1 minute. Do not exceed 1 minute cooking time. 3. Carefully feel the container. If the empty…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: APR. 20, 2006 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding Application for certification of FCC ID: RBJ-TSKM1602ME Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ‹ Functional Block Diagram ‹ Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ____________________________________ Yu-Ming Lin Tsann Kuen Enterprise Co., Ltd.

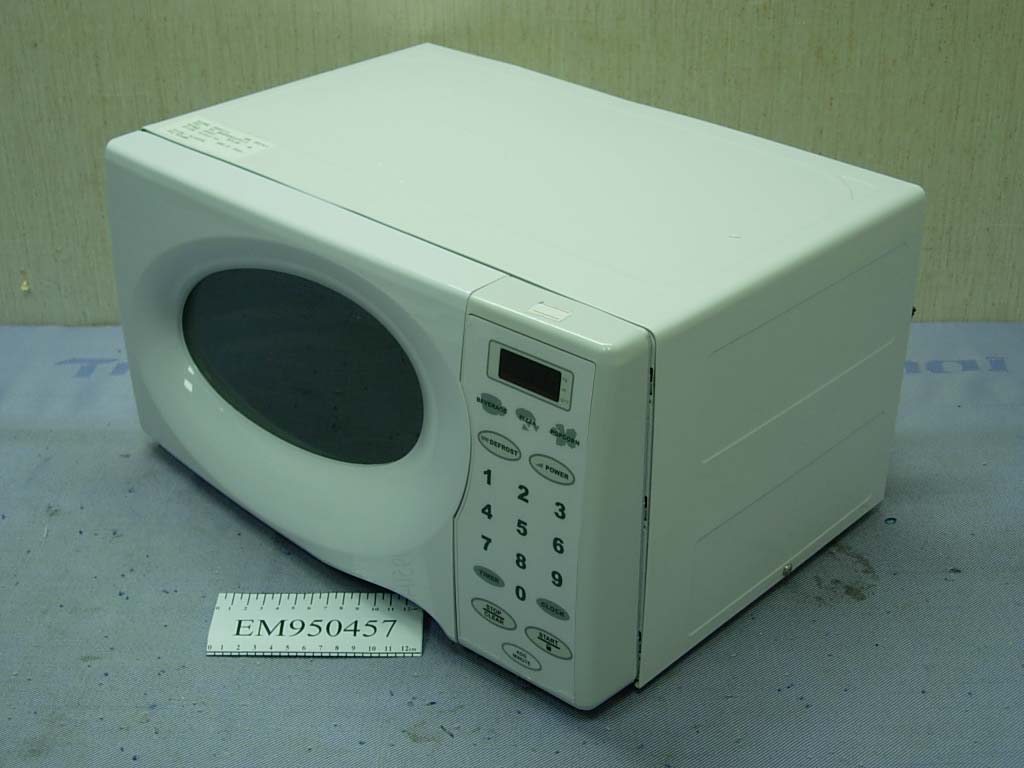

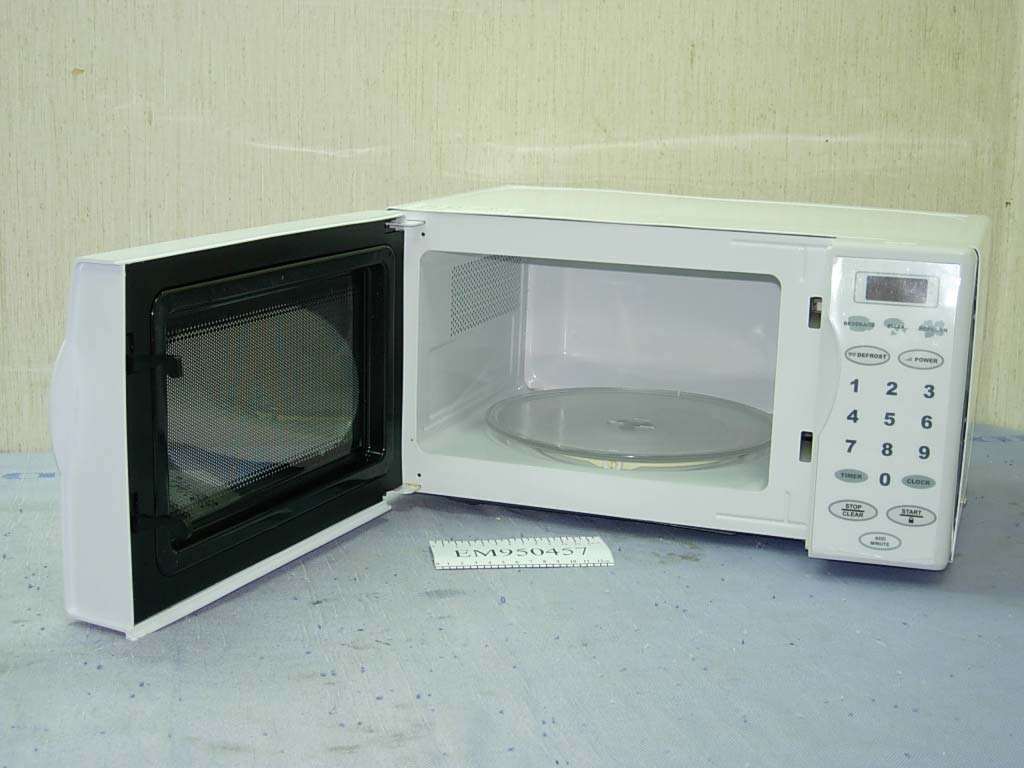

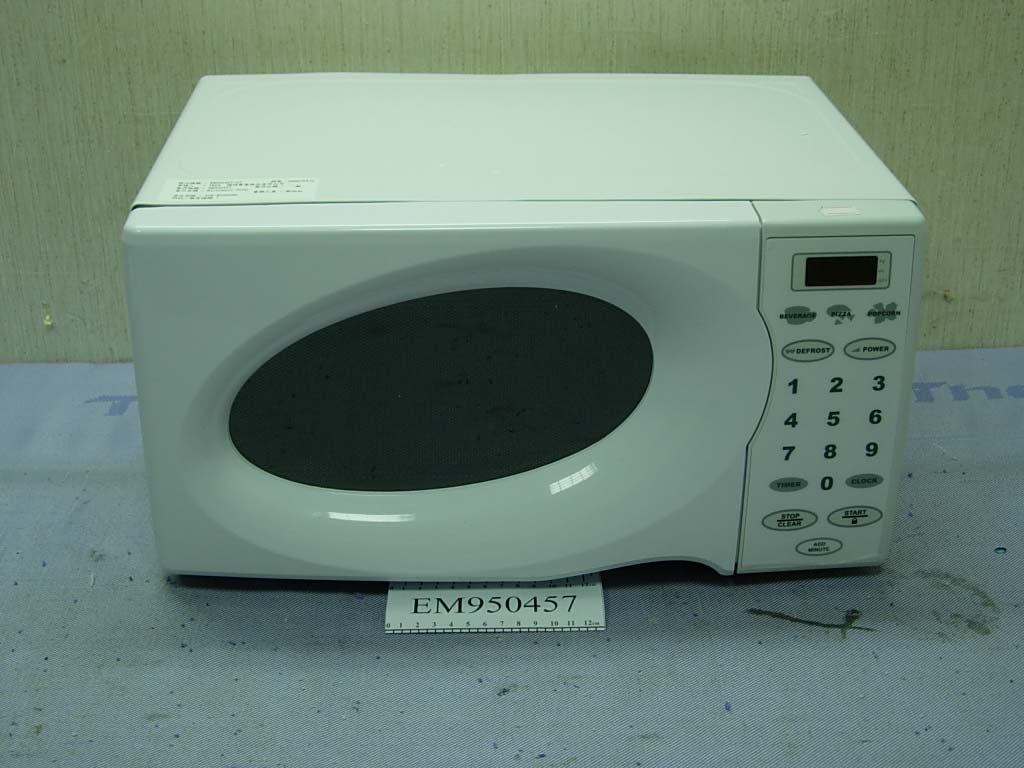

FCC ID. RBJ-TSKM1602ME EUT External Photos Photo 1 General Appearance (Front View) Photo 2 General Appearance (Front, Top & Side View) FCC ID. RBJ-TSKM1602ME Photo 3 General Appearance (Back, Bottom & Side View) Photo 4 Internal View (Open the Door)

FCC ID. RBJ-TSKM1602ME FCC ID Label Format and Location z Label Placement Location (Back Side of EUT) z FCC Label Format FCC Label Placement Location TSK-M1602ME

FCC ID. RBJ-TSKM1602ME EUT Internal Photos Photo 5 Internal View (Upper Cover Removed) Photo 6 Internal View (Side) FCC ID. RBJ-TSKM1602ME Photo 7 Magnetron Photo 8 Label of Magnetron FCC ID. RBJ-TSKM1602ME Photo 9 H.V. Transformer Photo 10 Label of H.V. Transformer FCC ID. RBJ-TSKM1602ME Photo 11 H.V. Capacitor Photo 12 Label of H.V. Capacitor FCC ID. RBJ-TSKM1602ME Photo 13 Fan Motor Photo 14 Label of Fan Motor FCC ID. RBJ-TSKM1602ME Photo 15 Filter Board (Component View) Photo 16 Filter Board (Foil View) FCC ID. RBJ-TSKM1602ME Photo 17 Main Board (Component View) Photo 18 Main Board (Foil View)

FCC ID.RBJ-TSKM1602ME Page 1 of 54 Audix Corporation Report No. EM-F950126 APPLICATION FOR CERTIFICATION On Behalf of Tsann Kuen Enterprise Co., Ltd. Microwave Oven Model：TSK-M1602ME FCC ID：RBJ-TSKM1602ME Prepared for : Tsann Kuen Enterprise Co., Ltd. 3, Kai Fa 2 nd Road, Pao An Industrial District, Ren Teh Hsiang, Tainan, Taiwan Prepared By : Audix Corporation Technical Division EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou, Taipei County, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number ： EM950457 Report Number ： EM-F950126 Date of Test ： Apr. 11 ~ 17, 2006 Date of Report ： Apr. 21, 2006 FCC ID.RBJ-TSKM1602ME Page 2 of 54 Audix Corporation Report No. EM-F950126 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................3 1.GENERAL INFORMATION ..............................................................................................................4 1.1.Description of Device (EUT)...................................................................................................................... 4 1.2.Description of Test Facility ........................................................................................................................ 5 1.3.Measurement Uncertainty........................................................................................................................... 5 2.INPUT POWER MEASUREMENT ...................................................................................................6 2.1.Test Equipment ........................................................................................................................................... 6 2.2.Test Setup ................................................................................................................................................... 6 2.3.Operating Condition of EUT and Measurement Procedure........................................................................6 2.4.Measurement Results.................................................................................................................................. 6 3.OUTPUT POWER MEASUREMENT ...............................................................................................7 3.1.Test Equipment ........................................................................................................................................... 7 3.2.Test Setup ................................................................................................................................................... 7 3.3.Operating Condition of EUT and Measurement Procedure........................................................................7 3.4.Measurement Results.................................................................................................................................. 7 4.OUTPUT FREQUENCY MEASUREMENT .....................................................................................8 4.1.Test Equipment ........................................................................................................................................... 8 4.2.Test Setup ................................................................................................................................................... 8 4.3.Operating Condition of EUT and Measurement Procedure........................................................................8 4.4.Measurement Results.................................................................................................................................. 8 5.FREQUENCY MEASUREMENT ......................................................................................................9 5.1.Test Equipment ........................................................................................................................................... 9 5.2.Test Setup ................................................................................................................................................... 9 5.3.Operating Condition of EUT and Measurement Procedure........................................................................9 5.4.Measurement Results................................................................................................................................ 10 6.CONDUCTED EMISSION MEASUREMENT................................................................................14 6.1.Test Equipment ......................................................................................................................................... 14 6.2.Test Setup ................................................................................................................................................. 14 6.3.Conduction Limits [18.307(b)] ................................................................................................................. 14 6.4.Operating Condition of EUT .................................................................................................................... 15 6.5.Test Procedure .......................................................................................................................................... 15 6.6.Conducted Emission Measurement Results.............................................................................................. 15 7.RADIATED EMISSION MEASUREMENT....................................................................................24 7.1.Test Equipment ......................................................................................................................................... 24 7.2.Test Setup ................................................................................................................................................. 24 7.3.Radiation Limits ......................................................................................…

Text truncated - open the document above for the full version.

FCC ID.RBJ-TSKM1602ME Page 51 of 54 Audix Corporation Report No. EM-F950126 9.3. Photo of Frequency Measurement FCC ID.RBJ-TSKM1602ME Page 52 of 54 Audix Corporation Report No. EM-F950126 9.4. Photos of Conducted Eemission Measurement FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID.RBJ-TSKM1602ME Page 53 of 54 Audix Corporation Report No. EM-F950126 9.5. Photos of Radiated Measurement at Semi-Anechoic Chamber (Below 1GHz) FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID.RBJ-TSKM1602ME Page 54 of 54 Audix Corporation Report No. EM-F950126 9.6. Photos of Radiated Measurement at Semi-Anechoic Chamber (Above 1GHz) FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT
