MICROWAVE OVEN1 MICROWAVE OVEN OWNER’S MANUAL&COOLING GUIDE PLEASE READ THIS OWENER’S MANUAL THOROUGHLY BEFORE OPERATNG. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGRY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper withthe safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surface. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) Door (bent); (2) Hinges and lathes (broken or loosened); (3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. CONTENTS TECHNICAL SPECIFICATIONS IMPORTANT SAFETY INSTRUCTIONS INSTALLTION OTHER HELPFUL INFORMATION PRECAUTIONS GETTING THE BEST RESULT FROM YOUR MOCROWAVE OVEN SPECIAL TECHNIQUES IN MICROWAVE COOKING HOW FOOD CHARACTERISTICS AFFECT MICROWAVE COOKING MICROWAVE OVEN2 COOKING UTENSILS FEATURE DIAGRAM CONTROL PANEL OPERATION CHECK OPERATING INSTRUCTIONS HEATING OR REHEATING GUIDE FREASH VEGETABLE CHART CLEANING BEFORE CALLING FOR SERVICE WARRANTY TECHNICAL SPECIFICATIONS Power Supply120 V AC, 60 Hz Rated Power Consumption1150W Microwave Output700W Frequency2450 MHz Rated Current8.5A Overall Dimensions 18 1/2 ϣ Ѽ 12 1/4 ϣ Ѽ 11 1/32 ϣ Oven Cavity Dimensions 12 3/16 ϣ Ѽ 7 31/32 ϣ Ѽ 11 5/8 ϣ Effective Capacity of Oven Cavity0.6 Cu.Ft IMPORTANNT SAFETY INSTRUCTIONS WARNING – To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGRY found on page 2 this manual. 3. This appliance must be grounded. Connect only to properly grounded outlet. SeeGROUNDING INSTRUCTIONS found on page 5 of this manual. 4. Install or locate this appliance only in accordance with the provided instructions. 5. Some products, such as whole eggs and sealed containers – for example, closed glass jars – may explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in the manual. Do not use MICROWAVE OVEN3 corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision necessary when used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product neat water – for example, neat a kitchen sink, in a wet basement, or meat a swimming pool, and the like. 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surface. 14. Do not let cord hang over the edge of table or counter. 15. When cleaning surfaces of door and oven that comes together on closing the door, use only mind, nonabrasive soaps or detergents applied with a sponge or soft cloth. 16. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven should ignite, KEEP OVEN DOOR CLOSED, turn oven off, and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. 17. Do not heat any type of baby bottles or baby food. Uneven heating may occur and could cause personal injury. 18. Avoid heating small-necked containers such as syrup bottles. 19. Avoid using corrosive and vapors, such as sulfide and chloride. 20. Liquids heated in certain shaped containers (especially cylindrical-shaped containers) may become overheated. The liquid may splash out with a loud noise during or after heating or when adding ingredients (instant coffee, etc.) , result in harm to oven and possible injury. In all containers, for best results, stir the liquid several times before heating. Always stir liquid several times between reheatings. SAVE THESE INSTRUCTIONS MICROWAVE OVEN4 INSTALLATION A. GROUDING INSTRUCTION This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk if electric shock by providing an escape wire for the electric current. This appliance is equipped with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Ensure proper ground exists before use B. CIRCUITS For safety purposes this oven must be plugged into a 15 Amp circuit. No other electrical appliances or lighting circuits should be on this line. If in doubt, consult a licensed electrician. C. VOLTAGE WARNING The voltage used at the wall receptacle must be the same as specified on the oven name plate located in the back or on the side of the control panel of the oven. Use of a higher voltage is dangerous and may result in a fire or other type of cause slow cooking. In case your microwave oven does not perform normally in spite of proper voltage, remove and reinsert the plug. D. PLACEMENT OF THE OVEN Your microwave oven can be placed easily in your kitchen, family room, or anywhere else in your home. Place the oven in a flat surface such as a kitchen countertop or a specially designed microwave…

Text truncated - open the document above for the full version.

Page 11 Tsann Kuen Enterprise Co., Ltd. Microwave Oven FCC ID. : RBJ-TSK840XA Block Diagram

1 Mike Kuo From: Audix Sent: January142004Wednesday 9:46 PM To: Mike Kuo Subject: Re: TSANN KUEN GROUP, FCC ID:RBJ-TSK840XA, AN04T3600 FA92208TSANN_RB J-TSK840XA_Supp... Hi Mike, Attached please find supplementary The manufacturer name and model number of Magnetron: Witol, M/N 2M218H. Thank you for your help in this matter Best Regards, Monica Chang ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "'Audix Sent: Thursday, January 15, 2004 10:45 AM Subject: FW: TSANN KUEN GROUP, FCC ID:RBJ-TSK840XA, AN04T3600 > > > -----Original Message----- > From: CERTADM > Sent: Wednesday, January 14, 2004 6:45 PM > To: Mike Kuo > Subject: TSANN KUEN GROUP, FCC ID:RBJ-TSK840XA, AN04T3600 > > > Notice_content > ------------- > Question #1: Please provide schematic diagram. > > Question #2: Please provide the manufacturer name and model number of > Magnetron. > > Best Regards > > Mike Kuo > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

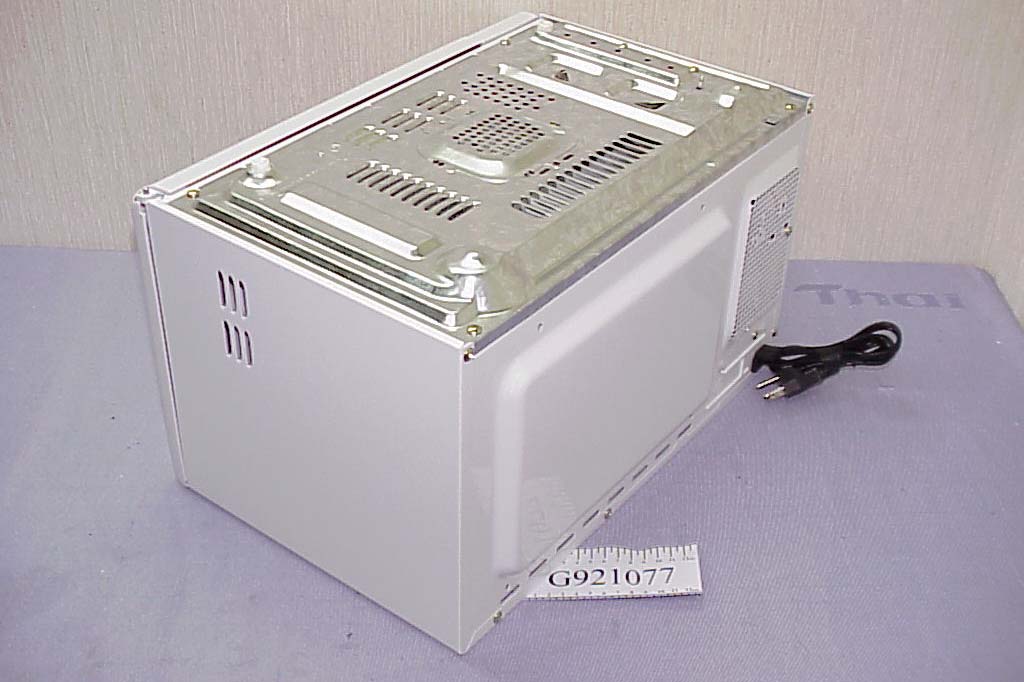

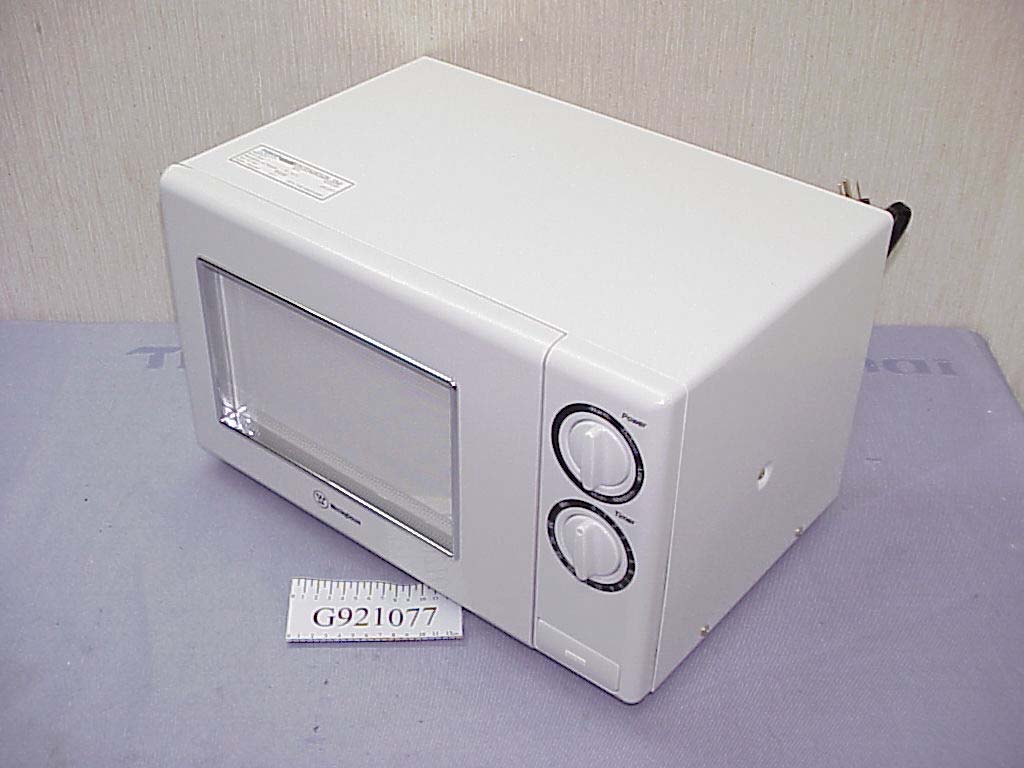

Page 4 Tsann Kuen Enterprise Co., Ltd. Microwave Oven FCC ID. : RBJ-TSK840XA Photographs of EUT Photo 1 General Appearance (Front View) Photo 2 General Appearance (Front, Top & Side View) Page 5 Tsann Kuen Enterprise Co., Ltd. Microwave Oven FCC ID. : RBJ-TSK840XA Photo 3 General Appearance (Back, Bottom & Side View) Photo 4 Internal View (Open the Door)

Page 13 Tsann Kuen Enterprise Co., Ltd. Microwave Oven FCC ID. : RBJ-TSK840XA Label Drawing z Label Placement Location The label is located in a conspicuous location on the device. LABEL

Page 6 Tsann Kuen Enterprise Co., Ltd. Microwave Oven FCC ID. : RBJ-TSK840XA Photo 5 Internal View (Upper Cover Removed) Photo 6 Internal View (Side) Page 7 Tsann Kuen Enterprise Co., Ltd. Microwave Oven FCC ID. : RBJ-TSK840XA Photo 7 Controller Photo 8 Controller Page 8 Tsann Kuen Enterprise Co., Ltd. Microwave Oven FCC ID. : RBJ-TSK840XA Photo 9 Magnetron Photo 10 Transformer Page 9 Tsann Kuen Enterprise Co., Ltd. Microwave Oven FCC ID. : RBJ-TSK840XA Photo 11 Capacitor Photo 12 Fan

Page 8 Tsann Kuen Enterprise Co., Ltd. Microwave Oven FCC ID. : RBJ-TSK840XA Photo 9 Magnetron Photo 10 Transformer

Page 17 Tsann Kuen Enterprise Co., Ltd. Microwave Oven FCC ID. : RBJ-TSK840XA Schematics Diagram

FCC ID.RBJ-TSK840XA Page 1 of 23 Audix Corporation Report No. TTEMC-F92208 APPLICATION FOR CERTIFICATION On Behalf of Tsann Kuen Enterprise Co., Ltd. Microwave Oven Model : TSK-8402AMM (WST3500) FCC IDRBJ-TSK840XA Prepared for : Tsann Kuen Enterprise Co., Ltd. 3, Kai Fa 2 nd Road, Pao An Industrial District, Ren Teh Hsiang, Tainan, Taiwan Prepared By : Audix Corporation Technical Division EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou, Taipei Hsien, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number EM-G921077 Report Number TTEMC-F92208 Date of Test Oct. 17 ~ 18, 2003 Date of Report Oct. 23, 2003 FCC ID.RBJ-TSK840XA Page 2 of 23 Audix Corporation Report No. TTEMC-F92208 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION........................................................................................................3 1.GENERAL INFORMATION..............................................................................................................4 1.1.Description of Device (EUT).............................................................................................................4 1.2.Description of Test Facility...............................................................................................................5 1.3.Measurement Uncertainty.................................................................................................................5 2.INPUT POWER MEASUREMENT....................................................................................................6 2.1.Test Equipment................................................................................................................................6 2.2.Test Setup........................................................................................................................................6 2.3.Operating Condition of EUT and Measurement Procedure...................................................................6 2.4.Measurement Results........................................................................................................................6 3.OUTPUT POWER MEASUREMENT................................................................................................7 3.1.Test Equipment................................................................................................................................7 3.2.Test Setup........................................................................................................................................7 3.3.Operating Condition of EUT and Measurement Procedure...................................................................7 3.4.Measurement Results........................................................................................................................7 4.OUTPUT FREQUENCY MEASUREMENT......................................................................................8 4.1.Test Equipment................................................................................................................................8 4.2.Test Setup........................................................................................................................................8 4.3.Operating Condition of EUT and Measurement Procedure...................................................................8 4.4.Measurement Results........................................................................................................................8 5.FREQUENCY MEASUREMENT......................................................................................................9 5.1.Test Equipment................................................................................................................................9 5.2.Test Setup........................................................................................................................................9 5.3.Operating Condition of EUT and Measurement Procedure...................................................................9 5.4.Measurement Results......................................................................................................................10 6.RADIATED EMISSION TEST.........................................................................................................13 6.1.Test Equipment..............................................................................................................................13 6.2.Test Setup......................................................................................................................................13 6.3.Radiation Limits.............................................................................................................................14 6.4.Operating Condition of EUT...........................................................................................................14 6.5.Test Procedure................................................................................................................................14 6.6.Measurement Results......................................................................................................................15 7.DEVIATION TO TEST SPECIFICATIONS....................................................................................19 8.PHOTOGRAPHS...............................................................................................................................20 8.1.Photo of Input Power Measurement.................................................................................................20 8.2.Photo of Output Frequency Measurement.........................................................................................20 8.3.Photo of Frequency Measurement....................................................................................................21 8.4.Photos of Radiated Measurement at Semi-Anechoic Chamber (Below 1GHz)...................................2…
