RC6-BRC70NWireless Router

http://www.sapido.com.tw/ User Manual v1.0.0 1 BRC70n User Manual Wireless Router http://www.sapido.com.tw/ User Manual v1.0.0 2 http://www.sapido.com.tw/ User Manual v1.0.0 3 Table of Contents Table of Contents .................................................................................................................................. 3 FCC Caution .......................................................................................................................................... 6 Chapter 1 Introduction ................................................................................................................. 8 1.1 Hardware Features...................................................................................................... 8 1.2 Product Appearance ................................................................................................... 9 Chapter 2 System and Network Setup...................................................................................... 12 2.1 Build Network Connection ....................................................................................... 12 2.2 Connecting BRC70N ................................................................................................. 12 2.3 Network setup ........................................................................................................... 13 2.3.1 Windows 2000................................................................................................... 13 2.3.2 Windows XP ...................................................................................................... 14 2.3.3 Windows Vista / Windows 7 ............................................................................ 15 2.4 Router IP Address Lookup ....................................................................................... 16 2.4.1 Log into Web GUI ............................................................................................. 18 Chapter 3 Internet Connection .................................................................................................. 20 3.1 Using as a broadband router ................................................................................... 21 3.2 Home button menu ................................................................................................... 21 3.3 Internet Setup ............................................................................................................ 24 3.3.1 PPPoE................................................................................................................ 25 3.3.2 DHCP................................................................................................................. 25 3.3.3 Static IP.............................................................................................................. 27 3.3.4 PPTP .................................................................................................................. 27 3.3.5 L2TP................................................................................................................... 29 3.3.6 WiFi ISP ............................................................................................................. 30 3.4 AP ............................................................................................................................... 30 3.5 WiFi AP....................................................................................................................... 31 Chapter 4 GUI Function Setup................................................................................................... 33 4.1 Firmware Upgrade..................................................................................................... 33 4.1.1 Auto upgrade .................................................................................................... 33 4.1.2 Manual upgrade ................................................................................................ 33 4.2 Parental Control ........................................................................................................ 34 4.2.1 URL Filtering ..................................................................................................... 34 4.2.2 MAC Filter Schedule ........................................................................................ 35 4.2.3 Wireless Schedule............................................................................................ 36 4.3 Office Control ............................................................................................................ 37 4.3.1 Multiple AP ........................................................................................................ 38 4.3.2 Wireless Access Control ................................................................................. 39 http://www.sapido.com.tw/ User Manual v1.0.0 4 4.3.3 IP Filtering ......................................................................................................... 39 4.3.4 IP Binding.......................................................................................................... 40 4.3.5 QoS .................................................................................................................... 41 4.4 NAT Management ...................................................................................................... 42 4.4.1 Virtual Server .................................................................................................... 42 4.4.2 DMZ.................................................................................................................... 44 4.5 VPN Server................................................................................................................. 45 4.6 Time Zone .................................................................................................................. 46 4.7 DoS .............................…

Text truncated - open the document above for the full version.

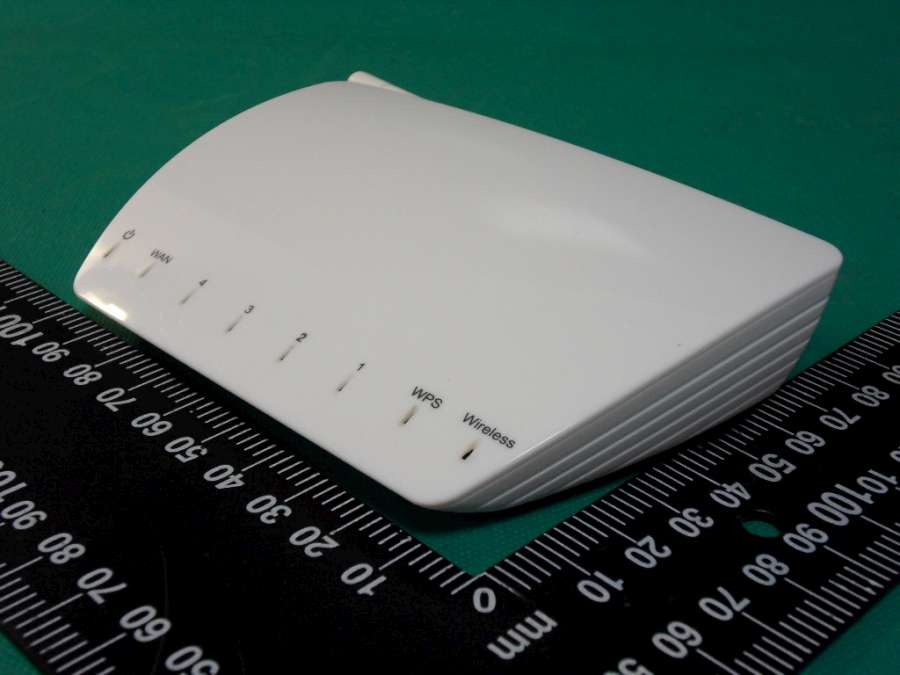

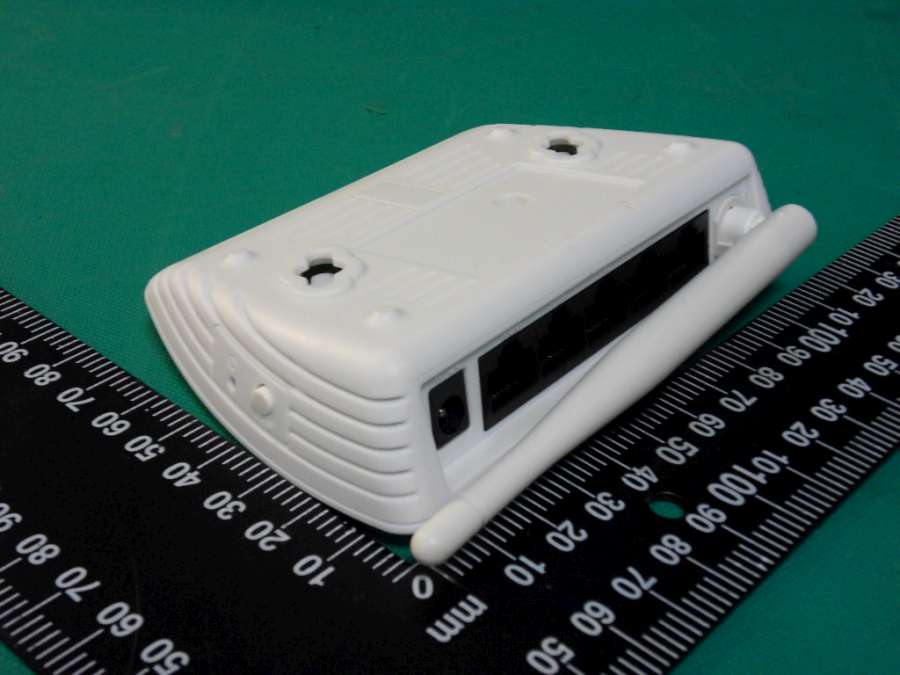

Compliance Certification Services Inc. Report No.：T120724N42 Page A1 / 6 External Photo ( BRC70n ) Compliance Certification Services Inc. Report No.：T120724N42 Page A2 / 6 Compliance Certification Services Inc. Report No.：T120724N42 Page A3 / 6

3LSXXXXXXXXSX1XX JO 2012.10.03 65*5mm FCC 100%300% 65mm 5mm FCC Part 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interfe rence that may cause undesired operation. 3LSBRC70NSASX1XX JO 2012.09.07 BRC70N 49*29mm SAPIDO Code 128A 49mm 29mm 200% 100% Made in Taiwan 2012 FCC ID:RC6-BRC70N CCAEXXXXXXXXXX BRC70n INPUT : 5.0V 0.6A ʚʚʚ — )Ꮾˢ* 3LSBRC70NNBSX1XX JO 2012.09.17 BRC70N 49*29mm Amigo Code 128A 49mm 29mm 200% 100% Made in Taiwan 2012 FCC ID:RC6-BRC70N CCAEXXXXXXXXXX BRC70n INPUT : 5.0V 0.6A ʚʚʚ — )Ꮾˢ*

Compliance Certification Services Inc. Report No.：T120724N42 Page A4 / 6 Internal Photo ( BRC70n ) Compliance Certification Services Inc. Report No.：T120724N42 Page A5 / 6 Compliance Certification Services Inc. Report No.：T120724N42 Page A6 / 6

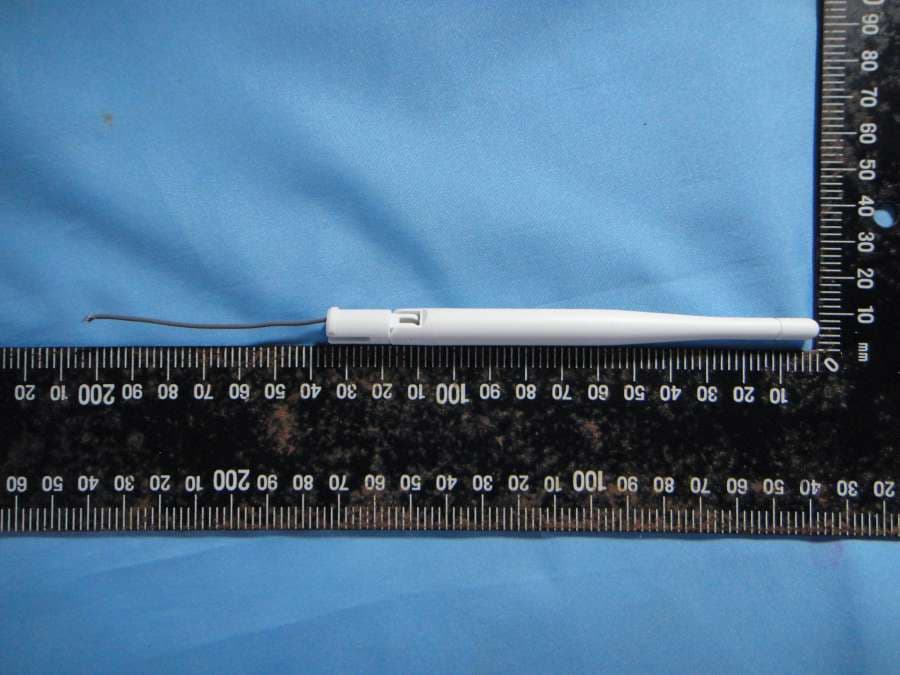

輻遠科技股份有限公司 WAVERAR TECHNOLGY CO.,LTD Date: APPROVAL SHEET Customer P/N 112011013 Customers: 易通展科技股份有限公司 2012/7/25 2.4GHz CABLE ANTENNA A WAVERAR P/N Production Description Version ApproveChiefResponsible JimmyFrankDaniel Approved By Customer WAVEFAR Technology Co., LTD. 輻遠科技股份有限公司 3F.,No.126,Ziqiang S.Rd.,Zhubei City, Hsunchu County 302,Taiwan (R.O.C) Tel: +886-2-26841827 Fax: +886-2-26835010 Approved By WAVEFAR 輻遠科技股份有限公司 WAVERAR TECHNOLGY CO.,LTD Table of Contents Item 1. Drawing 2. Test Report -Electrical test 3. Material Certifications -Cable -Connector 4. Packing -PE Bag -Carton Modification History: REV.Content 02012/7/17 Date 輻遠科技股份有限公司 WAVERAR TECHNOLGY CO.,LTD 輻遠科技股份有限公司 WAVERAR TECHNOLGY CO.,LTD PolarizationVertical Weight7±0.5g Operating Temp -20°C+65°C Electrical Properties Mechanical Properties 2.4GHz 50Ω ≦2.0 Omni-directional Standard connector Frequency range Impedance V.S.W.R Radia tion Gain3dBi PC/PBT/TPEE Whip 輻遠科技股份有限公司 WAVERAR TECHNOLGY CO.,LTD Electrical Test 輻遠科技股份有限公司 WAVERAR TECHNOLGY CO.,LTD 輻遠科技股份有限公司 WAVERAR TECHNOLGY CO.,LTD 輻遠科技股份有限公司 WAVERAR TECHNOLGY CO.,LTD CABLE SPECIFICATION 線材規格

Description of Operation The EUT is a Wireless Router with IEEE 802.11b/g/n . And this device provided of transmitting speed: IEEE 802.11b：11, 5.5, 2, 1 Mbps IEEE 802.11g：54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 72.2 , 65 , 57.8 , 43.3 , 28.9, 21.7 , 14.4 , 13 ,7.2 Mbps IEEE 802.11n HT40 : 150 , 135 , 120, 90 , 60, 45, 30 ,27 , 15 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK. The device adapts DSSS and OFDM modulation. And the antenna was a Dipole antenna, and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. The other instruction, please have a look at the user’s manual.

Reference No.: T120724N42-RP1 FCC ID：RC6-BRC70N Report No.：T120724N42-RP1 Page 45 / 113 8.3 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Reference No.: T120724N42-RP1 FCC ID：RC6-BRC70N Report No.：T120724N42-RP1 Page 46 / 113 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted. () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Once Antenna Gain=3.0dBi= 1.99526231mW Total Antenna Gain=5.01dBi=3.169786mW IEEE 802.11b = 0.0796 * 149.9685 *1.99526231 ÷ 400 = 0.05955 IEEE 802.11g = 0.0796 * 152.7566 *1.99526231 ÷ 400 = 0.06065 IEEE 802.11n HT20 = 0.0796 * 127.3503 *1.99526231 ÷ 400 = 0.05057 IEEE 802.11n HT40 = 0.0796 * 120.2264 *1.99526231 ÷ 400 = 0.04774 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 21.76 149.97 3.00 1.00 0.059546 IEEE 802.11g 20 21.84 152.76 3.00 1.00 0.060653 IEEE 802.11n HT2020 21.05 127.35 3.00 1.00 0.050565 IEEE 802.11n HT4020 20.80 120.23 3.00 1.00 0.047737 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Reference No.: T120724N42-RP1 FCC IDRC6-BRC70N Report No.T120724N42-RP1 Page 1 / 113 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For Wireless Router Model: BRC70n Brand: Amigo Issued for Amigo Technology Inc. 5F., No.63, Lane 77, Xing-Ai Road, Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Date of Issue: September 24, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Reference No.: T120724N42-RP1 FCC IDRC6-BRC70N Report No.T120724N42-RP1 Page 2 / 113 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 August 31, 2012 Initial Issue ALL Sunny Chang 01 September 24, 2012 Update test procedure Page 8; 13; 57; 89 Sunny Chang Reference No.: T120724N42-RP1 FCC IDRC6-BRC70N Report No.T120724N42-RP1 Page 3 / 113 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION............................................................................................ 4 2. EUT DESCRIPTION.................................................................................................................... 5 3. DESCRIPTION OF TEST MODES........................................................................................... 7 4. TEST METHODOLOGY............................................................................................................. 8 5. FACILITIES AND ACCREDITATIONS.................................................................................... 8 5.1 FACILITIES............................................................................................................................................8 5.2 EQUIPMENT..........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS LISTINGS..............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................9 6. CALIBRATION AND UNCERTAINTY..................................................................................... 9 6.1 MEASURING INSTRUMENT CALIBRATION..................................................................................9 6.2 MEASUREMENT UNCERTAINTY.....................................................................................................9 7. SETUP OF EQUIPMENT UNDER TEST................................................................................. 10 7.1 SETUP CONFIGURATION OF EUT..................................................................................................10 7.2 SUPPORT EQUIPMENT.....................................................................................................................11 7.3 EUT OPERATING CONDITION.........................................................................................................12 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 13 8.1 6DB BANDWIDTH................................................................................................................................13 8.2 MAXIMUM PEAK OUTPUT POWER.................................................................................................24 8.3 MAXIMUM PERMISSIBLE EXPOSURE...........................................................................................45 8.4 POWER SPECTRAL DENSITY..........................................................................................................47 8.5 CONDUCTED SPURIOUS EMISSION.............................................................................................57 8.6 RADIATED EMISSIONS......................................................................................................................70 8.7 POWERLINE CONDUCTED EMISSIONS........................................................................................105 9. ANTENNA REQUIREMENT...................................................................................................... 109 9.1 STANDARD APPLICABLE..................................................................................................................109 9.2 ANTENNA CONNECTED CONSTRUCTION...................................................................................109 APPENDIX SETUP PHOTOS........................................................................................................ 110 APPENDIX II PHOTOGRAPHS OF EUT.................................................................A1 Reference No.: T120724N42-RP1 FCC IDRC6-BRC70N Report No.T120724N42-RP1 Page 4 / 113 1. TEST REPORT CERTIFICATION Applicant Amigo Technology Inc. Address 5F., No.63, Lane 77, Xing-Ai Road, Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Manufacturer Amigo Technology Inc. Address No. 82, Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Equipment Under Test Wireless Router Model BRC70n Brand Amigo Date of Test July 30, 2012 ~ August 09, 2012 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Reference No.: T120724N42-RP1 FCC IDRC6-BRC70N Report No.T120724N42-RP1 Page 5 / 113 2. EUT DESCRIPTION Product Name Wireless Router Model BRC70n Brand Amigo Received Date July 24, 2012 Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz~2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz~2452MHz Transmit Power IEEE 802.11b Mode : 21.76dBm (DTS Band) (149.97mW) IEEE 802.11g Mode : 21.84dBm (DTS Band) (152.76mW) IEEE 802.11n HT20 Mode : 2…

Text truncated - open the document above for the full version.

Reference No.: T120724N42-RP1 FCC ID：RC6-BRC70N Report No.：T120724N42-RP1 Page 110 / 113 APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Reference No.: T120724N42-RP1 FCC ID：RC6-BRC70N Report No.：T120724N42-RP1 Page 111 / 113 RADIATED RF MEASUREMENT SETUP Reference No.: T120724N42-RP1 FCC ID：RC6-BRC70N Report No.：T120724N42-RP1 Page 112 / 113 ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Reference No.: T120724N42-RP1 FCC ID：RC6-BRC70N Report No.：T120724N42-RP1 Page 113 / 113 CONDUCTED EMISSION SETUP
