RC6-BRE70NMicro Wireless Router

http://www.sapido.com.tw/ User Manual v1.0.0 1 SAPIDO BRE70n User Manual Micro Wireless Router http://www.sapido.com.tw/ User Manual v1.0.0 2 Table of Contents Table of Contents .................................................................................................................................. 2 FCC Caution .......................................................................................................................................... 5 Chapter 1 Introduction ................................................................................................................. 7 1.1 Product Appearance ................................................................................................... 8 Chapter 2 System and Network Setup........................................................................................ 9 2.1 Build Network Connection ......................................................................................... 9 2.2 Connecting BRE70N ................................................................................................... 9 2.3 Network setup ........................................................................................................... 10 2.3.1 Windows 2000................................................................................................... 10 2.3.2 Windows XP ...................................................................................................... 11 2.3.3 Windows Vista / Windows 7 ............................................................................ 12 2.4 Router IP Address Lookup ....................................................................................... 13 2.4.1 Log into Web GUI ............................................................................................. 15 Chapter 3 Internet Connection .................................................................................................. 16 3.1 Using as a broadband router ................................................................................... 17 3.2 Home button menu ................................................................................................... 17 3.3 Internet Setup ............................................................................................................ 20 3.3.1 PPPoE................................................................................................................ 21 3.3.2 DHCP................................................................................................................. 21 3.3.3 Static IP.............................................................................................................. 23 3.3.4 PPTP .................................................................................................................. 23 3.3.5 L2TP................................................................................................................... 25 3.3.6 WiFi ISP ............................................................................................................. 26 3.4 AP（HW switch to AP）............................................................................................ 27 3.5 WiFi AP（HW switch to WiFi AP）.......................................................................... 27 Chapter 4 GUI Function Setup................................................................................................... 29 4.1 Status .........................................................................................................................29 4.2 Parental Control ........................................................................................................ 31 4.2.1 URL Filtering ..................................................................................................... 31 4.2.2 MAC Filter Schedule ........................................................................................ 32 4.2.3 Wireless Schedule............................................................................................ 34 4.3 Office Control ............................................................................................................ 34 4.3.1 Multiple AP ........................................................................................................ 35 4.3.2 Wireless Access Control ................................................................................. 36 4.3.3 IP Filtering ......................................................................................................... 36 4.3.4 IP Binding.......................................................................................................... 37 4.3.5 QoS .................................................................................................................... 38 http://www.sapido.com.tw/ User Manual v1.0.0 3 4.4 Firmware Upgrade..................................................................................................... 39 4.4.1 Auto upgrade .................................................................................................... 39 4.4.2 Manual upgrade ................................................................................................ 39 4.5 DoS .............................................................................................................................40 4.6 VPN Server................................................................................................................. 42 4.7 NAT Management ...................................................................................................... 43 4.7.1 Virtual Server .................................................................................................... 44 4.7.2 DMZ.................................................................................................................... 45 4.8 Remote Management ...........................................................................…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.T121127N41 Page A1 / 10 External Photo ( BRE70n ) Compliance Certification Services Inc. Report No.T121127N41 Page A2 / 10 Compliance Certification Services Inc. Report No.T121127N41 Page A3 / 10 Compliance Certification Services Inc. Report No.T121127N41 Page A4 / 10 Compliance Certification Services Inc. Report No.T121127N41 Page A5 / 10

3LSBRE70NNBSX1XX JO2012.12.25 BRE70n 26*16mm Amigo RC6-BRE70N 3LSBRE70NSASX1XX JO2012.12.25 BRE70n 26*16mm SAPIDO RC6-BRE70N RC6-BRE70N 3LSBRE71NNBSX1XX JO2012.12.25 BRE71n 26*16mm Amigo RC6-BRE70N 3LSBRE71NSASX1XX JO2012.12.25 BRE71n 26*16mm SAPIDO RC6-BRE70N

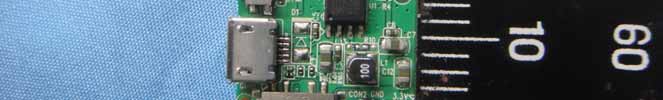

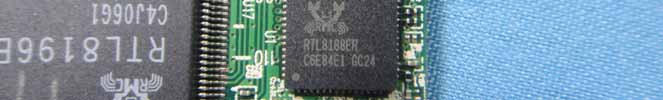

Compliance Certification Services Inc. Report No.T121127N41 Page A6 / 10 Internal Photo ( BRE70n ) Compliance Certification Services Inc. Report No.T121127N41 Page A7 / 10 Compliance Certification Services Inc. Report No.T121127N41 Page A8 / 10 Compliance Certification Services Inc. Report No.T121127N41 Page A9 / 10 Compliance Certification Services Inc. Report No.T121127N41 Page A10 / 10

Reference No.: T121127N41-RP1 FCC IDRC6-BRE70N Report No.T121127N41-RP1 Page 45 / 113 8.3 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Reference No.: T121127N41-RP1 FCC IDRC6-BRE70N Report No.T121127N41-RP1 Page 46 / 113 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted. () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Once Antenna Gain=3.88dBi=2.44343055mW Total Antenna Gain=5.01dBi=3.169786mW IEEE 802.11b = 0.0796 * 135.2073 * 2.44343055 ÷ 400 = 0.06574 IEEE 802.11g = 0.0796 * 299.2265 * 2.44343055 ÷ 400 = 0.14550 IEEE 802.11n HT20 = 0.0796 * 323.5937 * 2.44343055 ÷ 400 = 0.15735 IEEE 802.11n HT40 = 0.0796 * 305.4921 * 2.44343055 ÷ 400 = 0.14854 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 21.31 135.21 3.88 1.00 0.065744 IEEE 802.11g 20 24.76 299.23 3.88 1.00 0.145497 IEEE 802.11n HT2020 25.10 323.59 3.88 1.00 0.157345 IEEE 802.11n HT4020 24.85 305.49 3.88 1.00 0.148543 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Reference No.: T121127N41-RP1 FCC IDRC6-BRE70N Report No.T121127N41-RP1 Page 1 / 113 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For Micro Wireless Router Model: BRE70n Brand: Amigo Issued for Amigo Technology Inc. 5F., No.63, Lane 77, Xing-Ai Road, Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Date of Issue: December 24, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Reference No.: T121127N41-RP1 FCC IDRC6-BRE70N Report No.T121127N41-RP1 Page 2 / 113 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 December 24, 2012 Initial Issue ALL Sunny Chang Reference No.: T121127N41-RP1 FCC IDRC6-BRE70N Report No.T121127N41-RP1 Page 3 / 113 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION....................................................................................... 4 2. EUT DESCRIPTION.................................................................................................................... 5 3. DESCRIPTION OF TEST MODES........................................................................................... 7 4. TEST METHODOLOGY............................................................................................................. 8 5. FACILITIES AND ACCREDITATIONS.................................................................................... 8 5.1 FACILITIES............................................................................................................................................8 5.2 EQUIPMENT..........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS LISTINGS..............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................9 6. CALIBRATION AND UNCERTAINTY..................................................................................... 9 6.1 MEASURING INSTRUMENT CALIBRATION..................................................................................9 6.2 MEASUREMENT UNCERTAINTY.....................................................................................................9 7. SETUP OF EQUIPMENT UNDER TEST................................................................................. 10 7.1 SETUP CONFIGURATION OF EUT..................................................................................................10 7.2 SUPPORT EQUIPMENT.....................................................................................................................11 7.3 EUT OPERATING CONDITION.........................................................................................................12 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 13 8.1 6DB BANDWIDTH................................................................................................................................13 8.2 MAXIMUM PEAK OUTPUT POWER.................................................................................................24 8.3 MAXIMUM PERMISSIBLE EXPOSURE...........................................................................................45 8.4 POWER SPECTRAL DENSITY..........................................................................................................47 8.5 CONDUCTED SPURIOUS EMISSION.............................................................................................57 8.6 RADIATED EMISSIONS......................................................................................................................70 8.7 POWERLINE CONDUCTED EMISSIONS........................................................................................105 9. ANTENNA REQUIREMENT...................................................................................................... 109 9.1 STANDARD APPLICABLE..................................................................................................................109 9.2 ANTENNA CONNECTED CONSTRUCTION...................................................................................109 APPENDIX SETUP PHOTOS........................................................................................................ 110 APPENDIX II PHOTOGRAPHS OF EUT.................................................................A1 Reference No.: T121127N41-RP1 FCC ID：RC6-BRE70N Report No.：T121127N41-RP1 Page 4 / 113 1. TEST REPORT CERTIFICATION Applicant : Amigo Technology Inc. 5F., No.63, Lane 77, Xing-Ai Road, Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Manufacturer : Amigo Technology Inc. No. 82, Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Equipment Under Test : Micro Wireless Router Model : BRE70n Brand : Amigo Date of Test : December 05, 2012 ~ December 10, 2012 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Reference No.: T121127N41-RP1 FCC IDRC6-BRE70N Report No.T121127N41-RP1 Page 5 / 113 2. EUT DESCRIPTION Product Name Micro Wireless Router Model BRE70n Brand Amigo Received Date November 27, 2012 Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz~2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz~2452MHz Transmit Power IEEE 802.11b Mode : 21.31dBm (DTS Band) (135.2mW) IEEE 802.11g Mode : 24.76dBm (DTS Band) (299.2mW) IEEE 802.11n HT20 Mode : 25.10dBm (DTS Band) (323.6mW) IEEE 802.11n HT40 Mode : 2…

Text truncated - open the document above for the full version.

Reference No.: T121127N41-RP1 FCC IDRC6-BRE70N Report No.T121127N41-RP1 Page 110 / 113 APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Reference No.: T121127N41-RP1 FCC IDRC6-BRE70N Report No.T121127N41-RP1 Page 111 / 113 RADIATED RF MEASUREMENT SETUP Reference No.: T121127N41-RP1 FCC IDRC6-BRE70N Report No.T121127N41-RP1 Page 112 / 113 ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Reference No.: T121127N41-RP1 FCC IDRC6-BRE70N Report No.T121127N41-RP1 Page 113 / 113 CONDUCTED EMISSION SETUP
