RC6AWI-926T802.11b/g Wireless PCI Card

RaConfig Operation Manual RaConfig or windows zero configuration Start RaConfig Utility Site Survey Page Encryption Setting [WEP/TKIP/AES] 802.1X Authentication CA Server Setting Profile Page Link Status Page Statistic Page Advance Page Country Channel List QoS Page About Page Example on adding profile in site survey page Example to add profile in profile page Example to configure connection with WEP on Example to configure connection with WPA-PSK Example to configure connection with WPA2-PSK Example to configure connection with WPA Example to configure connection with WPA2 Example to configure to enable Wi-Fi Multi-Media Example to configure to enable WMM – Power Save Example to configure to enable DLS (Direct Link Setup) EXCURSUS Example to configure to enable DLS (Direct Link Setup) 1. Click “Direct Link Setup Enable”. And Click “Apply” button. 2. Change to “Site Survey Page”. And add a AP that supports DLS features to a Profile. The result will look like the below figure in Profile page. The setting of DLS indicates as follow: 1. Fill in the blanks of Direct Link with MAC Address of STA. The STA must conform to two conditions as follow: Connect with the same AP that support DLS features. Have to enable DLS. 2. Timeout Value represents that it disconnect automatically after some seconds. The value is integer. The integer must be between 0~65535. It represents that it always connects if the value is zero. Default value of Timeout Value is 60 seconds. 3. Click “Apply” button. The result will look like the below figure. Describe “DLS Status” as follow: 1. As the up figure, after configuring DLS successfully, show MAC address of the opposite side and Timeout Value of setting in “DLS Status”. In “DLS Status” of the opposite side, it shows MAC address of myself and Timeout Value of setting. 2. Display the values of “DLS Status” to “Direct Link Setup” as follow: 1. In “DLS Status”, select a direct link STA what you want to show it’s values in “Direct Link Setup”. 2. Double click. And the result will look like the below figure. 3. Disconnect Direct Link Setup as follow: 1. Select a direct link STA. 2. Click “Tear Down” button. The result will look like the below figure. Example to configure to enable WMM – Power Save 1. Click “WMM – Power Save Enable”. And Click “Setting...” button. 2. After clicking “Setting...” button, show “Power Save Setting” dialog. Please select which ACs you want to enable. Then click “Apply” button. The setting of enabling WMM – Power Save is successfully. Example to configure to enable Wi-Fi Multi-Media If you want to use “WMM – Power Save” or “Direct Link”, you must enable WMM. The setting method of enabling WMM indicates as follows: 1. Click “WMM Enable”. 2. Click “Apply”. 3. Change to “Site Survey Page”. And add a AP that supports WMM features to a Profile. The result will look like the below figure in Profile page. Configure connection with WPA2 by 802.1x setting 1. Select A.P with WPA2 authentication mode. 2. Click CONNECT or double click the intended network. 3. Authentication & Security page will pop up. TKIP, AES and Both (TKIP+AES) security are support. *If AP setup security to Both (TKIP + AES), system defines is AES that security is severely. 4. Click 802.1x setting. 5. 802.1x setting page will pop up. 5. Authentication type and setting method: PEAP: 1. Authentication type chooses PEAP, key identity into wpatest2. Protocol chooses EAP-MSCHAP v2 for tunnel authentication, tunnel identity is wpatest2 and tunnel password is test2. Those setting are same as our intended AP’s setting. 2. Click OK. The result will look like the below figure. TLS / Smart Card: 1. Authentication type chooses TLS / Smart Card, TLS only need identity that is wpatest2 for server authentication. 2. TLS must use client certicate. Click more to choose certicate. 3. Certicate page will pop up; choose a certicate for server authentication. 3. Display certicate information in use client certicate page. 4. Click OK. The result will look like the below figure. TTLS: 1. Authentication type chooses TTLS, identity is wpatest2. Protocol chooses CHAP for tunnel authentication, tunnel identity is wpatest2 and tunnel password is test2. Those setting are same as our intended AP’s setting. 2. Click OK. The result will look like the below figure. MD5: 1. Authentication type chooses MD5, MD5 only need identity and password that are wpatest2 and test2 for server authentication. 2. Click OK. The result will look like the below figure. Configure connection with WPA by 802.1x setting 1. Select A.P with WPA authentication mode. 2. Click CONNECT or double click the intended network. 3. Authentication & Security page will pop up. TKIP, AES and Both (TKIP+AES) security are support. *If AP setup security to Both (TKIP + AES), system defines is AES that security is severely. 4. Click 802.1x setting. 5. 802.1x setting page will pop up. 6. Authentication type and setting method: PEAP: 1. Authentication type chooses PEAP, key identity into wpatest2. Protocol chooses EAP-MSCHAP v2 for tunnel authentication, tunnel identity is wpatest2 and tunnel password is test2. Those setting are same as our intended AP’s setting. 2. Click OK. The result will look like the below figure. TLS / Smart Card: 1. Authentication type chooses TLS / Smart Card, TLS only need identity that is wpatest2 for server authentication. 2. TLS must use client certicate. Click more to choose certicate. 3. Certicate page will pop up; choose a certicate for server authentication. 4. Display certicate information in use client certicate page. 5. Click OK. The result will look like the below figure. TTLS: 1. Authentication type chooses TTLS, identity is wpatest2. Protocol chooses CHAP for tunnel authentication, tunnel identity is wpatest2 and tunnel password is test2. Those setting are same as our intended AP’s setting. 2. Click OK. The result will look like the below figure. MD5: 1. Authentication type chooses MD5, MD5 only need identity and password th…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 25, 2006 RE: Amigo Technology FCC ID: RC6AWI-926T I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please provide larger, clearer External and Internal photos for this device. 2.) Kindly provide the exact label for this device as it will be marketed. Will the label be on the shield or the PC board? 3.) The block diagram provided is more of an interconnection diagram. Please provide a functional block diagram showing how this device creates, modulates and amplifies radio frequency emissions. 4.) The Operational Description is not appropriate for this device. An operational description should be a circuit level description of how radio frequency energy is created, modulated and amplified. In many ways a correctly built Operational Description will compliment the Block Diagram. 5.) Please provide AC power line conducted test setup photos in addition to the radiated setup photos in the Test Setup exhibit. 6.) The owners manual appears to indicate that the end user is able to set his country. This is not permitted for any WLAN products sold in North America. Please confirm with your client that the end user will not be allowed any means to set the device to channels outside of the expected CH 1-11 range. 7.) Please provide Spectral Power Density test over a minimum 1MHz span. Unless emissions are within 6dB of the limit, it is usually not necessary to provide a low, mid, and high channel result of this test for FCC work – a “worst case” for each of 802.11b and 802.11g is satisfactory. 8.) Please provide more details on the RF Power Output test. Please provide maximum power observed for all data rates. Show the highest observed power for each of low, mid and high channels in 802.11b and 802.11g. 9.) Please confirm that no Confidentiality Request will apply to any portion of this filing. 10.) Please double-check and make sure the FCC database shows the correct contact person, address, phone and email for Amigo Technology. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2 December 25, 2006 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 10, 2007 RE: Amigo Technology FCC ID: RC6AWI-926T I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The block diagram provided still needs some work. This document should parallel the active RF devices used in the Schematics. Please provide a functional block diagram showing how this device creates, modulates and amplifies radio frequency emissions. 2.) The Operational Description is still weak. Remember, an operational description should be a circuit level description of how radio frequency energy is created, modulated and amplified. The Operational Description should compliment the Block Diagram. 3.) Your band edge test results Section 8.4 of the Test Report shows a “distance extrapolation factor”. This is not accounted for in the procedure Section 8.1. This is a radiated measurement, and I do not believe that a ~9.54dB extrapolation could apply. The limit in the 15.205 restricted bands is 54dBuV based upon “average” settings as illustrated in ANSI C63.4. Assuming you have a “true” CW signal, this would be a measurement at 3M with a 1MHz RBW and a 10Hz VBW. Were you making measurements at a distance other than 3M? If so, this needs to be identified. You also claim to have made measurements on 4 bit rates. There are typically more than 4 bit rates available in any 802.11b/g card. 4.) I went back and reviewed again Section 3.6 of the Test Report. Please note that although it is not specifically excluded in ANSI C63.4, testing at frequencies above 1GHz should not automatically be performed at 1meter. There are two concerns: (1.) the 1 x 1.5M table top is much larger than the test distance, and (2.) testing so close negates the potential effect of the ground plane. Your laboratory equipment should be very capable of making these measurements at 3M up to, at minimum, 6GHz. Please review your procedures. 5.) Please confirm that no Confidentiality Request will apply to any portion of this filing. 6.) The FCC database shows the contact person associated with Amigo Technology is Ken Chen. This is not the person who has signed the Form 731 or the Agent Authorization letter. How do I know Elf has the authority to sign any documents on behalf of Amigo? William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

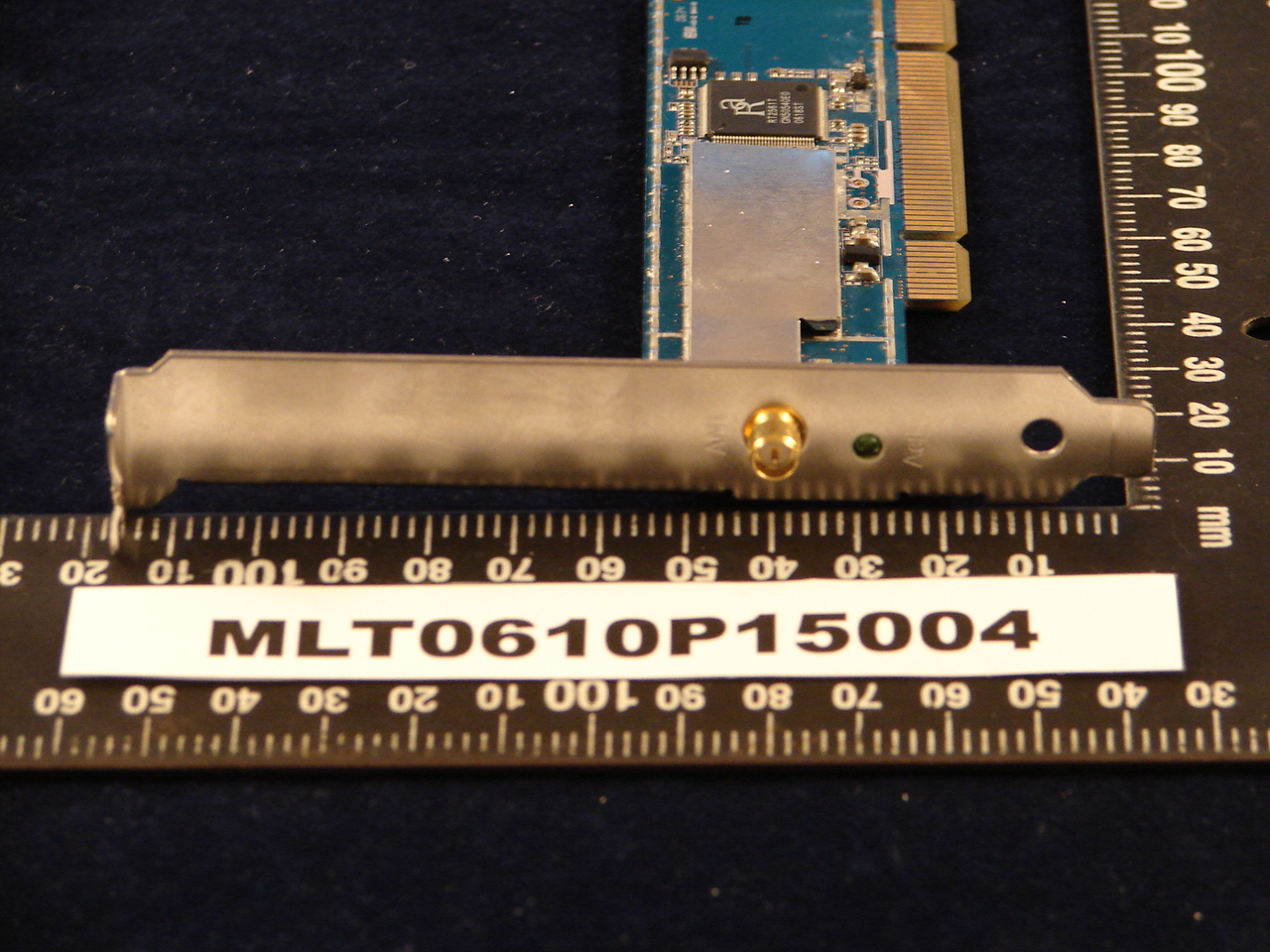

Page:1/5 Report Number: MLT0610P15004 Page:2/5 Report Number: MLT0610P15004 Page:4/5 Report Number: MLT0610P15004 Page:5/5 Report Number: MLT0610P15004

Report Number: MLT0610P15004 Label Format: Label Position: Equipment Label Rear View

Page:3/5 Report Number: MLT0610P15004

AWI-926T Wireless 802.11b/g Modem Card Operational Description This device is a Wireless 802.11b/g PCI Card which operates in the 2.4GHz frequency spectrum in the 802.11b/g mode with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the11Mbps data rate with CCK, DSSS technique will be applied. The transmitter of the EUT is powered by host equipment and connected with managing equipment through PCI. The antenna is a 1/4 Dipole Sleeve Antenna. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. For other detailed instructions, please refer to the user manuals.

1/2 Report Number: MLT0610P15004 M M a a x x i i m m u u m m P P e e r r m m i i s s s s i i b b l l e e E E x x p p o o s s u u r r e e 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. Description of EUT EUT : Wireless PCI Adapter Applicant : Amigo Technology Inc. 1F,No. 285,Sec 2,Ti-Ding Blvd., Nei Hu, Taipei, Taiwan 114, R.O.C. Manufacturer : FAIRWAY ELECTRONIC CO.,LTD. Huang Cjong No. 3 Industryal Area, Zhong Tang Town, Dong Guan, City, Guang Dong Province, China Model No : AWI-926T (The other see Appendix II) FCC ID : RC6AWI-926T 3. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. 2/2 Report Number: MLT0610P15004 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r^2) Where Pd = power density in mW/cm^2 Pout = output pwer to antenna in Mw G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 5. Test Result: 802.11b Max RF Power (dBm) TX Antenna Gain (dBi) Testing Result (mW/cm^2) MPE Limit (mW/cm^2) 13.49 2.0 0.0030 1 802.11g Max RF Power (dBm) TX Antenna Gain (dBi) Testing Result (mW/cm^2) MPE Limit (mW/cm^2) 9.71 2.0 0.0023 1

55 44 33 22 11 D D C C B B A A AD7 INTAB CCLKAD23AD19AD1AD25 AD9AD15 CBE3BAD3AD5IRDYBAD10 CVIN DEVSELB AD11GNDCVINIDSEL PERRBAD29 TDIO CBE1BAD31 AD30 AD17 AD13CVIN REQBGNDCVINCVIN FRAMEB SERRB AD16GNTB CVIN AD18 CBE2B CVIN CBE0BCVIN CVIN AD0AD24GNDAD26AD28CVINAD2PAR AD27GND STOPBTRDYBGNDCVINAD22AD4 AD8AD21AD14 AD20AD6 GNDAD12CVIN INTAB IDSELSERRBDEVSELB PAR FRAMEB GNTB PERRBSTOPB TRDYB MRSTB IRDYBCBE3BCBE2BREQBCBE1B CCLK AD[0..31] CBE0B +5V+5V+5V+5V +5V+5V+5V+5V RST# 3.3VA 1.8VC 3.3VD 1.8VA 3.3VD 1.8VD MRSTB +5V GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GNDGND GND GND DEVSELB REQBAD[0..31] IDSEL MRSTBGNTBIRDYB CCLK CBE2BPAR PERRB CBE3B SERRB TRDYBCBE1B INTABFRAMEB CBE0B STOPB GND GND 1.8VD GND GND 3.3VA GND 1.8VC1.8VA GND 3.3VD GND +5V GND GND TitleSize Document Number Rev Date: Sheet of POWER 1.0 AWI-926T 802.11 b /g PCI B 5 Thursday, November 02, 2006 TitleSize Document Number Rev Date: Sheet of POWER 1.0 AWI-926T 802.11 b /g PCI B 5 Thursday, November 02, 2006 TitleSize Document Number Rev Date: Sheet of POWER 1.0 AWI-926T 802.11 b /g PCI B 5 Thursday, November 02, 2006 2 1 I G O 3 B19 3.3V B19 Not installed for 3.3V I/F. 5V I/F Install Not Install Interface3.3V I/F U38, C353, C354 1.8V (0603) (0805) (0805) U38, C353, C354 Amigo Technology Co., Ltd. 1 2 B180 ohm/SBB180 ohm/SB 12 C355 0.1uF/NI C355 0.1uF/NI 12 C497 4.7uF/6.3V/NI C497 4.7uF/6.3V/NI GND 1 Vin 2 Vout 3 U38 RICHTEK RT9166A-33PXL U38 RICHTEK RT9166A-33PXL 12 C35410uF/6.3VC35410uF/6.3V 12 C3534.7uF/6.3VC3534.7uF/6.3V 12 C1830.1uF/NIC1830.1uF/NI 12 C1091uFC1091uF 12 C3124.7uF/6.3V/NIC3124.7uF/6.3V/NI 1 2 B6 0 ohm/SB B6 0 ohm/SB GND 1 Vin 3 Vout 2 U29 CHAMPION CM2835 U29 CHAMPION CM2835 1 2 B19 0 ohm/NI B19 0 ohm/NI 12 C3520.1uF/NIC3520.1uF/NI 12 C1570.1uF/NIC1570.1uF/NI TRST(A1) 63 +12V 64 TMS 65 TDI 66 +5V 67 INTA 68 INTC 69 +5V 70 RESERVED 71 +V(I/O) 72 RESERVED 73 33Vaux 76 RST 77 +V(I/O) 78 GNT 79 GND 80 PME 81 AD30 82 +3.3V 83 AD28 84 AD26 85 GND 86 AD24 87 IDSEL 88 +3.3V 89 AD22 90 AD20 91 GND 92 AD18 93 AD16 94 +3.3V 95 FRAME 96 GND 97 TRDY 98 GND 99 STOP 100 +3.3V 101 Reserved 102 Reserved 103 GND 104 PAR 105 AD15 106 +3.3V 107 AD13 108 AD11 109 GND 110 AD9(A49) 111 C_BE0(A52) 114 +3.3V 115 AD6 116 AD4 117 GND 118 AD2 119 AD0 120 +V(I/O) 121 REQ64 122 +5V 123 +5V(A62) 124 -12V(B1) 1 TCK 2 GND 3 TDO 4 +5V 5 +5V 6 INTB 7 INTD 8 PRSNT1 9 RESERVED 10 PRSNT2 11 RESERVED 14 GND 15 CLK 16 GND 17 REQ 18 +V(I/O) 19 AD31 20 AD29 21 GND 22 AD27 23 AD25 24 +3.3V 25 C_BE3 26 AD23 27 GND 28 AD21 29 AD19 30 +3.3V 31 AD17 32 C_BE2 33 GND 34 IRDY 35 +3.3V 36 DEVSEL 37 GND 38 LOCK 39 PERR 40 +3.3V 41 SERR 42 +3.3V 43 C_BE1 44 AD14 45 GND 46 AD12 47 AD10 48 GND(B49) 49 AD8(B52) 52 AD7 53 +3.3V 54 AD5 55 AD3 56 GND 57 AD1 58 +V(I/O) 59 ACK64 60 +5V 61 +5V(B62) 62 COMP SOLDER B Side A Side J1PCI-UB-32bit COMP SOLDER B Side A Side J1PCI-UB-32bit 12 C1614.7uF/6.3V/NIC1614.7uF/6.3V/NI 12 C1584.7uF/6.3VC1584.7uF/6.3V 12 C31410uF/6.3V/NIC31410uF/6.3V/NI 1 2 B17 0 ohm/SB B17 0 ohm/SB 1 2 C60 0.1uF/NI C60 0.1uF/NI 1 2 R144 0 ohm R144 0 ohm 55 44 33 22 11 D D C C B B A A GND LED_LKACT# MRSTBREQBCBE3BGNTBINTABCCLK RFTX_PETR_SWN0 LED_RDYA# 1.8VC 1.8VA 3.3VA GND RX_BB_I- GND GND 1.8VD EESK GND GND TR_SW0 GNDGND CLKRUNB GPIO5 3.3VD 3.3VD GNDGND LD1P_ACTLD2_YN5 VCCA REQB FRAMEB 3.3VD3.3VD STOPB 3.3VD INTAB 3.3VD3.3VD SERRBTRDYBPERRBIRDYB GNTB 3.3VD DEVSELB MRSTB 3.3VD EESK ORG AD4 1.8VD 1.8VD CBE1BTRDYB AD19 3.3VD 1.8VD 1.8VA AD6 3.3VD REQB PA_PE_G AD5AD0 IREF 1.8VC 1.8VC 3.3VD PERRB AD17 AD29 RF_CLK GND 3.3VA AD9 AD28 1.8VD RF_DATA0 SERRBFRAMEB AD18 IDSEL INTAB TX_BB_I- GND VREF25P 1.8VD 1.8VD AD7AD16 AD22 1.8VA AD[0..31] RF_LE0 1.8VDPLL 3.3VD AD23 TX_BB_I+ EEDI 1.8VA CLKRUNB 1.8VD EEDO VREFP AD3AD11AD12 AD20 EEDI 3.3VD EEDO GND GND STOPB CBE3B AD24 AD26 AD27 GNTB 1.8VC AD21 1.8VA VREF 3.3VD 1.8VDPLL RADIO_PD# GND VREFN 3.3VD AD15 AD31 TSSI_AG 3.3VD RX_BB_Q- IDSEL RX_BB_I+ GND AD10 CBE2B CCLKEECS GND TR_SW0 GND 1.8VC 3.3VD TX_BB_Q+ PA_PWR AD13 3.3VD AD1 3.3VD3.3VD RX_BB_Q+ EECS GND RFRX_PE GND VREF25N 1.8VDPLL AD30 TX_BB_Q- AD2 40MI 3.3VD GND GND 1.8VA AD14 AD25 MRSTB 3.3VD AD8 IRDYBCBE0BDEVSELB 1.8VD 1.8VD PAR SYNDATARF_LE-G#SYNCLK CBE1BSERRBPERRBSTOPBTRDYB FRAMEB CBE2B MRSTB INTABCBE3B CCLK IDSEL RFTX_PERFRX_PETR_SWN0TR_SW0RADIO_PD# IREFRX_BB_I+RX_BB_I-RX_BB_Q-RX_BB_Q+ 40MI REQB GNTB AD[0..31] TX_BB_I- IRDYB TX_BB_Q+ PAR TX_BB_I+ PA_PE_G DEVSELB CBE0B TX_BB_Q-SYNCLKRF_LE-G#SYNDATA GND 3.3VD GND 1.8VD GND GND 3.3VA GND GND VCCA GND 1.8VC GND 3.3VA GND 1.8VD 1.8VA GND GND GND VCCA GNDGND 3.3VD GND 3.3VD GND GND TitleSize Document Number Rev Date: Sheet of CHIP 1.0 AWI-926T 802.11 b /g PCI C 5 Thursday, November 02, 2006 TitleSize Document Number Rev Date: Sheet of CHIP 1.0 AWI-926T 802.11 b /g PCI C 5 Thursday, November 02, 2006 TitleSize Document Number Rev Date: Sheet of CHIP 1.0 AWI-926T 802.11 b /g PCI C 5 Thursday, November 02, 2006 93C66 Not Install 93C46 For 93C66 Install R206R1 R1 Mode R206 ACT Link (0603)(0603) Amigo Technology Co., Ltd. 12 C167 0.1uF C167 0.1uF 1 2 R5 10K R5 10K GPIO0 113 RFTXI_P0 10 RFTXI_N0 11 RFTXQ_P0 12 RFTXQ_N0 13 IREF 9 VREFP 24 VCC18A 18 TSSI_A0 15 NC 27 NC 28 NC 31 NC 32 TR_PE 121 VCC18A 23 RF_SCLK 3 NC 4 RF_PE 120 TR_SW0 122 TR_SWN0 123 RADIO_PE 126 PA_PE_G 6 ANSEL_P 127 ANSEL_N 128 VCCIO 114 EEDO 119 EEDI 118 EESK 117 EECS 116 INTA_N 44 RST_N 46 VDD18 43 VCCIO 65 GNT_N 48 REQ_N 47 AD[31] 49 AD[30] 50 AD[29] 51 AD[28] 52 AD[27] 53 AD[26] 54 VCCIO 55 AD[25] 57 AD[24] 58 CBE[3]_N 59 IDSEL 61 AD[23] 60 AD[22] 62 AD[21] 63 AD[20] 64 AD[19] 66 AD[18] 68 VDD18 75 AD[17] 69 AD[16] 70 VCCIO 74 CLK_PCI 45 CBE[2]_N 71 FRAME_N 73 IRDY_N 72 CLKRUN_N 76 TRDY_N 77 DEVSEL_N 81 STOP_N 79 VCCIO 84 PERR_N 80 SERR_N 78 PAR 67 CBE[1]_N 82 AD[15] 83 AD[14] 85 VCCIO 94 AD[13] 86 AD[12] 87 AD[11] 88 AD[10] 90 AD[9] 91 VCCIO 125 AD[8] 92 CBE[0]_N 93 AD[7] 95 AD[6] 96 AD[5] 97 AD[4] 98 VDD18 89 AD[3] 99 AD[2] 100 VCCIO 103 AD[1] 101 AD[0] 102 LED_ACT_N 104 LED_RDYG_N 106 GPIO5 107 GPIO4 108 GPIO3 109 GPIO2 111 GPI…

Text truncated - open the document above for the full version.

Page: 1 /78 Report Number: MLT0610P15004 (FCC : Part 15 Subpart B & C (15.247) / ANSI C63.4:2003) Product :Wireless PCI Adapter Trade Name :Amigo (The other see Appendix II) Model No. :AWI-926T (The other see Appendix II) Applicant :Amigo Technology Inc. Applicant Address :1F,No. 285,Sec 2,Ti-Ding Blvd., Nei Hu, Taipei,Taiwan 114, R.O.C. Page: 2 /78 Report Number: MLT0610P15004 Report Number MLT0610P15004 Applicant Amigo Technology Inc. Product Wireless PCI Adapter Sample Received Date 2006/10/25 Report Prepared By Jesse Tien Signature Date Prepared 2006/10/26 ～ 2007/01/16 Report Authorized By Roger Chen Signature Date Authorized 2007/01/18 Test By Max Light Technology Co., Ltd. Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan., R.O.C. Office : Tel: 886-2-2363-2447 Fax: 886-2-2363-2597 Lab. : Tel: 886-2-2663-3486 Fax: 886-2-2663-3582 I I t t m m a a y y b b e e d d u u p p l l i i c c a a t t e e d d c c o o m m p p l l e e t t e e l l y y f f o o r r l l e e g g a a l l u u s s e e w w i i t t h h t t h h e e a a l l l l o o w w a a n n c c e e o o f f t t h h e e a a p p p p l l i i c c a a n n t t . . I I t t s s h h a a l l l l n n o o t t b b e e r r e e p p r r o o d d u u c c e e d d e e x x c c e e p p t t i i n n f f u u l l l l , , w w i i t t h h o o u u t t t t h h e e w w r r i i t t t t e e n n a a p p p p r r o o v v a a l l o o f f o o u u r r l l a a b b o o r r a a t t o o r r y y . . Page: 3 /78 Report Number: MLT0610P15004 Table of Contents : I. General 5. II. Conducted Emissions Requirements 9. III. Radiated Emissions Requirements 19. IV. Maximum Conducted Output Power Requirements 41. V. Minimum 6dB RF Bandwidth Requirements 46. VI. Maximum Power Density Requirements 51. VII. Out of Band Conducted Emissions Requirements 54. VIII. Band Edges Requirements 72. IX. Antenna Requirements 75. Appendix I ( EUT Test Setup ) 76. Appendix II ( Brand / Trade Name & Model No. List ) 78 Page: 4 /78 Report Number: MLT0610P15004 CERTIFICATION We here by verify that : The test data, data evaluation, test procedures and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003. All test were conducted by MLT(Max Light Technology Co.,Ltd) Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan, R.O.C Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with Class B radiated and conducted emission limit of FCC Rules Part 15 Subpart B & C (15.247). Applicant Name Amigo Technology Inc. Applicant Address 1F,No. 285,Sec 2,Ti-Ding Blvd., Nei Hu, Taipei, Taiwan 114, R.O.C. Manufacturer Name FAIRWAY ELECTRONIC CO.,LTD. Manufacturer Address Huang Cjong No. 3 Industrial Area, Zhong Tang Town, Dong Guan, City, Guang Dong Province, China Equipment Wireless PCI Adapter Model No AWI-926T (The other see Appendix II) FCC ID RC6AWI-926T Report Prepared By Jesse Tien Signature Report Authorized By Roger Chen Signature Page: 5 /78 Report Number: MLT0610P15004 I. GENERAL 1.1 Introduction The following measurement report is submitted on behalf of Amigo Technology Inc. In support of a Class B Digital Device certification in accordance with Part2 Subpart J and Part 15 Subpart A , B and C of the Commission’s and Regulations. 1.2 Customer Details Applicant Name Amigo Technology Inc. Applicant Address 1F,No. 285,Sec 2,Ti-Ding Blvd., Nei Hu, Taipei, Taiwan 114, R.O.C. Manufacturer Name FAIRWAY ELECTRONIC CO.,LTD. Manufacturer Address Huang Cjong No. 3 Industrial Area, Zhong Tang Town, Dong Guan, City, Guang Dong Province, China 1.3 Technical data of EUT Equipment Wireless PCI Adapter Model No AWI-926T (The other see Appendix II) FCC ID RC6AWI-926T Power Type Powered by PC(Desktop) Type of Modulation 802.11b: CCK,DSSS 802.11g: OFDM Type of Antenna 1/4λ Dipole antenna Frequency of Channel See Next page During testing the EUT was operated at Tx or Rx mode for each emission measured. This was done in order to ensure that maximum emission levels were attained. Page: 6 /78 Report Number: MLT0610P15004 802.11b & 802.11g Frequency of Each Channel (Working Frequency) Channel No. Frequency (MHz) 01 2412 02 2417 03 2422 04 2427 05 2432 06 2437 07 2442 08 2447 09 2452 10 2457 11 2462 1.4 Summary Of Tests 47 CFR Part 15 Subpart C Reference Test Results Note 15.107 AC Power Conducted EmissionPASS 15.247(c) Transmitter Radiated EmissionsPASS 15.247(b) Max. Output Power PASS 15.247(a)(2) 6dB RF Bandwidth PASS 15.247(d) Max. Power Density PASS 15.247(c) Out of Band Conducted Spurious Emission PASS 15.247(c) Band Edge Measurement PASS 15.203 Antenna Requirement PASS Page: 7 /78 Report Number: MLT0610P15004 1.5 Description of Support Equipment In order to construct the minimum system which required by the ANSI C63.4: 2003, following equipments were used as the support units. Component Manufacturer Model No. Serial No. FCC ID Computer Dell DMC CD6Y91S FCC DOC Monitor SONY SDM-HS74 1356906 FCC DOC Keyboard Dell SK8110 MY-05N456-38843-2CV-0754 FCC DOC Mouse Dell M-SAW94 LZB34304316 DZL211029 Printer PANASONIC KX-P10801 70KAKE93933 FCC DOC Modem ASKEY WS1414SV V1414VQE FCC DOC NB DELL PP19L TD108 A00 FCC DOC 1.6 Configuration of System Under Test Mouse Keyboard PC Power Supply Modem Printer Monitor EUT ANT Page: 8 /78 Report Number: MLT0610P15004 1.7 Test Procedure All measurements contained in this report were performed according to the techniques described in Measurement procedure ANSI C63.4: 2003 "Measurement of un-Intentional Radiators." 1.8 General Test Condition The conditions under which the EUT operates were varied to determine their effect on the equipment's emission characteristics. The final configuration of the test system and the mode of operation used during these tests were chosen as that which produced the highest emission levels. However, only those conditions which the EUT was considered likely to encounter in normal use were investigated. The s…
