RC6AWI-926WWireless PCI Adapter

W W i i r r e e l l e e s s s s L L A A N N C C a a r r d d - - W W i i r r e e l l e e s s s s P P C C C C a a r r d d ( ( C C a a r r d d B B u u s s ) ) - - W W i i r r e e l l e e s s s s M M i i n n i i P P C C I I A A d d a a p p t t e e r r - - W W i i r r e e l l e e s s s s P P C C I I A A d d a a p p t t e e r r IEEE 802.11b/g User Manual Rev. 1.0 May 2004 1 User Manual for the Wireless LAN Card FCC Information to User FCC Caution To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Guidelines for Human Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device and its antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Regulatory Compliance Information This section includes user requirements for operating this product in accordance with National laws for usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable National regulatory authority. FCC Requirements for Operation in the United States Radio Frequency Interference Warnings & Instructions This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods: Model: Wireless PC Card FCC ID: RC6AWP-914W Model: Wireless Mini PCI Adapter FCC ID: RC6AWI-922W Model: Wireless PCI Adapter FCC ID: RC6AWI-926W 2 User Manual for the Wireless LAN Card • Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver • Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected • Consult the dealer or an experienced radio/TV technician for help. Modifications made to the product could void the user's right to operate the equipment. Europe - EU Declaration of Conformity Note: CE certificate is not applied for module. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. Requirements For Operation in the European Community Countries of Operation and Conditions of Use in the European Community The user should run the utility program provided with this product to check the current channel of operation and confirm that the device is operating in conformance with the spectrum usage rules for European Community countries as described in this section. This device is intended to be operated in all countries of the European Community. Operation Using 2.4 GHz Channels in France The following radio channel usage limitations apply in France. The radio spectrum regulator in France, Autorité de regulation des telecommunications (ART), enforces the following rules with respect to use of 2.4GHz spectrum in various locations in This device is a 2.4 GHz low power RF device intended for home and office use in EU and EFTA member states. In some EU / EFTA member states some restrictions may apply. Please contact local spectrum management authorities for further details before putting this device into operation. 3 User Manual for the Wireless LAN Card France. Please check ART's web site for latest requirements for use of the 2.4GHz band in France: http://www.art-telecom.fr/eng/index.htm. When operating in the following metropolitan regions (départements) in France, this device may be operated under the following conditions: • Indoors using any channel in the 2.4-2.4835 GHz band (Channels 1-13) • Outdoors using channels in the 2.4-2.454 GHz band (Channels 1-7) When operating outside of the following regions (départements) in France such as Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte, this product can be operated under the following conditions: • Indoors using any channel in the 2.4-2.4835 GHz band (Channels 1-13) • Outdoors using any channel in the 2.4-2.4835 GHz band (Channels 1-13) When operating …

Text truncated - open the document above for the full version.

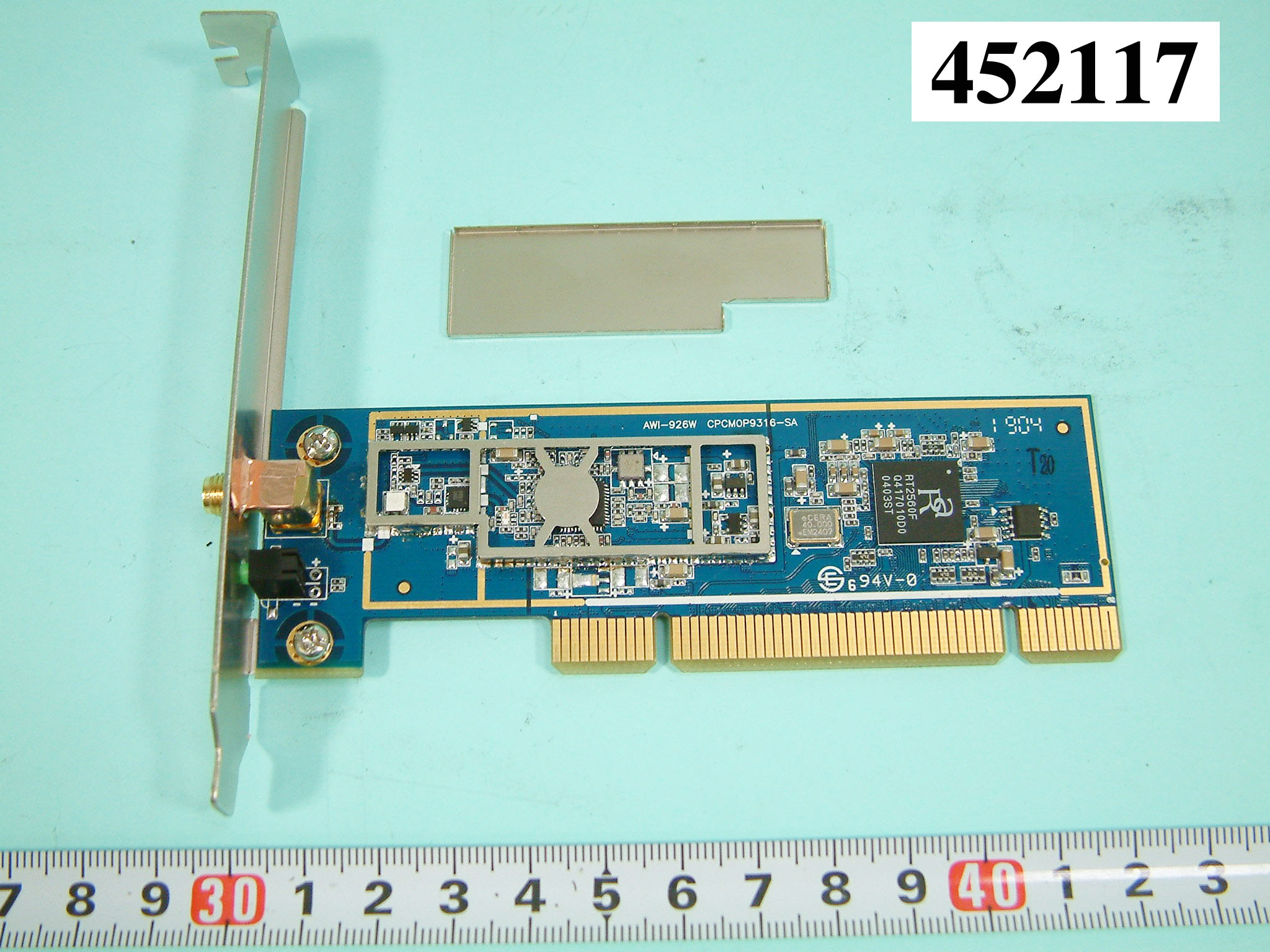

REPORT NO. : F452117 SPORTON International Inc. PAGE NUMBER : A1 OF A1 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 05, 2004 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT REPORT NO. : F452117 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 05, 2004 FAX : 886-2-2696-2255 REPORT NO. : F452117 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 05, 2004 FAX : 886-2-2696-2255 REPORT NO. : F452117 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 05, 2004 FAX : 886-2-2696-2255

FCC ID: RC6AWI-926W Label Location

REPORT NO. : F452117 SPORTON International Inc. PAGE NUMBER : A1 OF A1 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 05, 2004 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT REPORT NO. : F452117 SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 05, 2004 FAX : 886-2-2696-2255 REPORT NO. : F452117 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 05, 2004 FAX : 886-2-2696-2255

FCC ID: RC6AWI-926W Description of Operation EUT is a 802.11b/g PCI adapter card with 11 channels. This device provided a convergence procedure for the 2, 5.5, and 11 Mbps mandatory 802.11b modes, and the optional CCK-OFDM modes at 6, 9, 12, 18, 24, 36, 48, and 54Mbit/s specification in which PSDUs are converted to and from PPDUs. The device adapts Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) modulation. The antenna is Dipole Antenna, and there is reversed SMA connector . This 802.11b/g PCI adapter card is an IEEE 802.11b/g Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the 802.11b/g PCI adapter card transfers data at speeds up to 64/128-bit Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11g network.

Issued on Jun. 05, 2004 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 MPE TEST REPORT OET65, IEEE C95.1 CATEGORY : Mobile End Product PRODUCT NAME : Wireless PCI adapter FCC ID. : RC6AWI-926W FILING TYPE : Certification BRAND NAME : Amigo, PTI MODEL NAME : 1. AWI-926W 2. Wireless PCI Adapter 3. PTI-620G APPLICANT : Amigo Technology Co., Ltd. No.6, Lane35, Jihu Rd., Neihu, Taipei, Taiwan 114, R.O.C. MANUFACTURER : FAIR WAY ELECTRONICS FACTORY Huang Chong No.3 Ind Area, Zhong Tang Town, Dong Guan City, Guang Dong, P.R. China ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Hsin Tai Wu Rd., Sec. 1, His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by CNLA, NVLAP or any agency of U.S. government. The test equipment used to perform the test are calibrated and traceable to NML/ROC or NIST/USA. Lab Code: 200079-0 Issued on Jun. 05, 2004 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 1of 3 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 1. Introduction Radio power energy is available everywhere in our daily environment. More and more application involves radio energy, which makes RF hazard becomes more and more important to human health. International organization such as IEEE or FCC spent a lot of effort to investigate the risk of placing human body in RF energy environment and try to define a rule to limit the RF emission of the radio device for protection of human health. SAR and MPE was defined as 2 major evaluation methods for RF hazard. SAR is mainly used for RF device which could be very close to the human body, and MPE is for device not going to be carried with the human body. In short, portable device has to follow the rule of SAR and mobile one MPE. This test report is for the evaluation of MPE on Mobile device which the separation distance between the antenna and the human body, under normal use condition, is longer than 20cm. 2. MPE ( Maximum Permissible Exposure ) 2.1 Limits (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm²) Averaging Time |E|²,|H|² or S ( minutes ) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 F = frequency in MHz Issued on Jun. 05, 2004 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 2of 3 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 2.2 MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (mW/cm²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (mW) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=20cm, as well as the gain of the used antenna, the RF power density can be obtained. 2.3 Calculated Result ．Modulation Type: CCK Channel No. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Channel 01 2.5 1.78 17.620 57.8096 0.0205 1 Channel 10 2.5 1.78 18.500 70.7946 0.0251 1 Channel 13 2.5 1.78 18.500 70.7946 0.0251 1 From the calculated result shown in above table, the power density is lower than limit at location 20cm far away. Issued on Jun. 05, 2004 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 3of 3 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 ．Modulation Type: OFDM Channel No. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Channel 01 2.5 1.78 15.120 32.5087 0.0115 1 Channel 10 2.5 1.78 15.400 34.6737 0.0123 1 Channel 13 2.5 1.78 15.270 35.6512 0.0117 1 From the calculated result shown in above table, the power density is lower than limit at location 20cm far away.

FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Mobile End Product PRODUCT NAME : Wireless PCI adapter FCC ID. : RC6AWI-926W FILING TYPE : Certification BRAND NAME : Amigo, PTI MODEL NAME : 1. AWI-926W 2. Wireless PCI Adapter 3. PTI-620G APPLICANT : Amigo Technology Co., Ltd. No.6, Lane35, Jihu Rd., Neihu, Taipei, Taiwan 114, R.O.C. MANUFACTURER : FAIR WAY ELECTRONICS FACTORY Huang Chong No.3 Ind Area, Zhong Tang Town, Dong Guan City, Guang Dong, P.R. China ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Hsin Tai Wu Rd., Sec. 1, His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by CNLA, NVLAP or any agency of U.S. government. The test equipment used to perform the test are calibrated and traceable to NML/ROC or NIST/USA. Dr. Alan Lane Vice General Manager Sporton International Inc. Lab Code: 200079-0 1190 ILAC MRA FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 Table of Contents History of this test report....................................................................................................................................ii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant..........................................................................................................................................................................................1 1.2. Manufacturer ...................................................................................................................................................................................1 1.3. Basic Description of Equipment under Test ....................................................................................................................................1 1.4. Features of Equipment under Test..................................................................................................................................................1 1.5. Table for Carrier Frequencies .........................................................................................................................................................2 2. Test Configuration of the Equipment under Test.........................................................................................3 2.1. Description of the Test ....................................................................................................................................................................3 2.2. Frequency Range Investigated .......................................................................................................................................................3 2.3. Description of Test Supporting Units...............................................................................................................................................4 2.4. Connection Diagram of Test System ..............................................................................................................................................6 2.5. Test Software ..................................................................................................................................................................................7 3. Test Location and Standards .........................................................................................................................8 3.1. Test Location...................................................................................................................................................................................8 3.2. Test Conditions ...............................................................................................................................................................................8 3.3. Standards for Methods of Measurement .........................................................................................................................................8 3.4. DoC Statement................................................................................................................................................................................8 4. List of Measurements......................................................................................................................................9 4.1. Summary of the Test Results ..........................................................................................................................................................9 5. Test Result .....................................................................................................................................................10 5.1. Test of 6dB Spectrum Bandwidth..................................................................................................................................................10 5.2. Test of Maximum Peak Output Power ..........................................................................................................................................15 5.3. Test of Peak Power Spectral Density............................................................................................................................................17 5.4. Test of Band Edges Emission .......................................................................................................................................................22 5.5. Test of AC P…

Text truncated - open the document above for the full version.

FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 23 of 48 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 Modulation Type: CCK(Channel 01)： Observation： All emissions in the 100kHz bandwidth are 20dB lower than the carrier strength. FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 24 of 48 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 (B) Right Edge The band edge emission plot shows 54.76dB delta between carrier maximum power and local maximum emission in the restricted band. CH11 Carrier Power Strength Delta The Maximum Field Strength in Restrict Band Limit Margin (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 95.82 54.76 41.06 54.00 -12.94 ＊The maximum field strength in restricted band is the emission of carrier power strength subtract to the delta between carrier maximum power and local maximum emission in the restricted band. Modulation Type: CCK (Channel 11)： Observation： All emissions in the 100kHz bandwidth are 20dB lower than the carrier strength. FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 25 of 48 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 5.4.4. Test Result : ‚ Modulation Type: OFDM ‚ Test Engineer: Murray Lu (A) Left Edge The band edge emission plot shows 53.08dB delta between carrier maximum power and local maximum emission in the restricted band. CH01 Carrier Power Strength Delta The Maximum Field Strength in Restrict Band Limit Margin (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 60.45 53.08 7.37 54.00 -46.63 ＊The maximum field strength in restricted band is the emission of carrier power strength subtract to the delta between carrier maximum power and local maximum emission in the restricted band FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 26 of 48 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 Modulation Type: OFDM (Channel 01)： FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 27 of 48 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 (B) Right Edge The band edge emission plot shows 52.99dB delta between carrier maximum power and local maximum emission in the restricted band. CH11 Carrier Power Strength Delta The Maximum Field Strength in Restrict Band Limit Margin (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 60.71 52.99 7.72 54.00 -46.28 ＊The maximum field strength in restricted band is the emission of carrier power strength subtract to the delta between carrier maximum power and local maximum emission in the restricted band Modulation Type: OFDM (Channel 11)： Observation： All emissions in the 100kHz bandwidth are 20dB lower than the carrier strength. FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 28 of 48 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 5.5. Test of AC Power Line Conducted Emission 5.5.1. Measuring Instruments Please reference item 1~7 in chapter 6 for the instruments used for testing. 5.5.2. Test Procedures 1. Configure the EUT according to ANSI C63.4. 2. The EUT has to be placed 0.4 meter far from the conducting wall of the shielding room and at least 80 centimeters from any other grounded conducting surface. 3. Connect EUT to the power mains through a line impedance stabilization network (LISN). 4. All the support units are connected to the other LISNs. The LISN should provides 50uH/50ohms coupling impedance. 5. The frequency range from 150 KHz to 30 MHz was searched. 6. Use the Channel & Power Controlling software to make the EUT working on selected channel and expected output power, then use the “H” Patter Generator software to make the supporting equipments stay on working condition. 7. Set the test-receiver system to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. 8. The measurement has to be done between each power line and ground at the power terminal for each RF channel. Only one RF channel has to be investigated since this test is independent with the RF channel selection. FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 29 of 48 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 5.5.3. Test Result of Conducted Emission Test Mode RF LINK Temperature / Humidity 26deg. C / 56% Tested By Brian Lin Line to Ground Neutral to Ground FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 30 of 48 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 5.5.4. Photographs of Conducted Emission Test Configuration z The photographs show the configuration that generates the maximum emission. Mode 1 FRONT VIEW REAR VIEW FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 31 of 48 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 SIDE VIEW FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 32 of 48 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 Mode 2 FRONT VIEW REAR VIEW FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 33 of 48 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 SIDE VIEW FCC ID: RC6AWI-926W Issued on Jun. 05, 2004 Report No.: F452117 SPORTON International Inc. FCC ID. : RC6AWI-926W TEL : 886-2-2696-2468 Page No. : 34 of 48 FAX : 886-2-2696-2255 Issued Date : Jun. 05, 2004 Mode 3 FRONT …

Text truncated - open the document above for the full version.

1.1.1. Photographs of Conducted Emission Test Configuration z The photographs show the configuration that generates the maximum emission. Mode 1 FRONT VIEW REAR VIEW SIDE VIEW Mode 2 FRONT VIEW REAR VIEW SIDE VIEW Mode 3 FRONT VIEW REAR VIEW SIDE VIEW 1.1.2. Photographs of Radiated Emission Test Configuration z The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
