RF2A10IPLINKIP WIRELESS LINK MODULE

Operation Instructions The following is the operational instruction for your IP-Link. 1) Using your installation CD, install the Helicomm IP-Software. 2) Take the top cover off the IP_Link unit. 3) Install a CR2477 battery. This is a 3 volt button battery. 4) Connect the parallel port from your PC to that of the interface board. 5) Connect the RS232 cable from the interface board to the IP-Link. 6) Using your flash programmer software, download the latest software into the IP- Link unit. 7) The two LED’s should flash on and off. "This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation."

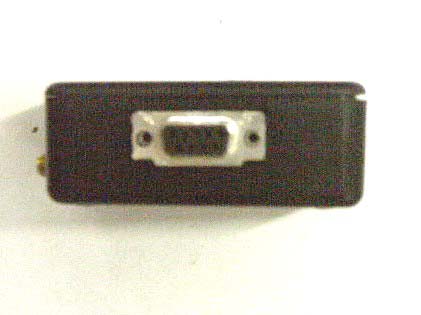

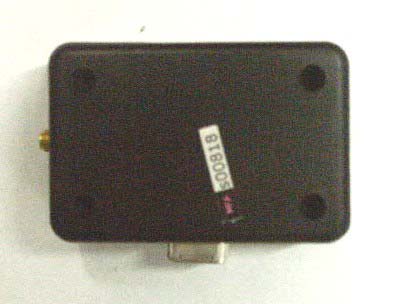

Top Back Bottom Front Left Side Right Side Unit with Antenna

Helicomm IP•Link Wireless Module .5" 1.25" actual size MODEL: A10 FCC ID: RF2 A10IPLINK ON OFF .5" 1.25" MODEL: A10 FCC ID: RF2 A10IPLINK ON OFF

FCC Label Top View Side View Front View ON/OFF Switch Drawing for FCC Label Location for Helicomm Model A10 Notice: 'Compliance statement can be found in the Instruction Manual'

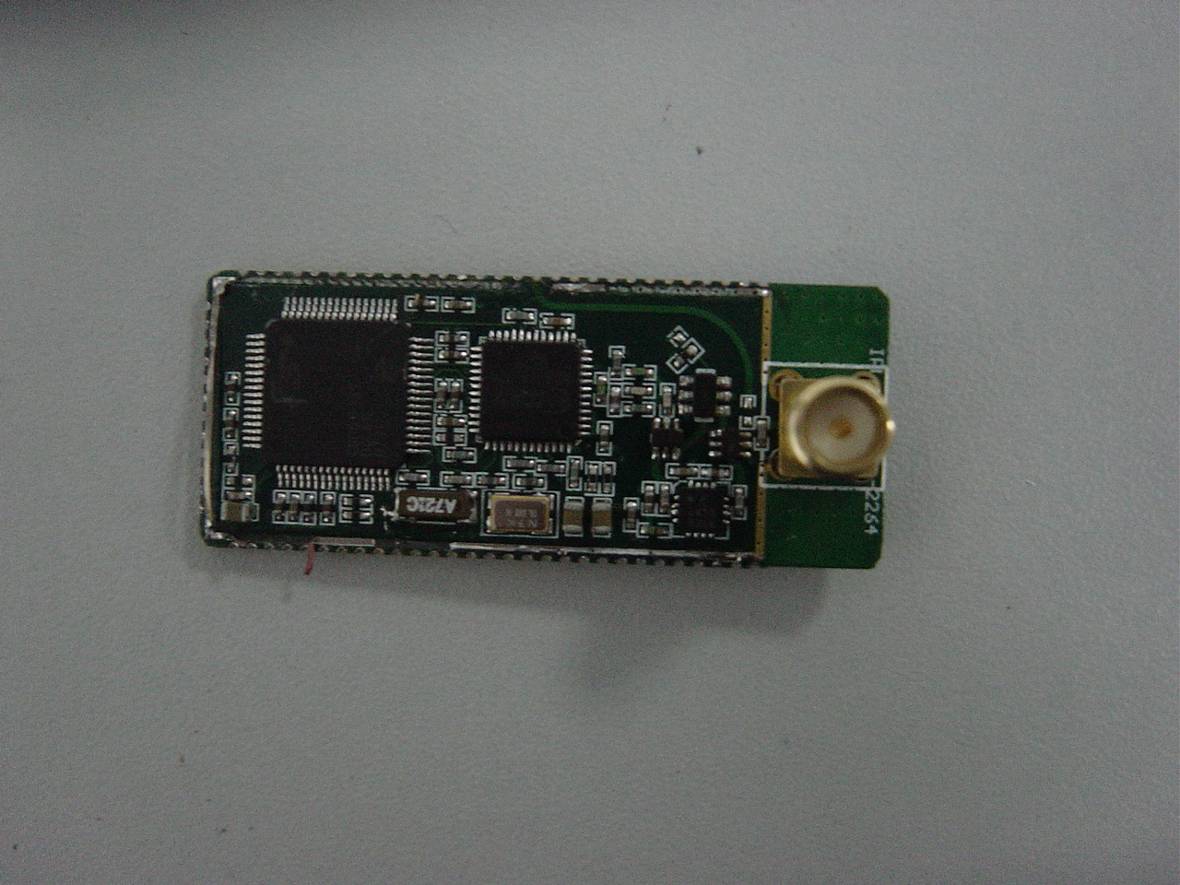

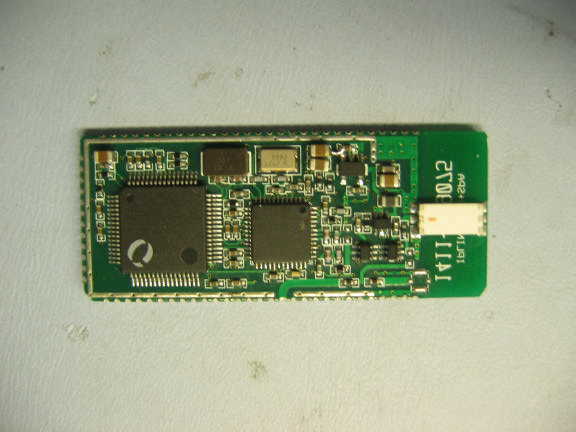

PCB Front PCB Rear

Sheet1 reference des.Qty itemPart Numbe rManufacturer 1 C8 C42 22C06_10p5_00Panasonic : ECJ-1VC1H100D C10-11 23C06_6p85_00UMK105CH070DW C14-1 5 24C06_15p5_00UMK105CH150KW C20 15C06_220p_00Panasonic : ECJ-1VC1H221J C22 16C06_22p1_00Panasonic : ECJ-1VC1H220J C23 17C06_150p_00Panasonic : ECJ-1VC1H151J C24 18C06_150p_00Panasonic : ECJ-1VC1H151J C26 19C06_12p1_00Panasonic : ECJ-1VC1H120J 10 C9 C131 211C06_8p25_00Panasonic : ECJ-1VC1H080D C1 112CET_3U35_00Panasonic : ECS-TIAY335R U1 113ICC_1010_00CHIPCON_CC1010 X1 114XTE_14M7_00ECS Inc ECX_64A X2 115XTS_32K0_00Seiko: SE2407CT C2-3 C6-7 C13 C16-1 7 816C04_33n1_00Taiyo Yuden LMK105BJ333KV C4 C32 217C04_1n01_00Taiyo Yuden LMK105BJ102KV C19 118C04_33n1_00Taiyo Yuden LMK105BJ333KV C35 119C04_1n01_00Taiyo Yuden LMK105BJ102KV C119 C121 220C04_10n1_00Taiyo Yuden LMK105BJ103KV J3 121CON_DB9T_00745781-4 L101 122L08_12n5_00Coilcraft : 0603CS3n6XJB L1 123L08_3n35_00Coilcraft: 0805CS_030J L32 124L08_12n5_00Coilcraft : 0805CS_120J L41 125L08_2n55_00Coilcraft : 085CS_020J L2 L7 226F06_15BB_00Murata : BLM15BB750PNID L3 L102 L103 L10 4 427F06_15BB_00Murata: BLM15BB750PNID C120 128CET_3U35_00Kemet:T491A105K016AS D1-4 229DLE_SBR6_00Stanely BRG1201W_TR 30 R1-7 R9 R11-19 R21-24 R29 - 32 2531R04_47K1_00Venkel : CR0402-16W-473JB R27-28 R20 R26 R36-3 8 832R04_1K01_00Venkel : CR0402-16W-102JB R35 133R04_000_00Venkel : CR0402_16W_000B R25 134R04_0001_00Venkel : CR0402_16W_000B R10 135R04_27K1_00Venkel : CR0402_16W_273JB 36 R131 137R04_82K1_00Venkel : CR0402_16W_823JB 38 J2 139CON_SMAH_00Johnson Components : 142-0701-801 J1 140CON_INL3_00Molex: 87438-0333 U3 141ICN_3812_00National : LM3812 42 S1 143SW0_SPDT_00C&K : GS01MSAKE BAT+ 144BAH_2477_00Keystone 1025-7 U25 147ICT_REG3_00TOKO : TK71730S C132 148CVA_310p_00Sprauge Goodman:GKY10066 Page 1 Sheet1 ValueCritical C_10P_0603_NPO_G_50Critical C_6P8_0402_NPO_C_50Critical C_15P_0402_NPO_G_50Critical C_220P_0603_NPO_G_50Critical C_22P_0603_NPO_J_50Critical C_150P_0603_NPO_J_50Critical C_150P_0603_NPO_I_50Critical C_12P_0603_NPO_G_50Critical C_8P2_0603_NPO_C_50Critical C_3U3_TAN_8 Critical X14.7556Critical X32.0KCritical C_33n_0402_X7R_K_50 C_1n0_402_X74_K_50 C_33n_0402_X7R_K_25 C_1n0_402_X7R_K_50 C_10n_0402_X7R_K_50 L_3N3_0603_KL73Critical L_3N3_0805_DCritical L_12N_0805_JCritical L_2N5_0805_JCritical BLM15BB750PNIDCritcal BLM15BB750PNIDCritcal C_1U0_TAN_8 R_47K_0402_G R_1.0K_0402_G R_00_0402_G R_0402_DNI R_27K_0402_G R_82K_0402_G 3.0V 3 to 10 pF Variable Cap Page 2 Sheet1 Page 3 Sheet1 Page 4 Sheet1 Page 5 Sheet1 Page 6 Sheet1 Page 7 Sheet1 Page 8 Sheet1 Page 9 Sheet1 Page 10 Sheet1 Page 11 Sheet1 Page 12 Sheet1 Page 13 Sheet1 Page 14 Sheet1 Page 15 Sheet1 Page 16 Sheet1 Page 17 Sheet1 Page 18 Sheet1 Page 19 Sheet1 Page 20 Sheet1 Page 21 Sheet1 Page 22 Sheet1 Page 23 Sheet1 Page 24 Sheet1 Page 25 Sheet1 Page 26 Sheet1 Page 27 Sheet1 Page 28 Sheet1 Page 29 Sheet1 Page 30 Sheet1 Page 31 Sheet1 Page 32 Sheet1 Page 33 Sheet1 Page 34 Sheet1 Page 35 Sheet1 Page 36 Sheet1 Page 37

Radio Tuning The only manufacturing tuning required is for the Crystal. This crystal is tuned for 14.7456MHz +/- .001 MHz. Channel selection is done via a PLL inside of the CC1010. Programming the PLL is done via the software in the MicroP . The MicroP is the 8051.

FCC ID: RF2A10IPLINK Transmitter Certification of FCC ID: RF2A10IPLINK Model: A10 to Federal Communications Commission Rule Part(s) 15.249(C), Confidentiality Date Of Report: August 29, 2003 On the Behalf of the Applicant: Helicomm, Inc. At the Request of: P.O. HC0 8803328 Helicomm, Inc. 1947 Camino Vida Roble, Suite 109 Carlsbad, CA 92008 Attention of: Leon Gateno, Principle RF Engineer (760) 918-0856; FAX -0338 Email: [email protected] Supervised By: Morton Flom, P. Eng. MFA p0370008, d0380074 FCC ID: RF2A10IPLINK List Of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: Helicomm, Inc. FCC ID: RF2A10IPLINK By Applicant: 1. Letter Of Authorization x 2. Identification Drawings x Label x Location of Label x Compliance Statement x Location of Compliance Statement 3. Documentation: 2.1033(B) (3) User Manual x (4) Operational Description x (5) Block Diagram x (5) Schematic Diagram x (7) Photographs x Block Diagram x Active Devices x 4. Request for Confidentiality x By M.F.A. Inc. A. Testimonial & Statement of Certification MFA p0370008, d0380074 FCC ID: RF2A10IPLINK The applicant has been cautioned as to the following: 15.21 Information to User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. MFA p0370008, d0380074 FCC ID: RF2A10IPLINK Table Of Contents Rule Description Page . Test Report 1 2.1033(c) General Information Required 2 . Standard Test Conditions and Engineering Practices 6 2.1053(a) Field Strength of Spurious Radiation 7 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 12 MFA p0370008, d0380074 FCC ID: RF2A10IPLINK Page Number 1 of 15. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0380074 d) Client: Helicomm, Inc. 1947 Camino Vida Roble, Suite 109 Carlsbad, CA 92008 e) Identification: A10 FCC ID: RF2A10IPLINK Description: Transceiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: August 29, 2003 EUT Received: July 31, 2003 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. MFA p0370008, d0380074 FCC ID: RF2A10IPLINK Page Number 2 of 15. List Of General Information Required For Certification In Accordance with FCC Rules and Regulations, Volume II, Part 2 and to 15.249(C), Confidentiality Sub-Part 2.1033 (c)(1): Name and Address of Applicant: Helicomm, Inc. 1947 Camino Vida Roble, Suite 109 Carlsbad, CA 92008 Manufacturer: Applicant (c)(2): FCC ID: RF2A10IPLINK Model Number: A10 (c)(3): Instruction Manual(s): Please See Attached Exhibits (c)(4): Type of Emission: N/A (c)(5): FREQUENCY RANGE, MHz: 902.250 to 927.750 (c)(6): Power Rating, W: 0.001 Switchable Variable x N/A (c)(7): Maximum Power Rating, W: 50 mv/m @ 3m 15.203: Antenna Requirement: The antenna is permanently attached to the EUT The antenna uses a unique coupling The EUT must be professionally installed x The antenna requirement does not apply MFA p0370008, d0380074 FCC ID: RF2A10IPLINK Page Number 3 of 15. Subpart 2.1033 (continued) (c)(8): Voltages & Currents in All Elements in Final RF Stage, Including Final Transistor or Solid State Device: Collector Current, A = per manual Collector Voltage, Vdc = per manual Supply Voltage, Vdc = 3.0 (c)(9): Tune-Up Procedure: Please See Attached Exhibits (c)(10): Circuit Diagram/Circuit Description: Including description of circuitry & devices provided for determining and stabilizing frequency, for suppression of spurious radiation, for limiting modulation and limiting power. Please See Attached Exhibits (c)(11): Label Information: Please See Attached Exhibits (c)(12): Photographs: Please See Attached Exhibits (c)(13): Digital Modulation Description: ___ Attached Exhibits _x_ N/A (c)(14): Test and Measurement Data: Follows MFA p0370008, d0380074 FCC ID: RF2A10IPLINK Page Number 4 of 15. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by the American A…
