Leica 3D Disto User Manual Version 0.9 English 2 3D Disto, Introduction Introduction PurchaseCongratulations on the purchase of a Leica 3D Disto. This manual contains important safety directions as well as instructions for setting up the product and operating it. Refer to "12 Safety Directions" for further informa- tion. Read carefully through the User Manual before you switch on the product. Product identification The serial number of your product is indicated on the data label, refer to "12.8 FCC Statement, Applicable in U.S.". Enter the serial number in your manual and always refer to this information when you need to contact your authorised dealer or to register in the Leica MyWorld portal. Serial No.:_______________ 3D Disto, Introduction3 SymbolsThe symbols used in this manual have the following meanings: Trademarks•Windows is a registered trademark of Microsoft Corporation. All other trademarks are the property of their respective owners. TypeDescription  DangerIndicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.  WarningIndicates a potentially hazardous situation or an unintended use which, if not avoided, could result in death or serious injury.  CautionIndicates a potentially hazardous situation or an unintended use which, if not avoided, may result in minor or moderate injury and/or appreciable material, financial and environ- mental damage.  Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner. 4 3D Disto, Table of Contents Table of Contents In this manualChapterPage 1 How to Use this Manual9 2 Technical Terms and Abbreviations13 3 Description of the System25 3.1General 3D Disto System Information25 3.2Container Contents26 3.3Instrument Components28 3.3.13D Disto28 3.3.2Control Unit32 3.3.3RM100 Remote Control33 3.4Power Supply34 3.4.13D Disto34 3.4.2Control Unit35 3.4.3RM100 Remote Control37 3.5Software Concept38 4 User Interface44 4.1Control Unit44 4.1.1Screen45 3D Disto, Table of Contents5 4.1.2Main Operation Bar48 4.1.3Tool Bar49 4.1.4Icons & Symbols50 4.2RM100 Remote Control53 5 Instrument Setup54 5.1Startup Procedure54 5.2Assistant62 5.3Device Configuration and Menu Settings64 5.4Data Management67 5.4.1General67 5.4.2File Manager69 5.4.3Photo and Secure Points Administration71 5.4.4Data Transfer73 5.5Calculator79 6 Operation81 6.1Measurements81 6.2Viewfinder82 6.3Measurement Workflow87 6.4Touch Screen in Sketch Area92 6.5Addition and Subtraction94 6.6Area & Volume Calculations97 6.6.1Horizontal Areas/Volumes98 6 3D Disto, Table of Contents 6.6.2Tilted Areas100 7 Software Applications101 7.1Overview101 7.2Tool Kit102 7.2.1Comfort Plumbing103 7.2.2Comfort Targeting105 7.2.3Comfort Level107 7.2.4Meter Mark109 7.2.5Height Tracking111 7.2.6Parallel Line113 7.3Location115 7.4Room Scan121 7.4.1Manual Measurement123 7.4.2Unfold Mode125 7.4.3Auto Shapes127 7.4.4Automated Profile Room Scan130 7.5Projector137 7.5.1Workflow138 7.5.2Targeting and Layout with RM100 Remote Control145 3D Disto, Table of Contents7 8 Error Messages146 9 Check & Adjust148 9.1Overview148 9.2Cross Hair Offset150 9.3V-Index Error152 9.4Tilt Sensor Calibration154 9.5Reset to Factory Settings156 10 Instrument Protection (Theft Protection)157 11 Care and Transport159 11.1Transport159 11.2Storage160 11.3Cleaning and Drying161 12 Safety Directions162 12.1General162 12.2Intended Use163 12.3Limits of Use165 12.4Responsibilities166 12.5Hazards of Use167 12.6Laser Classification172 12.7Electromagnetic Compatibility EMC174 8 3D Disto, Table of Contents 12.8FCC Statement, Applicable in U.S.177 12.9Conformity to National Regulations181 13 Technical Data182 14 International Limited Warranty, Software License Agreement187 Index190 3D Disto, How to Use this Manual 9 1How to Use this Manual  It is recommended to setup the instrument while reading through this manual. IndexThe index is at the back of the manual.  Keys, fields and options on the screens which are considered as self-explanatory are not explained. Validity of this manual This manual applies to the 3D Disto instruments and software application. Available documentation NameDescription/Format 3D Disto User Manual All instructions required in order to operate the instrument to a basic level are contained in this User Manual. Provides an overview of the instrument together with technical data and safety directions. -  3D Disto Quick Start Intended as a quick reference field guide.  Safety ManualProvides important safety instructions for use of 3D Disto.  10 3D Disto, How to Use this Manual Refer to the following resources for all 3D Disto documentation/software: •the Leica 3D Disto CD •https://myworld.leica-geosystems.com myWorld@Leica Geosystems (https://myworld.leica-geosystems.com) offers a wide range of services, information and training material. With direct access to myWorld, you are able to access all relevant services whenever it is convenient for you, 24 hours a day, 7 days per week. This increases your effi- ciency and keeps you and your equipment instantly updated with the latest informa- tion from Leica Geosystems. 3D Disto, How to Use this Manual 11 12 3D Disto, How to Use this Manual ServiceDescription myProductsSimply add all Leica Geosystems products that you and your company own. View detailed information on your products, buy additional options, update your products with the latest software and keep up-to-date with the latest documentation. mySupportCreate new support requests for your products that will be answered by your local Leica Geosystems Support Team. View the complete history of your Support and view detailed information on each request in case you want to refer to previous support requests. myTrainingEnhance your product knowledge with the Leica Geosystems Campus - Information, Knowledge, Training. Study the latest online training material or download training material on your products.…

Text truncated - open the document above for the full version.

Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland www.leica-geosystems.com Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 11/19/2010 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: RFF-3DDISTO including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Wolfram Mathis Quality Manager PTD Leica Geosystems AG

Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland www.leica-geosystems.com Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 11/29/2010 Request for Confidentiality Company name: Leica Geosystems AG FCC ID: RFF-3DDISTO FCC Part 15 Certification Gentlemen, In accordance with 0.459 of CFR 47, Leica Geosystems AG hereby requests confidentiality of following attachments: Block Diagrams, Circuit Description, Schematics, Parts List, Operational Description for the subject application. These documents contain detailed system and equipment description and related information about the product which Leica Geosystems AG considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Leica Geosystems AG considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Wolfram Mathis Quality Manager PTD Leica Geosystems AG Heinrich Wild Srasse CH-9435 Heerbrugg Switzerland

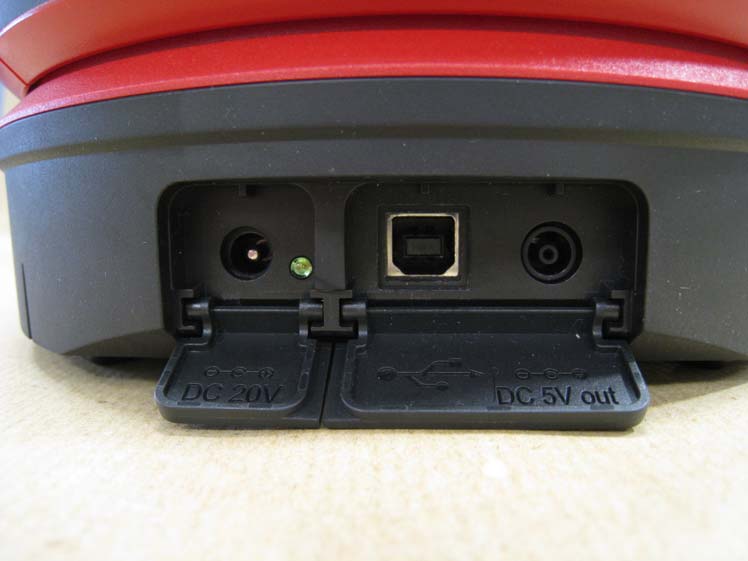

Test Report No.: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Annex A Photos EUT EUT; connections Page 31 of 145 Test Report No.: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany EUT open Page 32 of 145

Label Sample page 1 Model No.:3D Disto FCC ID: RFF-3DDISTO IC: 3177A-3DDISTO Proj. No.: G0M21011-3883 Label Sample page 2 Model No.:3D Disto FCC ID: RFF-3DDISTO IC: 3177A-3DDISTO Proj. No.: G0M21011-3883

Test Report No.: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany PCB Front PCB Back Page 33 of 145 Test Report No.: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany PCB Back PCB Back Page 34 of 145

Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland www.leica-geosystems.com Provided by Eurofins Product Service GmbH v.0.2 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Leica 3D Disto 771 171 FCC ID: RFF-3DDISTO fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: n/a Type of antenna: PCB printed antenna permanently attached / built into the housing) Gain of the antenna: -1.23 dBi Frequency range: 2400 - 2483.5 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Leica Geosystems AG Address: Heinrich Wild Srasse City: Heerbrugg ZIP / Postal code: 9435 Country: Switzerland Place: Heerbrugg Date: 19.11.2010 Signature:

Product Service GmbH G0M21011-3883 1 / 1 Maximal Permissible Exposure FCC IC: RFF-3DDISTO IC: 3177A-3DDISTO Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 and RSS-102 this device has been defined as a mobile device whereby a distance of 0.2 m, normally can be maintained between the user and the device. The following calculation presents the exposure value against the limits for occupational / controlled use. Operating mode: DSSS, 1Mbps, power level 12 name nature value log value max conducted power 21,88 mW 13,40 dBm max Antenna gain 0,75 -1,23 dBi calculated radiated power EIRP 16,48 mW 12,17 dBm measured radiated power EIRP 9,12 mW 9,60 dBm Tx frequency 2462,000 MHz duty cycle factor duty cycle factor 10log(dwell time/100 ms) declared 95,0% -0,22 dB max source-based time-averaged power conducted power 20,78 mW 13,18 dB calculated radiated power EIRP 15,66 mW 11,95 dB measured radiated power EIRP 8,66 mW 9,38 dB M P E calculated with max source-based time-averaged power measured conducted power r [cm] 20 2,5 1,5 1,12 S [mW/cm²] 0,003 0,199 0,554 1,0 Limit general population [mW/cm²] 1,0 Limit occupational population [mW/cm²] 5,0 for f = 2462,000 MHz calculated with max source-based time-averaged power measured radiated power r [cm] 20 2,5 1,5 0,83 S [mW/cm²] 0,002 0,110 0,307 1,0

EUROFINS PRODUCT SERVICE GMBH Testing Cert #1983.01 RADIO TEST- REPORT Compliance Test Report FCC PART 15 SUBPART C IC RSS 210 ISSUE 7 Wireless LAN Radio Part FCC ID: RFF-3DDISTO IC: 3177A-3DDISTO Laser Distance Meter 3D Disto T EST REPORT NUMBER: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, 15526 Reichenwalde, Phone +49-33631-888 0 Germany Fax +49-33631-888 660 Test Report No.: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany TABLE OF CONTENTS 1 General Information 4 1.1 Notes 4 1.2 Testing laboratory 5 1.3 Details of approval holder 6 1.4 Application details 6 1.5 Test item 6 1.6 Test standards 7 1.7 Acronyms and abbreviations 7 2 Technical test 8 2.1 Summary of test results 8 2.2 Test environment 8 2.3 Test equipment utilized 9 2.4 Sample emission level calculation 10 2.5 Test results 11 3 Informational Transmitter parameters 12 3.1 Transmitter Modes for conformance testing 12 3.2 Occupied Bandwidth 13 4 Transmitter parameters 14 4.1 6dB Bandwidth 14 4.2 Power spectral density 16 4.3 Maximum peak conducted output power 18 4.4 Transmitter band-edge compliance 20 4.5 Transmitter conducted spurious emissions 22 4.6 Transmitter radiated spurious emissions 24 5 Receiver parameters 27 5.1 Receiver spurious emissions 27 6 Power Line parameters 30 6.1 AC power line conducted emissions 30 Page 2 of 144 Test Report No.: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Annex A Photos 31 Annex B Transmitter Occupied Bandwidth 35 Annex C Transmitter 6dB bandwidth 41 Annex D AC Powerline Conducted Emissions 47 Annex E Transmitter conducted spurious emissions 49 Annex F Band edge compliance 67 Annex G Transmitter radiated spurious emissions 71 Annex H Receiver radiated spurious emission 136 Page 3 of 144 Page 4 of 144 Test Report No.: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Testing laboratory EUROFINS PRODUCT SERVICE GMBH Storkower Strasse 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 660 DAR ACCREDITED TESTING LABORATORY DAR-R EGISTRATION NUMBER: DAT-P-268/08 R ECOGNIZED NOTIFIED BODY EMC R EGISTRATION NUMBER: BNetzA-bS EMV-07/61 R ECOGNIZED NOTIFIED BODY R&TTE R EGISTRATION NUMBER: BNetzA-bS-02/51-53 FCC FILED TEST LABORATORY R EG.-NO. 96970 A2LA ACCREDITED TESTING LABORATORY C ERTIFICATE NO. 1983.01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD I NDUSTRY CANADA FILED TEST LABORATORY R EG. NO. IC 3470 Test location, where different: Name : ./. Street : ./. Town : ./. Country : ./. Telephone : ./. Fax : ./. Page 5 of 144 Test Report No.: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.3 Details of approval holder Name : Leica Geosystems AG Street : Heinrich Wild Strasse Town : CH 9435 Heerbrugg Country : Switzerland Telephone : 0041717274451 Fax : Contact : Herr Wolfram Mathis Telephone : 0041717274451 1.4 Application details Date of receipt of application : 09.11.2010 Date of receipt of test item : 09.11.2010 Date of test : 29.11.2010 – 30.11.2010 1.5 Test item Description of test item : Laser Distance Meter Type identification : 3D Disto Hardware version : v 04 Software version : v 0.176 Equipment type : End Product Technical data Frequency range : 2400 - 2483.5MHz Tested frequencies : F 1 2412MHz max. radiated power: 9.6dBm Tested frequencies : F 2 2437MHz max. radiated power: 8.5dBm Tested frequencies : F 3 2462MHz max. radiated power: 9.5dBm Antenna type : internal Number of antennas : 1 Antenna gain : -1.23dBi (Declared by approval holder) Power supply : 24VDC Operating mode : semi duplex Spreading technique : CCK, DSSS, OFDM Modulations : DBPSK, DQPSK Device classification : Mobile Device (Human Body distance > 20 cm) Additional information : none Page 6 of 144 Test Report No.: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Manufacturer: (if applicable) Name : Leica Geosystems AG Street : Heinrich Wild Strasse Town : CH 9435 Heerbrugg Country : Switzerland 1.6 Test standards Technical standard : FCC PART 15 SUBPART C IC RSS 210 ISSUE 7 1.7 Acronyms and abbreviations EUT : Equipment under Test TX : Transmission RX : Reception RBW : Measurement Resolution Bandwidth Pol : Measurement Polarization e.i.r.p. : Equivalent isotropic radiated power FHSS : Frequency hopping spread spectrum DSSS : Direct Sequence Spread Spectrum OFDM : Orthogonal frequency division multiplexing CCK : Complementary code keying GFSK : Gaussian frequency shift keying DBPSK : Differential binary phase shift keying DQPSK : Differential quadrature phase shift keying PSK : Phase shift keying T nom : Nominal Temperature T min : Minimum Temperature T max : Maximum Temperature V nom : Nominal Supply Voltage V min : Minimum Supply Voltage V max : Maximum Supply Voltage VDC : DC voltage N/A : Not applicable IC : Industry Canada Page 7 of 144 Test Report No.: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.4 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 22 ... 26°C Relative humidity content : 20 ... 75% Air pressure : 86 ... 103kPa Extreme conditions parameters: V nom : 24VDC V min (V nom -15%) : 18VDC V max (V nom +15%) : 27VDC T nom : 25°C Other parameter: None Page 8 of 144 Test Report No.: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 2.3 Test equipment utilized Measurement Equipment List No. Measurement device: Type: Manufacturer: Last Cal. Next Cal. ETS 0086 Semi-anechoic chamber AC1 Frankonia 12.03.2010 12.03…

Text truncated - open the document above for the full version.

Test Report No.: G0M21011-3883-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Test setup radiated emissions Test setup conducted emissions Page 35 of 145
