RFFCPD0401Bluetooth Laser Distancemeter

2 Display Leica DISTO™ plus 1.0.0 GB de GB fr it es nl ja D5-Z1 1 st function level 2 nd function level Display D5-Z2 1 Laser "on"2 Measurement reference (front/ stand/ rear) 3 Information4Bluetooth ® on/off 5 Display of the mathematical signs/operations6 Main display (e.g. measured distance)7 Distance measurement8 Tracking9Area/ Volume10 min. Tracking11 max. Tracking12 Pythagoras function13 Pythagoras function with partial height 14 Units with exponents (²/ ³)15 Time symbol for time delay release16 Save constant17 Contact customer service18 3 auxiliary displays (e.g. previous values)19 SET20 RESET21 Battery display22 2 nd function level 23 Recall stored constant (max. 10)24 Recall last 15 values25 Illumination (on/ off)26 Beep (on/ off)27 Offset setting 1 Distance measuring, Tracking 10 Menu 22 nd - function level 1 or 2 11 Illumination 3 Meas. reference 12 Multiply [ x ]/ Timer Release 4 Areas, Volumes 13 On/off key 5 Measuring 14 Clear 6 min. / max. Tracking 15 Mermory, Stack 7 Bluetooth ® ON/OFF 16 Equals, Enter 8 Pythagoras functions 17 Minus [ - ] 9Plus [ + ] 1 2 3 4 5 6 7 18 19 8 9 10 11 12 13 14 15 16 17 20 21 22 23 24 25 26 27 18 delete 23 direction upward 19 enter 24 direction downward 20 direction left upward 25 direction right downward 21 direction left 26 direction right 22 direction left downward 27 direction right upward 1 19 2 3 64 57 8 10 9 11 12 13 15 16 17 14 2325 21 27 22 18 202426 3 How to Use the Instrument Leica DISTO™ plus 1.0.0 GB de GB fr it es nl ja How to Use the Instrument Inserting / replacing the batteries1 Depress the locking clip and slide end piece to the right. D5-Z3 2 Remove battery cover. Replace batteries. Appears on the display if battery voltage is too low. For type of battery, refer to Technical Data.) Fit batteries the right way round. ) Use only Alkaline batteries. 3 Push in end piece and listen for locking click sound. 1 st Function level Leica DISTO™ plus switching on/off Briefly press. The illumination, Battery and Beep symbols are displayed until the first key press.The instrument can be switched off from any menu point. ) The instrument switches off automatically after 90 seconds if no key is pressed. ) An unwanted switching off of the Bluetooth-data- connection is blocked by special precautions. Please refer to page 11. Clear key The clear key may be pressed before or after a measurement/ calculation. The clear key may be pressed before or after a measurement/ calculation.In Menu Mode it resets to Normal Mode. During a function (area, volume or Pythagoras) the single measurements can be deleted step by step and remeasured.In the menu settings, the program is terminated if the Equal (=) and Enter keys are not pressed. Illumination Briefly press. Illumination is switched on/off with a key press. ) Illumination switches off after 30 seconds if no key is pressed. Reference setting Press until desired reference setting appears. 4 1st Function level Leica DISTO™ plus 1.0.0 GB de GB fr it es nl ja Possible settings D5-Z4 front stand rear ) At the back of the instrument is a 1/4" camera thread for the stand. ) Settings remain valid until the reference level is changed or the instrument is automatically or manually switched off. ) Basic setting: rear reference MeasuringDistance measurement Press and the laser is switched on, the instrument is in "Pointing Mode" . A second press starts the distance measurement . The result is displayed immediately in the selected unit. ) With the instrument on and the laser off, it is in "Normal Mode" . ) With the laser on, it is in "Pointing Mode" . Measuring from flat planes D5-Z5 ) For stable measuring turn bumper 90°. Measuring from corners D5-Z6 Continuous measurement (Tracking) Press untilappears on the display.Continuous measurement is started and the result is displayed.Press to end Tracking Mode. Last result is shown in the display. Example: Stake off distance D5-Z7 Laser in continous operation Press until a long "beep" is heard. Now the laser is activated permanently.A distance measurement is triggered each time the key is pressed.Press to end continuous laser operation. 5 1st Function level Leica DISTO™ plus 1.0.0 GB de GB fr it es nl ja Time delay releaseInstrument must be in Pointing Mode. Press and hold until desired time delay has been reached (max. 60 seconds).appears on the display. Once the key is released, the remaining seconds (e.g. 59, 58, 57...) are displayed, until measuring. The last 5 seconds are counted down with a "beep".After the last "beep", the measurement is made and the value displayed.Example: Measuring without any key activation. D5-Z8 CalculationsArea Press untilappears on the display. The side to be measured blinks. Make 2 measurements (l x w).The result and the two partial results appear on the display. Volume Press untilappears on the display.The side to be measured blinks. Make 3 measurements (l x w x h).The result and the three partial results appear on the display. Menu/ SettingsThe menus allow a free selection of the settings that are to remain valid after switching off the instrument. The functions follow each other endlessly (rollmode). Press to toggle between the functions. D5-Z9 4 Measure with offset (add/reduce)5 Selecting measuring units6 Beep7 ResetMenü aufrufen: Press until desired menu point appears or with key [+ / -] switch between the various menu points.Confirm selection, activate menu point.or with key [+ / -] change setting as desired. 6 1st Function level Leica DISTO™ plus 1.0.0 GB de GB fr it es nl ja Confirm selection, reset to Normal Mode. ) "Clear Entry" may also be used (e.g. to cancel a selection). Selecting units (menu)Selectable units:Measure with offset (menu) D5-Z10 Call up menu point. blinks on the display. With key [+ / -] set desired offset (=shifting reference) (e.g. 0,015m); quick set by keeping key pressed. For larger steps hold additionally. ) Offset can be positive (add) or negative (reduce)! Confirm setting.Is displayed continuously if offs…

Text truncated - open the document above for the full version.

1 Leica DISTOô GB de GB fr it es pt nl da sv no fi ja zh ko pl hr hu ru cz el lt lv et sisl ml tr Safety InstructionsVersion 1.0English The User Manual (part2) in a separate brochure, forms a part of the safety instructions. Carefully read the User Manual before using this product. The following directions should enable the person responsible for the Leica DISTOô, and the person who actually uses the instrument, to anticipateand avoid operational hazards.The person responsible for the instrument must ensure that all users understand these directions and adhere to them.Symbols usedThe symbols used in the User Manual have the following meanings:
WARNING:Indicates a potentially hazardous situation or an unintended use which, if not avoided, will result in death or serious injury.
CAUTION:Indicates a potentially hazardous situation or an unintended use which, if not avoided, may result in minor injury and/or in appreciable material, financial and environmental damage. ! Important paragraphs which must be adhered to in practice as they enabled the product to be used in a techni-cally correct and efficient manner. Use of the instrumentPermitted useThe permitted use of the Leica DISTOô are the following: ï Measuring distances ï Computing areas and volumes ï Storing measurements (BLUETOOTH Æ ) Prohibited use ï Using the instrument without instruction ï Using outside the stated limits ï Deactivation of safety systems and removal of explanatory and hazard labels ï Opening of the equipment by using tools (screwdrivers, etc.), as far as not specifically permitted for certain cases ï Carrying out modification or conversion of the product ï Use after misappropriation ï Use of accessories from other manufacturers without the express approval of Leica Geosystems. ï Deliberate or irresponsibl e behaviour on scaffolding, when using ladders, when measuring near machines which are running, or near parts of machines or installations which are unprotected ï Aiming directly into the sun ï Deliberate dazzling of third parties; also in the dark ï Inadequate safeguards at the surveying site (e.g. when measuring on roads, etc.)
WARNINGProhibited use can lead to injury, malfunction, and material damage. It is the task of the person responsible for the instrument to inform the user about hazards and how to counteract them. The Leica DISTOô is not to be operated until the user has been instructed. Limits of use! See section ìTechnical Dataì. Environment:Suitable for use in an atmosphere appropriate for permanent human habitation. Cannot be used in an aggressive or explosive* environment . Use in rain is permissible for limited periods.* Potentially explosive atmospheres: Areas with potentially explosive atmospheres are often, but not always clearly marked. They include fuelling area, such as petrol stati ons, below deck on boats, fuel or chemical transfer facilit ies, and areas where the air contains chemcals or particles, such as grain, dust or metal powder.
" 2 Leica DISTOô GB de GB fr it es pt nl da sv no fi ja zh ko pl hr hu ru cz el lt lv et sisl ml tr Areas of responsibilityResponsibilities of the manufacturer of the original equipment Leica Geosystems AG, CH-9435 Heerbrugg (kurz Leica Geosystems):Leica Geosystems is responsible for supplying the product, including the User Manual and original accessories, in a completely safe condition.Responsibilities of the manufacturer of non-Leica accessories:! The manufacturers of non-Leica accessories for the Leica DISTOô are responsible for developing, imple-menting and communicating safety concepts for their products. They are also respon sible for the effectiviness of these safety concepts in combination with the Leica Geosy-stems equipment. Responsibilities of the person in charge of the instrument:
WARNING:The person responsible for the instrument must ensure that the equipment is used in accordance with the instructions. This person is also accountable for the deployment of personnel and for their training and for the safety of the equipment when in use.The person in charge of the instrument has the following duties:ï To understand the safety instructions on the product and the instructions in the User Manual. ï To be familiar with local safe ty regulations relating to accident prevention. ï To inform Leica Geosystems immediately if the equipment becomes unsafe. Hazards in useImportant hazards in use
WARNING:The absence of instruction, or the inadequate imparting of instruction, can le ad to incorrect or prohibited use, and can give rise to accidents with far-reaching human, material and environmental consequences. Precautions:All users must follow the safety instructions given by the manufacturer and the directions of the person responsible for the instrument.
CAUTION:Watch out for erroneous distance measurements if the instrument is defective or if it has been dropped or has been misused or modified.Precautions:Carry out periodic test measurem ents. Particularly after the instrument has been subject to abnormal use, and before, during and after important measurements.Make sure the Leica DISTOô optics is kept clean and that there is no mechanical damage to the bumpers.
WARNING:Insufficient securing or marking of your measurement site could cause a dangerous situation on the public highway, building site, or in the factory, etc.Precautions:Always ensure your measurem ent site is appropriately secured. Obey the local accident prevention regulations, and road safety rules, at all times.
CAUTION:In using the instrument for distance measurements or for positioning moving ob jects (e.g. cranes, building equipment, platforms, etc.) unforeseen events may cause erroneous measurements.Precautions:Only use this product as a measuring sensor, not as a control device. Your system must be configured and operated in such a way, that in case of an erroneous measurement, malfunction of the device or power failure d ue to installed safety measures (e.g. safety limit …

Text truncated - open the document above for the full version.

MAWO-4451 06.02.2004 1 Commercial Power of Attorney Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg (Schweiz) Phone +41 71 727 4451 Fax +41 71 727 6451 www.leica-geosystems.com Commercial Power of Attorney for the type approval / registration of the ‘DISTO plus’ laser distancemeter in several countries The company 7 layers, D-40880 Ratingen, has been contracted by Leica Geosystems to obtain „Radio Type Approvals“ for the following electronic components, manufactured and/or released by Leica Geosystems: ‘DISTO plus’ laser distancemeter Unless future correspondence from Leica Geosystems directs otherwise, please extend your full cooperation to 7 layers regarding matters to the above mentioned products for the period beginning 01.02.04 through 31.12.04. Thank you. Wolfram Mathis Quality Manager Consumer Products Division _____________________________________________________________________ (name and function of person signing) Heerbrugg 06.02.2004 ______________________ , ____________________ _______________________ (place) (date) (signature)

MAWO-4451 06.02.2004 1 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR ‘Quadrant - wireless hands-free device’, FCC-ID: RFFCPD0401 To Whom It May Concern: This letter serves as an official request for confidentiality under the FCC Rule Section 0.459. We have requested that the schematic diagrams, technical specifications and Block diagram required to be submitted with this application be withheld from public review. The reason for this request is that these documents are company proprietary information that should never get into the possession of competitors, which would be harmful for our business. Do not hesitate to contact me if you have any additional questions. Thank you very much. Wolfram Mathis Quality Management Consumer Products Division Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg (Schweiz) Phone +41 71 727 4451 Fax +41 71 727 6451 www.leica-geosystems.com

30.10.03 30.10.03 Wip/3732 Wip/3732 190 4 KLZ 738287 - 0223 1:1 Schild DISTO plus 330 ALPHA - -

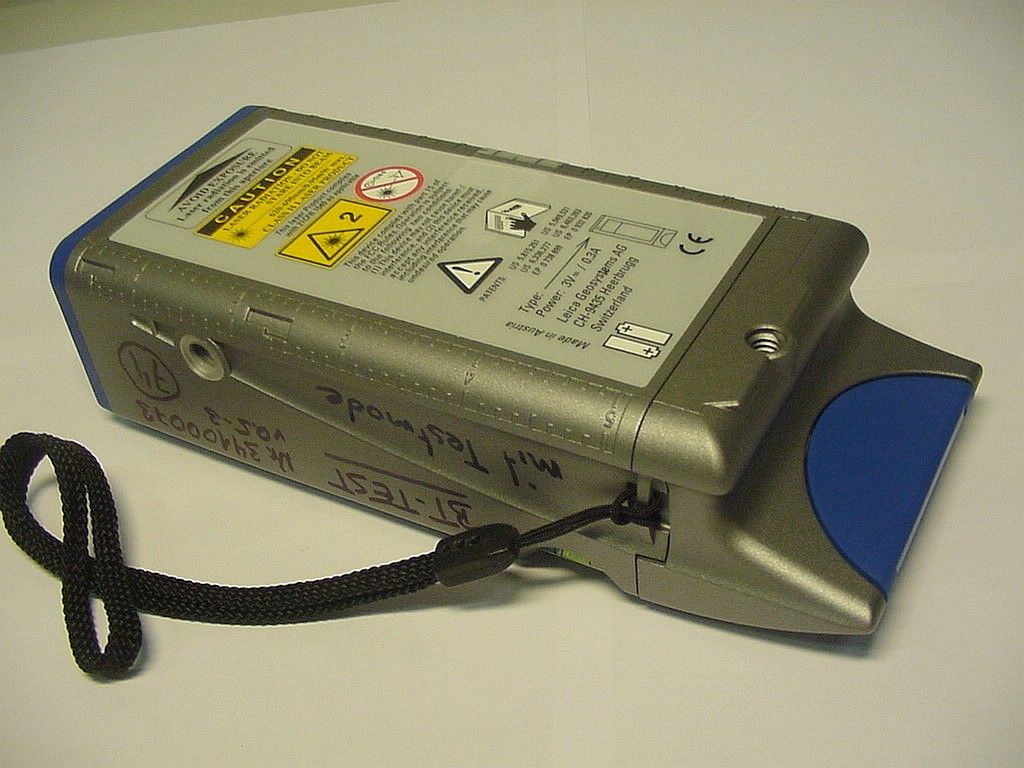

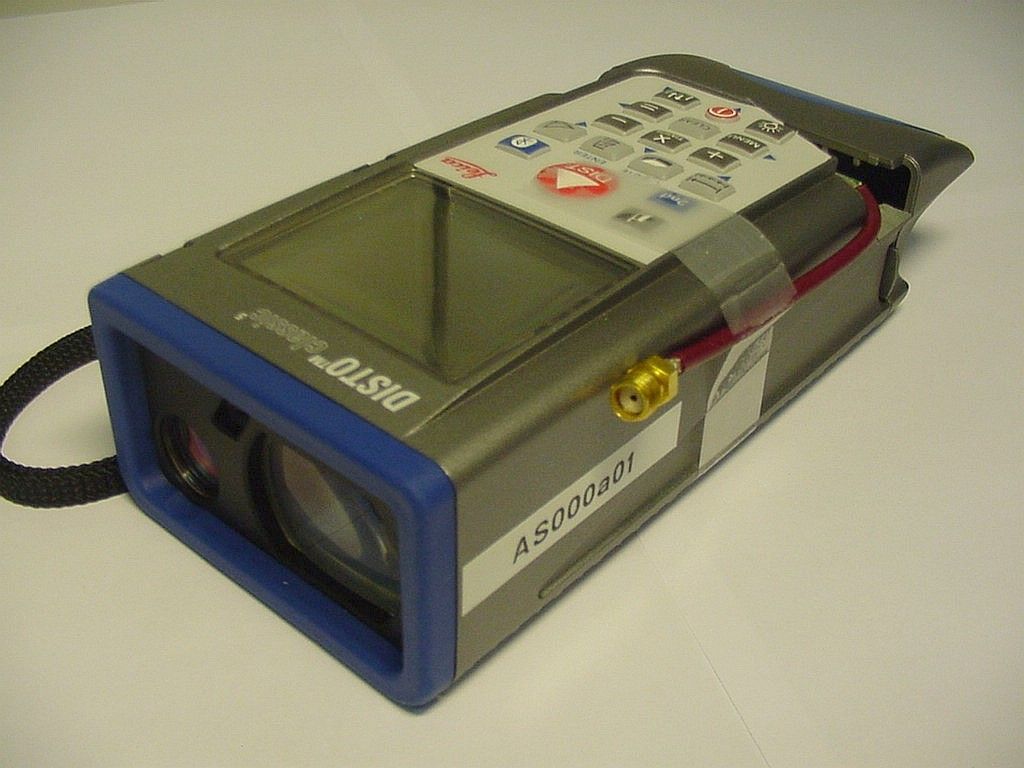

MAWO-4451 Seite 1 von 2 fotos-Print-FCC.doc MAWO-4451 Seite 2 von 2 fotos-Print-FCC.doc ^

Registergericht
registered in:Vorstand
Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen, HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany Aufsichtsratsvorsitzende
Dr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7Layers.com Torsten Lohoff 11. February 2004 Phone +49 (0) 2102 749 306 Fax +49 (0) 2102 749 350 RF exposure requirements - FCC ID: RFFCPD0401 Dear Application Examiner, The maximum measured power output is 1,86 mW (2,7 dBm), the maximum antenna gain is 4 dBi = numeric gain 2,51 (see also FCC test report - Exhibit B) The maximum permissable exposure is defined in 47 CFR 1.1310 with 1 mW/cm². The distance from the EUT's transmitting antenna where the exposure level reaches the maximum permitted level is calculated using the general equation: S = P*G / 4πR² S max = 1mW/cm², P = 1,86 mW, linear power gain relative to the isotropic radiator = 4 dBi = 2,51 (numeric gain), R = distance in cm Solving for R, the 1mW/cm² limit is reached in a distance of 0,61 cm to the transmitting antenna. Please contact us if you have any additional questions. Best Regards 7layers AG FCC Federal Communications Commission 2_LEICA_0103_TAS

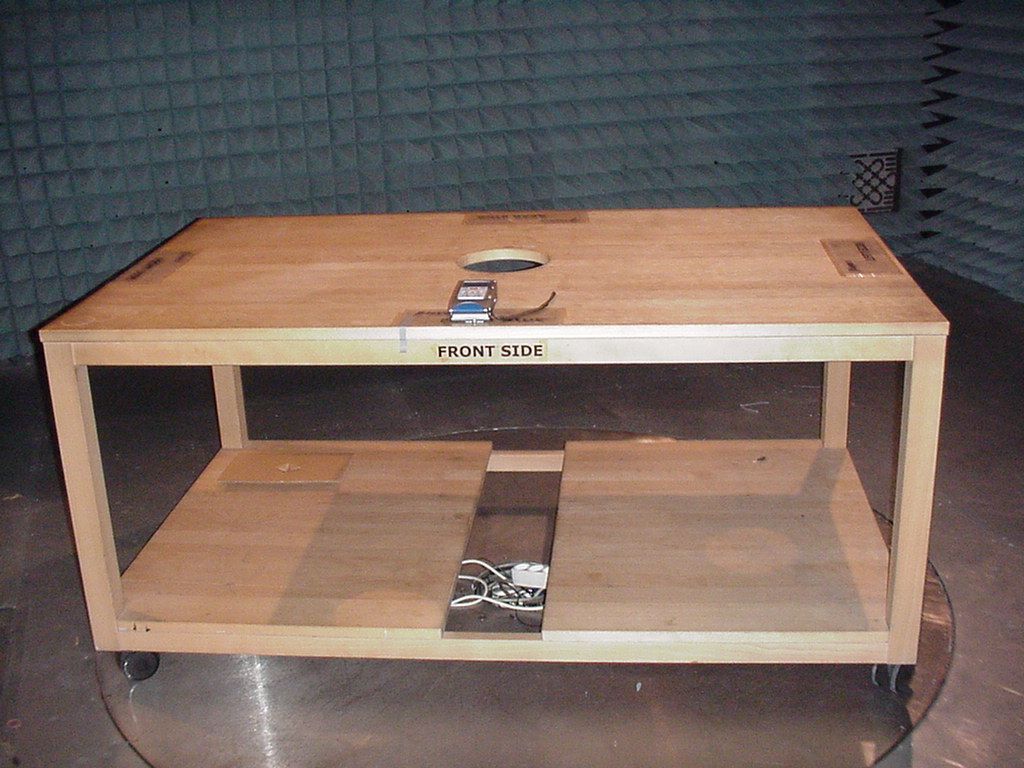

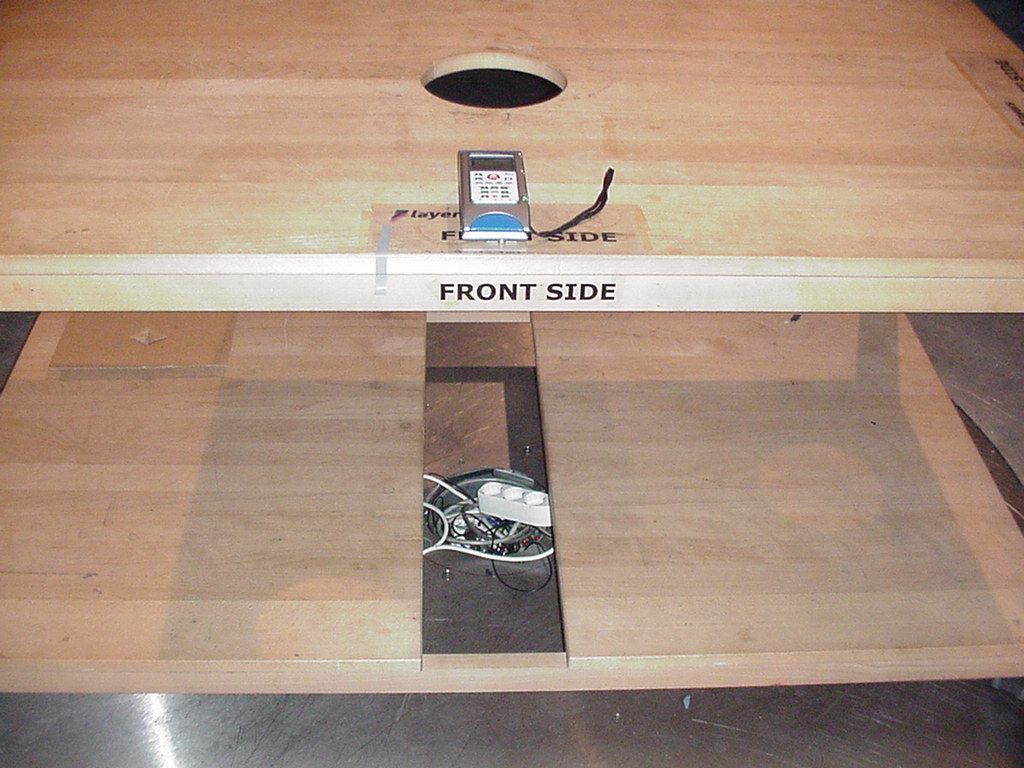

EMC Measurement/Technical Report on 2_Leica_0103_TAS_FCCa 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Laser Distancemeter Leica Disto Classic Registergericht - registered in: Düsseldorf, HRB 44096 Aufsichtratsvorsitzende - Chairman of the Supervisory Board: Dr. Sabine Grobecker Vorstand - Board of Directors: Dr. Wolfgang Dahm Dr. Hans-Jürgen Meckelburg 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Report Reference: TTI-P-G 178/99 Test Laboratory (Headquarter): Interlab is a registered trademark of 7 layers AG Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Test Results Conducted Emissions Occupied Bandwidth Peak Power Output Spurious RF Conducted Emissions 5. Testequipment 6. Foto Report 7. Setup Drawings 3 3 4 5 5 5 5 5 7 7 8 8 8 9 10 10 12 14 21 24 27 29 Spurious RF Radiated Emissions 16 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 6 6 6 Dwell Time Power Density Channel Separation Processing Gain - - 20 - 4.1 4.2 4.3 4.4 4.5 8. Annex Page 2 of 41Testreport Reference: 2_Leica_0103_TAS_FCCa 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart C - Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHZ and 5725-5850 MHz Summary Test Results: The EUT complied with all the applicable FCC rules as listed above. Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Page 3 of 41 Testreport Reference: 2_Leica_0103_TAS_FCCa 0.2 Measurement Summary § 15.247 (a) (1) (ii)FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Occupied Bandwidth OP-ModeSetupPortFinal Result setup 1op-mode 1temporary antenna connectorpassed setup 1op-mode 2temporary antenna connectorpassed setup 1op-mode 3temporary antenna connectorpassed § 15.247 (b) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Peak Power Output OP-ModeSetupPortFinal Result setup 1op-mode 1temporary antenna connectorpassed setup 1op-mode 2temporary antenna connectorpassed setup 1op-mode 3temporary antenna connectorpassed § 15.247 (c)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Spurious RF Conducted Emissions OP-ModeSetupPortFinal Result setup 1op-mode 1temporary antenna connectorpassed setup 1op-mode 2temporary antenna connectorpassed setup 1op-mode 3temporary antenna connectorpassed § 15.247 (c), §15.35 (b), § 15.209FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Spurious Radiated Emissions OP-ModeSetupPortFinal Result setup 2op-mode 1enclosurepassed setup 2op-mode 2enclosurepassed setup 2op-mode 3enclosurepassed § 15.247 (a) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Channel Separation OP-ModeSetupPortFinal Result setup 1op-mode 4temporary antenna connectorpassed Responsible for Accreditation Scope: Responsible for Test Report: Page 4 of 41Testreport Reference: 2_Leica_0103_TAS_FCCa 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716. - Deutscher Akkreditierungs Rat 20.11.2003 Robert Machulec 10.12.2003 20.11.2003 - 09.12.2003 Responsible for testing and report: Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data Leica Geosystems AG CH-9435 Heerbrugg Switzerland please see Applicant data 1.4 Manufacturer Data Company Name: Address: Heinrich-Wild-strasse Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 5 of 41 Testreport Reference: 2_Leica_0103_TAS_FCCa 2.0 Product Labeling 2.1 FCC ID Label: At the time of this report there was no label available. 2.2 Location of Label on the EUT: see above Page 6 of 41Testreport Reference: 2_Leica_0103_TAS_FCCa 3. Testobject Data Type Designation: Kind of Device: (optional) Voltage Type: Voltage level: Equipment under Test: Leica Disto Classic Handheld Bluetooth device Laser Distancemeter DC (2 alkaline batteries) 3V Ports 3.1 General EUT Description General product description: Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, 79 RF channels spaced 1MHz apart are defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is devided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal…

Text truncated - open the document above for the full version.

Registergerichth registered in:Vorstandh Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany AufsichtsratsvorsitzendehDr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7layers.com Annex Additional declaration part according FCC 15.247 for Bluetooth TM Devices Version: 2002-06-01 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 2 of 5 pages 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organised in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from its BD address which is unique for each Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 3 of 5 pages 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR- operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviour: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviour for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 4 of 5 pages 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = …
