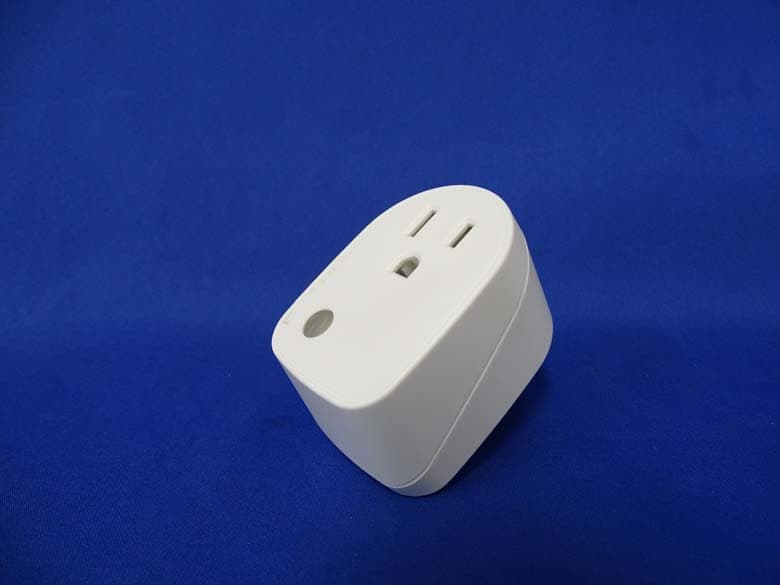

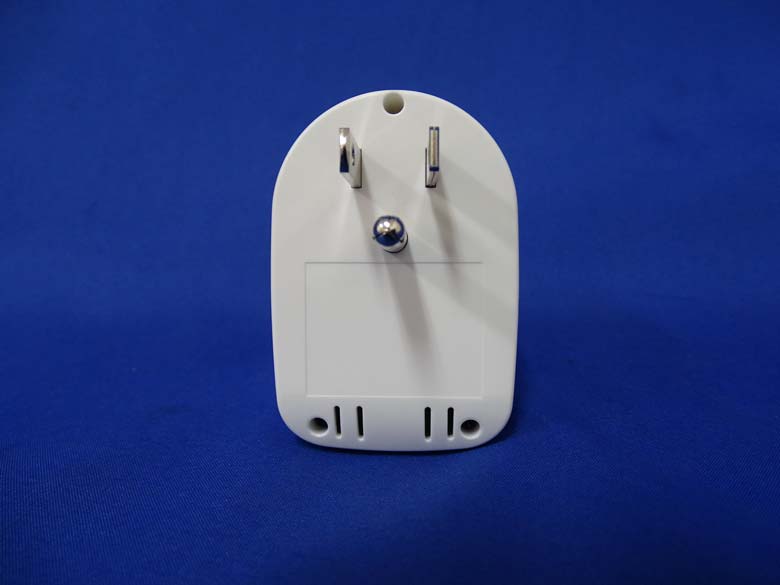

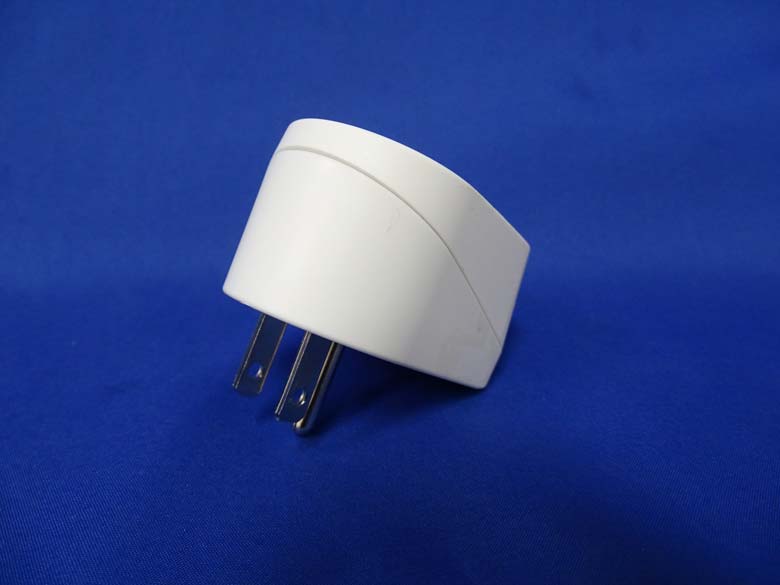

RHHPAN15Smart energy plug in switch

PAN15-1/-2Smart energy plug in switch P This plug-in ON/OFF switch PAN15 is a security enab led wireless switch, based on Z-Wave Plus technology. Z-Wave Plus TM enabled devices displaying the Z-Wave Plus TM logo can also be used with it regardless of the ma nufacturer, and can also be used in other manufacturer’s Z-Wave TM enabled networks. Remote On/Off control of the connected load is possible with other manufactu rer’s wireless Controller. Each switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. Because PAN1 5 supports Security Command Class, it can learn with Secured controller . Its functionality and supported command classes is identical when included as a sec ure and non-secure device. This plug-in ON/OFF switch is able to detect instan ce wattage (1500W/UL/TW/JP) and overload current (14.5A) of connected lights or appliances. When detecting overload state, the Switch will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, unplug and re-connect the switch will reset its overload condition to normal status. Adding to Z-Wave TM Network In the front casing, there is an On/Off button with LED indicator which is used to toggle switch on and off or carry out inclusion, ex clusion, reset or association. When first power is applied, its LED flashes on and off alternately and repeatedly at 0.5 second intervals. It implies that it has not been a ssigned a node ID and start auto inclusion. Auto InclusionThe function of auto inclusion will be executed as long as the switch does not have Node ID and just plug the switch into a wall outlet . Note: Auto inclusion timeout is 2 minute during which th e node information of explorer frame will be emitted once several seconds . Unlike “inclusion” function as shown in the table below, the execution of auto inc lusion is free from pressing the On/Off button on the Switch.The table below lists an operation summary of basic Z-Wave functions. Please refer to the instructions for your Z-Wave TM Certificated Primary Controller to access the 1 Setup function, and to include/exclude/associate de vices Function Description Annotation No node ID The Z-Wave Controller does not allocate a node ID to the Switch. LED 2-second on, 2-secondoff Inclusion 1. Put your Z-Wave controller into inclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing On/Off button three times within 2 seconds will enter inclusion mode. Exclusion 1. Put your Z-Wave controller into exclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing On/Off button three times within 2 seconds will enter exclusionmode.Node ID has been excluded. LED 0.5s On, 0.5s Off (Enter auto inclusion) Reset 1. Pressing On/Off button three times within 2 seconds will enter inclusion mode. Use this procedure only in the event that the primary controller is lost or otherwise inoperable. 2. Within 1 second, press On/Off button again for 5 seconds. 3. IDs are excluded. LED 0.5s On, 0.5s Off (Enter auto inclusion) Association 1. PAN15 is an always listening Z-Wave device, so associations may be added or removed by a controller at any time. Or If your controller requires to have the PAN15 send a 'node information frame' or NIF for associations, then pressing the On/Off button three times within 2 seconds will cause the PAN15 to send its NIF. 2. There are only one group for the switch ※ Including a node ID allocated by Z-Wave Controller means inclusion. Excluding a node ID allocated by Z-Wave Controller means exclusion. ※ Failed or success in including/excluding the node I D can be viewed from the Z-Wave Controller. LED IndicationTo distinguish what mode the switch is in, view fro m the LED for identification. State Type LED Indication Normal Under normal operation, toggle On/Off button between On and Off. When pressing On, LED lights up, whereas Off, LED i s off. 2 No node ID Under normal operation, when the Switch h as not been allocated a node ID, the LED flashes on and off alternately at 2-second intervals. By pressing On/Off button, it will stop flashing temporarily. Learning When PAN15 is in learning mode, LED flashes on and off alternately and repeatedly at 0.5 second intervals. Overload When overload state occurs, the Switch is d isabled of which LED flashes on and off alternately at 0.2 second interv als. Overload state can be cleared by unplugging and reconnecting the Switch to the wall outlet. Choosing a Suitable Location1. Do not locate the Switch facing direct sunlight, hu mid or dusty place. 2. The suitable ambient temperature for the Switch is 0°C~40°C. 3. Do not locate the Switch where exists combustible s ubstances or any source of heat, e.g. fires, radiators, boiler etc. 4. After putting it into use, the body of Switch will become a little bit hot of which phenomenon is normal. Installation1. Plug this On/Off Switch into a wall outlet near t he load to be controlled. 2. Plug the load into the Switch. Make sure the load to be controlled cannot exceed 13A. 3. Press the button or switch on the load to the ON position. 4. To manually turn ON the Switch, press and release the On/Off button. The LED will turn ON, and the load plugged into the Switch will also turn ON. 5. To manually turn OFF the Switch, simply press and release the On/Off button. The LED will turn OFF and the load plugged into the Switch will also turn OFF. Programming1. Basic Command Class / Binary Switch Command Cla ss The Switch will respond to BASIC and BINARY command s that are part of the Z- Wave system. 1-1 BASIC_GET / BINARY_SWITCH_GET Upon receipt of the following commands from a Z -Wave Controller, the Switch will report its On/Off state to the node asked. Basic Get Command: [Command Class Basic, Basic Get] Basic Report Command:Report OFF: [Command Class Basic, Ba…
