RKVATBPA12V150FM Transmitter

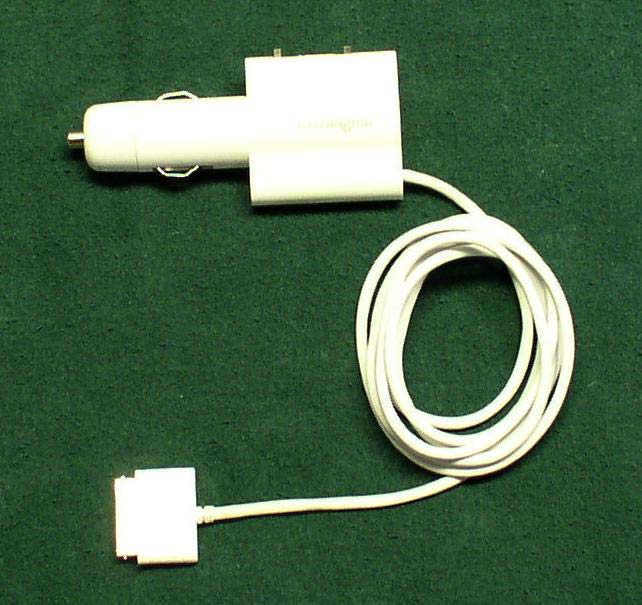

Aerielle Inc. FCC ID: RKVATBPA12V150 External Photos Aerielle Inc. FCC ID: RKVATBPA12V150

FM Transmitter / Auto Charger Model No. K33159 Serial # AYYWW Kensington Technology Group 800-535-4242 FCC ID RKVATBPA12V150 Designed by Aerielle, Inc U.S. and Foreign Patents Pending Made in China U.S.Patent # 6,671,494 Serial Number Format: “A” BOM Revision “YY” Year (i.e., 04 for 2004) “WW” Week

Aerielle Inc. FCC ID: RKVATBPA12V150 Internal Photos

Underwriters Laboratories Inc. A not-for-profit organization dedicated 1655 Scott Blvd to public safety and committed to Santa Clara, CA 95050 quality service for over 100 years EMC Services Department Tel: (408) 876-2905 Fax: (408)556-6071 ELECTROMAGNETIC COMPATIBILITY (EMC) REPORT EMISSIONS ONLY Aerielle Inc. Model ATBPA12V150 FCC ID: RKVATBPA12V150 August 5, 2004 Project No.: 04CA34718 Test Report No.: NC5311-080504 Company: Aerielle Inc. Model #: ATBPA12V150 Project: 04CA34718 Report #:NC5311 Page 2 of 29 REPORT DIRECTORY Title Section General Information 1.0 Scope 1.1 Purpose 1.2 Test Results 1.3 Documentation Review/Approval 1.4 General Product Description 2.0 FCC Section 15.203 Antenna Requirements 2.1 Justification of Configuration 2.2 EUT Operating Mode(s) 2.3 Environmental Conditions in Test Lab 3.0 Calibration Details of Equipment Used for Measurement 4.0 Test Facility 5.0 Accreditations and Authorizations 6.0 Emissions Test Regulations 7.0 Equipment Classifications 7.1 Field Strength Calculations 7.2 Measurement Uncertainty 7.3 Measurement Bandwidths 7.4 Conducted Voltage Emissions 7.5 Spurious Radiated Electric Field Emissions 7.6 Occupied Bandwidth (200 kHz) 7.7 Company: Aerielle Inc. Model #: ATBPA12V150 Project: 04CA34718 Report #:NC5311 Page 3 of 29 1.0 General Information 1.1 Scope Underwriters Laboratories Inc., authorizes the above named company to reproduce this Report, provided it is reproduced in it’s entirety. The data in this Report reflects only the items tested in the configurations and mode of operations described. All data recorded and photographs represents testing under the worst case conditions permitted by the requirements applied to the product. It is the manufacturer’s responsibility to assure that additional production units are manufactured with identical electrical and mechanical components. Any modifications necessary for compliance made during testing must be implemented in all production units for compliance to be maintained. Underwriters Laboratories Inc., shall have no liability for any deductions, inferences or generalizations drawn from this report. This report shall not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the United States government. 1.2 Purpose Testing was performed to the following regulations: Emissions Standards used: CFR 47 Part 15 Subpart C Except as noted below, all test methods and data contained in this report are covered by NVLAP accreditation. Exceptions: None Company: Aerielle Inc. Model #: ATBPA12V150 Project: 04CA34718 Report #:NC5311 Page 4 of 29 1.3 Test Results In Compliance Statements regarding compliance with requirements and criteria in the subsequent sections of this report are opinions and interpretations provided by Underwriters Laboratories Inc. technical staff. Transmitter Requirements Environmental Phenomena Frequency Range FCC Section Test Result Conducted Emissions, AC Mains 0.15 – 30 MHz 15.207 Not Required Spurious Radiated Emissions 30 – 1000 MHz 15.209,15.239(b) Complies Occupied Bandwidth (200 kHz) 88 – 108 MHz 15.239(a) Complies Antenna Requirements 88 – 108 MHz 15.203 Complies 1.4 Documentation Review/Approval Project Management: Technical Review By: Asim Tirmizi Tim Lee Project Engineer Staff Engineer International EMC Services International EMC Services Department 3014A Department 3014A Company: Aerielle Inc. Model #: ATBPA12V150 Project: 04CA34718 Report #:NC5311 Page 5 of 29 2.0 General Product Description Applicant : Aerielle Inc. Manufactured By : Same as Applicant License Holder : Not Applicable Applicant Address : 625 Ellis Street, Suite 206 Mountain View, CA 94043 Applicant Contact : Art Cohen Model/Type No. : ATBPA12V150 Date of Issue : August 5, 2004 File No. : NC5311 Test Report No. : NC5311-080504 Project No. : 04CA34718 Product Description The Aerielle ATBPA12V150 is a low-powered FM Stereo Transmitter designed to operate in the commercial FM broadcast band used in many parts of the world and utilizes a standard 38 kHz L-R subcarrier signal format. Housed in a ‘Cigarette Lighter Adapter,’ it also incorporates input power protection and filtering, and can supply 12V power to portable audio devices such as MP3 players. Equipment Size, Mobility, and Identification Dimensions: 3.660 by 1.75 by 0.8 in. Mobility: To be connected to an automobile cigarette lighter. Serial No: 050704-001 Electrical Ratings Voltage [Volts] Current or Power Frequency [Hz] Phase EUT 12 Vdc 25 mA -- -- Test Voltage & Frequency Unless indicated otherwise on the individual data sheet or test results, the test voltage and frequency was as indicated below. Voltage Frequency 12 V DC Tunable Channels The ATBPA12V150 can be tuned to the following channels: 88.1, 88.3, 88.5, 88.7, 107.1, 107.3, 107.5, and 107.7 MHz Equipment Type Pre-Production Company: Aerielle Inc. Model #: ATBPA12V150 Project: 04CA34718 Report #:NC5311 Page 6 of 29 Model Differences Any other model(s) represented by the models tested in this investigation will be documented by the manufacturer. Device Modifications The following modifications were necessary for compliance: None EUT and Peripherals Description Manufacturer Model/Part # Serial Number EUT Aerielle ATBPA12V150 050704-001 Power System MVP I-6001 Unknown iPod Apple A1040 JQ412F7WQQF Cables Cable Type Shield Length (meters) Ferrite Connector Connection Point 1 Connection Point 2 I/O No 1.5 No Pwr & headphones EUT Power System 2.1 FCC Section 15.203 Antenna Requirements The antenna is permanently attached to the PCB and the antenna is internal on the EUT. Therefore, it meets the 15.203 requirements. 2.2 Justification of Configuration EUT was considered to be operating in a typical mode of operation. 2.3 EUT Operating Mode(s) Equipment under test was operated during the measurement under the following conditions: The EUT was connected to an MP3 player and operated both with and without 1 kHz tone depending on the test performed…

Text truncated - open the document above for the full version.

Aerielle Inc. FCC ID: RKVATBPA12V150 Test Setup Photos
