RKVATBPA6V100FM Transmitter

XM Satellite Radio Limited Consumer Warranty Delphi Product and Service Solutions (“Delphi”) warrants all XM Satellite Radio Products sold by Delphi (“Products”) to be free of defects in material and workmanship, subject to the following conditions. The duration of Delphi’s warranty with respect to Delphi XM Satellite Radio Products is limited to one (1) year from the date of sale to the original consumer purchaser. No other express warranties are made with respect to any Product. All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited to the warranty period set forth above. This warranty is not transferable and applies only to the original consumer purchaser of the Product. Delphi will, as its sole obligation under this warranty, replace or repair, at its option, any Product that does not conform to this warranty. Under no circumstances will Delphi be liable for any incidental or consequential damages under this warranty or any implied warranties. Delphi will not be responsible for damage resulting from any (i) deviation from Delphi’s operating instructions as printed in Delphi’s catalog or on any packaging, labels or other literature provided with a Product, (ii) installation of a Product in a manner which is inconsistent with Delphi’s written instructions, (iii) alteration or modification of a Product, (iv) misuse, (v) neglect, (vi) abuse, (vii) accident, (viii) normal wear and tear, (ix) commercial use, (x) service by anyone other than a Delphi authorized repair facility, or (xi) other improper application, installation or operation of the Product. How you (the Customer) can get service: To obtain warranty service during the first thirty (30) days after the date of purchase, you must return the defective Product with the original receipt to the original place of purchase. To obtain warranty service during the remainder of the warranty period, you must contact Delphi by phone at 1.877.GO DELPHI (1.877.463.3574) or by fax at 1.866.790.3675. When contacting Delphi by fax, please include a letter detailing your complaint and provide a daytime phone number where you can be reached. If further clarification or additional information is required from Delphi, you may call Delphi at 1.877.GO DELPHI (1.877.463.3574). If warranty service is needed at any time during the warranty period, the purchaser will be required to furnish a sales receipt/proof of purchase indicating the date of purchase, amount paid, and place of purchase. Customers who fail to provide such proof of purchase will be charged for the repair of any Product. How state law relates to the warranty: Some states do not allow limitations on how long implied warranties last, or the exclusion or the limitation of incidental or consequential damages. So the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights. You may also have other rights that may vary from state to state. NO PERSON IS AUTHORIZED BY DELPHI TO MODIFY OR ADD TO THIS LIMITED WARRANTY. Product Specifications Modulation: FM Stereo Modulation Frequencies: 88.1, 88.3, 88.5, 88.7, 107.1, 107.3, 107.5, 107.7 MHz Audio Input: 3.5mm Stereo Plug Power Input: 12V DC Power Output: 6V DC FCC Information This device complies with part 15 of the FCC rules and regulations. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation. Audio Specifications Signal FormatStandard FM Stereo Format, 38KHz subcarrier Audio Range15Hz - 15Khz Signal-to-Noise Ratio* >60dB Total Harmonic Distortion 0.3%, Max. Channel Separation40dB Typical Channel Balance+/- 2dB * A weighted XM Roady Audio Adaptor Quick Guide U.S. Patent #5,771,441 and other patents pending. Designed by Aerielle Group International, Inc. ©2003. www.aerielle.com Made in China. ™ Hardware and required subscription for 100-channel basic service sold separately. Premium channel available at additional monthly fee. Other fees and taxes, including a one-time activation fee may apply. All fees and programming subject to change. Subscriptions subject to Customer Agreement included with the XM Welcome Kit and available at xmradio.com. Only available in the 48 contiguous United States. ©2003 XM Satellite Radio Inc. Roady™ is a trademark of XM Satellite Radio Inc. All rights reserved. All other trademarks are property of their respective owners. XRAA-Guide.qxd 10/22/2003 5:30 PM Page 1 Before You Begin Please read all instructions thoroughly before installing your XM Roady Audio Adaptor. Compatibility The XM Roady Audio Adaptor was designed to work with the Delphi XM Roady receiver. The adaptor supplies both the power supply and the audio output in a single, easy to install adaptor. Use of this adaptor with other audio devices including the Delphi XM SKYFi is not recommended. Installing the XM Roady Audio Adaptor Insert the XM Roady Audio Adaptor into the vehicle’s 12V power outlet. Note that some vehicles require that the ignition switch be turned on before power is supplied to the adaptor. Note: A RED indicator light on the adaptor signals that the adaptor is receiving 12V power from your vehicle and will remain on during normal operation. Insert the right angle Power connector at the end of the XM Roady Audio Adaptor cable into the plug on the Roady receiver identified by a 6V icon. Insert the right angle Audio connector at the end of the XM Roady Audio Adaptor cable into the plug on the Roady receiver identified by a speaker icon. Changing the Transmitting Frequency The XM Roady Audio Adaptor allows you to change the XM Satellite Radio broadcast signal to an FM frequency and output the sound to your vehicle radio via an FM station. You may experience some interference if a local FM station is broadcasting at the same frequency. Try all eight available frequencies on your vehic…

Text truncated - open the document above for the full version.

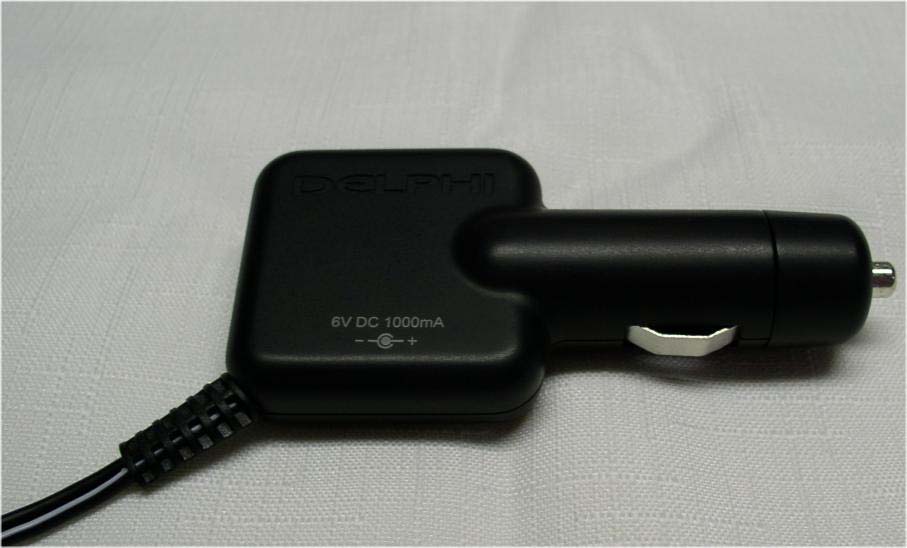

FCC ID: RKVATBPA6V100 External – top view External – bottom view

scale: 2/1 scale: 1/1 XMPA Label Artwork for Roady Audio Adaptor 10.27.03 Note: PMS 426C (black) graphics prin ted on matt e silver polyester (left side view)

FCC ID:RKVATBPA6V100 Internal – top view Internal – bottom view

Underwriters Laboratories Inc. A not-for-profit organization dedicated 1655 Scott Blvd to public safety and committed to Santa Clara, CA 95050 quality service for over 100 years EMC Services Department Tel: (408) 876-2905 Fax: (408)556-6071 ELECTROMAGNETIC COMPATIBILITY (EMC) REPORT EMISSIONS ONLY Aerielle Group International, Inc. Model: ATBPA6V100 FCC ID: RKVATBPA6V100 October 27, 2003 Project No.: 03CA37236 Test Report No.: NC5311-102703 Company: Aerielle Group International, Inc. Model #: ATBP6V100 Project: 03CA37236 Report #: NC5311-102703 Page 2 of 21 REPORT DIRECTORY Title Section General Information 1.0 Scope 1.1 Purpose 1.2 Test Results 1.3 Documentation Review/Approval 1.4 General Product Description 2.0 FCC Section 15.203 Antenna Requirements 2.1 Justification of Configuration 2.2 EUT Operating Mode(s) 2.3 Environmental Conditions in Test Lab 3.0 Calibration Details of Equipment Used for Measurement 4.0 Test Facility 5.0 Accreditations and Authorizations 6.0 Emissions Test Regulations 7.0 Equipment Classifications 7.1 Field Strength Calculations 7.2 Measurement Uncertainty 7.3 Measurement Bandwidths 7.4 Conducted Voltage Emissions 7.5 Spurious Radiated Electric Field Emissions 7.6 Occupied Bandwidth (200 kHz) 7.7 Company: Aerielle Group International, Inc. Model #: ATBP6V100 Project: 03CA37236 Report #: NC5311-102703 Page 3 of 21 1.0 General Information 1.1 Scope Underwriters Laboratories Inc., authorizes the above named company to reproduce this Report, provided it is reproduced in it’s entirety. The data in this Report reflects only the items tested in the configurations and mode of operations described. All data recorded and photographs represents testing under the worst case conditions permitted by the requirements applied to the product. It is the manufacturer’s responsibility to assure that additional production units are manufactured with identical electrical and mechanical components. Any modifications necessary for compliance made during testing must be implemented in all production units for compliance to be maintained. Underwriters Laboratories Inc., shall have no liability for any deductions, inferences or generalizations drawn from this report. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the United States government 1.2 Purpose Testing was performed to the following regulations: Emissions Standards used: CFR 47 Part 15 Subpart C 1.3 Test Results Transmitter Requirements Environmental Phenomena Frequency Range FCC Section Test Result Conducted Emissions, AC Mains 0.15 – 30 MHz 15.207 Not Required Spurious Radiated Emissions 30 – 1000 MHz 15.209,15.239(b) Complies Occupied Bandwidth (200 kHz) 88 – 108 MHz 15.239(a) Complies Antenna Requirements 88 – 108 MHz 15.203 Complies 1.4 Documentation Review/Approval Project Management: Technical Review By: Asim Tirmizi Tim Lee Project Engineer Staff Engineer International EMC Services International EMC Services Department 3014A Department 3014A Company: Aerielle Group International, Inc. Model #: ATBP6V100 Project: 03CA37236 Report #: NC5311-102703 Page 4 of 21 2.0 General Product Description Applicant : Texas Instruments Manufactured By : Same as Applicant License Holder : Not Applicable Applicant Address : 10350 Johnson Avenue Cupertino, CA 95014 Applicant Contact : Art Cohen Model/Type No. : ATBPA6V100 FCC ID : RKVATBPA6V100 Date of Issue : October 27, 2003 File No. : NC5311 Test Report No. : NC5311-102703 Project No. : 03CA37236 Product Description The Aerielle ATBPA6V100 is a low-powered FM Stereo Transmitter designed to operate in the commercial FM broadcast band used in many parts of the world and utilizes a standard 38 kHz L-R subcarrier signal format. Housed in a ‘Cigarette Lighter Adaptor’, it also incorporates a switching power supply to convert vehicle- supplied 12VDC to lower voltage to power portable audio devices such as MP3 and CD players. Equipment Size, Mobility, and Identification Dimensions: 3.660 by 1.75 by 0.785 in. Mobility: To be connected to an automobile cigarette lighter. Serial No: 7A6 Electrical Ratings Voltage [Volts] Current or Power Frequency [Hz] Phase EUT 12 Vdc 25 mA -- -- Test Voltage & Frequency Unless indicated otherwise on the individual data sheet or test results, the test voltage and frequency was as indicated below. Voltage Frequency 12 Vdc -- Tunable Channels The ATBPA6V100 can be tuned to the following channels: 88.1, 88.3, 88.5, 88.7, 107.1, 107.3, 107.5, and 107.7 MHz Equipment Type Pre-Production Company: Aerielle Group International, Inc. Model #: ATBP6V100 Project: 03CA37236 Report #: NC5311-102703 Page 5 of 21 Model Differences Any other model(s) represented by the models tested in this investigation will be documented by the manufacturer. Device Modifications The following modifications were necessary for compliance: None EUT and Peripherals Description Manufacturer Model/Part # Serial Number EUT Aerielle ATBP6V100 Unknown CD Player Panasonic SL-MP80 FB3HB003098 Power System MVP I-6001 Unknown Cables Cable Type Shield Length (meters) Ferrite Connector Connection Point 1 Connection Point 2 I/O No 1.5 No Pwr & headphones EUT Laptop 2.1 FCC Section 15.203 Antenna Requirements The antenna is permanently attached to the PCB and the antenna is internal on the EUT. Therefore, it meets the 15.203 requirements. 2.2 Justification of Configuration EUT was considered to be operating in a typical mode of operation. 2.3 EUT Operating Mode(s) Equipment under test was operated during the measurement under the following conditions: The EUT was connected to a portable cd player and operated both with and without 1 kHz tone depending on the test performed. Company: Aerielle Group International, Inc. Model #: ATBP6V100 Project: 03CA37236 Report #: NC5311-102703 Page 6 of 21 3.0 Environmental Conditions in Test Lab Temperature: 20-25 °C Atmospheric Pressure: 680-1060 mbar Relative Humidity: 30-60% 20.1-31.3 in. Hga 4.0 Calibration Details of …
