RKVATBPAC5V350Low Power FM Transmitter

COMPATIBILITY Mobile FM Transmitter AFT-100-H10 is compatible with iriver H10 Audio Jukebox Players, and will broadcast to any FM radio or stereo. Just plug and play anytime you’re on the road. FCC INFORMATION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION:Changes or modifications not expressly approved by iriver may void the users authority to operate this equipment. Email:[email protected] Website:www.iriveramerica.com Phone:800-399-1799 Copyright © 2003-2005, Aerielle, Inc. All Rights Reserved. Covered under U.S. Patent No. 6,671,494 and D506,455 and other U.S. and Foreign Patent Pending applications. Designed by Aerielle, Inc. PRODUCT SPECIFICATIONS MODULATION: FM Stereo Modulation POWER: 12V Car Cigarette Lighter Socket FREQUENCIES: Full FM Band (88.1-107.9 MHz) SEARCH: Fast forward and Reverse Channel Searching Capability MEMORY: 3 Presets AUDIO INPUT CONNECTOR: iriver H10 docking connector NON VOLATILE MEMORY: Remembers previous frequency used INSTANT-ON: Turns on when audio detected AUDIO SPECIFICATIONS SIGNAL FORMAT: Standard FM Stereo Format, 38 KHz subcarrier FREQUENCY RESPONSE: 15 Hz - 15 kHz SIGNAL-TO-NOISE RATIO*: >55dB TOTAL HARMONIC DISTORTION: 0.25% Typical STEREO SEPARATION: >30 dB CHANNEL BALANCE: +/- 2 dB *A weighted INTRODUCTION Thank you for purchasing the Mobile FM Transmitter AFT-100-H10. Featuring patented wireless technology, the Mobile FM Transmitter AFT-100-H10 is engineered to provide easy listening to your favorite tunes while on-the-road. The Mobile FM Transmitter AFT-100-H10 sends high-fidelity stereo signals from the H10 family of Audio Jukebox Players to a car FM radio or stereo that is within 15 feet. Simple and convenient, the Mobile FM Transmitter AFT-100-H10 transmits all FM frequencies and simultaneously charges the H10 player. The AFT-100-H10 works with any member of the H10 family of Audio Jukebox Players. WARRANTY INFORMATION BEFORE YOU BEGIN Read these instructions thoroughly before setting up your Mobile FM Transmitter AFT-100-H10. If you need any assistance, please contact customer service at: 800-399-1799 or submit an email request to: [email protected]. PLEASE REMEMBER THAT IT IS UNSAFE TO INSTALL AND TUNE UNIT WHILE VEHICLE IS IN MOTION. Thank you for purchasing an iriver America accessory. 1. Limited Warranty Conditions This iriver America accessory comes with a 90-day limited warranty against defects in materials and workmanship from the original date of purchase from an authorized agent. The limited warranty is provided to the original owner only and is not transferable to any third party. Proof of purchase will be required for any limited warranty on iriver America accessories. iriver America's warranty covers only those defects which arise as a result of normal use of the accessory, and do not apply to any accessory: (i) which has been repaired or altered unless done or approved by iriver America, (ii) which has not been maintained in accordance with any operating or handling instructions provided by iriver America, (iii) which has been altered or damaged by accident; (iv) which has been subjected to unusual physical or electrical stress, misuse, abuse, power shortage, or negligence or (v) which has been used other than in accordance with the accessory operating and handling instructions. 2. Limited Warranty Coverage Subject to the above conditions, only from the original date of purchase, for exchange of any defective iriver America accessory which is covered by iriver America's warranty. Within this duration, if iriver America receives notice of defect in any iriver America accessory which is covered by iriver America's warranty, iriver America shall either repair or replace the defective accessory at iriver America's option. iriver America shall have no obligation to repair or replace until the customer returns the defective accessory to iriver America according to the Warranty Procedure described at the iriver America web site: www.iriveramerica.com 3. Limitation of Warranty Neither iriver America nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied, with respect to the iriver America products, and specifically disclaim the implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 4. Limitation of Liability Except for the limited obligations specifically set forth in this warranty statement, in no event shall iriver America or its third party suppliers be liable for direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any other legal theory and whether advised of the possibilities of such damages. AFT-100-H10 SETUP PROCEDURE Setting up your Mobile FM Transmitter AFT-100-H10 is an easy procedure. Simply: 1. Insert the FM Transmitter AFT-100-H10 into the automobile cigarette lighter or power socket. Firmly push the unit securely into the socket. 2. Tune your car’s FM stereo to an unused FM frequency. 3. Plug the connector end of the cable into the mating connector on the underside of the H10 player. Squeeze the sides of the connector to release from the H10. 4. Start your personal audio device. Your Mobile FM Transmitter AFT-100-H10 will turn on instantly when audio is detected. 5. Select the frequency from Step 2 above using the selector arrows ( ) on the front of your Mobile FM Transmitter AFT-100-H10. 6. Adjust the volume on your audio player for maximum enjoyment. Best results will generally be achieved if the volume level is set to maximum. THE AFT-100-H10 WORKS OPTIMALLY WHEN THE H10 FIRMWARE IS UPGRADED TO THE LATEST VERSION AND THE LINE OUT LEVEL IS FIXED. TO SET THE FIXED LINE OUT LEVEL, ENTER SETTINGS>EXTRA>RESET ALL SET…

Text truncated - open the document above for the full version.

Aerielle, Inc. 625 Ellis Street, Suite 206 Mountain View, CA 94043 www.aerielle.com Tel: 650.967.4047 Fax: 413.581.6020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 Fax: (310) 344-2050 Reference FCC ID: RKVATBPAC5V350 Organization: Aerielle Inc. Request under 47 CFR 0.457 and 0.459 that materials submitted to the commission be withheld from public inspection. Aerielle, Inc. hereby requests that the materials attached here to be withheld from public inspection in accordance with 47 CFR 47 0.457 and 0.459. Specifically, Aerielle Inc. requests that the following materials be withheld from public inspection under 47 CFR 0.457 and 0.459 because the schematics and designs are considered confidential trade secrets and technical data which customarily would be guarded from competitors: (1) Detailed circuit schematics found in the FCC electronic attachments. (2) Detailed component lists (bill of materials) found in the FCC electronic attachments. (3) Block Diagram found in the FCC electronic attachments (4) Operational Description (Theory of Operation) found in the FCC electronic attachments. (5) Product Specification found in the FCC electronic attachments Therefore, in accordance with CFR 47 0.457 and 0.459, Aerielle, Inc. requests that the above listed materials, copies of which are here, to be withheld from public inspection. Authorized Signature: Date: November 14, 2005 Alan D. Czeszynski Director, Product & Operations Management Aerielle Inc. 625 Ellis St. Ste 206 Mountain View, CA 94043 650-967-4047

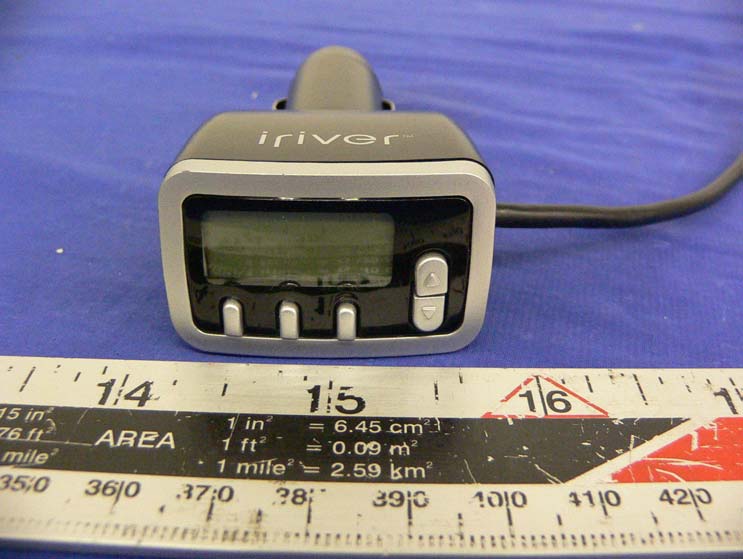

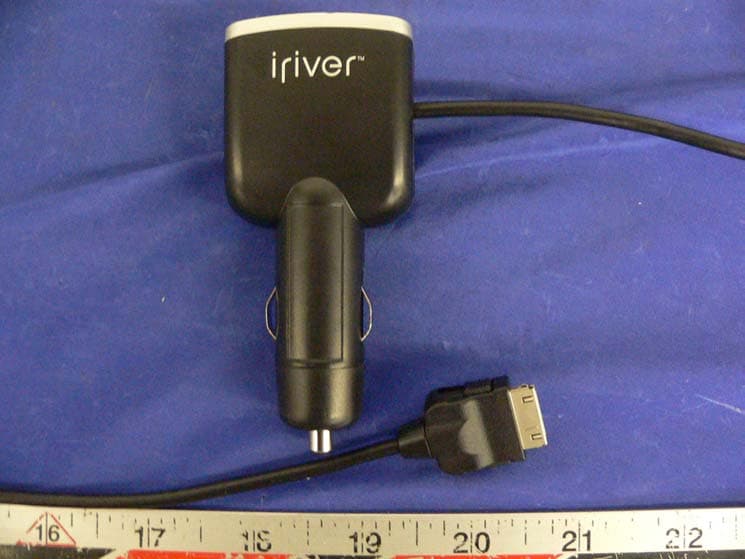

Aerielle, Inc. FCC ID: RKVATBPAC5V350 Report # R0511041Exhibits FCC Part 15.239 Test Report EXHIBIT C - EUT PHOTOGRAPHS EUT – Front View EUT – Top View Aerielle, Inc. FCC ID: RKVATBPAC5V350 Report # R0511041Exhibits FCC Part 15.239 Test Report EUT – Bottom View EUT – Cover Off View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Proposed Label Location on EUT Bottom View of EUT/FCC ID Label FCC ID: RKVATBPAC5V350 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that ma y cause undesired operation.

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Proposed Label Location on EUT Bottom View of EUT/FCC ID Label FCC ID: RKVATBPAC5V350 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that ma y cause undesired operation.

Aerielle, Inc. FCC ID: RKVATBPAC5V350 Report # R0511041Exhibits FCC Part 15.239 Test Report EUT – Main Board Component View EUT – Main Board Solder View Aerielle, Inc. FCC ID: RKVATBPAC5V350 Report # R0511041Exhibits FCC Part 15.239 Test Report EUT – Daughter Board Component View EUT – Daughter Board Solder View

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.239 EMI MEASUREMENT AND TEST REPORT For Aerielle, Inc. 625 Ellis Street, Suite 206 Mountain View, CA 94043 FCC ID: RKVATBPAC5V350 This Report Concerns: Original Report Equipment Type: Low Power FM Transmitter Test Engineer: Snell Leong Report No.: R0511041 Report Date: 2005-11-28 Reviewed By: Richard Lee Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Aerielle, Inc. FCC ID: RKVATBPAC5V350 Report # R0511041Rpt Page 2 of 16 FCC Part 15.239 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 SCHEMATICS / BLOCK DIAGRAM.................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................4 POWER SUPPLY INFORMATION.....................................................................................................................................4 INTERFACE PORTS AND CABLING.................................................................................................................................4 CONFIGURATION OF TEST SYSTEM..............................................................................................................................5 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205 & §15.209 - SPURIOUS RADIATED EMISSION........................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................9 RECEIVER SETUP..........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE......................................................................................................................................................10 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 SUMMARY OF TEST RESULTS.....................................................................................................................................10 SPURIOUS EMISSION 30MHZ-1080MHZ @ 3 METER................................................................................................10 §15.239 (A) – FREQUENCY RANGE & OCCUPIED BANDWITH .....................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 TEST PROCEDURE......................................................…

Text truncated - open the document above for the full version.

Aerielle, Inc. FCC ID: RKVATBPAC5V350 Report # R0511041Exhibits FCC Part 15.239 Test Report EXHIBIT B - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View Radiated Emission - Rear View
