RNT-TRX916RF Tranceiver Module

UHF Transceiver Module TRX916 User Manual UHF Transceiver Module TRX916 User Manual V 1.0 eQ-3 Limited Page : 2 of 12 Table Of Contents 1 KEY FEATURES .................................................................................................................................. 4 2 APPLICATIONS FOR THE MODULE.............................................................................................. 4 3 DESCRIPTION OF THE MODULE ................................................................................................... 4 4 HISTORY FOR THE DOCUMENT.................................................................................................... 5 5 TERMINAL LAYOUT ......................................................................................................................... 5 5.1 PIN ASSIGNMENT............................................................................................................................ 5 6 BLOCK DIAGRAM .............................................................................................................................. 6 7 ABSOLUTE MAXIMUM RATINGS .................................................................................................. 6 8 OPERATING CONDITIONS............................................................................................................... 7 9 RF RECEIVE SECTION ...................................................................................................................... 7 10 RF TRANSMIT SECTION................................................................................................................... 7 11 DC CHARACTERISTICS .................................................................................................................... 8 12 MODULE DIMENSION ....................................................................................................................... 8 13 FOOTPRINT.......................................................................................................................................... 9 14 LABELING DRAWING ....................................................................................................................... 9 15 SOFTWARE / REGISTER SETTINGS ............................................................................................ 10 16 NOTES OF DESIGN ........................................................................................................................... 10 17 FCC INFORMATION......................................................................................................................... 10 17.1 FCC ID ......................................................................................................................................... 10 17.2 FCC NOTICE................................................................................................................................. 11 17.3 INFORMATION TO THE USER.......................................................................................................... 11 17.4 LABELING REQUIREMENTS............................................................................................................ 12 17.5 RF EXPOSURE...............................................................................................................................12 17.6 PERFORMANCE INFORMATION....................................................................................................... 12 18 ORDERING INFORMATION ...........................................................................................................12 19 DISCLAIMER ..................................................................................................................................... 12 UHF Transceiver Module TRX916 User Manual V 1.0 eQ-3 Limited Page : 3 of 12 1 st English edition October 2006 Documentation © 2006 eQ-3 Limited, Hong Kong All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or processed using electronic, mechanical or chemical procedures without written permission of the publisher. This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked and corrections made in the next issue. We accept no liability for technical mistakes or printing errors, or their consequences. All trademarks and patents are acknowledged. Printed in Hong Kong Modifications due to technical improvements may be made without prior notification. 00073928 Y 2006 V 1.0 UHF Transceiver Module TRX916 User Manual V 1.0 eQ-3 Limited Page : 4 of 12 1 Key Features • Supply voltage 1.8 V – 3.6 V • Frequency 916.500 MHz • Data rate 10 kbit/s • High sensitivity -104 dBm • Output power (EIRP) 94 dBuV/m @ 3 m or –1 dBm (EIRP) • FSK modulation • Integral λ/4 monopole • Separate 64-byte RX and TX data FIFOs • Efficient SPI interface: All register can be programmed with one “burst” transfer 2 Applications For The Module • Consumer Electronics • RKE Two-way Remote Keyless Entry • Low power telemetry • Home and building automation • Wireless alarm and security systems • Wireless sensor networks 3 Description Of The Module The transceiver module eQ-3 TRX916 contains a true single chip UHF transceiver designed for very low power wireless applications. The transceiver module operates within the frequency band 902 MHz to 928 MHz according to FCC Part 15, Section 15.249. The transmission and receive frequency is set to 916.5 MHz. FSK modulation is done with 19 kHz deviation. The transceiver module TRX916 provides extensive hardware support for packet handling, data buffering, burst transmission link quality and wake on radio. The main operation parameters and the 64-byte transmit/receive FIFOs of the transceiver module can be controlled via an SPI interface. A system consists of two transceiver modules integrated in an appropriate terminal equipment, which can be used in each case as transmitters a…

Text truncated - open the document above for the full version.

Page 1 of 3 eQ-3 Limited Room A8 & A10, 16/F., Kailey Industrial Centre, No. 12 Fung Yip Street, Chaiwan, HK. Tel: (852) 2367 0322 Fax: (852) 2367 0822 Email: [email protected] October 6, 2006 Request for FCC Certification (modular approval) RF Transceiver Module eQ-3 TRX916 FCC ID RNT-TRX916 Dear Sir or Madam, eQ-3 Limited, Hong Kong is seeking an equipment authorisation for modular transmitters of the following device: RF Transceiver Module eQ-3 TRX916 Attached please find: 1) 731 form 2) FCC ID label sample 3) FCC ID label location information 4) External Photos 5) Internal photos 6) Operational description 7) Block diagrams 8) Schematics 9) Test Report 10) Users manual 11) Parts List 12) RF Exposure Information 13) Confidentiality Request Letter 14) Antenna Specification Page 2 of 3 eQ-3 Limited Room A8 & A10, 16/F., Kailey Industrial Centre, No. 12 Fung Yip Street, Chaiwan, HK. Tel: (852) 2367 0322 Fax: (852) 2367 0822 Email: [email protected] The RF Transceiver Module eQ-3 TRX916 meets the requirements for modular approval as described in FCC Public Notice DA 00-1407. Compliance to each of the listed requirements is described below: 1. “The modular transmitter must have its own RF shielding.” The transceiver module has its own RF shielding. All components, excluding the antenna and the connector ST1, are covered by the shielding. The shielding is installed at the factory. For details please see external photos “eQ-3_TRX916_ExtPho.pdf”. 2. “The modular transmitter must have buffered modulation/data inputs.” The transceiver module has its own buffered data inputs. The data input is buffered in a FIFO memory. The data rate is programmed using SPI interface during start up sequence und independent to the FIFO memory access during operation. For details please see operational description “eQ-3_TRX916_OpDes.pdf”. 3. “The modular transmitter must have its own power supply regulation.” The transceiver module has its own power supply regulation. The single chip transceiver contains several on-chip linear voltage regulators. These voltage regulators are invisible to the user and can be viewed as integral parts. For details please see operational description “eQ-3_TRX916_OpDes.pdf”. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” The transceiver module meet the antenna requirements of the FCC rules. The antenna is permanently attached. For details please see antenna specification “eQ-3_TRX916_AntSpec.pdf” and operational description “eQ-3_TRX916_OpDes.pdf”. 5. “The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing.” The transceiver module was tested in stand-alone configuration. The EUT was mounted on the testing board ”TRX 916 TEST TOOL”, which represents a typical terminal equipment for the transceiver module. For details please see test report “eQ-3_TRX916_TestRpt.pdf” and test setup photos “eQ-3_TRX916_Tsup.pdf”. Page 3 of 3 eQ-3 Limited Room A8 & A10, 16/F., Kailey Industrial Centre, No. 12 Fung Yip Street, Chaiwan, HK. Tel: (852) 2367 0322 Fax: (852) 2367 0822 Email: [email protected] 6. “The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module.” The transceiver module is labeled with FCC ID: RNT-TRX916. This label is permanently fixed in the solder mask. If the module is mounted inside of the terminal equipment, the label will not be visible. In this case the terminal equipment will be labeled with an exterior label containing the expression “Contains Transceiver Module FCC ID: RNT-TRX916” or “Contains FCC ID: RNT-TRX916”. For details please see label location information “eQ-3_TRX916_LabelLoc.pdf” and user manual “eQ-3_TRX916_UserMan.pdf”. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The transceiver module complies with all applicable FCC rules. Instructions to ensure the FCC requirements are given in the user manual. For details please see user manual “eQ-3_TRX916_UserMan.pdf” and test report “eQ-3_TRX916_TestRpt.pdf”. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The transceiver module meets all applicable RF exposure requirements. The EUT operates under the provisions of FCC Part 15, section 15.249 with a maximum allowed field strength of 50,000 μV/m equivalent to 0,8 mW EIRP. For details please see user manual “eQ-3_TRX916_UserMan.pdf” and test report “eQ-3_TRX916_TestRpt.pdf”.

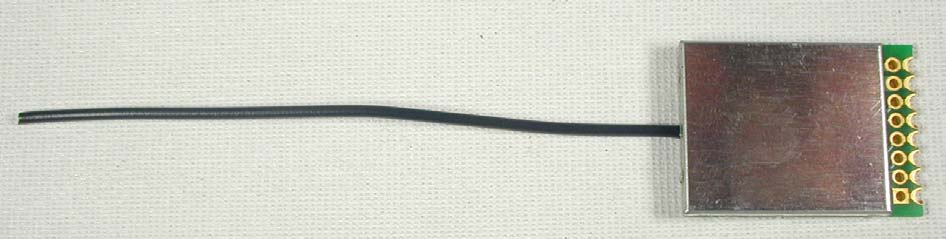

eQ-3 Limited, Hong Kong 06 October 2006 File Name: eq-3_trx916_extpho.doc Page : 1 / 1 External Photos Transceiver Module eQ-3 TRX916

ETS Product Service AG, Germany Registration number: G0M20608-0773-C-1 Page 1 of 6 Appendix A. Pictures

eQ-3 Limited, Hong Kong 06 October 2006 File Name: eq-3_trx916_labelloc.doc Page : 1 / 1 FCC ID Label Location Information Transceiver Module eQ-3 TRX916

S:\2885_Transceiver_TRX916\PCB\2796_Transceiver_TRX868.pcb - Page 1 of 1 pages. FCC ID: RNT-TRX916 0662881A1

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PART 15 / SUBPART C §15.249 FCC ID: RNT-TRX916 Test report no.: G0M20608-0773-C-1 Certificate 1983-01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG, Germany Registration number: G0M20608-0773-C-1 Page 1 of 22 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 3.1 Output Power 3.2 RF Exposure Compliance Requirements 3.3 Radiated Emissions 3.4 Antenna requirement 3.5 Conducted Measurement ETS Product Service AG, Germany Registration number: G0M20608-0773-C-1 Page 2 of 22 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample posseses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 13.09.2006 K. Damm Date ETS-Lab. Name Signature Technical responsibility for area of testing: 13.09.2006 N.Kaspar Date ETS Name Signature ETS Product Service AG, Germany Registration number: G0M20608-0773-C-1 Page 3 of 22 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY: REG. NO. 96970 INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED CERTIFICATE NUMBER: 1983-01 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) 1.3 Details of approval holder Name : eQ-3 Limited Street : Room A8 & A10, 16th Floor, Kailey Ind. Centre, No.12, Fung Yip Street Town : Chaiwan Country : Hong Kong Telephone : +852 23670322 Fax : +852 23670322 Contact : Mrs. Shirley Hui Lai Chu E-mail : [email protected] ETS Product Service AG, Germany Registration number: G0M20608-0773-C-1 Page 4 of 22 1.4 Application details Date of receipt of application : 15.08.2006 Date of receipt of test item : 15.08.2006 Date of test : 23.08.2006 – 25.08.2006 1.5 Test item Description of test item : RF-Transceiver Module Type identification : TRX 916 Serial number : without Photos : See Appendix A Technical data Frequency band : 916,50 MHz Frequency (ch 1) : 916.50 MHz Antenna type : λ /4 Antenna, integrated Power supply : 1.8 V - 3.6 V Operating mode : duplex Type of modulation : FSK Emission designator: : 650KF1D Manufacturer: (if applicable) Name : DJY Electronics Co. Ltd. Street : 518101 3/F Fu Yuan #3 Industrial Building, 45th Area of Bao An District Town : Shen Zhen Country : P.R.C. ETS Product Service AG, Germany Registration number: G0M20608-0773-C-1 Page 5 of 22 1.6 Test standards Technical standard: FCC RULES PART 15 / SUBPART C § 15.249 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 ° C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 3.0 V DC Battery Extrem conditions parameters: : test voltage - extreme min.: -- V max: -- V Additional information : none ETS Product Service AG, Germany Registration number: G0M20608-0773-C-1 Page 6 of 22 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP R & S ETS 0003 Diode Power Sensor NRV-Z2 R & S ETS 0004 Spektrum- and Network- Analyzer FSMS 26 R & S ETS 0005 RF amplifier matrix RSU-ETS-CTR6 ETS ETS 0006 HP-Filter H1G04G01 Microwave ETS 0007 Horn antenna AT 4004 ar ETS 0008 Antenna Loop antenna Siemens ETS 0009 Comb Generator Emitter CGE 02 York EMC Services ETS 0011 Antenna (van Veen/Frame) HM020Z3 R & S ETS 0012 Biconical Antenna HK 116 R & S ETS 0013 LPD Antenna HL 223 R & S ETS 0014 Log Periodical Antenna HL 025 R & S ETS 0015 Log Periodical Antenna HL 025 R & S ETS 0016 Precision antenna kit VHAP Schwarzbeck ETS 0017 Precision antenna kit UHAP Schwarzbeck ETS 0018 Horn antenna BBHA 9120 D Schwarzbeck ETS 0019 Horn antenna BBHA 9120 D Schwarzbeck ETS 0020 Antenna DP 21 MEB ETS 0021 Antenna DP 3 MEB ETS 0022 Antenna SAS-200/ 521 A.H. Systeme+D65 ETS 0023 Antenna DP 1 MEB ETS 0024 Antenna mast AF 2 MEB ETS 0025 Antenna mast AF 2 MEB ETS 0026 Tripod Heinrich Deisel ETS 0027 Tripod Heinrich Deisel ETS 0028 Tripod STA 2 C. Lorenz AG ETS 0029 Tripod Berlebach ETS 0030 Biconical Antenna HK 116 R & S ETS 0031 Turn table DS 412 Heinrich Deisel ETS 0032 Controller HD 050 Heinrich Deisel ETS 0033 Calibr. Set CDN 3x Adaptor 50-150 Ohm ETS ETS 0034 RF Generator/ Amplifier SMLR R & S ETS 0035 RF Generator/ Amplifier SMLM R & S ETS 0036 Zirc. Anten…
