RPW-BTG200BTG200

BTG200 Quick Start Guide Revision 1.0 Step 1. Please power on BTG200 with provided power adapter. Once properly powered on, the PWR light will stay on with green light. Step 2. Default IP of BTG200 is 192.168.100.1. Please configure your programming device to 192.168.100.10, connect directly to BTG200 and access via the url below. http://192.168.100.1 By default, no password is set, please setup root password according to the Property Installation Worksheet. Step 3. Once password is set, please login via the same url http://192.168.100.1 Step 4. Once logged in, please select the Network Tab for Network Configuration. Step 5. Please select Station Mode, then select with WiFi SSID provided in the Property Installation Worksheet. Step 6. BTG200 will restarted after SSID and WPA Key is entered. Please allow 3~5 Minutes for restart. The WIFI green LED in the front will blink when property connected to the internet. If WIFI/NET Led is not blinking, please contact support. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

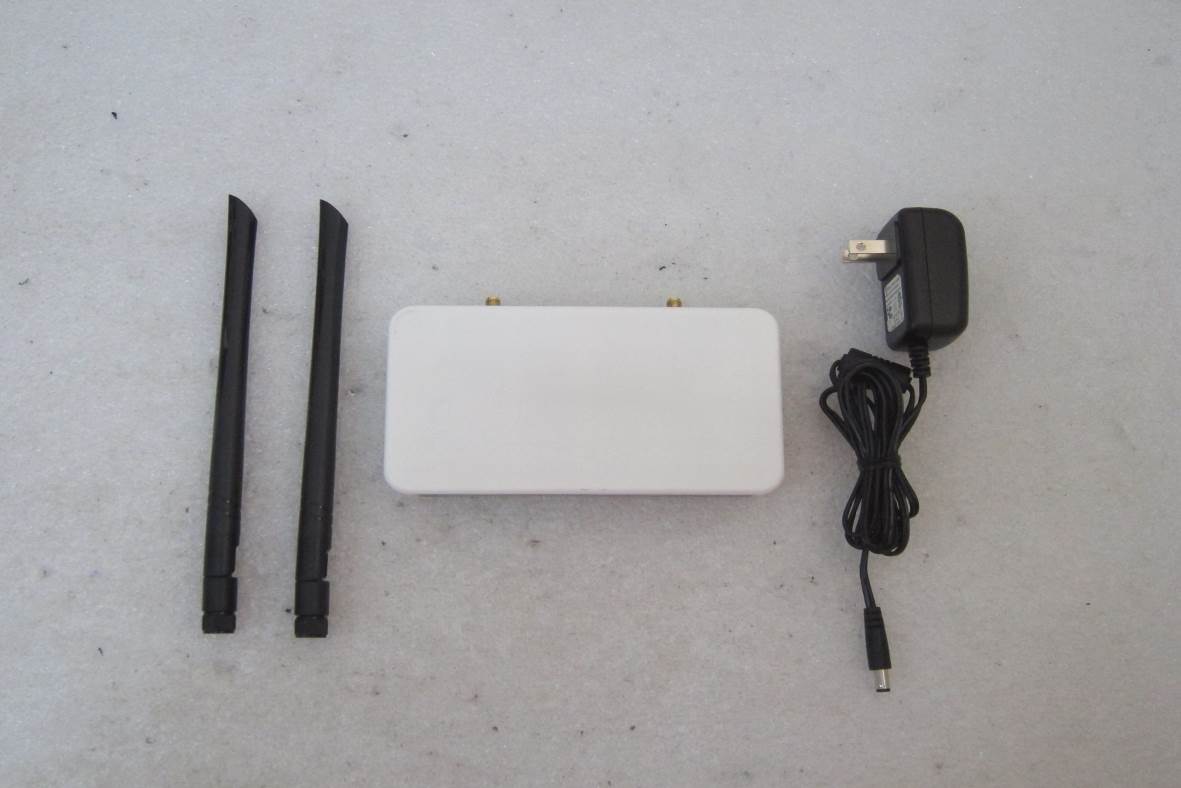

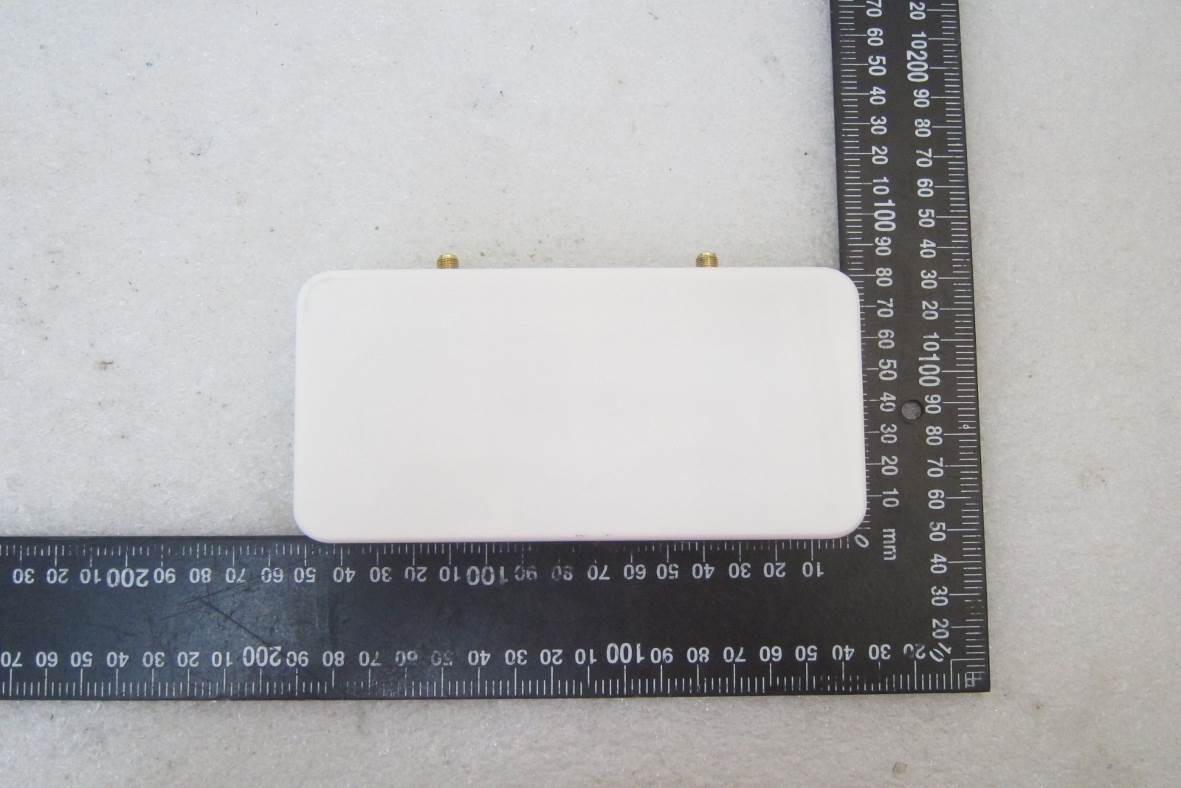

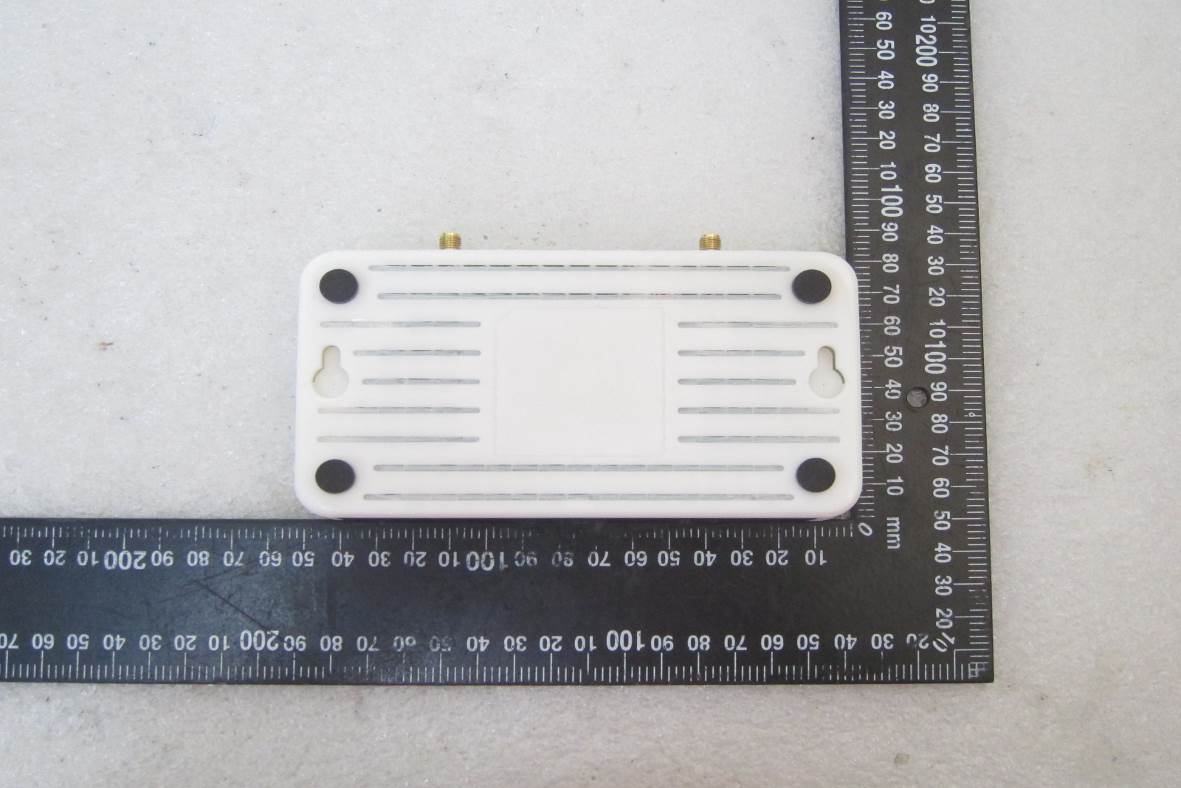

FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS APPENDIX 2 PHOTOGRAPHS OF EUT FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS EUT 1 EUT 2 FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS EUT 3 EUT 4 FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS EUT 5 EUT 6 FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS EUT 7 EUT 8

FCC ID LABEL FORMAT AND LOCATION Applicant: BCM Communication Co., Ltd. FCC ID: RPW-BTG200

FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS APPENDIX 3 PHOTOGRAPHS OF EUT FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS EUT 1 EUT 2 FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS EUT 3 EUT 4 FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS EUT 5 EUT 6

FCC ID: RPW-BTG200 International Standards Laboratory Corp. 1 1. Maximum Permissible Exposure (MPE) Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density The MPE was calculated at 20 cm to show compliance with the power density limit The following formula was used to calculate the Power Density. S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna FCC ID: RPW-BTG200 International Standards Laboratory Corp. 2 Maximum Permissible Exposure (MPE) Evaluation 20 cm Frequency band Conducted power (dBm) Antenna gain (dBi) Tune-Up Tolerance (dB) EIRP (dBm) MPE (W/m 2 ) LIMIT (W/m 2 ) 2402-2480 3.363 5 0.5 8.863 0.002 1 2412-2462 17.45 5 0.5 22.950 0.039 1 Note: 1. For conservativeness, the lowest uplink frequency of each band is used to determine the MPE limit of that band. 2. In the table above, which considers maximum directional Gain is 5dBi for 2.4GHz band ~ End of Report ~

Page: 1 of 100 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : BTG200 Brand: BCM Model: BTG200 Model Difference: N/A FCC ID: RPW-BTG200 FCC Rule Part: §15.247, Cat: DTS Applicant: BCM Communication Co., Ltd. Address: 8Fl., No. 3, Wolung Street,Taipei 106 Taiwan Test Performed by: International Standards Laboratory Corp. <LT Lab.> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW0997; TAF: 0997; IC: IC4067B-4; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-20LR271FCDTS Issue Date : 2020/09/18 Test results given in this report apply only to the specific sample(s) tested and are traceable to na- tional or international standard through calibration of the equipment and evaluating measurement un- certainty herein. The uncertainty of the measurement does not include in consideration of the test result unless the customer required the determination of uncertainty via the agreement, regulation or standard document specifi- cation. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory Corp. -2 of 100- FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS VERIFICATION OF COMPLIANCE Applicant: BCM Communication Co., Ltd. Product Description: BTG200 Brand Name: BCM Model No.: BTG200 Model Difference: N/A FCC ID: RPW-BTG200 Date of test: 2020/08/27 ~ 2020/09/17 Date of EUT Received: 2020/08/27 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory Corp. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2020/09/18 Weitin Chen/ Senior Engineer Prepared By: Date: 2020/09/18 Gigi Yeh / Senior Engineer Approved By: Date: 2020/09/18 Jerry Liu / Technical Manager -3 of 100- FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS Version Version No. Date Description 00 2020/09/18 Initial creation of document -4 of 100- FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS Uncertainty of Measurement Description Of Test Uncertainty Conducted Emission (AC power line) 2.586 dB Field Strength of Spurious Radiation ≤ 30MHz: 2.96dB 30-1GHz: 4.22 dB 1-40 GHz: 4.08 dB Conducted Power 2.412 GHz: 1.30 dB 5.805 GHz: 1.55 dB Power Density 2.412 GHz:1.30 dB 5.805 GHz: 1.67 dB Frequency 0.0032% Time 0.01% DC Voltage 1% -5 of 100- FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS Table of Contents 1 General Information ................................................................................................................... 7 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 9 1.2 Test Methodology .......................................................................................................................... 9 1.3 Test Facility .................................................................................................................................... 9 1.4 Special Accessories ........................................................................................................................ 9 1.5 Equipment Modifications ............................................................................................................... 9 2 System Test Configuration ....................................................................................................... 10 2.1 EUT Configuration ...................................................................................................................... 10 2.2 EUT Exercise ............................................................................................................................... 10 2.3 Test Procedure .............................................................................................................................. 10 2.4 Configuration of Tested System ................................................................................................... 11 3 Summary of Test Results .......................................................................................................... 12 4 Description of Test Modes ........................................................................................................ 12 5 Conduced Emission Test .......................................................................................................... 13 5.1 Standard Applicable: .................................................................................................................... 13 5.2 Measurement Equipment Used: ................................................................................................... 13 5.3 EUT Setup: ................................................................................................................................... 13 5.4 Measurement Procedure: ............................................................................................................. 14 5.5 Measurement Result: ................................................................................................................... 14 6 Peak Output Power ................................................................................................................. 17 6.1 Standard Applicable: .........................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS APPENDIX 1 PHOTOGRAPHS OF SET UP FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS Radiated Emission Set up Photos FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS FCC ID: RPW-BTG200 International Standards Laboratory Corp. Report Number: ISL-20LR271FCDTS Conducted Emission Set up Photo
