RPW-WIGO800IGSM/WiFi Dual-mode IP Media Phone

WIGO800I Instructions 1 / 26 WIGO800I Installation Manual Your Best GSM & WiFi Phone Partner BCM Communication Co., Ltd. WIGO800I Instructions 2 / 26 Introduction This is a start up manual for WIGO800I , a GSM-Wireless VoIP Dual mode Phone of BCM. Be fore using this unit, some configurations are required to ma ke the phone work properly. Make sure that DHCP server is availabl e, and handsets can register itself to AP correctly. Otherwise, you should se tup the IP address of this unit by yourselves. You can use any of your current GSM SIM card in this unit. Thank you for choosing WIGO800I for your dual world experience. Owner’s Record The MAC address is located inside battery compartment. Record the MAC address in the space prov ided below. It may be required whenever you contact your service provider. Or you can check it inside the phone system by manual , please refer to the chapter PhoneSettings. Model No. : WIGO800I MAC Address : _______________________ Dealer : __ ____________________ Limited Warranty ¾ BCM warrants to you that, for a period of one year (the “Warranty Period”), your equipment will be substantially free of defects in materials and workmanship under normal use. Your exclusive remedy and BCM’s entire liability under this warranty will be for BCM at its option to re pair or replace the product or refund your purchase price less any rebates. This limited warranty extends only to the original purchaser. ¾ This product (including documen t, contents, and firmware of this device) is provided “AS IS”. Except as required by applicable law, no warranty of any kind, ex press or implied conditions, representations and warranties, in cluding but not limited to all implied warranties and condition s of merchantability and fitness for a particular purpose and no n-infringement. BCM reserves the right to make changes, im provements, revises or withdraw to any of the product at an ytime without prior notice. ¾ If the product proves defective during the Warranty Period call BCM technical support in order to obtain a return authorization number, if applicable. If you are requested to return the product, mark the return authorizatio n number clearly. You are responsible for shipping defective products to BCM. WIGO800I Instructions 3 / 26 ¾ This warranty does not apply if the product (a) has been altered, except by BCM, (b) has not been insta lled, operated, repaired, or maintained in accordance with instructions supplied by BCM, or (c) has been subjected to abnormal physical or electrical stress, mi suse, negligence, or accident. In addition, due to the continual de velopment of new techniques for intruding upon and attacking networks, BCM does not warrant that the product will be free vulnerability to intrusion or attack. ¾ To the extent not prohibited by law, BCM is liable for any loss or damaged data, any revenue or profi t, or for special, incidental, consequential, indirect or puni tive damages, regardless of the theory of liability ( including ne gligence), arising out of or related to the use of or inabili ty to use the product ( including any software) howsoever caused. The foregoing limitations will apply even if any warranty or remedy provided under this agreement fails of its essential purpose. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. On Copyrights Copyright © 2007 BCM. All rights reserved. ¾ Other products and brands mentioned herein maybe trademarks or registered trademar ks of their respective owner. ¾ Unauthorized changes or modifications to this device may void your authority to operate the equipment. ¾ This product is protected by cert ain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary. ¾ This product includes Skype ™ Version V1.1.0.20. This product uses the Skype API but is not e ndorsed or certified by Skype. ¾ IP TV, IP Radio, films, pict ures and other materials may be copyrighted. Unauthorized reco rding of such materials may violate copyright laws. ¾ Use, transfer, or distribution of part or all of this product in any form without the prior written pe rmission of BCM is prohibited. ¾ Certain features, such as Skyp e, MSN, IP TV, IP Radio are branded services provided by third parties. BCM does not guarantee such services or warrant their continued availability. Note for Use ¾ The availability of particular products may vary by region. Screen shots in this manual may be different from the actual displays in the supplied software. ¾ Emergency call is available to use while there is not a SIM Card inserted. ¾ GSM radio and WLAN radio are not operating simultaneously. WIGO800I Instructions 4 / 26 ¾ The LCD of your device is designed with precision technology. However, in some cases, individual pixels may remain lit or may not light at all. Also, the brightness of the display may appear inconsis tent, depending on the angle of view. Such anomalies are caused by the nature of the LCD and do not indicate a malf unction. Please note that BCM does not guarantee a replac ement or refund for such cases. Do not expose the LCD to direct sunlight for prolonged periods of time. It may result in a malfunction. Do not store your device in ar eas subject to sunlight, such as near windows, and be careful when using outdoors. ¾ Please take few minutes to run-through this manual, especially pay attention on [Note] , they can be very useful and important notice for you to use this phone. Do not skip these notice. Federal Communication Commi ssion Interference Statement This equipment has been tested and f ound to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to prov ide reasonable protection against harmful interference in a residenti al installati…

Text truncated - open the document above for the full version.

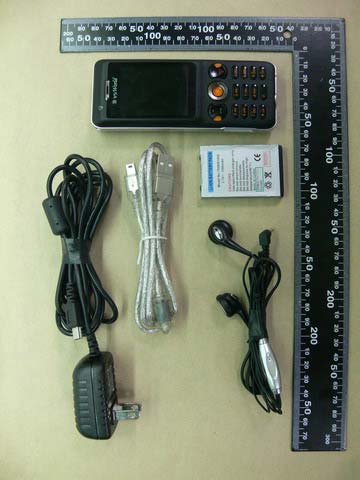

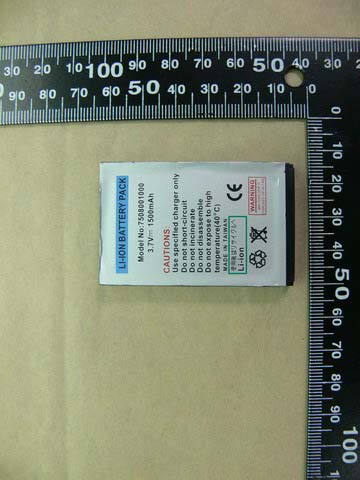

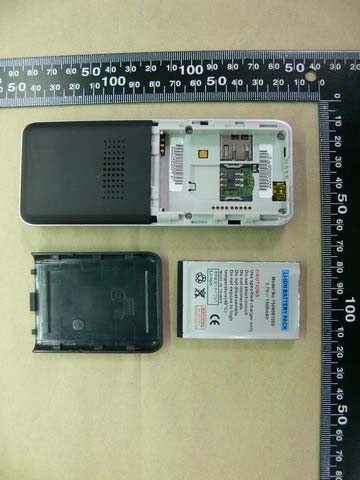

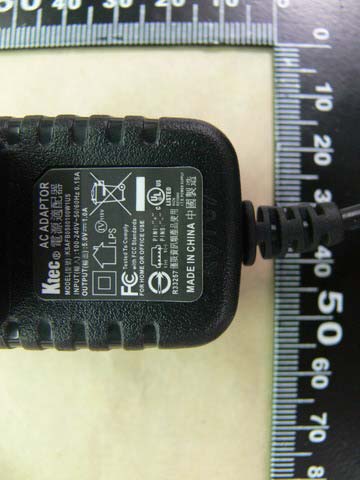

Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 1 of 39 Hynix WIFI mode External Photos Black earphone Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 2 of 39 Silver earphone Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 3 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 4 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 5 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 6 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 7 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 8 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 9 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 10 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 11 of 39

label location

Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 12 of 39 Internal Photos Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 13 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 14 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 15 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 16 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 17 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 18 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 19 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 20 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 21 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 22 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 23 of 39 Registration number: W6M20707-8291 FCC ID: RPW-WIGO800I ETS Product Service (Taiwan) Co., Ltd. Appendix page 24 of 39

Report No：077218R-HPUSP09V01 Page: 1 of 31 Version:1.0 SAR Test Report Product Name ： GSM/WiFi Dual-mode IP Media Phone Model No. ： WIGO 800I Applicant ： BCM Communication Co., Ltd. Address ： 8F, NO. 3, Wolung Street , Taipei ,Taiwan 106, R.O.C. Date of Receipt：2007/07/13 Issued Date ：2007/08/13 Report No. ：077218R-HPUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：077218R-HPUSP09V01 Page: 2 of 31 Version:1.0 Test Report Certification Issued Date: 2007/08/13 Report No.:077218R-HPUSP09V01 Product Name ： GSM/WiFi Dual-mode IP Media Phone Applicant ： BCM Communication Co., Ltd. Address ： 8F, NO. 3, Wolung Street , Taipei ,Taiwan 106, R.O.C. Manufacturer ： BCM Communication Co., Ltd. Trade Name ： BCM Model No. ： WIGO 800I Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) GSM 850: 0.936 W/kg PCS 1900: 0.632 W/kg 802.11b: 0.109 W/kg 802.11g: 0.203 W/kg The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Engineering Adm. Assistant / Nicole Huang) Tested By ： (Senior Engineer / Shine Hsu) Approved By ： (President /Gene Chang) Report No：077218R-HPUSP09V01 Page: 3 of 31 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................6 2. SAR Measurement System .................................................................. 7 2.1 ALSAS-10U System Description .................................................................................. 7 2.1.1 Applications ................................................................................................................ 7 2.1.2 Area Scans................................................................................................................... 7 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 8 2.2 Isotropic E-Field Probe .................................................................................................. 8 2.2.1 Isotropic E-Field Probe Specification ....................................................................... 10 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 11 2.5 Axis Articulated Robot ................................................................................................ 11 2.6 ALSAS Universal Workstation.................................................................................... 12 2.7 Universal Device Positioner......................................................................................... 12 2.8 Phantom Types............................................................................................................. 12 2.8.1 APREL SAM Phantoms ........................................................................................... 13 2.8.2 APREL Laboratories Universal Phantom ................................................................. 13 3. Tissue Simulating Liquid ................................................................... 14 3.1 The composition of the tissue simulating liquid .......................................................... 14 3.2 Tissue Calibration Result ............................................................................................. 14 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 17 4. SAR Measurement Procedure ........................................................... 18 4.1 SAR System Validation................................................................................................ 18 4.1.1 Validation Dipoles..................................................................................................... 18 4.1.2 Validation Result ....................................................................................................... 19 4.2 Arrangement Assessment Setup ................................................................................... 19 4.2.1 Test Positions of Device Relative to Head................................................................ 19 4.2.1.1 Definition of the “Cheek” Position ........................................................................ 20 4.2.1.2 Definition of the “Tilted” Position......................................................................... 21 4.2.2 Test Positions for body-worn.................................................................................... 22 4.3 SAR Measurement Procedure ...................................................................................... 22 Report No：077218R-HPUSP09V01 Page: 4 of 31 Version:1.0 4.3.1 SAR Measurement Procedure ................................................................................... 23 5. SAR Exposure Limits ......................................................................... 24 6. Test Equipment List............................................................................ 25 7. Measurement Uncertainty .................................................................. 26 8. Test Results......................................................................................... 27 8.1 SAR Test Results Summary ..............................…

Text truncated - open the document above for the full version.

Report No：077218R-HPUSP09V01 Page: 10 of 12 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.60 °C Ambient Temp. : 24.20 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Frequency : 2450 MHz 1 gram SAR value : 13.647 W/kg 10 gram SAR value : 5.783 W/kg Area Scan Peak SAR : 15.332 W/kg Zoom Scan Peak SAR : 30.426 W/kg Report No：077218R-HPUSP09V01 Page: 11 of 12 Version:1.0 Report No：077218R-HPUSP09V01 Page: 12 of 12 Version:1.0 Report No：077218R-HPUSP09V01 Page: 1 of 136 Version:1.0 SAR Measurement Data ALSAS-10U VER 2.3.2 APREL Laboratories SAR Test Report-GSM 850 Report Date : 10-Aug-2007 Measurement Date : 10-Aug-2007 Product Data Device Name : Mobile Phone Type : Std Form Cell Phone Model : WIGO 880i Frequency : 850.00 MHz Max. Transmit Pwr : 2 W Drift Time : 0 min(s) Length : 125.3 mm Width : 49.1 mm Depth : 21 mm Antenna Type : Internal Phantom Data Type : SAM-Right Size (mm) : 280 x 280 x 280 Location : Right Tissue Data Type : HEAD Serial No. : 322-H Frequency : 850.00 MHz Last Calib. Date : 10-Aug-2007 Temperature : 21.10 °C Ambient Temp. : 22.40 °C Humidity : 46.00 RH% Epsilon : 41.63 F/m Sigma : 0.912 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 261 Model : E020 Type : E-Field Triangle Serial No. : 261 Last Calib. Date : 05-Apr-2007 Frequency : 835.00 MHz Duty Cycle Factor: 8 Conversion Factor: 6.6 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No：077218R-HPUSP09V01 Page: 2 of 136 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 21.10 °C Ambient Temp. : 22.40 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.204 W/kg Power Drift-Finish: 0.195 W/kg Power Drift (%) : -4.411 DUT Position : Touch Channel : 128 1 gram SAR value : 0.297 W/kg 10 gram SAR value : 0.188 W/kg Area Scan Peak SAR : 0.314 W/kg Zoom Scan Peak SAR : 0.500 W/kg Report No：077218R-HPUSP09V01 Page: 3 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 4 of 136 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 21.10 °C Ambient Temp. : 22.40 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.213 W/kg Power Drift-Finish: 0.205 W/kg Power Drift (%) : -3.755 DUT Position : Touch Channel : 189 1 gram SAR value : 0.288 W/kg 10 gram SAR value : 0.182 W/kg Area Scan Peak SAR : 0.339 W/kg Zoom Scan Peak SAR : 0.490 W/kg Report No：077218R-HPUSP09V01 Page: 5 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 6 of 136 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 21.10 °C Ambient Temp. : 22.40 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.232 W/kg Power Drift-Finish: 0.241 W/kg Power Drift (%) : 3.879 DUT Position : Touch Channel : 251 1 gram SAR value : 0.327 W/kg 10 gram SAR value : 0.210 W/kg Area Scan Peak SAR : 0.338 W/kg Zoom Scan Peak SAR : 0.520 W/kg Report No：077218R-HPUSP09V01 Page: 7 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 8 of 136 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 21.10 °C Ambient Temp. : 22.40 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.176 W/kg Power Drift-Finish: 0.181 W/kg Power Drift (%) : 2.732 DUT Position : 15° Tilt Channel : 128 1 gram SAR value : 0.173 W/kg 10 gram SAR value : 0.142 W/kg Area Scan Peak SAR : 0.218 W/kg Zoom Scan Peak SAR : 0.310 W/kg Report No：077218R-HPUSP09V01 Page: 9 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 10 of 136 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 21.10 °C Ambient Temp. : 22.40 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.171 W/kg Power Drift-Finish: 0.179 W/kg Power Drift (%) : 4.678 DUT Position : 15° Tilt Channel : 189 1 gram SAR value : 0.213 W/kg 10 gram SAR value : 0.146 W/kg Area Scan Peak SAR : 0.220 W/kg Zoom Scan Peak SAR : 0.320 W/kg Report No：077218R-HPUSP09V01 Page: 11 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 12 of 136 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 21.10 °C Ambient Temp. : 22.40 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.193 W/kg Power Drift-Finish: 0.196 W/kg Power Drift (%) : 1.633 DUT Position : 15° Tilt Channel : 251 1 gram SAR value : 0.223 W/kg 10 gram SAR value : 0.149 W/kg Area Scan Peak SAR : 0.225 W/kg Zoom Scan Peak SAR : 0.320 W/kg Report No：077218R-HPUSP09V01 Page: 13 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 14 of 136 Version:1.0 ALSAS-10U VER 2.3.2 APREL Laboratories SAR Test Report-GSM 850 Report Date : 10-Aug-2007 Measurement Date : 10-Aug-2007 Product Data Device Name : Mobile Phone Type : Std Form Cell Phone Model : WIGO 880i Frequency : 850.00 MHz Max. Transmit Pwr : 2 W Drift Time : 0 min(s) Length : 125.3 mm Width : 49.1 mm Depth : 21 mm Antenna Type : Internal Phantom Data Type : SAM-Left Size (mm) : 280 x 280 x 280 Location : Left Tissue Data Type : HEAD Serial No. : 322-H Frequency : 850.00 MHz Last Calib. Date : 10-Aug-2007 Temperature : 21.10 °C Ambient Temp. : 22.40 °C Humidity : 46.00 RH% Epsilon : 41.63 F/m Sigma : 0.912 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 261 Model : E020 Type : E-Field Triangle Serial No. : 261 Last Calib. Date : 05-Apr-2007 Frequency : 835.00 MHz Duty Cycle Factor: 8 Conversion Factor: 6.6 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No：077218R-HPUSP09V01 Page: 15 of 136 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 21.10 °C Ambient Temp. : 22.40 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measure…

Text truncated - open the document above for the full version.

Report No：077218R-HPUSP09V01 Page: 58 of 136 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 21.30 °C Ambient Temp. : 23.80 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.204 W/kg Power Drift-Finish: 0.196 W/kg Power Drift (%) : -3.928 DUT Position : 15° Tilt Channel : 810 1 gram SAR value : 0.199 W/kg 10 gram SAR value : 0.137 W/kg Area Scan Peak SAR : 0.248 W/kg Zoom Scan Peak SAR : 0.370 W/kg Report No：077218R-HPUSP09V01 Page: 59 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 60 of 136 Version:1.0 ALSAS-10U VER 2.3.2 APREL Laboratories SAR Test Report-PCS 1900 Report Date : 17-Jul-2007 Measurement Date : 17-Jul-2007 Product Data Device Name : Mobile Phone Type : Std Form Cell Phone Model : WIGO 800i Frequency : 1900.00 MHz Max. Transmit Pwr : 1 W Drift Time : 0 min(s) Length : 125.3 mm Width : 49.1 mm Depth : 21 mm Antenna Type : Internal Phantom Data Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 324-B Frequency : 1900.00 MHz Last Calib. Date : 17-Jul-2007 Temperature : 21.30 °C Ambient Temp. : 23.80 °C Humidity : 45.00 RH% Epsilon : 52.34 F/m Sigma : 1.487 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 261 Model : E020 Type : E-Field Triangle Serial No. : 261 Last Calib. Date : 5-Apr-2007 Frequency : 1900.00 MHz Duty Cycle Factor: 8 Conversion Factor: 4.7 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No：077218R-HPUSP09V01 Page: 61 of 136 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 21.30 °C Ambient Temp. : 23.80 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.343 W/kg Power Drift-Finish: 0.336 W/kg Power Drift (%) : -2.047 DUT Position : Touch Channel : 512 1 gram SAR value : 0.632 W/kg 10 gram SAR value : 0.366 W/kg Area Scan Peak SAR : 0.758 W/kg Zoom Scan Peak SAR : 1.110 W/kg Report No：077218R-HPUSP09V01 Page: 62 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 63 of 136 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 21.30 °C Ambient Temp. : 23.80 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.271 W/kg Power Drift-Finish: 0.279 W/kg Power Drift (%) : 2.966 DUT Position : Touch Channel : 661 1 gram SAR value : 0.453 W/kg 10 gram SAR value : 0.292 W/kg Area Scan Peak SAR : 0.508 W/kg Zoom Scan Peak SAR : 1.040 W/kg Report No：077218R-HPUSP09V01 Page: 64 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 65 of 136 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 21.30 °C Ambient Temp. : 23.80 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.292 W/kg Power Drift-Finish: 0.284 W/kg Power Drift (%) : -2.744 DUT Position : Touch Channel : 810 1 gram SAR value : 0.373 W/kg 10 gram SAR value : 0.210 W/kg Area Scan Peak SAR : 0.353 W/kg Zoom Scan Peak SAR : 0.660 W/kg Report No：077218R-HPUSP09V01 Page: 66 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 67 of 136 Version:1.0 SAR Measurement Data ALSAS-10U VER 2.3.2 APREL Laboratories SAR Test Report- 802.11b Report Date : 20-Jul-2007 Measurement Date : 20-Jul-2007 Product Data Device Name : Mobile Phone Type : Std Form Cell Phone Model : WIGO 800i Frequency : 2450.00 MHz Drift Time : 0 min(s) Length : 125.3 mm Width : 49.1 mm Depth : 21 mm Antenna Type : Internal Phantom Data Type : SAM-Right Size (mm) : 280 x 280 x 280 Location : Right Tissue Data Type : HEAD Serial No. : 325-H Frequency : 2450.00 MHz Last Calib. Date : 20-Jul-2007 Temperature : 23.60 °C Ambient Temp. : 24.20 °C Humidity : 46.00 RH% Epsilon : 40.22 F/m Sigma : 1.793 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 261 Model : E020 Type : E-Field Triangle Serial No. : 261 Last Calib. Date : 5-Apr-2007 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.85 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No：077218R-HPUSP09V01 Page: 68 of 136 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.60 °C Ambient Temp. : 24.20 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.052 W/kg Power Drift-Finish: 0.049 W/kg Power Drift (%) : -4.318 DUT Position : Touch Channel : 1 1 gram SAR value : 0.072 W/kg 10 gram SAR value : 0.051 W/kg Area Scan Peak SAR : 0.077 W/kg Zoom Scan Peak SAR : 0.140 W/kg Report No：077218R-HPUSP09V01 Page: 69 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 70 of 136 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.60 °C Ambient Temp. : 24.20 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.069 W/kg Power Drift-Finish: 0.071 W/kg Power Drift (%) : 2.806 DUT Position : Touch Channel : 6 1 gram SAR value : 0.098 W/kg 10 gram SAR value : 0.062 W/kg Area Scan Peak SAR : 0.098 W/kg Zoom Scan Peak SAR : 0.170 W/kg Report No：077218R-HPUSP09V01 Page: 71 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 72 of 136 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.60 °C Ambient Temp. : 24.20 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.076 W/kg Power Drift-Finish: 0.073 W/kg Power Drift (%) : -3.974 DUT Position : Touch Channel : 11 1 gram SAR value : 0.109 W/kg 10 gram SAR value : 0.064 W/kg Area Scan Peak SAR : 0.110 W/kg Zoom Scan Peak SAR : 0.200 W/kg Report No：077218R-HPUSP09V01 Page: 73 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 74 of 136 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.60 °C Ambient Temp. : 24.20 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z…

Text truncated - open the document above for the full version.

Report No：077218R-HPUSP09V01 Page: 108 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 109 of 136 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.60 °C Ambient Temp. : 24.20 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x5x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.069 W/kg Power Drift-Finish: 0.066 W/kg Power Drift (%) : -4.316 DUT Position : 15° Tilt Channel : 6 1 gram SAR value : 0.079 W/kg 10 gram SAR value : 0.054 W/kg Area Scan Peak SAR : 0.075 W/kg Zoom Scan Peak SAR : 0.120 W/kg Report No：077218R-HPUSP09V01 Page: 110 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 111 of 136 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.60 °C Ambient Temp. : 24.20 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.075 W/kg Power Drift-Finish: 0.077 W/kg Power Drift (%) : 2.676 DUT Position : 15° Tilt Channel : 11 1 gram SAR value : 0.078 W/kg 10 gram SAR value : 0.063 W/kg Area Scan Peak SAR : 0.078 W/kg Zoom Scan Peak SAR : 0.180 W/kg Report No：077218R-HPUSP09V01 Page: 112 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 113 of 136 Version:1.0 ALSAS-10U VER 2.3.2 APREL Laboratories SAR Test Report- 802.11g Report Date : 20-Jul-2007 Measurement Date : 20-Jul-2007 Product Data Device Name : Mobile Phone Type : Std Form Cell Phone Model : WIGO 800i Frequency : 2450.00 MHz Drift Time : 0 min(s) Length : 125.3 mm Width : 49.1 mm Depth : 21 mm Antenna Type : Internal Phantom Data Type : SAM-Left Size (mm) : 280 x 280 x 280 Location : Left Tissue Data Type : HEAD Serial No. : 325-H Frequency : 2450.00 MHz Last Calib. Date : 20-Jul-2007 Temperature : 23.60 °C Ambient Temp. : 24.20 °C Humidity : 46.00 RH% Epsilon : 40.22 F/m Sigma : 1.793 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 261 Model : E020 Type : E-Field Triangle Serial No. : 261 Last Calib. Date : 5-Apr-2007 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.85 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No：077218R-HPUSP09V01 Page: 114 of 136 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.60 °C Ambient Temp. : 24.20 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.063 W/kg Power Drift-Finish: 0.065 W/kg Power Drift (%) : 3.171 DUT Position : Touch Channel : 1 1 gram SAR value : 0.091 W/kg 10 gram SAR value : 0.058 W/kg Area Scan Peak SAR : 0.082 W/kg Zoom Scan Peak SAR : 0.170 W/kg Report No：077218R-HPUSP09V01 Page: 115 of 136 Version:1.0 Report No：077218R-HPUSP09V01 Page: 116 of 136 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.60 °C Ambient Temp. : 24.20 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.067 W/kg Power Drift-Finish: 0.070 W/kg Power Drift (%) : 4.376 DUT Position : Touch Channel : 6 1 gram SAR value : 0.086 W/kg 10 gram SAR value :…

Text truncated - open the document above for the full version.
