RQKSMARTNL-RF2000UHF-RFID READER

Leader In Mobile 1 September (Ver. 1.1) SmartNL-RF2000 User Guide Leader In Mobile 2 Copyright All rights reserved. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service SAMMI INFORMATION SYSTEM CO.,LTD. manufactured equipment and is not to be released, reproduced, or used for any other purpose without the written permission of SAMMI INFORMATION SYSTEM CO.,LTD. Throughout this manual, trademarked names might be used. Rather than put a trademark ( TM ) symbol in every occurrence of a trademarked name, we state herein that we are using the names only in an editorial fashion, and to the benefit of the trademark owner, with no intention of infringement. Warranty Information SAMMI INFORMATION SYSTEM CO.,LTD. warrants products manufactured by it to be free of defects in material or workmanship under normal use and service for a period of one year from date of shipment. This warranty is specifically limited to the replacement or repair of any such warrantable defects, without charge, when the complete product is returned to SAMMI INFORMATION SYSTEM CO.,LTD. freight prepaid. Contact the factory ( or its distributors ) for a Return Material Authorization (RMA) number before returning the product. SAMMI INFORMATION SYSTEM CO.,LTD. shall be the sole judge of the warrant ability of alleged product defects. Products that are returned for warranty examination and that are found to be non- warrantable are chargeable and are returned freight collect. Upon request, an estimate will be provided before any chargeable repairs are attempted. Warrantable products are repaired or replaced at no charge. SAMMI INFORMATION SYSTEM CO.,LTD. SHALL NOT BE LIABLE FOR WARRANTY IN ANY AMOUNT EXCEEDING THE PURCHASE PRICE OF THE GOODS. SAMMI INFORMATION SYSTEM CO.,LTD. SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER IN CONTRACT, OR OTHERWISE. The buyer acknowledges that he/she is not relying on the seller’s skill or judgment to select or furnish goods suitable for any particular purpose and that there are no warranties that extend beyond the Leader In Mobile 3 description on the face here of. This warranty extends only to the original purchaser, and shall not apply to any products or parts that have been subject to misuse, neglect, accident, or abnormal conditions or operations. Claims for damage in transit are directed to the freight carrier upon receipt. Disclaimers The information in this manual has been carefully checked and is believed to be accurate. SAMMI INFORMATION SYSTEM CO.,LTD. assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. SAMMI INFORMATION SYSTEM CO.,LTD. assumes no responsibility for any inaccuracies that may be contained in this document. SAMMI INFORMATION SYSTEM CO.,LTD. makes no commitment to update or to keep current the information contained in this manual. SAMMI INFORMATION SYSTEM CO.,LTD. reserves the right to make improvements to this document and/or product at any time and without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SAMMI INFORMATION SYSTEM CO.,LTD. © Copyright 2001 by SAMMI INFORMATION SYSTEM CO.,LTD. All rights reserved. Leader In Mobile 4 FCC Information to User This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) the device may not cause interference, and (2) the device must accept any interference, including interference that may cause undesired operation of this device. Leader In Mobile 5 Safety message Notices for the Safety’ should be complied by the users to use the product safely and correctly and prevent the occurrence of any accident or danger. 1. Supply the power according to the condition described in the product rated power specification. It may cause the electric shock, fire, malfunction, product damage or deterioration. 2. At first power input, you should check the input power. It may cause the fire or product damage. 3. When applying the power, you should confirm the completion of checking If not, it may cause the fire or product damage. 4. Do not keep the product in the place with high humidity or possible hazard to submersion. It may cause the destruction of insulation or deterioration of product function. 5. At first power input, you should check the input power. It may cause the fire or product damage. 6. Do not put the product in the fire or boil or disassemble it. It may cause the fire or explosion. 7. Connect the external signal cable or power cable correctly. If not, it may cause the fire or product damage. 8. After installation, remove foreign materials (work tools, electric cables, bolt). It may cause the fire, failure or malfunction. 9. Do not carry out the wiring work while applying the electric current. It may cause the injury or product damage. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury Leader In Mobile 6 Indicates a potentially hazardous situation which, if not avoided, could result in minor injury or product damage. 1. Do …

Text truncated - open the document above for the full version.

11F Kolon Aston Bldg, 505-14, Gasan-dong,Guemcheon-Gu,Seoul,153-803 KOREA TEL No : +82 2 790-5505 FAX No : +82 2 797-9206 June 30, 2010 Timco Engineering, Inc. 849 NW State Road 45 P.O.Box 370 Newberry,m Florida 32669 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: RQKSMARTNL-RF2000 including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sammi Information Systems Co, Ltd. LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyung-Taek Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, Arthur Kim Assistant Manager

11F Kolon Aston Bldg, 505-14, Gasan-dong,Guemcheon-Gu,Seoul,153-803 KOREA TEL No : +82 2 790-5505 FAX No : +82 2 797-9206 June 30, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Sammi Information Systems Co, Ltd. FCC ID: RQKSMARTNL-RF2000 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Sammi Information Systems Co, Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Sammi Information Systems Co, Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX RQKSMARTNL-RF2000 SCH DIA.pdf Parts list CONF APPENDIX RQKSMARTNL-RF2000 PL.pdf Block diagram CONF APPENDIX RQKSMARTNL-RF2000 BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX RQKSMARTNL-RF2000 OpDes.pdf External Photos SHORT-TERM CONF RQKSMARTNL-RF2000 EXT Photo.pdf Internal Photos SHORT-TERM CONF RQKSMARTNL-RF2000 INT Photo.pdf Test-Setup Photos SHORT-TERM CONF RQKSMARTNL-RF2000 Test Photo.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF RQKSMARTNL-RF2000 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Arthur Kim Assistant Manager

11F Kolon Aston Bldg, 505-14, Gasan-dong, Guemcheon-Gu,Seoul,153-803 KOREA TEL No : +82 2 790-5505 FAX No : +82 2 797-9206 ATTESTATION STATEMENT In re : Sammi Information Systems Co, Ltd. FCC ID: RQKSMARTNL-RF2000 Date : June 30, 2010 15.247(a)(1) The hopping sequence must be pseudorandom all Channels are used equally on average the receiver input bandwidth is approximately equal to the transmit ba ndwidth the receiver hops in sequence with the transmitted signal 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) The system does not coordinate its channel selection/hopping sequence with oth er frequency hopping systems for the express purpose of avoiding the simultane ous occupancy of individual hopping frequencies by multiple transmitters. Sincerely, Arthur Kim Assistant Manager

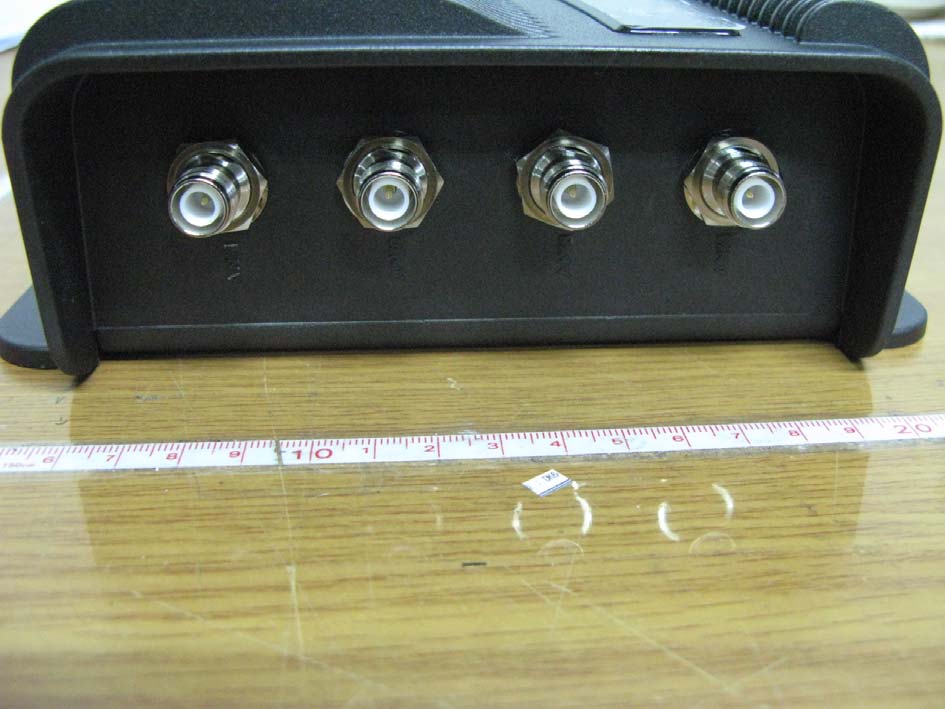

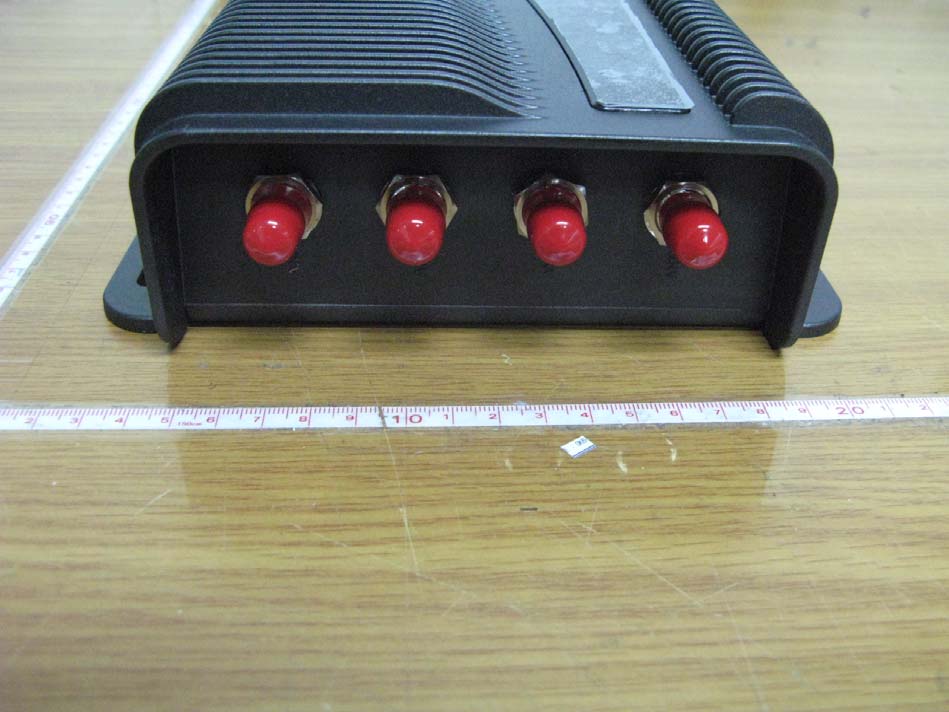

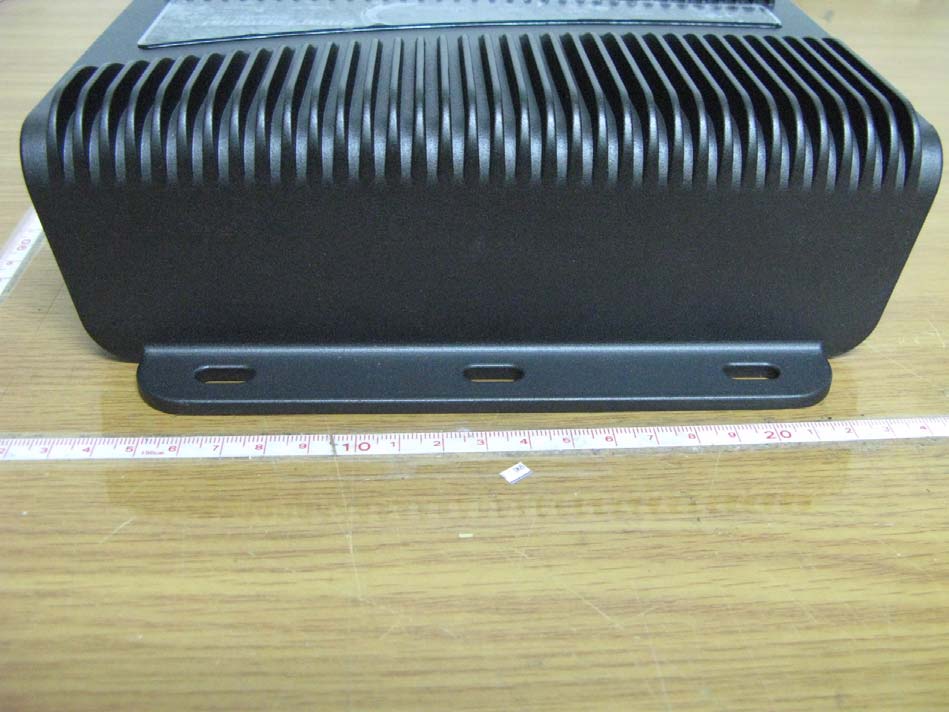

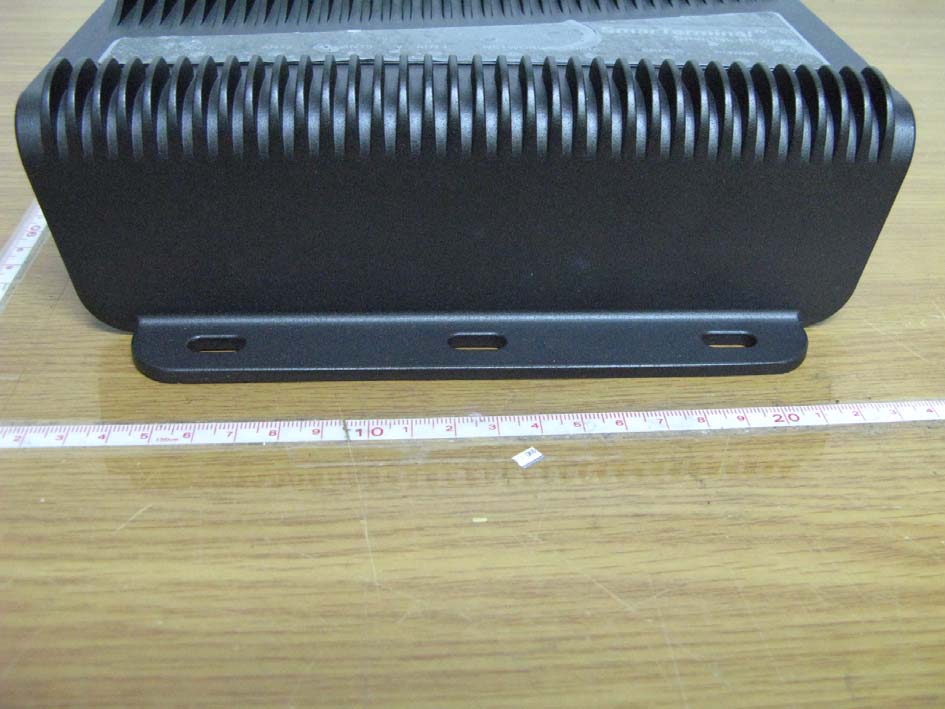

FCC ID: RQKSMARTNL-RF2000 Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 8 FCC ID: RQKSMARTNL-RF2000 Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 8 FCC ID: RQKSMARTNL-RF2000 Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 8 FCC ID: RQKSMARTNL-RF2000 Copyright ○ c 2010, LTA Co., Ltd. Page 4 of 8 ANT Port FCC ID: RQKSMARTNL-RF2000 Copyright ○ c 2010, LTA Co., Ltd. Page 5 of 8 MACRO260-919(180K) FCC ID: RQKSMARTNL-RF2000 Copyright ○ c 2010, LTA Co., Ltd. Page 6 of 8 MACRO200-915(RHCP) FCC ID: RQKSMARTNL-RF2000 Copyright ○ c 2010, LTA Co., Ltd. Page 7 of 8 AC/DC Adapter_STD-0505P DC/DC Adapter_PA-3550B FCC ID: RQKSMARTNL-RF2000 Copyright ○ c 2010, LTA Co., Ltd. Page 8 of 8 CAR Adapter_PC-050400C

FCC ID: RQKSMARTNL-RF2000 Copyright Ⓒ 2010, LTA Co., Ltd. SAMPLE LABEL & LOCATION FCC ID: RQKSMARTNL-RF2000 M/N: SmartNL-RF2000 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) the device may not cause interference, and (2) the device must accept anyinterference, including interference that may cause undesired operation of this device. M ade in Korea

FCC ID: RQKSMARTNL-RF2000 Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 2 FCC ID: RQKSMARTNL-RF2000 Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 2

ATTACHMENT FCC ID: RQKSMARTNL-RF2000 ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 29.3 dBm + (5.45)dBi EIRP = 34.75dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (851 * 3.51) / (4 * 20 2 * π) S = 0.5942 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(851 * 3.51 / 4π) R = 15.42Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log-1 ((5.45) / 10) G = 3.51

Ref. No.: LR500191006F Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 54 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : UHF-RFID Reader Manufacturer : Sammi Information Systems Co., Ltd. Model name : SmartNL-RF2000 Test Device Serial No.: : - Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 902.75 ~ 927.25MHz RF power : 0.85 W - Conducted Data of issue : July 2, 2010 This test report is issued under the authority of: The test was supervised by: Kyung-Taek LEE, Technical Manager Hyun-Chae You, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 Dates of Tests: June 23~July 2, 2010 Test Report S/N: LR500191006F Test Site : LTA CO., LTD. RQKSMARTNL-RF2000 Sammi Information Systems Co., Ltd. Ref. No.: LR500191006F Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 54 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND – EDGE (Conducted) ------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS ------------------------------------------- 3 4 6 6 7 7 9 11 14 16 19 24 32 53 Ref. No.: LR500191006F Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 54 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2010-09-30 ECT accredited Lab. RRL KOREA KR0049 2011-09-01 EMC accredited Lab. FCC U.S.A 610755 2011-04-22 FCC filing VCCI JAPAN R2133, C2307 2011-06-21 VCCI registration IC CANADA IC5799 2012-05-14 IC filing Ref. No.: LR500191006F Copyright ○ c 2010, LTA Co., Ltd. Page 4 of 54 2. Information’s about test item 2-1 Applicant Company name : Sammi Information Systems Co., Ltd. Address : 11F Kolon Aston Bldg, 505-14, Gasan-dong, Guemcheon-Gu, Seoul, 153-803 KOREA Tel / Fax : +82 2 790-5505/ +82 2 797-9206 2-2 Manufacturer Company name : NESSLAB Co., Ltd. Address : 5F 23-14 Jang-dong Yuseong-gu Daejeon 305-345 Korea Tel / Fax : +82-420-867-1081 / +82-42-867-1083 2-2 Equipment Under Test (EUT) Trade name : UHF-RFID Reader FCC ID : RQKSMARTNL-RF2000 Model name : SmartNL-RF2000 Serial number : Identification Date of receipt : June 23, 2010 EUT condition : Pre-production, not damaged Antenna type : Patch Antenna/Model name:MACRO260-919(180K) Max Gain 5.45dBi Patch Antenna/Model name:MACRO200-915(RHCP)Max Gain 5.33dBi Frequency Range : 902.75 ~ 927.25MHz RF output power : 0.85 W- Conducted Number of channels : 50 Channel spacing : 500KHz Channel Access Protocol : Frequency Hopping Power Source : 5.0VDC by Adapter 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 902.75 914.75 927.25 Ref. No.: LR500191006F Copyright ○ c 2010, LTA Co., Ltd. Page 5 of 54 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer PC HP Compaq dx7400 Microtower CNG8330J9R HP Monitor HPL1710 CNC816QH92 HP KEYBOARD SK-8115 68A-04Q6 DELL MOUSE MO56UO LNB33130022 DELL PRINTER Deskjet 600K SG7631B1XX HP 2-5 Adapter Description Adatper Type Model Name Input Output Manufacturer Note AC_DC Adapter STD-0505P 100 ~ 240 Vac / 47 ~ 63 Hz +5Vdc / 5AAdapter Technology Co., Ltd. Tested DC_DC Adapter PA-3550B 9V TO 30V +5Vdc / 3APULSETECH CO., LTD. Tested CAR Adapter PC-050400C 12Vdc / 24Vdc+5Vdc / 4APERFECT POWER CO., LTD. Tested Ref. No.: LR500191006F Copyright ○ c 2010, LTA Co., Ltd. Page 6 of 54 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies ≥ 50 hops C 15.247(a) 20 dB Bandwidth - C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was t…

Text truncated - open the document above for the full version.

FCC ID: RQKSMARTNL-RF2000 Copyright Ⓒ 2010, LTA Co., Ltd. Radiated Emission FCC ID: RQKSMARTNL-RF2000 Copyright Ⓒ 2010, LTA Co., Ltd. Conducted Emission
