RQKSMARTRFGUNUHFUHF RFID Reader

- 1 - SmartCompact RFID GUN Reference Guide Date : 2007. 04.09 - 2 - Disclaimer SmarTerminal and SmartCompact are registered trademarks of Sammi Information Systems Co., Ltd. All other brand names, product names, or trademarks belongs to their respective holders. Headquarters Sammi Information Systems Co., Ltd 103-15 Galwor-dong, Yongsan-ku, Seoul, Korea Tel. 82 -2-790-5508 / Fax. 82-2-790-5509 Email. [email protected] Web. www.sammicomputer.co.kr US Office SmartTerminal Computers, Inc. 15605 Carmenita Road Suit 209, Santa Fe Springs, CA 90670 Tel. 1-562-921-5689 / Fax. 1-562-921-5674 Email. [email protected] Web. www.smarterminal.com - 3 - SPECIFICATION LIST ITEMS DESCRIPTION Operation Frequency 902.3 ~927.7 Mhz Air Interface Protocol ISO 18000-6 Type B, Type C & EPC Global 1 Gen 2 Operation Voltage 5V Reading Distance(Read) 1.5m(MAX) Baud rate 9600 bps Material ABS+PC Occupiedchannel bandwidth 200kHz SMCRFID GUN RF Output Power Max. 0.5W Make sure you have everything SmartCompact RFID GUN Main unit Standard BATTERY (2200mA) Power ADAPTER Basic Antenna Size(80*80) Antenna Model No.: SMANTH10 - 4 - User’s Information Cautions Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received. Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. RF exposure statement “To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use only the supplied antenna.” - 5 - Appearance – Left side GUN-TRIGGER DC JACK RUBBER CAP Features Feature Function GUN-TRIGGER : Press the button in tag readin DC JACK RUBBER CAP : Open the cap to charge the DC JACK of a RFID gun. - 6 - Right side BATTERY-LOCK CAP BATTERY The direction to take it off Feature Feature Function BATTERY-LOCK CAP Press a button when taking off a battery - 7 - Drawings IrDA WINDOW Features Feature Function IrDA WINDOW : Get close to the proper location in SmartCompact communication. - 8 - RFID GUN TRIGGER Features Feature Function RFID GUN TRIGGER Read tags - 9 - LED Status Power Remaining battery Communication status module POWER (1~5 levels) LED Status 1. When only a battery is connected 2. When battery is charging Green (over 80%) Green(Full charging) Blue ( 30%~80%) Red(On charging) Red(less than 30%)

496,wonchun-dong,yeongtong-ku,suwon,kyung ki-do,Korea TEL No : +82-31-217-8252 FAX No : +82-31-217-8254 June 25, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : SAMMI Information Systems Co., Ltd. FCC ID : RQKSMARTRFGUNUHF Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics ( [RQKSMARTRFGUNUHF] SCH-1.pdf / [RQKSMARTRFGUNUHF] SCH-2.pdf), Parts list( [RQKSMARTRFGUNUHF] PL-1.pdf / [RQKSMARTRFGUNUHF] PL-2.pdf), Block diagram ( [RQKSMARTRFGUNUHF] BLK-1.pdf / [RQKSMARTRFGUNUHF] BLK-2.pdf) and Operational description ( [RQKSMARTRFGUNUHF] Op Des.pdf). The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, j.k.kim / Manager

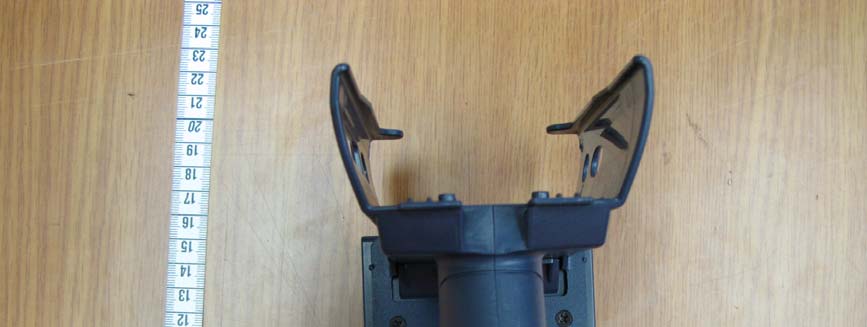

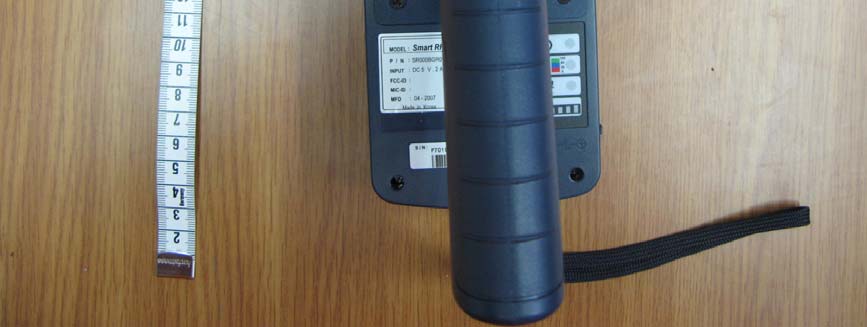

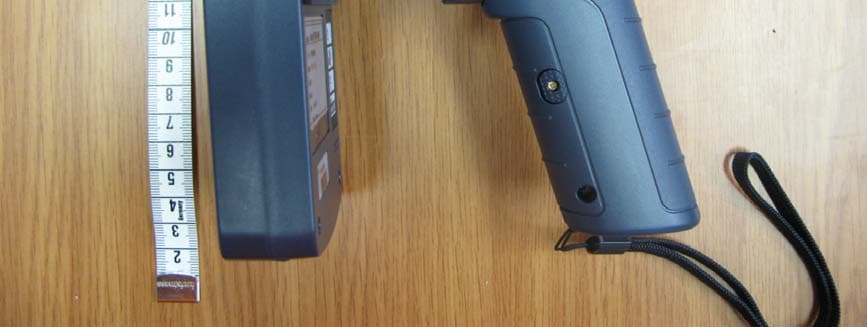

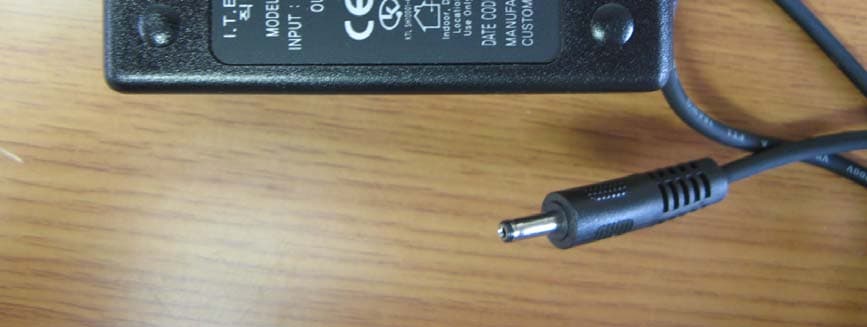

Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 4 Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 4 Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 4 Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 4

Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright Ⓒ 2007, LTA Co., Ltd. SAMPLE LABEL & LOCATION Label FCC ID:RQKSMARTRFGUNUHF M/N: Smart RF GUN (UHF) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in KOREA

Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 8 Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 8 Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 8 Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 8 Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 8 RFID Module Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 8 Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 7 of 8 Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 8 of 8

ATTACHMENT FCC ID: RQKSMARTRFGUNUHF ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 27.49 dBm + 1.0dBi EIRP = 28.49dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (561.05 * 1.26) / (4 * 20 2 * π) S = 0.1406 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(561.05 * 1.26 / 4π) R = 7.5 Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log-1 (1 / 10) G = 1.26 ATTACHMENT FCC ID: RQKSMARTRFGUNUHF

Ref. No.: LR500190706D Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 30 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com CERTIFICATIO OF COMPLIANCE FCC ID. APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : UHF RFID Reader Manufacturer : SAMMI Information Systems Co., Ltd. Model name : Smart RF GUN Test Device Serial No.: : P701SC0004 Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 902.3 ~ 927.7MHz RF power : 0.561 W - Conducted Data of issue : June 27, 2007 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 Dates of Tests: June 19 ~ 27, 2007 Test Report S/N: LR500190706D Test Site : LTA CO., LTD. RQKSMARTRFGUNUHF SAMMI Information Systems Co., Ltd. Ref. No.: LR500190706D Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 30 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TTANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND – EDGE (Conducted) ------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS ------------------------------------------- 3 4 5 5 6 6 8 11 13 15 17 23 26 29 Ref. No.: LR500190706D Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 30 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2007-09-30 ECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500190706D Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 30 2. Information’s about test item 2-1 Client Company name : SAMMI Information Systems Co., Ltd. Address : 496,wonchun-dong, yeongtong-ku, suwon, kyung ki-do, Korea Tel / Fax : +82-31-217-8252 / +82-31-217-8254 2-2 Manufacturer Company name : SAMMI Information Systems Co., Ltd. Address : 7-9FL., Seo Jo Bldg, 103-5, Galwor-Dond, Yong San-Ku, Seoul, Korea 2-2 Equipment Under Test (EUT) Trade name : UHF RFID Reader FCC ID : RQKSMARTRFGUNUHF Model name : Smart RF GUN (UHF) Serial number : P701SC0004 Date of receipt : June 18, 2007 EUT condition : Pre-production, not damaged Antenna type : Ceramic Patch Antenna Gain 1dBi Frequency Range : 902.3 ~ 927.7MHz RF output power : 27dBm Number of channels : 128 Channel spacing : 200KHz Channel Access Protocol : Frequency Hopping Power Source : Adaptor: 100-240VAC/0.5A, 5VDC/3A Battery: Rechargeable Lithium Ion Battery 2200 mAh 3.7VDC 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 902.3 914.9 927.7 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer PDA Smart Compact N/A SAMMI - - - - Ref. No.: LR500190706D Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 30 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies > 50 hops C 15.247(a) 20 dB Bandwidth < 1 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR500190706D Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 30 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span = …

Text truncated - open the document above for the full version.

Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 2 Radiated Emission Model No.: Smart RF GUN(UHF) FCC ID: RQKSMARTRFGUNUHF Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 2 Conducted Emission
