RQKTITANT8INDUSTRIAL TABLET COMPUTER

Industrial PC [ User’s guide ] SAMMI Information Systems Co., Ltd. Version 1.1 on July 2011 SmarTerminal® |Fully rugged TiTAN T8 1 1 Leader in RF Technology Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties regarding the contents of this manual and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Furthermore, the manufacturer reserves the right to revise this publication or make changes in the specifications of the product described within it at any time without notice and without obligation to notify any person of such revision. Trademarks SmarTerminal and TiTan T8, Microsoft, Windows and other trademarks and product names used in this manual are the properties of their respective owners and are acknowledged. Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without the express written consent of the manufacturer. SmarTerminal® |Fully rugged TiTAN T8 2 2 Leader in RF Technology Head Quarters Sammi information Systems Co., Ltd. Corporate Headquarters Address : 11F Kolon Digital Tower Aston Bldg, Gasan Digital 1Ro 212 Geumcheon-gu, Seoul, 153-708, Korea Telephone : 82-2-790-5505 Fax : 82-2-790-5509 Email: [email protected] Web: www.sammicomputer.co.kr US Office Smarterminal Computers, Inc. US Subsidiary of Sammi information Systems co., Ltd Marketing and Sales Office Address : 5300 Orange Ave, Suite 212, Cypress, CA 90630 Telephone : 1-714-761-5300 Fax : 1-562-252-8272 Email: [email protected] Web: www.smarterminal.com SmarTerminal® |Fully rugged TiTAN T8 3 3 Leader in RF Technology Limited Warranty SmarTerminal warrants its products to be free from defects in materials and workmanship and to conform to SmarTerminal published specifications applicable to the products purchased at the time of shipment. This warranty does not cover any product which is (i) improperly installed or used; (ii) damaged by accident or negligence, including failure to follow the proper maintenance, service, and cleaning schedule; or (iii) damaged as a result of (A) modification or alteration by the purchaser or other party, (B) excessive voltage or current supplied to or drawn from the interface connections, (C) static electricity or electro-static discharge, (D) operation under conditions beyond the specified operating parameters, or (E) repair or service of the product by anyone other than SmarTerminal or its authorized representatives. This warranty shall extend from the time of shipment for the duration published by SmarTerminla for the product at the time of purchase ("Warranty Period"). Any defective product must be returned (at purchaser’s expense) during the Warranty Period to SmarTerminal’s factory or authorized service center for inspection. No product will be accepted by SmarTerminal without a Return Materials Authorization, which may be obtained by contacting SmarTerminal. In the event that the product is returned to SmarTerminal or its authorized service center within the Warranty Period and SmarTerminal determines to its satisfaction that the product is defective due to defects in materials or workmanship, SmarTerminal at its sole option, will either repair or replace the product without charge, except for return shipping to SmarTerminal. EXCEPT AS MAY BE OTHERWISE PROVIDED BY APPLICABLE LAW, THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER COVENANTS OR WARRANTIES, EITHER EXPRESSED OR IMPLIED, ORAL OR WRITTEN, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SmarTerminal® |Fully rugged TiTAN T8 4 4 Leader in RF Technology Important safety information Before you use the TiTan T8 (referred to as the TiTAN T8), read these safety instructions and the operation instructions in this handbook. Failure to observe all these instructions voids the Limited Warranty and may lead to suspension or denial of services to the offender, or legal action, or both. Follow any special regulations governing the use of the TiTAN T8 and, if radio enabled, always switch it off in areas where radio devices are forbidden or when the radio device can cause interference or danger. Always follow any safety laws and regulations pertaining to the use of cell phones and two-way radios, because these laws and regulations typically apply to the use of the wireless-enabled TiTAN T8. Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, and wherever blasting operations are in progress or in any area in which restrictions on radio transmissions are imposed. Switch off the TiTAN T8 when in an aircraft. The TiTAN T8 is not FAA-approved for use on aircraft. The effect of the use of the TiTAN T8 in aircraft is unknown. Using the TiTAN T8 in an aircraft may affect aircraft instrumentation, communication, and performance; may disrupt the network; and may be illegal. Operating the wireless-enabled TiTAN T8 may interfere with the functioning of inadequately protected medical devices such as pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions. Radio signals from your TiTAN T8 will not affect the operation of most modern equipment, but certain electronic equipment, including automotive systems, may not be shielded against radio signals from your TiTAN T8. Check with the manufacturer of your motor vehicle or the manufacturer’s representative to determine whether using the TiTAN T8 will present any safety issues. Avoid using the TiTAN T8 in any environment that requires your full attention, such as when driving a vehicle. If you need to use your TiTAN T8 while driving, have a passenger use it for you or find a safe location to halt your…

Text truncated - open the document above for the full version.

11F Kolon Aston Bldg, 505-14, Gasan-dong, Guemcheon-Gu,Seoul,153-803 KOREA TEL No : +82 2 790-5505 FAX No : +82 2 797-9206 October 14, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Sammi Information Systems Co, Ltd. FCC Application for FCC ID: RQKTITANT8 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Verification procedure to the class A digital device portion of this composite filing. Regards, Arthur Kim Assistant Manager

11F Kolon Aston Bldg, 505-14, Gasan- dong,Guemcheon-Gu,Seoul,153-803 KOREA TEL No : +82 2 790-5505 FAX No : +82 2 797-9206 October 14, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: RQKTITANT8 including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sammi Information Systems Co, Ltd. LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyung-Taek Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, Arthur Kim Assistant Manager

11F Kolon Aston Bldg, 505-14, Gasan-dong,Guemcheon- Gu,Seoul,153-803 KOREA TEL No : +82 2 790-5505 FAX No : +82 2 797-9206 October 14, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Sammi Information Systems Co, Ltd. FCC Application for FCC ID: RQKTITANT8 Declaration Gentlemen: We declare that TiTan T8 is used only for the GPRS 1) GPRS module[MC8305 (FCC ID:N7NMC8355)] is applied for GSM/GPRS/EDGE but this product(TiTan T8) is used only for the GPRS; It is possible by softwarely 2) As for the Wlan,the device does not have “Ad Hoc on non-US frequency” and/or “on DFS frequencies” Regards, Arthur Kim / Assistant Manager Company name: Sammi Information Systems Co, Ltd. Phone:(82)2-790-5505

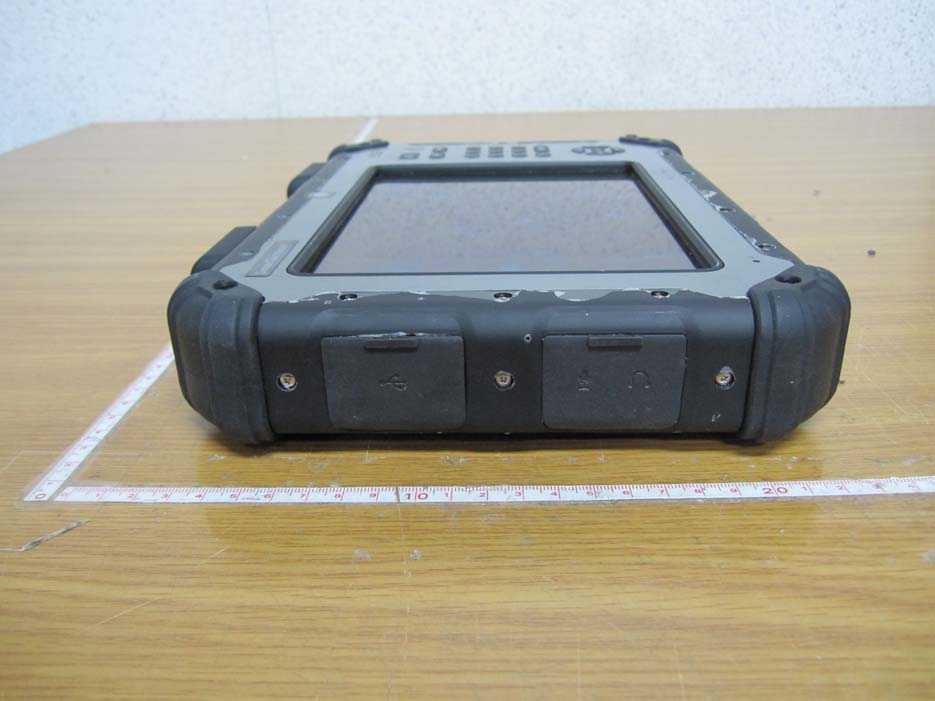

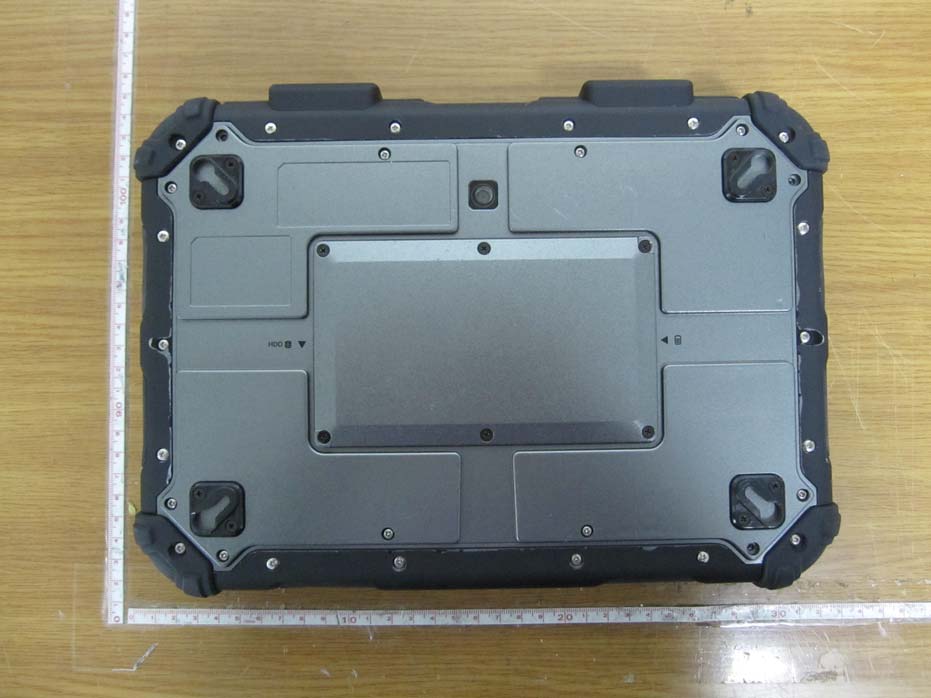

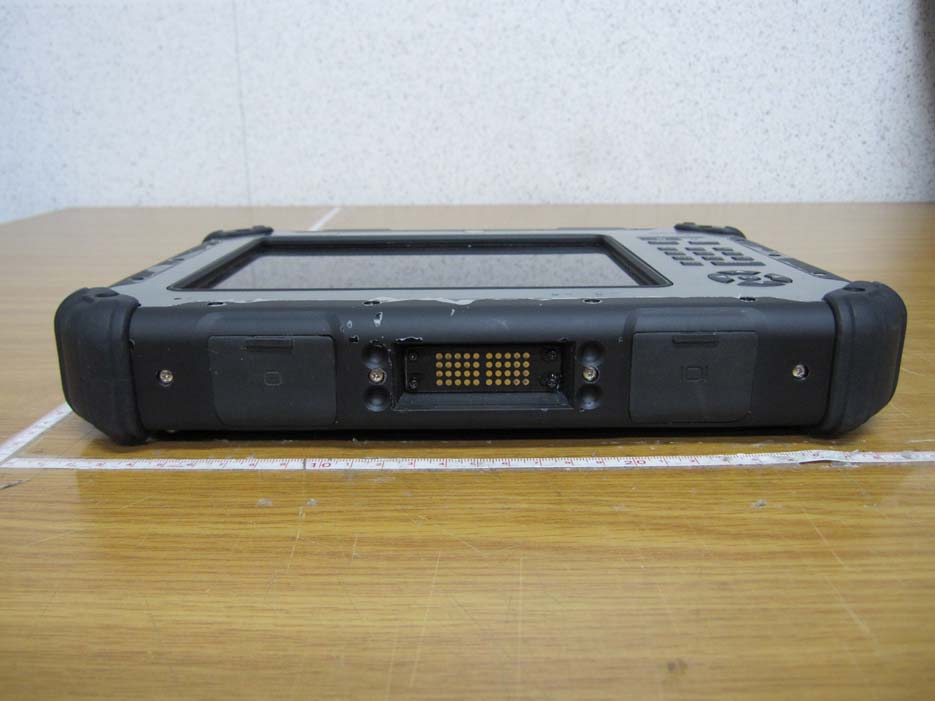

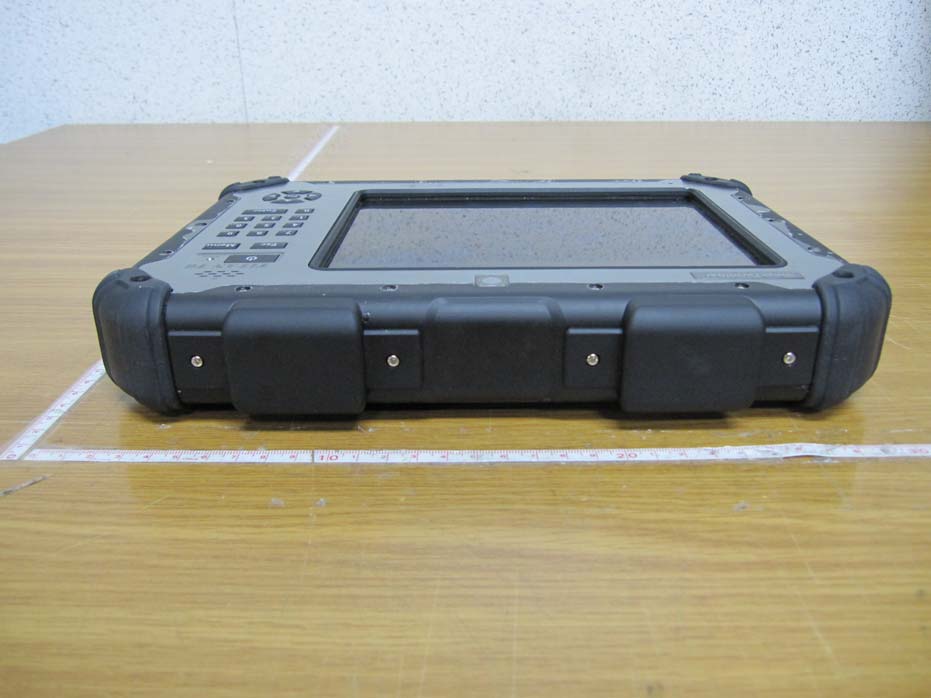

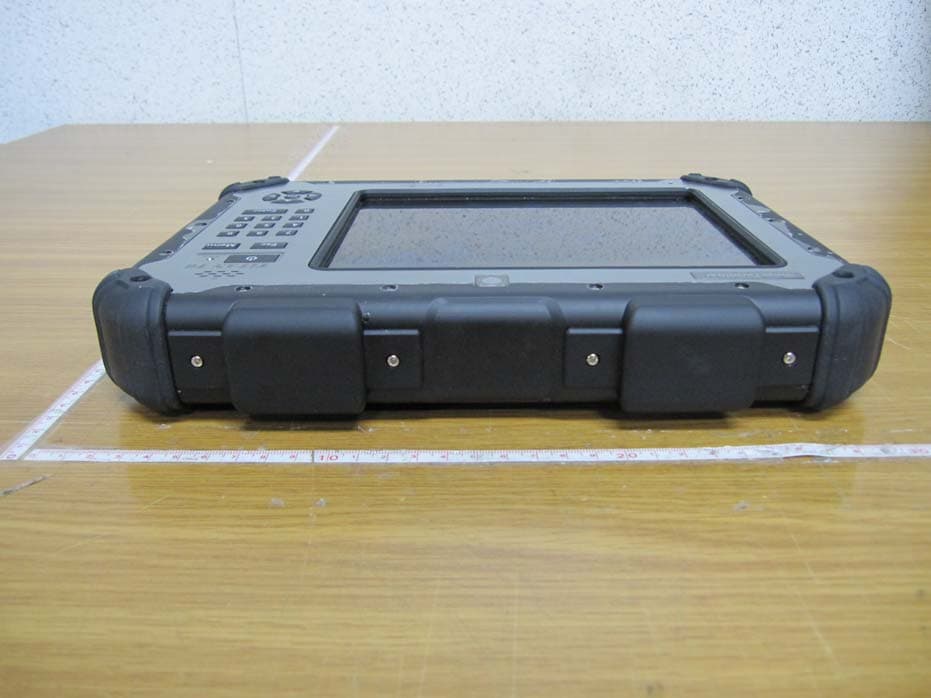

FCC ID: RQKTITANT8 Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 3 FCC ID: RQKTITANT8 Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 3 FCC ID: RQKTITANT8 Copyright ○ c 2011, LTA Co., Ltd. Page 3 of 3

SAMPLE LABEL & LOCATION Copyright Ⓒ 2011, LTA Co., Ltd. Page 1 of 1

FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 1 of 14 Main Board FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 2 of 14 WLAN Module FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 3 of 14 Bluetooth Module FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 4 of 14 GPRS Module (MC8305) FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 5 of 14 3G Interface Board FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 6 of 14 Key Pad Board FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 7 of 14 Vehicle I/O Board FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 8 of 14 LCD FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 9 of 14 Main Battery FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 10 of 14 Battery Interface Board FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 11 of 14 GPS FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 12 of 14 Lan-DC Jack Board FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 13 of 14 GPRS Antenna FCCID : RQKTITANT8 Copyright Ⓒ 2011, LTA Co., Ltd. Page 14 of 14 WLAN & Bluetooth Antenna

ATTACHMENT FCC ID: RQKTITANT8 ** MPE Calculations for GSM 850 ** The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 32.07dBm + 0dBi EIRP = 32.07dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (1610.65*1.00) / (4 * 20 2 * π) S = 0.3204 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(1610.65*1.58/ 4π) R = 14.23Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (0 / 10) G = 1.00 ATTACHMENT FCC ID: RQKTITANT8 ** MPE Calculations for GSM 1900 ** The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 29.26 dBm + 0dBi EIRP = 29.26 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (843.33*1.00) / (4 * 20 2 * π) S = 0.1678 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(843.33*1.00/ 4π) R = 8.19Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (0 / 10) G = 1.00 ATTACHMENT FCC ID: RQKTITANT8 ** MPE Calculations for WLAN (2.4GHz) ** **2.4GHz Bands Worst Case of 802.11n(20MHz) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 19.11dBm + 0dBi EIRP = 19.11dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (81.47* 1.00) / (4 * 20 2 * π) S = 0.0162mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(81.47* 1.00/ 4π) R = 2.55Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log-1 (0 / 10) G = 1.00 ATTACHMENT FCC ID: RQKTITANT8 ** MPE Calculations for WLAN (5GHz) ** **5.0GHz Bands Worst Case of 802.11an(20MHz) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 15.98 dBm + 0dBi EIRP = 15.98dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (39.63 * 1.00) / (4 * 20 2 * π) S = 0.0079 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(39.63 * 1.00 / 4π) R = 1.78Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log-1 (0 / 10) G = 1.00

R ef . N o . : L R 5 0 0 11111 0 H Copyright c 2011, LTA Co., Ltd. Pag e 1 of 92 243 Jubug-Ri,Yan gji-M y eon, Yongin-Si, Gy eonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http ://www.ltalab.com Dates o f Tests : Oct 4~24,2011 Test Report S/N: LR500111110H Test Site : LTA CO., LTD CERTIFICATION O F COMPLIANCE FCC ID. APPLICANT Equipment Class : Digital Transmission S ystem (DTS ) Manufacturi ng De scri pti on : Industri al PC Manufacturer : S ammi Information Systems Co.,Ltd. Model name : TiTAN T8 Test Device Serial No. : Identical prototype Rule Part(s) : FCC Part 15.247 S ubpart C; ANS I C-63.4-2003 Frequency Range : 2412MHz ~ 2462MHz for 802.11b/g/n : 5745MHz ~ 5825MHz for 802.11a/an Max. Output Power : Max 15.32dBm - Conducted (802.11 b) : Max 14.19dBm - Conducted (802.11g) : Max 19.11dBm - Conducted (802. 11n_20MHz) : Max 18.35dBm - Conducted (802.11n_40MHz) : Max 15.51dBm - Conducted (802.11a) : Max 15.98dBm - Conducted (802.11an_20MHz) : Max 15.97dBm - Conducted (802.11an_40MHz) Data of issue : O ct o ber 25 , 2 011 T his test report is issued under the authority of: T he test was supervised by: Hyun-Chae You, Manager Ki-Hun Cho, T est Engineer Th is test resu lt on ly resp on d s to th e tested samp le. It is n ot allowed to cop y th is rep ort even p artly with ou t th e allowan ce of th e test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. RQKTI TAN T8 Sammi Information Systems Co., Ltd. R ef . N o . : L R 5 0 0 11111 0 H Copyright c 2011, LTA Co., Ltd. Pag e 2 of 92 TA BLE O F CONTEN TS 1. GENERAL INFORMAT ION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST IT EM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TEST S ------------------------------------------------------------------------------ 3.2 T ECHNICAL CHARACTERIST ICS T EST ------------------------------------------------------- 3.2.1 6dB BANDWIDT H ------------------------------------------------------------------------------ 3.2.2 PEAK OUTPUT POWER ----------------------------------------------------------------------- 3.2.3 POWER SPECT RAL DENSIT Y --------------------------------------------------------------- 3.2.4 BAND – EDGE & SP URIOUS ----------------------------------------------------------------- 3.2.5 FIELD ST RENGT H OF HARMONICS ------------------------------------------------------ 3.2.6 AC CONDUCT ED EMISSION S -------------------------------------------------------------- APPENDIX APPENDIX T EST EQUIPMENT USED FOR T EST S -------------------------------------------- 3 4 6 6 7 7 22 36 50 78 88 89 R ef . N o . : L R 5 0 0 11111 0 H Copyright c 2011, LTA Co., Ltd. Pag e 3 of 92 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Addr ess : 2 4 3, Jubug- r i,Yan gji- My eon ,Yo un gin - Si, Ky un ggi- Do , Ko r ea. 44 9- 82 2 Web site : http://www.lt alab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Qualit y control in t he t est ing laboratory is implement ed as per ISO/IEC 17025 which is t he “ General r equir em ent s fo r th e co mp et ent s o f calibr at io n an d t est in g labo r ato ry ”. 1-2 Accredited agencies LT A Co., Lt d. is approved to perform EMC t est ing by the following agencies: Agency Country Accre ditation No. Vali dity Refe ren ce NVLAP U.S.A 200723-0 2012-09-30 ECT accredit ed Lab. RRL KOREA KR0049 2013-04-24 EMC accredit ed Lab. FCC U.S.A 610755 2014-04-27 FCC filing FCC U.S.A 649054 2013-04-13 FCC CAB VCCI JAPAN R2133(10m), C2307 2014-06-21 VCCI registration VCCI JAPAN T-2009 2013-12-23 VCCI registration IC CANADA IC5799 2012-05-14 IC filing R ef . N o . : L R 5 0 0 11111 0 H Copyright c 2011, LTA Co., Ltd. Pag e 4 of 92 2. Information’s about test item 2-1 Client & Manufacturer Company name : Sam m i I n fo rm at ion Sy st em s Co . , Lt d. Addr ess : 11F Kolon Aston Bldg, 505-14, Gasan-dong,Guemcheon-Gu, Seoul,153-803 KOREA T el / Fax : +82 2 790-5505/ +82 2 797-9206 2-2 Equipment Under Test (EUT) Trade name : Indust rial P C FCC ID : RQKT ITANT 8 Model name : TiTAN T8 Serial number : Ident ical prototype Dat e of receipt : Sept ember 19, 2011 EUT co n dit ion : P r e- pr o duct io n , no t dam aged Antenna t ype : Int ernal P iFA ant enna Max gain -3dBi gain Frequency Range : 2412MHz ~ 2462MHz for 802.11b/g/n : 5745MHz ~ 5825MHz for 802.11a/an RF output power : Max 15.40dBm - Conducted (802.11b) :Max 14.19dBm - Conducted (802.11g) :Max 1 9 .11 dBm - Con duct ed (8 02 .1 1n _2 0 MHz) :Max 18.35dBm - Conducted (802.11n_40MHz) :Max 15.51dBm - Conducted (802.11a) :Max 15.98dBm - Conducted (802.11an_20MHz) :Max 15.97dBm - Conducted (802.11an_40MHz) Number of channels :13 for 802.11b & 802.11g & 802.11n_20MHz :11 for 802.11n_40MHz :5 for 802.11a & 802.11an_20MHz :2 for 802.11an_40MHz Type of Modulation : CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QP SK, BP SK for OFDM Transfer Rate : 11/5.5/2/1Mbps for 802.11b : 54/48/36/24/18/12/9/6Mbps for 802.11g &802.11a : Up to 300.0Mbps P o wer So ur ce : 7 .4 Vdc by Batt er y ( Li-P o lym er Batt er y) Power for Adaptor. : Input: 100-240VAC, 1.5A Output: 12.0VDC, 5A Firmware Version : V1.0 R ef . N o . : L R 5 0 0 11111 0 H Copyright c 2011, LTA Co., Ltd. Pag e 5 of 92 2-3 Tested frequency LOW MID HIGH Frequency (MH z) for 802.11b/g/n20 2412 2437 2462 Frequency (MH z) for 802.11n40 2422 2437 2452 Frequency (MH z) for 802.11a/an20 5745 5785 5825 Frequency (MH z) for 802.11an40 5755 - 5795 2-4 Description of Test modes For 2.4GHz: 11 channels are provided fo r 802.11b, 802.11g an d 802.11n_20MHz CHANNEL FREQ UENCY CHANNEL FREQ UENCY 1 2412MH z 7 2442MH z 2 2417MH z 8 2447MH z 3 2422MH z 9 2452MH z 4 2427MH z 10 2457MH z 5 2432MH z 11 2462MH z 6 2437MH z 7 ch…
