RQKSMARTRFGUNRFID READER

- 1 - SmartCompact RFID GUN Reference Guide Date : 2007. 04.09 - 2 - Disclaimer SmarTerminal and SmartCompact are registered trademarks of Sammi Information Systems Co., Ltd. All other brand names, product names, or trademarks belongs to their respective holders. Headquarters Sammi Information Systems Co., Ltd 103-15 Galwor-dong, Yongsan-ku, Seoul, Korea Tel. 82 -2-790-5508 / Fax. 82-2-790-5509 Email. [email protected] Web. www.sammicomputer.co.kr US Office SmartTerminal Computers, Inc. 15605 Carmenita Road Suit 209, Santa Fe Springs, CA 90670 Tel. 1-562-921-5689 / Fax. 1-562-921-5674 Email. [email protected] Web. www.smarterminal.com - 3 - SPECIFICATION LIST ITEMS DESCRIPTION Operation Frequency 13.56Mhz Air Interface Protocol ISO14443A & B ,ISO15693 Operation Voltage 5V Reading Distance 5~10cm Baud rate 9600 bps SMCRFID GUN Material ABS+PC Make sure you have everything SmartCompact RFID GUN Main unit Standard BATTERY (2200mA) Power ADAPTER Accessories Basic Antenna Size(80*80) Antenna Model No.: SMANTH10 Optional Antenna Size(42*53.9) Antenna Model No.: SMM_SKT_ANT_ES2 - 4 - User’s Information Cautions Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received. Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. - 5 - Appearance – Left side GUN-TRIGGER DC JACK RUBBER CAP Features Feature Function GUN-TRIGGER : Press the button in tag readin DC JACK RUBBER CAP : Open the cap to charge the DC JACK of a RFID gun. - 6 - Right side BATTERY-LOCK CAP BATTERY The direction to take it off Feature Feature Function BATTERY-LOCK CAP Press a button when taking off a battery - 7 - Drawings IrDA WINDOW Features Feature Function IrDA WINDOW : Get close to the proper location in SmartCompact communication. - 8 - RFID GUN TRIGGER Features Feature Function RFID GUN TRIGGER Read tags - 9 - LED Status Power Remaining battery Communication status module POWER (1~5 levels) LED Status 1. When only a battery is connected 2. When battery is charging Green (over 80%) Green(Full charging) Blue ( 30%~80%) Red(On charging) Red(less than 30%)

496,wonchun-dong,yeongtong-ku,suwon,kyung ki-do,Korea TEL No : +82-31-217-8252 FAX No : +82-31-217-8254 April 24, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : SAMMI Information Systems Co., Ltd. FCC ID : RQKSMARTRFGUN Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (File name: [RQKSMARTRFGUN] SCH-1.pdf / [RQKSMARTRFGUN] SCH-2.pdf), Parts list(File name: [RQKSMARTRFGUN] PL-1.pdf / [RQKSMARTRFGUN] PL-2.pdf), Block diagram (File name: [RQKSMARTRFGUN] BLK-1.pdf / [RQKSMARTRFGUN] BLK-2.pdf) and Operational description (File name: [RQKSMARTRFGUN] Op Des.pdf). The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, j.k.kim / Manager

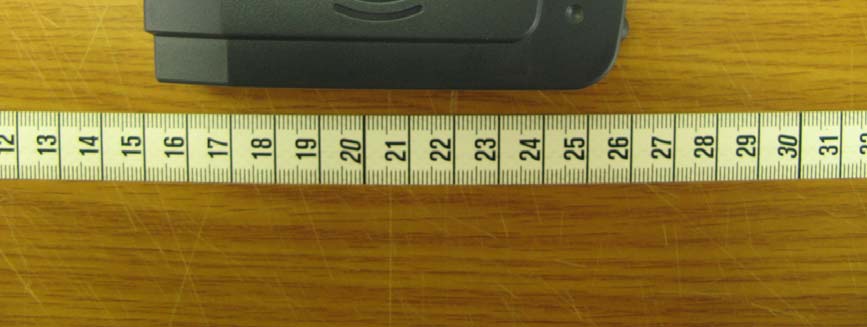

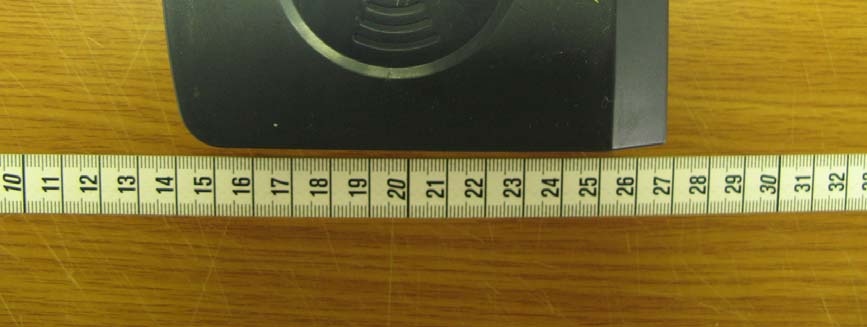

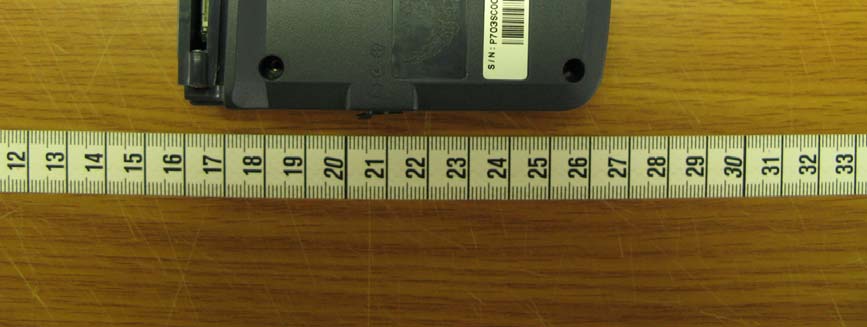

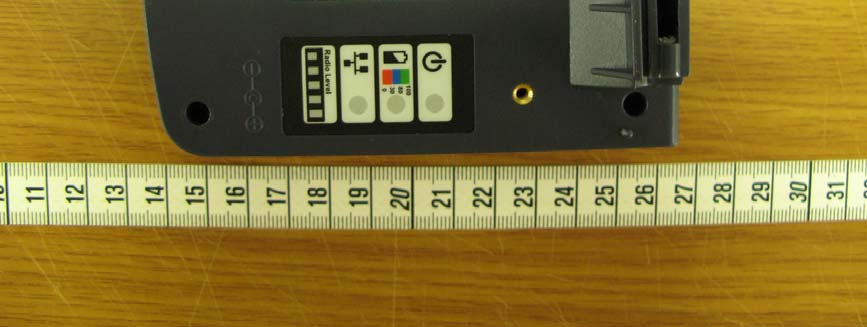

Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 7 Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 7 Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 7 Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 7 Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 7 Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 7 Basic Antenna Case Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 7 of 7 Optional Antenna Case

Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright Ⓒ 2007, LTA Co., Ltd. SAMPLE LABEL & LOCATION Label FCC ID:RQKSMARTRFGUN M/N: Smart RF GUN This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in KOREA

Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 9 Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 9 Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 9 Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 9 13.56MHz RFID Module Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 9 Basic Antenna – Internal Photo Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 9 Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 7 of 9 Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 8 of 9 Optional Antenna – Internal Photo Model No.: Smart RF GUN FCC ID: RQKSMARTRFGUN Copyright ○ c 2007, LTA Co., Ltd. Page 9 of 9

Ref. No.: LR500190704A Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 24 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: April 17 ~ May 10, 2007 Test Report S/N: LR500200704C Test Site : LTA CO., LTD. CERTIFICATIO OF COMPLIANCE FCC ID. APPLICANT FCC Classification : Part 15 Low Power Communication Device Transmitter Manufacturing Description : RFID Reader Manufacturer : SAMMI Information Systems Co., Ltd. Model name : Smart RF GUN Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.225 Subpart C; ANSI C-63.4-2003 Frequency Range : 13.56MHz RF power : ANT-1: 72.18dBuV/m @ 3m ANT-2: 67.56dBuV/m @ 3m Data of issue : May 10, 2007 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 RQKSMARTRFGUN SAMMI Information Systems Co., Ltd. Ref. No.: LR500190704A Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 24 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 ELECTRIC FIELD STRENGTH -------------------------------------------------------------- 3.2.1.1 FUNDAMENTAL EMISSION ------------------------------------------------------------- 3.2.1.2 OUTSIDE the EMISSION ------------------------------------------------------------------ 3.2.1.3 SPURIOUS EMISSION --------------------------------------------------------------------- 3.2.2 20dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.3 FREQUENCY TOLERANCE ------------------------------------------------------------------ 3.2.4 RADIATED EMISSIONS ----------------------------------------------------------------------- 3.2.5 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS ------------------------------------------- 3 4 5 5 6 6 7 8 9 11 13 15 18 23 Ref. No.: LR500190704A Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 24 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2007-09-30 ECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500190704A Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 24 2. Information’s about test item 2-1 Client Company name : SAMMI Information Systems Co., Ltd. Address : 496,wonchun-dong, yeongtong-ku, suwon, kyung ki-do, Korea Tel / Fax : +82-31-217-8252 / +82-31-217-8254 2-2 Manufacturer Company name : SAMMI Information Systems Co., Ltd. Address : 7-9FL., Seo Jo Bldg, 103-5, Galwor-Dond, Yong San-Ku, Seoul, Korea 2-3 Equipment Under Test (EUT) Trade name : RFID Reader Model name : Smart RF GUN Serial number : Identical prototype Date of receipt : April 09, 2007 EUT condition : Pre-production, not damaged Antenna type - 1 : Loop Antenna with MMCX R/A male connector (M/N: SMANTH10 Size: 80*80) Antenna type - 2 : Loop Antenna with MMCX R/A male connector (M/N: SMM_SKT_ANT_ES2 Size: 42*53.9) Frequency Range : 13.56 MHz RF output power : ANT-1: 72.18dBuV/m @ 3m ANT-2: 67.56dBuV/m @ 3m Type of Equipment : Hand potable Temperature range : -20°C ~ 55°C Power Source : Adaptor: 100-240VAC/1.5A, 5VDC/3A Battery: Rechargeable Lithium Ion Battery 2200 mAh 3.7VDC 2-4 Tested frequency LOW MID HIGH Frequency (MHz) - 13.56 - 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer PDA Smart Compact N/A SAMMI - - - - Ref. No.: LR500190704A Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 24 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Test Condition Tested ANT Type Status (note 1) 15.225(a) Electric Field Strength - Fundamental Emission C 15.225(b) (c) Electric Field Strength - Outside the Band C 15.225(d) Electric Field Strength - Spurious Emission C 15.225(c) 20 dB Bandwidth C 15.225(d) Frequency Tolerance C 15.209 Radiated Emission Radiated ANT-1 and ANT-2 C 15.207 /15.107 AC Conducted Emissions Line Conducted ANT-1 and ANT-2 C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: ANT-1 Æ M/N: SMANTH10 ANT-2Æ M/N: SMM_SKT_ANT_ES2 Note 3: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.225; ANSI C-63.4-2003 Ref. No.: LR500190704A Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 24 3.2 Transmitter requirements 3.2.1 Electric Field Strength Procedure: About the Fundamental Emission, Outside the Band and Spurious Emission The Radiated Electric Field Strength intensity has been measured with a ground plane and at a distance of 3m. Æ From 9kHz to 30MHz at di…
