Document # E.0015.16.05 396194 IntegrAlarm USER AND INSTALLER MANUAL 5-FUNCTION KEYFOB IntegrAlarm MODEL IA-FOB-1 February 09, 2004 Document # E.0015.16.05 396194 Table of Contents 1 IntegrAlarm Overview..................................................................................... 3 2 5-Function Keyfob (Remote Control Unit)................................................... 5 2.1 Description....................................................................................................... 5 2.2 Technical Specifications................................................................................. 5 2.3 Installation........................................................................................................ 6 2.3.1 Registration...................................................................................................... 6 2.3.2 Te s t i n g............................................................................................................... 6 Document # E.0015.16.05 396194 1 IntegrAlarm Overview The IntegrAlarm wireless security system includes a Control Panel and a number of wireless peripheral units. The system operates on the ISM wireless band of 902-928 MHz, in frequency hopping mode, transmitting short (about 10 ms) packets of data, with each packet transmitted on a different frequency. Time and frequency synchronization is maintained by a synchronization signal transmitted by the system Control Panel to the various peripherals every 3 minutes. The system operates on 56 pseudo random selected channels. In its present configuration, the system includes five types of peripheral units: • Door/window sensor. • PIR sensor. • Smoke detector. • 5-function keyfob (handheld remote control unit). • Remote siren. This manual is devoted to the installation instructions for the IntegrAlarm IA-FOB-1 5- function keyfob. The installation instructions for the other IntegrAlarm peripherals and the IntegrAlarm Control Panel appear in the User and Installer Manuals for the respective units. Document # E.0015.16.05 396194 FCC Compliance Statement The FCC Wants You to Know This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: a) Reorient or relocate the receiving antenna. b) Increase the separation between the equipment and receiver. c) Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. d) Consult the dealer or an experienced radio technician. FCC ID: RUF150702 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Warning Modifications not expressly approved by the manufacturer could void the user authority to operate the equipment under FCC Rules. Instructions concerning human exposure to radio frequency electromagnetic fields. To comply with FCC Section 1.307 (b)(1) for human exposure to radio frequency electromagnetic fields, implement the following instruction: The equipment user should keep a distance of at least 20cm. between the equipment and his body (excluding hands, wrists, feet, and ankles) or any other person. Document # E.0015.16.05 396194 2 5-Function Keyfob (Remote Control Unit) 2.1 Description The multifunction keyfob consists of an RF transceiver, a micro-controller, a keypad and a battery. The multifunction keyfob is composed of the following principal parts: • RF/controller PCBB assembly with LED. • Housing with keypad. • Battery, 2 X N1/3 cells An exploded view of the multifunction keyfob is shown in Figure 1 below. 2.2 Technical Specifications Operating frequency band – ISM 902-928 MHz. Mode of operation – frequency hopping; every data packet is transmitted on a different pseudo random selected frequency. Data packet transmission duration – less than 7 milliseconds. Data packet validity check – CRC. Transmission and reception verification – two-way communication; each received packet is acknowledged, with an automatic repeat request (ARQ) in case of unacknowledged data packet. Functions – 5 keys: Home, Away, Off (Disarm), Accessories (PGM) and Panic. Power source – two 3V Lithium MNO 2 cells type 1/3 N x 2. Remote control dimensions (mm): L-76, W-48, D-16. Weight, including battery (grams): 35. Document # E.0015.16.05 396194 2.3 Installation Installation of each multifunction keyfob is a two-step procedure. The multifunction keyfob should first be registered via the IntegrAlarm Control Panel. It should then be tested to confirm that it operates properly. 2.3.1 Registration From Installer Menu on Control Panel, select ENROLL. Screen will show: ENTER ZONE # Use numeric keypad at right of Control Panel to enter the desired zone number. The description of the zone number (e.g. MASTER BEDROOM) will appear at bottom of screen. If zone description is correct, press OK at left of Control Panel. Screen will show: PLEASE POWER UP THE ZONE Insert battery. The remote control will begin to transmit. If Control Panel does not identify the remote control, screen will show: ZONE NOT FOUND If Control Panel identifies the remote control, Control Panel will emit an audibl…

Text truncated - open the document above for the full version.

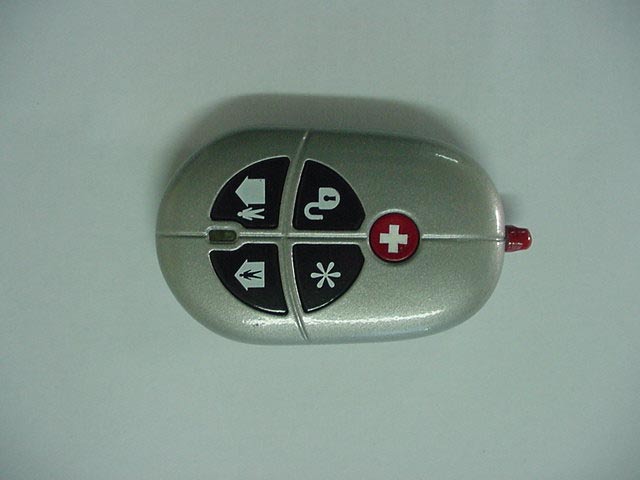

1. External Photographs of Tested E.U.T. Figure 1 Top View Figure 2 Bottom View Figure 3 Bottom View Battery Cover Removed

IA-FOB1 5 function Keyfob Labels Size and location Labels location: on the product back cover 47 mm 75 mm 30 mm 20 mm Product label FCC ID: RUF150702 12 mm 40 mm FCC ID embossed in housing plastic material FCC ID: RUF150702 IntegrAlarm 5 function keyfob Model IA-FOB1 S/N xxxxxxxx IntegrAlarm 5 function keyfob Model IA-FOB1 S/N xxxxxxxx

Internal Photographs of Tested E.U.T. Figure 1 Top Cover Internal View Figure 2 PCB in Unit Figure 3 PCB Side 1 Figure 4 PCB Side 2

Cert. No. 1152.01 Electrical (EMC) Test Report E52231.01 EMTS Inc. Page 1 of 52 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 10 February 2004 I.T.L. (PRODUCT TESTING) LTD. EMC Test for EMTS Inc. Equipment under test: IntegrAlarm Remote Keyfob (Transmitter Section) IA-FOB1* *See customer’s statement on page 5. Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Cert. No. 1152.01 Electrical (EMC) Test Report E52231.01 EMTS Inc. Page 2 of 52 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for EMTS Inc. IntegrAlarm Remote Keyfob (For Transmitter Section) IA-FOB1 FCC ID:RUF150702 10 February 2004 This report concerns: Original Grant x Class II change Class B verification Class A verification Class I change Equipment type: Radio Telemetry Transmitter Request Issue of Grant: x Immediately upon completion of review Limits used: CISPR 22 Part 15 x Measurement procedure used is ANSI C63.4-2001. Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Doron Lavee ITL (Product Testing) Ltd. EMTS Inc. Kfar Bin Nun 300 Alden Road D.N. Shimshon 99780 Markham, Ontario, L3R4C1 Israel Canada e-mail [email protected] Tel: +1-905-946-8589 Fax: +1-905-947-0138 e-mail: [email protected] Test Report E52231.01 EMTS Inc. Page 3 of 52 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 4 1.1 Administrative Information.................................................................................4 1.2 List of Accreditations .........................................................................................6 1.3 Product Description ...........................................................................................7 1.4 Test Methodology..............................................................................................7 1.5 Test Facility .......................................................................................................8 1.6 Measurement Uncertainty .................................................................................8 2. PRODUCT LABELING ------------------------------------------------------------------------------------ 9 3. SYSTEM TEST CONFIGURATION--------------------------------------------------------------------10 3.1 Justification......................................................................................................10 3.2 EUT Exercise Software ...................................................................................10 3.3 Special Accessories ........................................................................................10 3.4 Equipment Modifications .................................................................................10 3.5 Configuration of Tested System ......................................................................11 4. BLOCK DIAGRAM-----------------------------------------------------------------------------------------11 4.1 Schematic Block/Connection Diagram............................................................11 4.2 Theory of Operation ........................................................................................11 5. CUSTOMER’S DECLARATION ------------------------------------------------------------------------12 6. SPURIOUS RADIATED MEASUREMENT PHOTOS ---------------------------------------------13 7. SPURIOUS RADIATED EMISSION, BELOW 1 GHZ---------------------------------------------14 7.1 Test Specification ............................................................................................14 7.2 Test Procedure................................................................................................14 7.3 Measured Data................................................................................................15 7.4 Test Instrumentation Used, Radiated Measurements ....................................16 7.5 Field Strength Calculation ...............................................................................17 8. SPURIOUS RADIATED EMISSION ABOVE 1 GHZ ----------------------------------------------18 8.1 Radiated Emission Above 1 GHz....................................................................18 8.2 Test Data .........................................................................................................18 8.3 Test Instrumentation Used, Radiated Measurements Above 1 GHz ..............27 9. MAXIMUM TRANSMITTED PEAK POWER OUTPUT -------------------------------------------28 9.1 Test procedure ................................................................................................28 9.2 Results table....................................................................................................29 9.3 Test Equipment Used......................................................................................30 10. PEAK POWER OUTPUT OUT OF 902-928 MHZ BAND ----------------------------------------31 10.1 Test procedure ................................................................................................31 10.2 Results table....................................................................................................38 10.3 Test Equipment Used......................................................................................39 11. 20 DB BANDWIDTH---------------------------------------------------------------------------------------40 11.1 Test procedure ................................................................................................40 11.2 Results table....................................................................................................41 11.3 Test Equipment Used......................................................................................42 12. BAND E…
