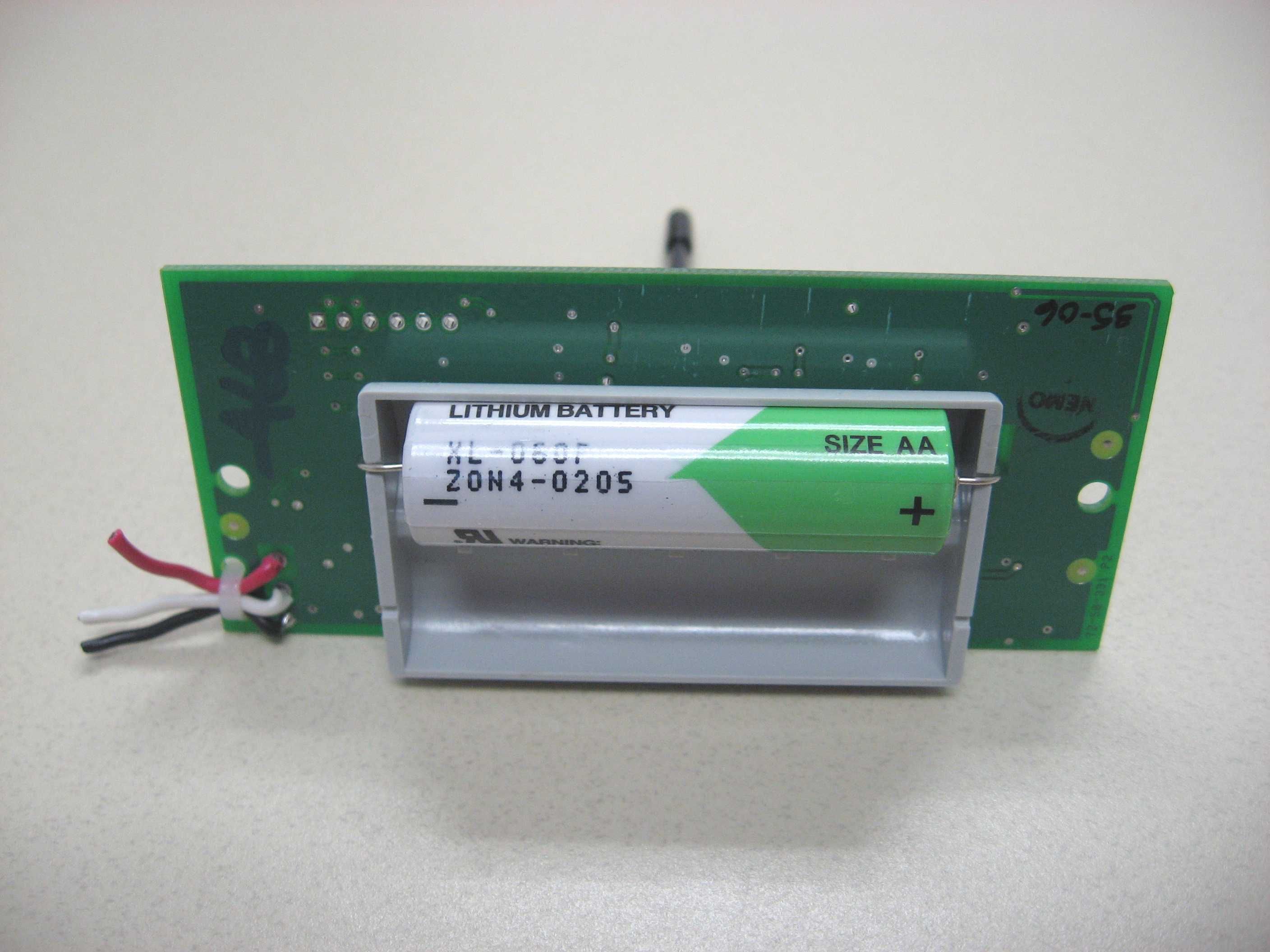

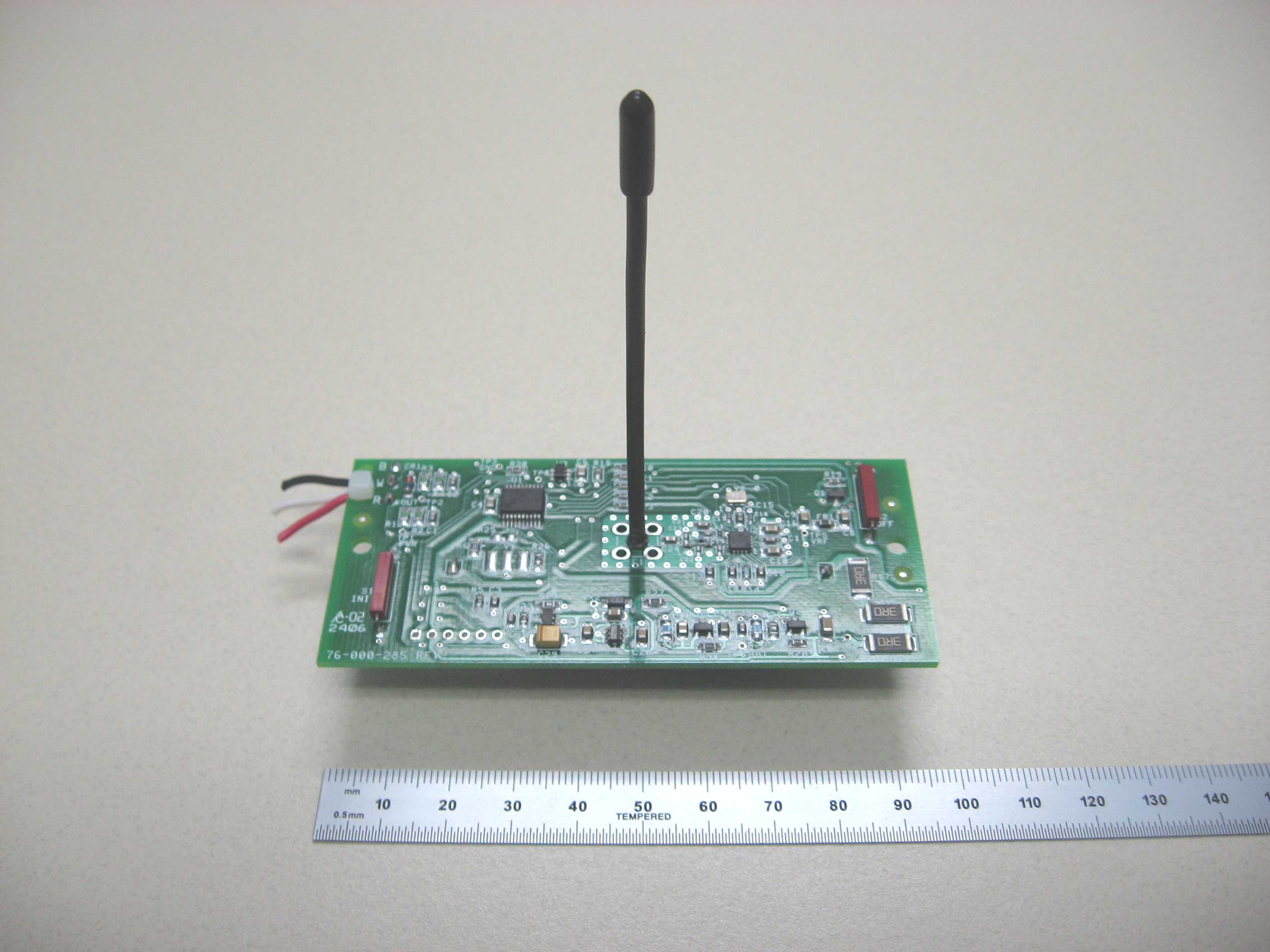

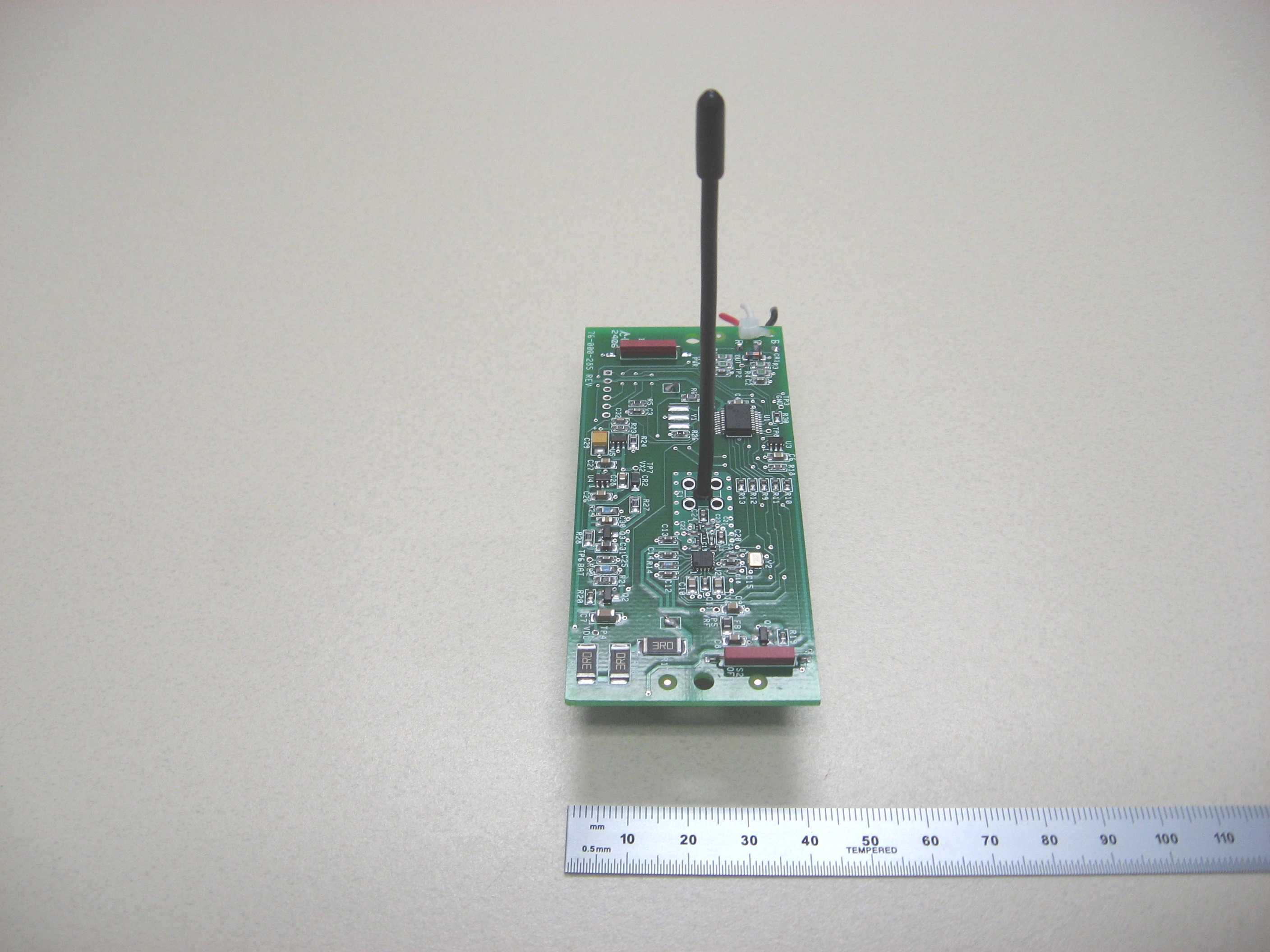

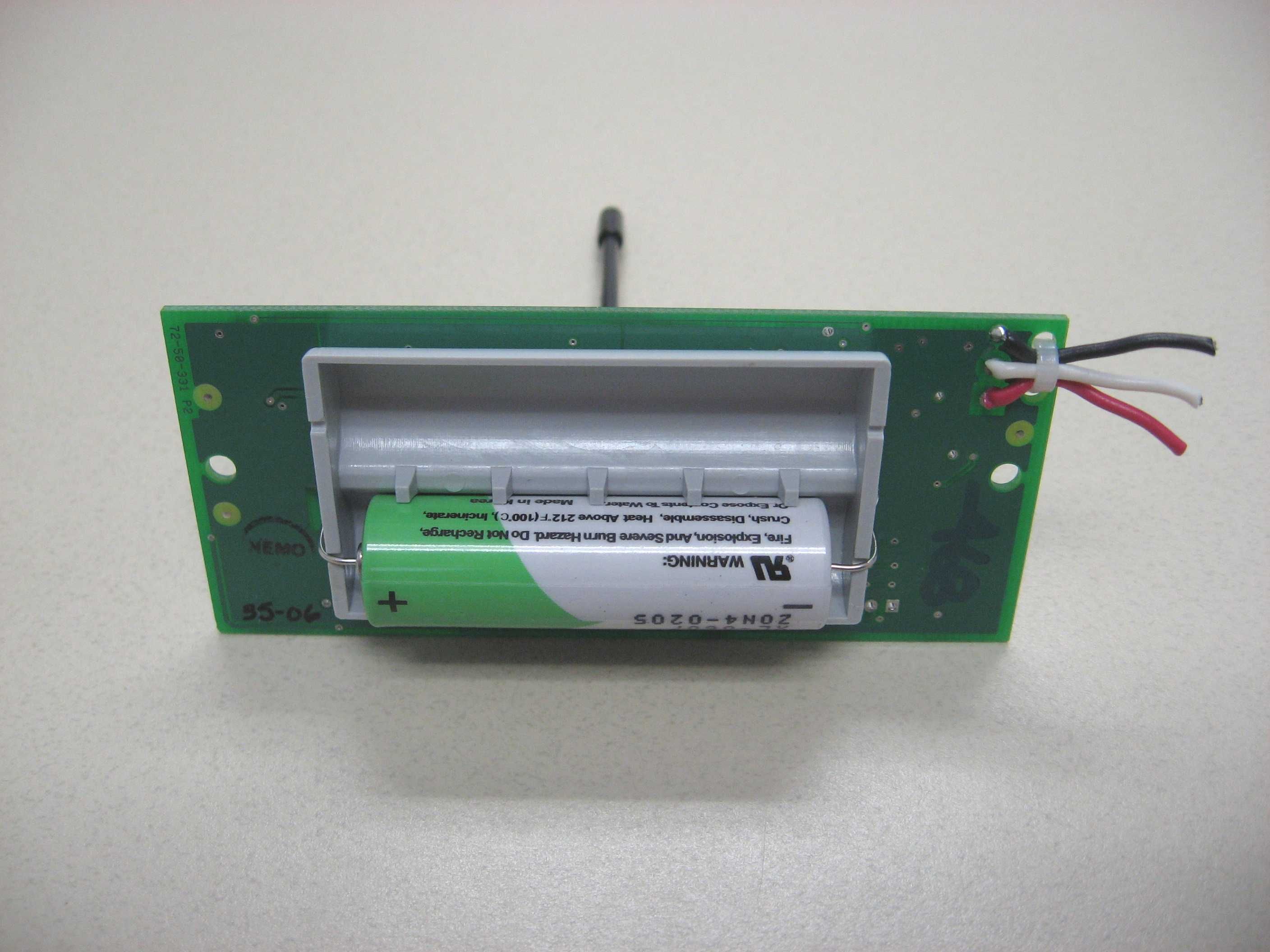

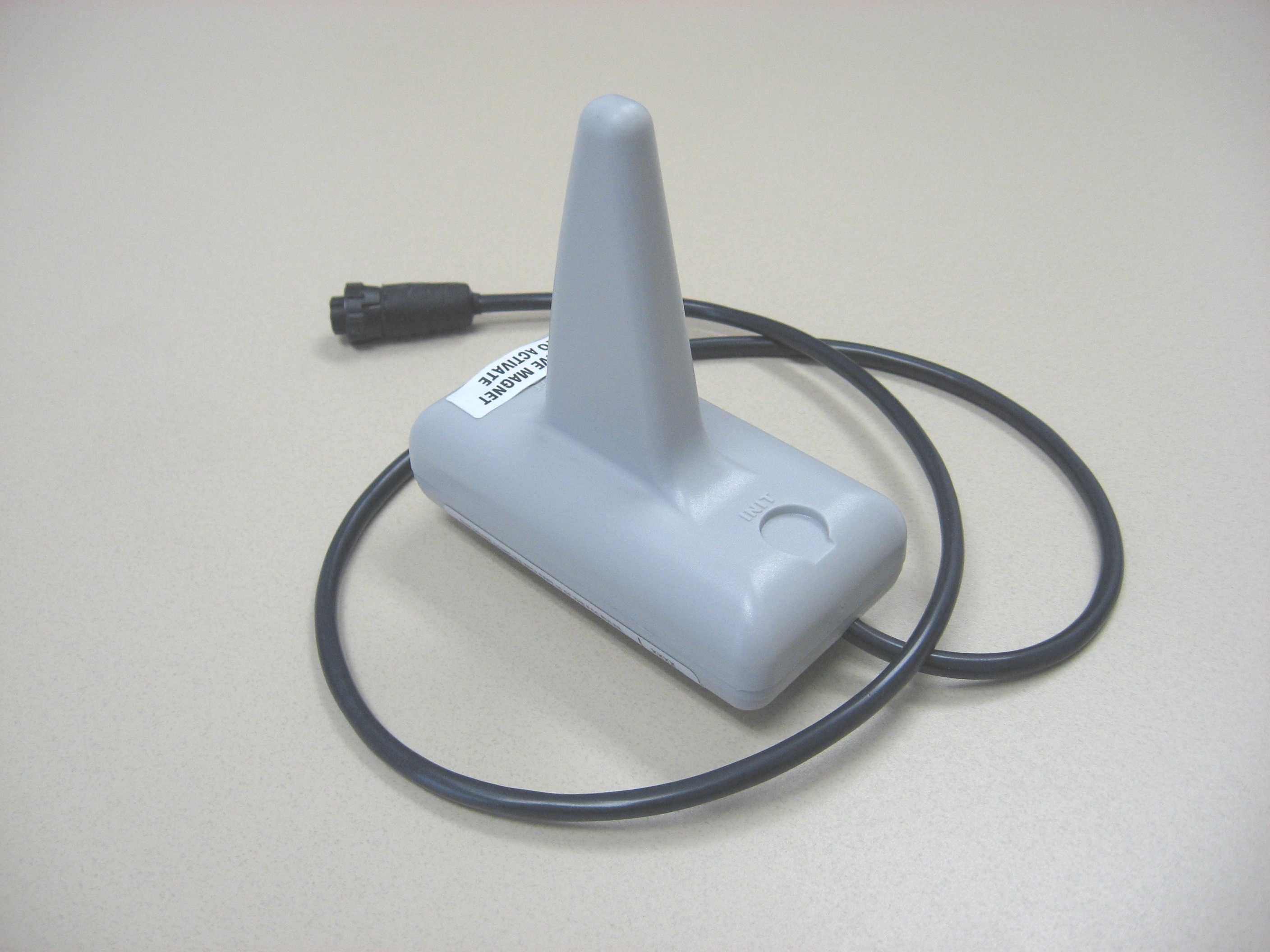

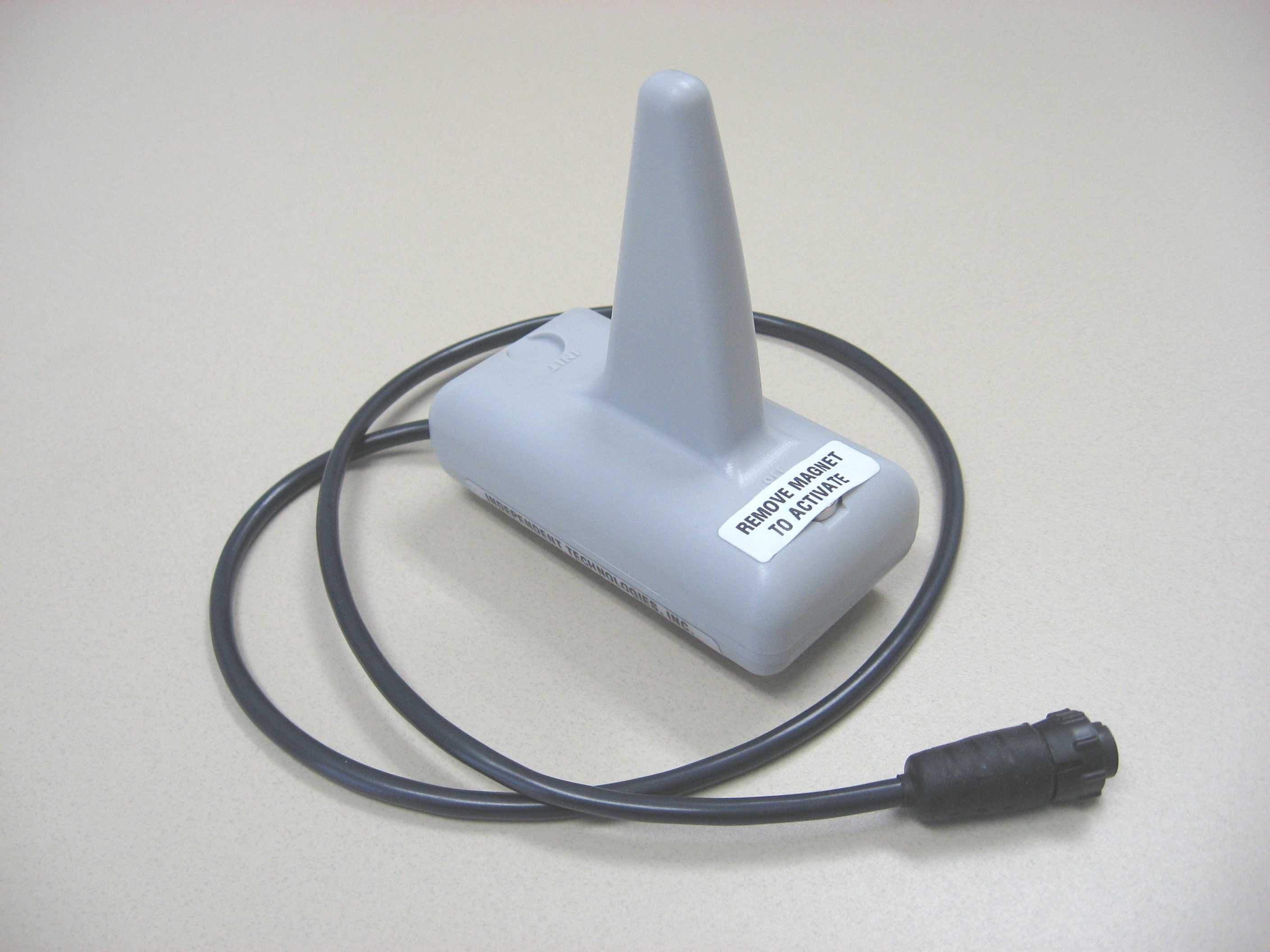

RWBMT9100TNKFuel Tank Level Transmitter

NCEE Labs R091307-30 FCC ID: RWBMT9100TNK IC: 115A-MT9100TNK Page 25 of 31 Figure 6 - Radiated Emissions Test Setup Figure 7 - Radiated Emissions Test Setup

Base Unit & Transmitter Installation Guide WESROC ® RMS Base Unit & Transmitter Installation Guide 72-70-125-ITC Rev. A © Copyright 2007, Independent Technologies, Inc. Page 2 TABLE OF CONTENTS APPLICATION.................................................................................................................................... 3 OVERVIEW......................................................................................................................................... 3 OPERATION OF THE BASE UNIT .................................................................................................... 4 Power Up ........................................................................................................................................ 4 Operational Overview .................................................................................................................... 4 Tank Level Display......................................................................................................................... 5 Digital Clock Display and Setting ................................................................................................. 6 Temperature Display...................................................................................................................... 7 Brightness Adjustment.................................................................................................................. 7 TRANSMITTER INSTALLATION .......................................................................................................8 Program Tank Number .................................................................................................................. 8 Replace Gauge Dial ....................................................................................................................... 9 Install Transmitter.......................................................................................................................... 9 Initialize Transmitter .................................................................................................................... 10 Transmitter Service ..................................................................................................................... 10 BASE UNIT INSTALLATION ........................................................................................................... 10 Installation Menu.......................................................................................................................... 10 Install Base Unit ........................................................................................................................... 11 Initialize Base Unit ....................................................................................................................... 12 Configure Base Unit .................................................................................................................... 13 Service Call................................................................................................................................... 14 Final Inspection............................................................................................................................ 14 Operational Review...................................................................................................................... 14 EQUIPMENT CHECKLIST ............................................................................................................... 15 INSTALLATION CHECKLIST ..........................................................................................................15 TANK INFORMATION...................................................................................................................... 15 WESROC ® RMS Base Unit & Transmitter Installation Guide 72-70-125-ITC Rev. A © Copyright 2007, Independent Technologies, Inc. Page 3 APPLICATION The WESROC ® Route Management System consists of a tank transmitter, a Base Unit, and a computer database host. The database host normally resides at your distribution office. Remote hosting is an option provided by Independent Technologies, Inc. for demonstration purposes and to assist during installations. Backup host services are available as an extra charge product. OVERVIEW After installation on a tank, the transmitter monitors the tank level using a Rochester R3D remote ready dial. As the fuel level in the tank changes it is transmitted to the Base Unit for display and processing. Tank low and critical thresholds are entered on the host computer for each tank. When the tank level drops below either the low or critical threshold, a report will automatically be sent to the host computer notifying the supplier of the event. A Base Unit can support up to eight individual tank transmitters at the same time. Tank transmitters may be field programmed as tank 1 through 8 (the default is tank 1). The Base Unit does not interfere with the customer’s telephone line but does require the connection to report into the host computer. If the phone line is already in use, the Base Unit will retry later. If someone, or another device, interrupts a Base Unit during its report, the Base Unit will immediately hang up and try again in about two minutes. After two attempts, it will wait 1 hour and then try to call a secondary host phone number. Base Unit reports are usually made to a local or to a toll-free number to your host computer. The Base Unit is normally positioned within 500 feet of the tank, but ranges up to 1,000 feet are possible if line of sight transmission is available. The Base Unit has a two-digit display that shows the latest level percentage (for up to 8 tanks). The Base Unit will report in, using a telephone line, on a schedule that is downloaded from the host computer. Report schedules may be hourly, daily, or weekly. The Base Unit will also report in if there is a tank fill, lo…

Text truncated - open the document above for the full version.

MT-9100TNK-XXX Tank Transmitter - Enclosure Labeling - Page 1 Revision B (Scale = 2:1) Identification Label Safety Certification Label Independent Technologies, Inc. 09/07/2007 3.00in. 0.75in. 3.00in. 0.75in. INDEPENDENT TECHNOLOGIES, INC. OMAHA, NE - www.IndependentTech.com - PATENTS PENDING TANK TRANSMITTER MODEL: MT - 9100TNK - XXX H/W: A F/W: A1 T/C: 020197 S/N: 00010278 Print on label st ock 72-71-739 (Coridian # CPN-2604 (Brady B486 label stock)). Print using Brady 4300 Series thermal transfer ribbon. GROUPS C&D HAZARDOUS (CLASSI FIED) LOCATIONS PER ANSI/UL 913 AND CAN/CSA C22.2 NO. 157; NO USER MAINTENANCE ORREPAIR - SEE DATA SHEET; TEMP CODE T4; INTRINSICALLY SAFE DEVICE - SECURITE INTRINSEQUE - ExiaTANK MONITORING EQUIPMENT FOR USE IN CLASS I, DIVISION 1, Clean only with a damp clot h to prevent the possibility WARNING: Enclosure contains aluminum. Care must 19WU LISTED US C U L R -40C Tamb +80C; of electrostatic discharge. be taken to avoid ignition hazards due to impact or friction. Independent Technologies, Inc. 09/07/2007 1.00in. 0.50in. Print on label stock 72-71-732 (Brady # THT-59-486-5). Print using Brady 4300 Series thermal transfer ribbon. MT-9100TNK-XXX Tank Transmitter - Enclosure Labeling - Page 2 Revision B (Scale = 2:1) FCC RULES. FCC ID: RWBMT9100TNK IC: 115A-MT9100TNK WITH PART 15 OF THE THIS DEVICE COMPLIES EMC Certification Label

NCEE Labs R091307-30 FCC ID: RWBMT9100TNK IC: 115A-MT9100TNK Page 29 of 31 FCC ID: RWBMT9100TNK RF Exposure Statement for MT9100TNK Notice in Installation Manual: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0.983cm (0.39 inches) between the radiator and your body. RF Exposure Calculations: The following information provides the minimum separation distances for the two major antenna types used in this system. Directional Antenna: The 1dBi antenna is the maximum gain antenna certified for use with the product. The minimum separation distance is calculated from FCC OET 65 Appendix B, Table 1B Guidelines for General Population/Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain. The exposure limit for a transmitter operating at 916.5MHz is found in mW/cm^2 using the equations f/1200. Since the operating frequency in channel DA produced the lowest limit, that limit will be used in calculation. (916.5/1200 = 0.763mW/cm^2) S = (Po * G) / (4 * Pi * r^2) or r = SQRT [ (Po * G) / (4 * Pi * S) ] Where S = 0.763 mW/cm^2 for 916.5 MHz Where Po = 8.28 mW (Peak RF, 9.18dBm) Where G = 1.12 (numeric equivalent to 1dBi antenna gain with 0.0 dB cable loss) Where r = Minimum Safe Distance from antenna (cm) For Po = 8.28mW, r = 0.983cm (0.39 inches) For a distance [r] of 20cm from this antenna, the field density S = 0.0019 mW/cm^2 Notes: 1. The minimum safe distance is based on a conservative “worst case” prediction, i.e. using the formula shown above and no duty factor. In practice the minimum distance will be much shorter. (Ref. 2) 2. The minimum safe distance has been calculated for the maximum allowed Power Density (S) limit of 0.75 mW/cm^2 for the frequency 915 MHz for uncontrolled environments (Ref. 2). References: 1. FCC Part 15, sub-clause 15.247 (b) (4) (i) 2. FCC OET Bulletin 65, Edition 97-01 3. FCC Supplement C to OET Bulletin 65, edition 01-01

Test Report Company: MetroTel Corp 26 First Ave SE New London, MN 56273 Contact: Jim Fangmeier Product: WESROC RMS WB Tank Transmitter FCC ID: RWBMT9100TNK IC: 115A-MT9100TNK Test Report No: R091307-30 APPROVED BY: Doug Kramer _________________________ Senior Test Engineer DATE: 28 September 2007 Total Pages: 31 The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to reproduce this report provided it is reproduced in its entirety for use by the company’s employees only. Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. NCEE is a FCC and Industry Canada registered lab. FCC #100875, IC #4294 NCEE Labs R091307-30 FCC ID: RWBMT9100TNK IC: 115A-MT9100TNK Page 2 of 31 1.0 Summary of test results 1.1 Test Results 1.2 Test Methods 1.2.1 Radiated Emissions 2.0 Description 2.1 Equipment under test 2.2 Laboratory description 2.3 Description of test modes 2.4 Applied standards 2.5 Description of support units 2.6 Configuration of system under test 3.0 Test equipment used 4.0 Detailed Results 4.1 Unique antenna requirement 4.2 Radiated Emissions 4.3 Bandwidth 4.4 Maximum peak output power 4.5 Power spectral density (PSD) 4.6 Bandedges Appendix A – Test photos Appendix B – Sample calculation Appendix C – RF exposure evaluation Appendix D – Table of figures NCEE Labs R091307-30 FCC ID: RWBMT9100TNK IC: 115A-MT9100TNK Page 3 of 31 1.0 Summary of test results 1.1 Test Results The EUT has been tested according to the following specifications: APPLIED STANDARDS: FCC Part 15, Subpart C Standard Section Test Type and Limit Result Remark 15.203 RSS-Gen Unique Antenna Requirement Pass PCB Antenna 15.209 RSS-Gen Radiated Emissions Pass Meets the requirement of the limit. 15.247(a)(2) RSS-210 Issue 6 Minimum Bandwidth, Limit: Min. 500kHz Pass Meets the requirement of the limit. 15.247(b) RSS-210 Issue 6 Maximum Peak Output Power, Limit: Max. 30dBm Pass Meets the requirement of the limit. 15.247(c) RSS-210 Issue 6 Transmitter Radiated Emissions, Limit: Table 15.209 Pass Meets the requirement of the limit. 15.247(d) RSS-210 Issue 6 Power Spectral Density, Limit: Max. 8dBm Pass Meets the requirement of the limit. 15.247(c) RSS-210 Issue 6 Band Edge Measurement, Limit: 20dB less than the peak value of fundamental frequency Pass Meets the requirement of the limit. Note: Conducted emissions measurements per 15.207 were not required because the EUT has no AC mains connection. NCEE Labs R091307-30 FCC ID: RWBMT9100TNK IC: 115A-MT9100TNK Page 4 of 31 1.2 Test Methods 1.2.1 Radiated Emissions Compliance to 47 CFR Parts 15.209 and 15.247 was tested in accordance with the methods of ANSI/IEEE C63.4: 2003. Several configurations were examined and the results presented represent a worst-case scenario. The EUT was placed on a wooden table approximately 80cm high and centered on a 4m diameter turntable. The table was rotated to find the angles of maximum emissions and the receiving antenna was moved vertically from 1m to 4m in both vertical and horizontal positions. The EUT was tested while sitting both vertically and horizontally. The horizontal configuration produced the highest emissions, and that position was used for all radiated testing. All measurements were taken at a distance of 3m from the EUT for Part 15.209 intentional radiator measurements, and 3m for 15.247 measurements of the fundamental frequency in the 902MHz to 928MHz band and subsequent harmonics. 2.0 Description 2.1 Equipment under test The Transmitter is designed to enhance the efficiency of a bulk liquid distributor’s delivery operation. The primary function of the Transmitter is to measure and report the liquid level inside of a tank via a wireless link. In addition, the Transmitter provides a variety of status, version and configuration information. The data gathered by the Transmitter is sent to a WESROC RMS Base Unit. The Base Unit relays the information to a WESROC RMS Host Computer at specified intervals via a standard telephone line. The Transmitter is intended to be installed on the outside of a tank and be connected to the sensor ready dial on a standard magnetic liquid level gauge. The Transmitter senses the position of the gauge and uses this information to calculate the liquid level in the tank. The EUT was the worst case configuration of the three models (MT-9100TNK-Sx, MT-9100TNK- Rx, MT-9100TNK-Ux). NCEE Labs R091307-30 FCC ID: RWBMT9100TNK IC: 115A-MT9100TNK Page 5 of 31 EUT Received Date: 17 September 2007 EUT Tested Date: 17 September 2007 PRODUCT WESROC RMS WB Tank Transmitter MODEL MT-9100TNK-UT POWER SUPPLY Internal 3.6VDC battery MODULATION TYPE FSK TRANSFER RATE 2400 bit per second, transmit only FREQUENCY RANGE 916.48 MHz NUMBER OF CHANNELS 1 MAXIMUM OUTPUT POWER 9.18dBm, 8.28mW ANTENNA TYPE Internal, PCB mounted DATA CABLE Hall sensor with 10ft cable I/O PORTS N/A ASSOCIATED DEVICES N/A NOTE: 1. For more detailed features description, please refer to the manufacturer's specifications or User's Manual. 2.2 Laboratory description All testing was performed at the NCEE Lincoln facility, which is a FCC and IC registered lab. This site has been fully described in previously submitted reports. Laboratory environmental conditions varied slightly throughout the tests: Relative humidity of 45 ± 4% Temperature of 20 ± 3° Celsius 2.3 Description of test modes Channel Frequency 1 916.48 MHz The EUT is only capable of transmitting at 916.48MHz. In this report, the frequency will be referred to as Channel 1. NCEE Labs R091307-30 FCC ID: RWBMT9100TNK IC: 115A-MT9100TNK Page 6 of 31 2.4 Applied standards The EUT is a digital transmission device operating between 902 MHz and 928 MHz. According to the specifications of the manufactur…
