RWZ-6711GSM850 AND PCS1900 (Mobile Phone)

Innovation makes your dreams come true Welcome to the user guide for the 6711 mobile phone. We are paving the way for modern technology. With a whole suit of keypad operation system, the 6711 now gives you a fresh and exciting level of enjoyment from a mobile phone By using Internet Explorer, you can connect your phone with Internet or network applications, to keep closer touch with the world all the time. You can synchronise your phone with PC to realize resource synchronisation and transmission through ActiveSync, so as to bring convenience to your business work. When you need to relax, play your favorite music through Windows Media and take in a game or two from the interesting selection on board the 6711. Wherever you go, whatever you do, keep the 6711 close and never skip a beat. Special features „ Internet explorer P52 „ Built-in active Sync to synchronise with PC P57 „ Windows media player P28 „ Supports Outlook e-mail P41 „ Amusing games P91 „ Supports T-flash card P10 „ Supports voice notes P92 „ Calendar P47 „ 2 mega pixel camera P95 „ Supports video capture P96 „ Supports Internet sharing P106 „ Supports Speed dial P112 „ Supports MMS P37 Declaration Copyright: 2006 Amoi Electronic Co. Ltd reserves all rights. The content of this guide is protected by Copyright Law. It is forbidden to copy, distribute, publish or cite the content of this user guide, in whatever form, without the authorisation of Amoi Electronic Co. Ltd. Bluetooth is the registered trademark of Bluetooth SIG Inc. JAVA is the registered trademark of Sun Microsystems, Inc. “AMOI” and “ “are registered trade marks and belong to Amoi. They are protected by law. The other products or company names referred to in this guide are registered trademarks, trademarks, or registered names belonging to their owners. Amoi has carefully and closely reviewed the content of this user guide. Nevertheless, it is possible that there are mistakes and omissions. Amoi reserves the right to update and improve any products described in this guide, as well as the content of this guide. Amendments will be made without prior notification. The is the user guide for the Amoi mobile phone only and does not include an introduction to this product’s software and hardware configuration. The product and spare parts vary according to region. For more details, please contact an Amoi customer service centre. Some functions referred to in this guide also need the support of a network operator or service provider. If you are unable to confirm whether you will be able to use certain functions or services with this phone, please consult your network operator or service provider. The phone may include some commodities, technology or software that is controlled by export law, Chinese regulations and regulations governed by other countries or areas. In order to ensure your safety, please read the “Safety Notice” and “Safety Precaution”. Typographic conventions used in this user guide include: <>: shows function key; ““: shows important information on the phone interface; [ ]: shows the phone menus. I Content Safety notice ................................................ IX 1.Getting to know your phone......................1 Your phone....................................................... 1 Front view of your phone.............................. 1 Side view of your phone ............................... 1 Rear view of your phone .............................. 2 Icon introduction.........Fehler! Textmarke nicht definiert. Status icon ....................................................... 4 Program ........................................................... 5 2.Getting Started............................................9 Using your phone.......Fehler! Textmarke nicht definiert. Installing SIM card and battery......................... 9 Installing T-flash card ..................................... 10 Battery charging............................................. 11 Using a travel charger to charge your phone ................................................................... 11 Battery power display .....................................12 Power on/ off ..................................................12 Speed list operation ....Fehler! Textmarke nicht definiert. Using shortcut keys ........................................14 3.Call Functions ...........................................16 Making a call ..................................................16 Making calls directly....................................16 Making an international call ................Fehler! Textmarke nicht definiert. Making two calls simultaneously (needs network support) .....Fehler! Textmarke nicht definiert. Making two calls simultaneously (this must be supported by the network)Fehler! Textmarke nicht definiert. Making a conference call (this must be supported by the network)Fehler! Textmarke nicht definiert. Making a call from contacts ................Fehler! II Textmarke nicht definiert. Creating a speed dial for a contact ....Fehler! Textmarke nicht definiert. Making a call from call history............Fehler! Textmarke nicht definiert. Making a call from SMS/MMS............Fehler! Textmarke nicht definiert. Making an urgent call.......Fehler! Textmarke nicht definiert. Dialing a voice mailFehler! Textmarke nicht definiert. Answering or rejecting an incoming call.Fehler! Textmarke nicht definiert. Ending a call ..........Fehler! Textmarke nicht definiert. Call functions ................................................. 22 4.Call HistoryFehler! Textmarke nicht definiert. Call list .......Fehler! Textmarke nicht definiert. Options in call list.......Fehler! Textmarke nicht definiert. Saving call history numberFehler! Textmarke nicht definiert. 5.Input Modes .............................................. 24 Switching input modes ................................... 24 Character input mode..................................... 24 Numeric input mode ....................................... …

Text truncated - open the document above for the full version.

Attestation Letter 2007-2-26 TO WHOM IT MAY CONCERN FCC ID Number Product Title / Model RWZ-6711 6711 For the product stated above, we confirm the Class of GPRS is Class l0. Two time slot were used for GPRS uplink and four time slots were used for GPRS downlink If you have any questions, please feel free to contact me at the address shown below. Sincerely, dehai di Product Test Manager AMOI Electronics CO.,LTD Add:102 Xiaguang Road,Haicang district,Xiamen City,Fujian Province 361022,P.R.China Tel:86-592-6516777-3316 Fax:86-592-6516007 Mobile:86-13110931077 Email: [email protected]

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 2007-3-09 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Amoi Electronics Co Ltd requests permanent confidentiality for the following products: FCC ID Number Product Title / Model RWZ-6711 6711 For the product stated above, we request that the following information be held permanent confidential: z Electrical Schematics of the Circuitry z Block Diagram z Parts List z Technical Description Required for section 2.1003(c) ¾ Operational Description Pursuant to the provisions of Public Notice DA 04-1705, Amoi Electronics Co. Ltd requests short-term confidentiality for the following information in order to prevent pre-announcement of product details which could be useful to a competitor: z External Photos z Internal Photos z Test Setup Photos z Users Manual No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Amoi Electornics Co LTD Information and Communication Mobile trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, dehai di Product Test Manager AMOI Electronics CO.,LTD Add:102 Xiaguang Road,Haicang district,Xiamen City,Fujian Province 361022,P.R.China Tel:86-592-6516777-3316 Fax:86-592-6516007 Mobile:86-13110931077 Email: [email protected]

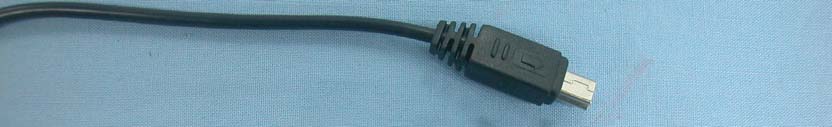

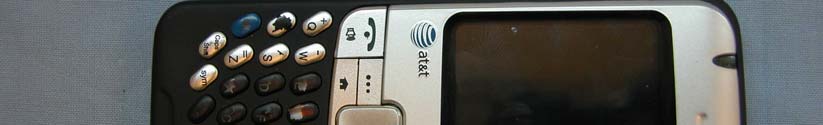

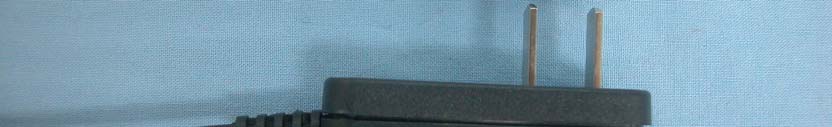

Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR003 Page 31 of 37 ANNEX B PHOTOGRAPH OF EUT External Photo Mobile Phone Mobile Phone Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR003 Page 32 of 37 Mobile Phone Mobile phone Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR003 Page 33 of 37 Mobile Phone Charger (AC/DC Adapter)

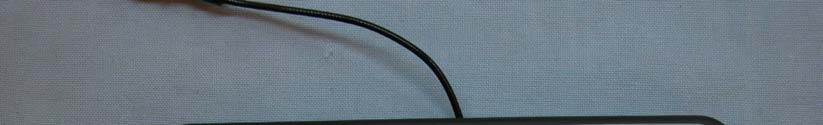

Bluetooth Antenna 分区未归档笔记的第1 页

Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR003 Page 34 of 37 Internal Photo Mobile phone Disassembly Mobile phone Disassembly Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR003 Page 35 of 37 Mobile phone Disassembly Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR003 Page 36 of 37 Mobile phone Disassembly

©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2007SAR00005 for Amoi Mobile Co., Ltd. GSM Digital Mobile Phone 6711 With Hardware Version: V4.0 Software Version: V4.0 FCCID: RWZ-6711 Issued Date: 2007-02-16 No. DAT-P-114/01-01 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Information Industry No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100083. Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No. 2007SAR00005 Page 2 of 134 TABLE OF CONTENT 1 TEST LABORATORY ..............................................................................................4 1.1 TESTING LOCATION............................................................................................................ 4 1.2 TESTING ENVIRONMENT..................................................................................................... 4 1.3 PROJECT DATA................................................................................................................... 4 2 CLIENT INFORMATION ..........................................................................................4 2.1 APPLICANT INFORMATION ................................................................................4 2.2 MANUFACTURER INFORMATION...................................................................4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) .............5 3.1 ABOUT EUT .........................................................................................................5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................5 4 OPERATIONAL CONDITIONS DURING TEST .......................................................6 4.1 SCHEMATIC TEST CONFIGURATION..................................................................................... 6 4.2 SAR MEASUREMENT SET-UP.............................................................................................. 6 4.3 DASY4 E-FIELD PROBE SYSTEM......................................................................................... 7 4.4 E-FIELD PROBE CALIBRATION............................................................................................ 8 4.5 OTHER TEST EQUIPMENT................................................................................................... 9 4.6 EQUIVALENT TISSUES......................................................................................................... 9 4.7 SYSTEM SPECIFICATIONS.................................................................................................. 10 5 CHARACTERISTICS OF THE TEST.....................................................................10 5.1 APPLICABLE LIMIT REGULATIONS.................................................................................... 10 5.2 APPLICABLE MEASUREMENT STANDARDS........................................................................ 11 6 CONDUCTED OUTPUT POWER MEASUREMENT ............................................. 11 6.1 SUMMARY........................................................................................................................ 11 6.2 CONDUCTED POWER........................................................................................................ 11 7 TEST RESULTS.....................................................................................................12 7.1 DIELECTRIC PERFORMANCE............................................................................................. 12 7.2 SYSTEM VALIDATION........................................................................................................ 12 7.3 SUMMARY OF MEASUREMENT RESULTS (850MHZ) ......................................................... 13 7.4 SUMMARY OF MEASUREMENT RESULTS (1900MHZ) ....................................................... 14 7.5 SUMMARY OF MEASUREMENT RESULTS (WITH BLUETOOTH FUNCTION) .......................... 15 7.6 CONCLUSION.................................................................................................................... 16 8 MEASUREMENT UNCERTAINTY .........................................................................16 9 MAIN TEST INSTRUMENTS .................................................................................17 ANNEX A： MEASUREMENT PROCESS ..............................................................18 ANNEX B: TEST LAYOUT.....................................................................................19 ANNEX C: GRAPH RESULTS ...............................................................................24 ANNEX D: SYSTEM VALIDATION RESULTS .....................................................124 ANNEX E： PROBE CALIBRATION CERTIFICATE ............................................126 No. 2007SAR00005 Page 4 of 134 1 Test Laboratory 1.1 Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MII Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100083 Telephone: 00861062303288 Fax: 00861062304793 1.2 Testing Environment Temperature: Min. = 15 °C, Max. = 30 °C Relative humidity: Min. = 30%, Max. = 70% Ground system resistance: < 0.5 Ω Ambient noise is checked and found very low and in compliance with requirement of standards. Reflection of surrounding objects is minimized and in compliance with requirement of standards . 1.3 Project Data Project Leader: Qi Dianyuan Test Engineer: Sun Qian Testing Start Date: Feb 13, 2007 Testing End Date: Feb 14, 2007 2 Client Information 2.1 Applicant Information Company Name: Amoi Mobile Co., Ltd. Address /Post: 102 Xiaguang Road,Haicang district, Xiamen City, Fujian Province City: Xiamen Postal Code: 361022 …

Text truncated - open the document above for the full version.

No. 2007SAR00005 Page 42 of 134 850 Right Tilt High Electronics: DAE3 Sn536 Medium: 850 Head Medium parameters used (interpolated): σ = 0.91 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.518 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.4 V/m; Power Drift = -0.031 dB Peak SAR (extrapolated) = 0.606 W/kg SAR(1 g) = 0.495 mW/g; SAR(10 g) = 0.368 mW/g Maximum value of SAR (measured) = 0.511 mW/g 0 dB = 0.511mW/g Fig.19 850 MHz CH251 No. 2007SAR00005 Page 43 of 134 Fig. 20 Z-Scan at power reference point (850 MHz CH251) No. 2007SAR00005 Page 44 of 134 850 Right Tilt Middle Electronics: DAE3 Sn536 Medium: 850 Head Medium parameters used (interpolated): σ = 0.91 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 Frequency: 836.6 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Middle/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.626 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.7 V/m; Power Drift = -0.006 dB Peak SAR (extrapolated) = 0.738 W/kg SAR(1 g) = 0.600 mW/g; SAR(10 g) = 0.446 mW/g Maximum value of SAR (measured) = 0.620 mW/g 0 dB = 0.620mW/g Fig.21 850 MHz CH190 No. 2007SAR00005 Page 45 of 134 Fig. 22 Z-Scan at power reference point (850 MHz CH190) No. 2007SAR00005 Page 46 of 134 850 Right Tilt Low Electronics: DAE3 Sn536 Medium: 850 Head Medium parameters used (interpolated): σ = 0.91 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 Frequency: 824.2 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.701 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.6 V/m; Power Drift = -0.058 dB Peak SAR (extrapolated) = 0.829 W/kg SAR(1 g) = 0.676 mW/g; SAR(10 g) = 0.504 mW/g Maximum value of SAR (measured) = 0.696 mW/g 0 dB = 0.696mW/g Fig. 23 850 MHz CH128 No. 2007SAR00005 Page 47 of 134 Fig. 24 Z-Scan at power reference point (850 MHz CH128) No. 2007SAR00005 Page 48 of 134 850 Body Towards Phantom High Electronics: DAE3 Sn536 Medium: 850 Body Medium parameters used (interpolated): σ = 1.00 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Phantom High/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.391 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.1 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.447 W/kg SAR(1 g) = 0.363 mW/g; SAR(10 g) = 0.271 mW/g Maximum value of SAR (measured) = 0.382 mW/g 0 dB = 0.382mW/g v Fig. 25 850 MHz CH251 No. 2007SAR00005 Page 49 of 134 Fig. 26 Z-Scan at power reference point (850 MHz CH251) No. 2007SAR00005 Page 50 of 134 850 Body Towards Phantom Middle Electronics: DAE3 Sn536 Medium: 850 Body Medium parameters used (interpolated): σ = 1.00 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 Frequency: 836.6 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Phantom Middle/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.492 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.2 V/m; Power Drift = 0.006 dB Peak SAR (extrapolated) = 0.575 W/kg SAR(1 g) = 0.466 mW/g; SAR(10 g) = 0.349 mW/g Maximum value of SAR (measured) = 0.491 mW/g 0 dB = 0.491mW/g Fig. 27 850 MHz CH190 No. 2007SAR00005 Page 51 of 134 Fig. 28 Z-Scan at power reference point (850 MHz CH190) No. 2007SAR00005 Page 52 of 134 850 Body Towards Phantom Low Electronics: DAE3 Sn536 Medium: 850 Body Medium parameters used (interpolated): σ = 1.00 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 Frequency: 824.2 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Phantom Low/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.599 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.9 V/m; Power Drift = -0.006 dB Peak SAR (extrapolated) = 0.703 W/kg SAR(1 g) = 0.574 mW/g; SAR(10 g) = 0.431 mW/g Maximum value of SAR (measured) = 0.599 mW/g 0 dB = 0.599mW/g Fig. 29 850 MHz CH128 No. 2007SAR00005 Page 53 of 134 Fig. 30 Z-Scan at power reference point (850 MHz CH128) No. 2007SAR00005 Page 54 of 134 850 Body Towards Ground High Electronics: DAE3 Sn536 Medium: 850 Body Medium parameters used (interpolated): σ = 1.00 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground High/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.407 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.8 V/m; Power Drift = 0.011 dB Peak SAR (extrapolated) = 0.487 W/kg SAR(1 g) = 0.389 mW/g; SAR(10 g) = 0.289 mW/g Maximum value of SAR (measured) = 0.411 mW/g 0 dB = 0.411mW/g Fig. 31 850 MHz CH251 No. 2007SAR00005 Page 55…

Text truncated - open the document above for the full version.

No. 2007SAR00005 Page 82 of 134 1900 Left Tilt Low Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used: σ = 1.45 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.09 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.4 V/m; Power Drift = -0.027 dB Peak SAR (extrapolated) = 1.81 W/kg SAR(1 g) = 0.987 mW/g; SAR(10 g) = 0.523 mW/g Maximum value of SAR (measured) = 1.02 mW/g 0 dB = 1.02mW/g Fig. 59 1900 MHz CH512 No. 2007SAR00005 Page 83 of 134 Fig. 60 Z-Scan at power reference point (1900 MHz CH512) No. 2007SAR00005 Page 84 of 134 1900 Right Cheek High Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used: σ = 1.45 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.908 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.5 V/m; Power Drift = -0.079 dB Peak SAR (extrapolated) = 1.26 W/kg SAR(1 g) = 0.852 mW/g; SAR(10 g) = 0.520 mW/g Maximum value of SAR (measured) = 0.887 mW/g 0 dB = 0.887mW/g Fig. 61 1900 MHz CH810 No. 2007SAR00005 Page 85 of 134 Fig. 62 Z-Scan at power reference point (1900 MHz CH810) No. 2007SAR00005 Page 86 of 134 1900 Right Cheek Middle Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used: σ = 1.45 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek Middle/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.780 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.9 V/m; Power Drift = -0.039 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.736 mW/g; SAR(10 g) = 0.456 mW/g Maximum value of SAR (measured) = 0.766 mW/g 0 dB = 0.766mW/g Fig. 63 1900 MHz CH661 No. 2007SAR00005 Page 87 of 134 Fig. 64 Z-Scan at power reference point (1900 MHz CH661) No. 2007SAR00005 Page 88 of 134 1900 Right Cheek Low Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used: σ = 1.45 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.737 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.0 V/m; Power Drift = -0.062 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.677 mW/g; SAR(10 g) = 0.408 mW/g Maximum value of SAR (measured) = 0.716 mW/g 0 dB = 0.716mW/g Fig. 65 1900 MHz CH512 No. 2007SAR00005 Page 89 of 134 Fig. 66 Z-Scan at power reference point (1900 MHz CH512) No. 2007SAR00005 Page 90 of 134 1900 Right Tilt High Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used: σ = 1.45 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.896 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.6 V/m; Power Drift = -0.030 dB Peak SAR (extrapolated) = 1.34 W/kg SAR(1 g) = 0.826 mW/g; SAR(10 g) = 0.480 mW/g Maximum value of SAR (measured) = 0.900 mW/g 0 dB = 0.900mW/g Fig. 67 1900 MHz CH810 No. 2007SAR00005 Page 91 of 134 Fig. 68 Z-Scan at power reference point (1900 MHz CH810) No. 2007SAR00005 Page 92 of 134 1900 Right Tilt Middle Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used: σ = 1.45 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt Middle/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.950 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.1 V/m; Power Drift = -0.036 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 0.868 mW/g; SAR(10 g) = 0.512 mW/g Maximum value of SAR (measured) = 0.911 mW/g 0 dB = 0.911mW/g Fig.69 1900 MHz CH661 No. 2007SAR00005 Page 93 of 134 Fig. 70 Z-Scan at power reference point (1900 MHz CH661) No. 2007SAR00005 Page 94 of 134 1900 Right Tilt Low Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used: σ = 1.45 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.894 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.7 V/m; Power Drift = -0.012 dB Peak SAR (extrapolated) = 1.33 W/kg SAR(1 g) = 0.829 mW/g; SAR(10 g) = 0.492 mW/g Maximum value of SAR (measured) = 0.874 mW/g 0 dB = 0.874mW/g Fig.71 1900 MHz CH512 No. 2007SAR00005 Page 95 of 134 Fig. 72 Z-Scan at power reference point (1900 MHz CH512) No. 2007SAR00005 Page 96 of 134 1900 Body Towards Phantom High Electronics: DAE3 Sn536 Medium: 1900 Body Medium parameters us…

Text truncated - open the document above for the full version.

No. 2007SAR00005 Page 124 of 134 ANNEX D: SYSTEM VALIDATION RESULTS 835MHzDAE589Probe1736 Electronics: DAE3 Sn536 Medium: 835 Head Medium parameters used (interpolated): σ = 0.88 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.3 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) 835MHz/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.68 mW/g 835MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.8 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 3.67 W/kg SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 2.69 mW/g 0 dB = 2.69mW/g Fig.101 validation 835MHz 250mW No. 2007SAR00005 Page 125 of 134 1900MHzDAE536Probe1736 Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used (interpolated): σ = 1.45 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.3 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.2 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.1 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 16.9 W/kg SAR(1 g) = 9.91 mW/g; SAR(10 g) = 5.27 mW/g Maximum value of SAR (measured) = 11.3 mW/g 0 dB = 11.3mW/g Fig.102 validation 1900MHz 250mW No. 2007SAR00005 Page 126 of 134 ANNEX E： PROBE CALIBRATION CERTIFICATE No. 2007SAR00005 Page 127 of 134 No. 2007SAR00005 Page 128 of 134 No. 2007SAR00005 Page 129 of 134 No. 2007SAR00005 Page 130 of 134 No. 2007SAR00005 Page 131 of 134 No. 2007SAR00005 Page 132 of 134 No. 2007SAR00005 Page 133 of 134 No. 2007SAR00005 Page 134 of 134

No. DAT-P-114/01-01 TEST REPORT No. 2007TAR002 Test name FCC Test Product GSM Mobile Phone Model 6711 Client Amoi Mobile Co., Ltd. Telecommunication Metrology Center of Ministry of Information Industry Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR002 Page 2 of 55 Notice 1. The test report is invalid if not marked with “exclusive stamp for the test report” or the stamp of the test center. 2. Any copy of the test report is invalid if not re-marked with the “exclusive stamp for the test report” or the stamp of the test center. 3. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 4. The test report is invalid if there is any evidence of erasure and/or falsification. 5. If there is any dissidence for the test…
