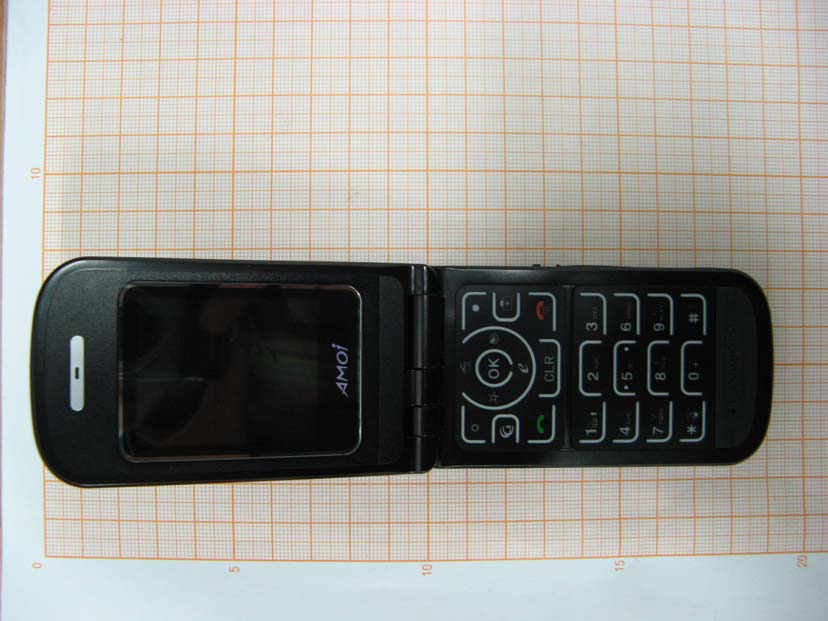

Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR006 Page 47 of 52 ANNEX B PHOTOGRAPHS OF EUT External Photo Mobile Phone Mobile Phone Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR006 Page 48 of 52 Mobile Phone Mobile phone

Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR006 Page 50 of 52 Internal Photo Mobile phone Disassembly Mobile phone Disassembly Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR006 Page 51 of 52 Mobile phone Disassembly Mobile phone Disassembly

©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2007SAR00011 for Amoi Mobile Co., Ltd. CDMA 1X EVDO/GSM DIGITAL MOBILE PHONE V870 With Hardware Version: V3.2 Software Version: 8107_V08-070118-6500-TNVG6340 Issued Date: 2007-04-13 No. DAT-P-114/01-01 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Information Industry No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100083. Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No. 2007SAR00011 Page 2 of 94 TABLE OF CONTENT 1 TEST LABORATORY ........................................................................................................................................... 4 1.1 TESTING LOCATION............................................................................................................................................................4 1.2 TESTING ENVIRONMENT.....................................................................................................................................................4 1.3 PROJECT DATA...................................................................................................................................................................4 2 CLIENT INFORMATION ....................................................................................................................................... 4 2.1 APPLICANT INFORMATION ............................................................................................................................ 4 2.2 MANUFACTURER INFORMATION ............................................................................................................ 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE).......................................................... 5 3.1 ABOUT EUT ...................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST........................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................. 5 4 OPERATIONAL CONDITIONS DURING TEST ................................................................................................... 6 4.1 SCHEMATIC TEST CONFIGURATION.....................................................................................................................................6 4.2 SAR MEASUREMENT SET-UP..............................................................................................................................................6 4.3 DASY4 E-FIELD PROBE SYSTEM.........................................................................................................................................7 4.4 E-FIELD PROBE CALIBRATION.............................................................................................................................................8 4.5 OTHER TEST EQUIPMENT...................................................................................................................................................9 4.6 EQUIVALENT TISSUES.........................................................................................................................................................9 4.7 SYSTEM SPECIFICATIONS..................................................................................................................................................10 5 CHARACTERISTICS OF THE TEST ................................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS.....................................................................................................................................10 5.2 APPLICABLE MEASUREMENT STANDARDS.........................................................................................................................11 6 3G MEASUREMENT PROCEDURES................................................................................................................ 11 6.1 PROCEDURES USED TO ESTABLISH TEST SIGNAL..............................................................................................................11 6.2 SAR MEASUREMENT CONDITIONS FOR CDMA 2000 1X..................................................................................................11 7 TEST RESULTS ................................................................................................................................................. 13 7.1 DIELECTRIC PERFORMANCE.............................................................................................................................................13 7.2 SYSTEM VALIDATION........................................................................................................................................................14 7.3 SUMMARY OF MEASUREMENT RESULTS (850MHZ) ..........................................................................................................14 7.4 SUMMARY OF MEASUREMENT RESULTS (1900MHZ) ........................................................................................................15 7.5 CONCLUSION....................................................................................................................................................................16 8 MEASUREMENT UNCERTAINTY ..................................................................................................................... 16 9 MAIN TEST INSTRUMENTS.............................................................................................................................. 17 …

Text truncated - open the document above for the full version.

No. 2007SAR00011 Page 42 of 94 CDMA 850 Right Tilt High Electronics: DAE3 Sn536 Medium: 850 Head Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.984 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 850 Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt High/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.023 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.12 V/m; Power Drift = 0.149 dB Peak SAR (extrapolated) = 0.029 W/kg SAR(1 g) = 0.019 mW/g; SAR(10 g) = 0.015 mW/g Maximum value of SAR (measured) = 0.022 mW/g 0 dB = 0.022mW/g Fig.19 850 MHz CH777 No. 2007SAR00011 Page 43 of 94 Fig. 20 Z-Scan at power reference point (850 MHz CH777) No. 2007SAR00011 Page 44 of 94 CDMA 850 Right Tilt Middle Electronics: DAE3 Sn536 Medium: 850 Head Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.978 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 850 Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Middle/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.018 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.37 V/m; Power Drift = 0.189 dB Peak SAR (extrapolated) = 0.020 W/kg SAR(1 g) = 0.015 mW/g; SAR(10 g) = 0.012 mW/g Maximum value of SAR (measured) = 0.020 mW/g 0 dB = 0.020mW/g Fig.21 850 MHz CH384 No. 2007SAR00011 Page 45 of 94 Fig. 22 Z-Scan at power reference point (850 MHz CH384) No. 2007SAR00011 Page 46 of 94 CDMA 850 Right Tilt Low Electronics: DAE3 Sn536 Medium: 850 Head Medium parameters used (interpolated): f = 826.11 MHz; σ = 0.971 mho/m; ε r = 41; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 850 Frequency: 826.11 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Low/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.017 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.44 V/m; Power Drift = 0.173 dB Peak SAR (extrapolated) = 0.019 W/kg SAR(1 g) = 0.014 mW/g; SAR(10 g) = 0.011 mW/g Maximum value of SAR (measured) = 0.016 mW/g 0 dB = 0.016mW/g Fig. 23 850 MHz CH37 No. 2007SAR00011 Page 47 of 94 Fig. 24 Z-Scan at power reference point (850 MHz CH37) No. 2007SAR00011 Page 48 of 94 850 Body Toward Ground High Electronics: DAE3 Sn536 Medium: 850 Body Medium parameters used (interpolated): f = 848.31 MHz; σ = 1.04 mho/m; ε r = 55.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 850 Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground High/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.317 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.57 V/m; Power Drift = -0.182 dB Peak SAR (extrapolated) = 0.397 W/kg SAR(1 g) = 0.293 mW/g; SAR(10 g) = 0.196 mW/g Maximum value of SAR (measured) = 0.354 mW/g 0 dB = 0.354mW/g Fig. 25 850 MHz CH777 No. 2007SAR00011 Page 49 of 94 Fig. 26 Z-Scan at power reference point (850 MHz CH777) No. 2007SAR00011 Page 50 of 94 850 Body Towards Ground Middle Electronics: DAE3 Sn536 Medium: 850 Body Medium parameters used (interpolated): f = 836.52 MHz; σ = 1.03 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 850 Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground Middle/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.267 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.57 V/m; Power Drift = -0.173 dB Peak SAR (extrapolated) = 0.403 W/kg SAR(1 g) = 0.232 mW/g; SAR(10 g) = 0.149 mW/g Maximum value of SAR (measured) = 0.268 mW/g 0 dB = 0.268mW/g Fig. 27 850 MHz CH384 No. 2007SAR00011 Page 51 of 94 Fig. 28 Z-Scan at power reference point (850 MHz CH384) No. 2007SAR00011 Page 52 of 94 850 Body Towards Ground Low Electronics: DAE3 Sn536 Medium: 850 Body Medium parameters used (interpolated): f = 826.11 MHz; σ = 1.01 mho/m; ε r = 55.6; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 850 Frequency: 826.11 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground Low/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.280 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.77 V/m; Power Drift = 0.200 dB Peak SAR (extrapolated) = 0.523 W/kg SAR(1 g) = 0.274 mW/g; SAR(10 g) = 0.172 mW/g Maximum value of SAR (measured) = 0.314 mW/g 0 dB = 0.314mW/g Fig. 29 850 MHz CH37 No. 2007SAR00011 Page 53 of 94 Fig. 30 Z-Scan at power reference point (850 MHz CH37) No. 2007SAR00011 Page 54 of 94 CDMA 1900 Left Cheek High Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used (interpolated): f = 1908.75 MHz; σ = 1.48 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1908.75 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek High/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.233 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.25 V/m; Power Drift = -0.179 dB Peak SAR (extrapolated) = 0.385 W/kg SAR(1 g) = 0.221 mW/g; SAR(10 g) = 0.113 mW/g Maximum value of SAR (…

Text truncated - open the document above for the full version.

No. 2007SAR00011 Page 66 of 94 CDMA 1900 Right Cheek High Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used (interpolated): f = 1908.75 MHz; σ = 1.48 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1908.75 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek High/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.187 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.17 V/m; Power Drift = 0.156 dB Peak SAR (extrapolated) = 0.235 W/kg SAR(1 g) = 0.147 mW/g; SAR(10 g) = 0.080 mW/g Maximum value of SAR (measured) = 0.159 mW/g 0 dB = 0.159mW/g Fig. 43 1900 MHz CH1175 No. 2007SAR00011 Page 67 of 94 Fig. 44 Z-Scan at power reference point (1900 MHz CH1175) No. 2007SAR00011 Page 68 of 94 CDMA 1900 Right Cheek Middle Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used (interpolated): f = 1877.5 MHz; σ = 1.45 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1877.5 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek Middle/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.277 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.34 V/m; Power Drift = -0.103 dB Peak SAR (extrapolated) = 0.361 W/kg SAR(1 g) = 0.199 mW/g; SAR(10 g) = 0.112 mW/g Maximum value of SAR (measured) = 0.254 mW/g 0 dB = 0.254mW/g Fig. 45 1900 MHz CH550 No. 2007SAR00011 Page 69 of 94 Fig. 46 Z-Scan at power reference point (1900 MHz CH550) No. 2007SAR00011 Page 70 of 94 CDMA 1900 Right Cheek Low Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used (interpolated): f = 1851.25 MHz; σ = 1.43 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1851.25 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek Low/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.244 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.28 V/m; Power Drift = -0.031 dB Peak SAR (extrapolated) = 0.400 W/kg SAR(1 g) = 0.216 mW/g; SAR(10 g) = 0.120 mW/g Maximum value of SAR (measured) = 0.226 mW/g 0 dB = 0.226mW/g Fig. 47 1900 MHz CH25 No. 2007SAR00011 Page 71 of 94 Fig. 48 Z-Scan at power reference point (1900 MHz CH25) No. 2007SAR00011 Page 72 of 94 CDMA 1900 Right Tilt High Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used (interpolated): f = 1908.75 MHz; σ = 1.48 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1908.75 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt High/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.063 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.41 V/m; Power Drift = -0.163 dB Peak SAR (extrapolated) = 0.070 W/kg SAR(1 g) = 0.043 mW/g; SAR(10 g) = 0.024 mW/g Maximum value of SAR (measured) = 0.050 mW/g 0 dB = 0.050mW/g Fig. 49 1900 MHz CH1175 No. 2007SAR00011 Page 73 of 94 Fig. 50 Z-Scan at power reference point (1900 MHz CH1175) No. 2007SAR00011 Page 74 of 94 CDMA 1900 Right Tilt Middle Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used (interpolated): f = 1877.5 MHz; σ = 1.45 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1877.5 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt Middle/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.069 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.02 V/m; Power Drift = 0.155 dB Peak SAR (extrapolated) = 0.086 W/kg SAR(1 g) = 0.064 mW/g; SAR(10 g) = 0.039 mW/g Maximum value of SAR (measured) = 0.074 mW/g 0 dB = 0.074mW/g Fig.51 1900 MHz CH550 No. 2007SAR00011 Page 75 of 94 Fig. 52 Z-Scan at power reference point (1900 MHz CH550) No. 2007SAR00011 Page 76 of 94 CDMA 1900 Right Tilt Low Electronics: DAE3 Sn536 Medium: 1900 Head Medium parameters used (interpolated): f = 1851.25 MHz; σ = 1.43 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1851.25 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt Low/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.114 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.00 V/m; Power Drift = -0.179 dB Peak SAR (extrapolated) = 0.177 W/kg SAR(1 g) = 0.084 mW/g; SAR(10 g) = 0.050 mW/g Maximum value of SAR (measured) = 0.097 mW/g 0 dB = 0.097mW/g Fig.53 1900 MHz CH25 No. 2007SAR00011 Page 77 of 94 Fig. 54 Z-Scan at power reference point (1900 MHz CH25) No. 2007SAR00011 Page 78 of 94 1900 Body Towards Ground High Electronics: DAE3 Sn536 Medium: Body 1900 Medium parameters used (interpolated): f = 1908.75 MHz; σ = 1.61 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1900 Frequency: 1908.75 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(4.88, 4.88, 4.88) Toward Ground High/Area Scan (51x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.335 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.91 V/m; Power Drift = 0.192 dB Peak SAR (extrapolated) = 0.442 W/kg SAR(1 g) = 0.298 mW/g; SAR(10 g) = 0.189 mW/g Maximum value of SAR (measured)…

Text truncated - open the document above for the full version.

No. DAT-P-114/01-01 TEST REPORT No. 2007TAR006 Test name FCC Test Product CDMA 1X EVDO/GSM DIGITAL MOBILE PHONE Model V870 Client Amoi Mobile Co., Ltd. Telecommunication Metrology Center of Ministry of Information Industry Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR006 Page 2 of 52 Notice 1. The test report is invalid if not marked with “exclusive stamp for the test report” or the stamp of the test center. 2. Any copy of the test report is invalid if not re-marked with the “exclusive stamp for the test report” or the stamp of the test center. 3. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 4. The test report is invalid if there is any evidence of erasure and/or falsification. 5. If there is any dissidence for the test report, please file objection to the test center within 15 days from the date of receiving the test report. 6. Normally, entrust test is only responsible for the samples that have undergone the test. 7. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the test center. Address: No. 52, Huayuanbei Road, Beijing, P. R. China Post code: 100083 Cable: 04282 Telephone: +86 10 62302041 Fax: +86 10 62304793 Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR006 Page 4 of 52 TABLE OF CONTENT 1. COMPETENCE AND WARRANTIES ...................................................................... 5 2. TESTING LABORATORY ........................................................................................ 5 2.1 TESTING LOCATION ........................................................................................... 5 2.2 TESTING ENVIRONMENT ................................................................................... 5 2.3 TESTING PERIOD ................................................................................................ 6 3. APPLICANT INFORMATION ................................................................................... 6 3.1 CLIENT INFORMATION ....................................................................................... 6 3.2 MANUFACTURER INFORMATION ...................................................................... 7 4. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............. 7 4.1 ABOUT EUT ......................................................................................................... 7 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................... 7 4.3 PHOTOGRAPHS OF EUT .................................................................................... 7 5. SUMMARY OF TEST RESULTS ............................................................................. 8 6. MAIN TEST INSTRUMENTS ................................................................................... 8 ANNEX A MEASUREMENT RESULTS ......................................................................... 9 ANNEX B PHOTOGRAPHS OF EUT .......................................................................... 47 ANNEX C TEST LAYOUT ............................................................................................ 52 Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR006 Page 5 of 52 1. COMPETENCE AND WARRANTIES Telecommunication Metrology Center of Ministry of Information Industry(hereinafter TMC) is a test laboratory accredited by DAR (DATech) – Deutschen Akkreditierungs Rat (Deutsche Akkreditierungsstelle Technik), for the tests indicated in the Certificate No. DAT-P-114/01-01. TMC is a test laboratory accredited by CNAL – Accreditation Certificate of China National Accreditation Board for Laboratories, for the tests indicated in the Certificate No. L0442. TMC is FCC listed lab. FCC listed number is 733176. The test site in TMC is registered in Industry Canada. The IC registration number is 6629 . TMC is a testing laboratory competent to carry out the tests described in this report. TMC guarantees the reliability of the data presented in this report, which is the result of measurements and tests performed to the item under test on the date and under the conditions stated on the report and is based on the knowledge and technical facilities available at TMC at the time of execution of the test. TMC is liable to the client for the maintenance by its personnel of the confidentiality of all information related to the item under test and the results of the test. 2. Testing Laboratory 2.1 Testing Location Company Name: Telecommunication Metrology Center of Ministry of Information Industry Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100083 Telephone: 00861062303288 Fax: 00861062304793 2.2 Testing Environment Semi-anechoic chamber (23 meters×17meters×10meters) did not exceed following limits along the EMC testing: Temperature Min. = 15 °C, Max. = 30 °C Relative humidity Min. = 30 %, Max. = 60 % Shielding effectiveness > 110 dB Electrical insulation > 10 kΩ Ground system resistance < 0.5 Ω Normalised site attenuation (NSA) < ±3.2 dB, 10 m distance, from 30 to 1000 MHz Uniformity of field strength Between 0 and 6 dB, from 26 to 1000 MHz Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR006 Page 6 of 52 Control room did not exceed following limits along the EMC testing: Temperature Min. = 15 °C, Max. = 35 °C Relative humidity Min. =30 %, Max. = 60 % Shielding effectiveness > 110 dB Electrical insulation > 10 kΩ Ground system resistance < 0.5 Ω Conducted chamber did not exceed following limits along the EMC testing: Temperature Min. = 15 °C, Max. = 30 °C Relative humidity Min. = 30 %, Max. = 60 % Shielding effectiveness > 110 dB Electrical insulation > 10 kΩ Ground system resistance < 0.5 Ω Fully-anechoic chamber (6.8 meters×3.08 meters×3.53 meters) did not exceed followin…

Text truncated - open the document above for the full version.

Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR006 Page 52 of 52 ANNEX C TEST LAYOUT Pic1 Conducted Emission Pic2 Radiated Spurious Emission ***END OF REPORT BODY***
