RWZ-A211AGSM Tri-band Digital Mobile Phone

- 1 - Thank you very much for choosing AMOI A211a, the fashionable and elegant mobile phone. A211a is a perfect integration of unparalleled contemporary design and consummate craftsmanship, bringing you easy communication and entertainment, as well as highlighting your tastes. Key Features: GSM World Tri-band Unlocked Compatible with Most Standard GSM Networks SMS (Short Messaging Service) Phonebook Memory: 300 V-card Entries AMOI Smart Dial 64-Polyphonic Ring Tones Interesting Standby Animations & Pictures Multi Call Functions (Call Divert, Call Waiting, Call Filter) Built-in Amusing Games Tool Kit (Alarm Clock, Calculator, Unit Conversion, Recorder) - 2 - Specifications: GSM/GPRS: 850/ 1800/ 1900 MHz Voice Encoding: FR/ EFR/ HR/ AMR Screen: 1.8" CSTN display (128 x 160 Pixels) Dimension: 82 x 43 x 21.5 mm; 3.23" x 1.69" x 0.85" Weight: 84 g; 2.97 oz Battery Capacity: 630 mAh Standby Time: 100 hrs Talk Time: 3~5 hrs The manufacturer may, at any time and without notice, make changes or improvements to the products offered, but provide necessary corrigendum with this manual or release new version of this manual for the following lot. - 3 - INTELLECTUAL PROPERTY All Intellectual Property, as defined below, owned by or which is otherwise the property of AMOI or its respective suppliers relating to the AMOI mobile phones, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to AMOI and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You could not infringe on it, otherwise you may violate the rights secured by the Intellectual Property. Moreover, you must agree that you will not (and will not attempt to) modify, prepare derivative works, recompile, disassemble, or attempt to create source code from the software. No title or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with AMOI and its suppliers. - 4 - TABLE OF CONTENTS Safety Precautions ................................................................. 7 Unpacking ..............................................................................9 Your Phone .................................................................... 11 Phone’s Layout ................................................................ 11 Keys Description ....................................................13 Display ............................................................................ 14 Getting Started .............................................................. 16 Installing a SIM Card ....................................................... 16 Charging a Battery .......................................................... 18 Switching the Phone On/Off ........................................... 22 Your Phone’s Mode...................................................... 23 Call Functions ............................................................. 24 Making Calls .................................................................... 24 Receiving Calls ................................................................ 25 Rejecting a Call...................................................26 Ending a Call........................................................26 Adjusting the Volume....................................................... 27 Quick-switch to Silent Mode........................................... 27 Call Menu..................................................................... 27 Entering Text ................................................................. 30 Changing Text Input Mode ............................................ 30 Insert Symbol .................................................................. 31 Insert Template......................................................33 Insert Phone Number...............................................33 - 5 - Dictionary ....................................................................... 34 eZI Esp...............................................................34 eZi Eng....................................................................... 31 Es Abc...............................................................33 Abc................................................................................ 32 123.......................................................................... 33 Using Menus ............................................................... 41 Accessing a Menu Function........................................41 List of Menu Functions .................................................. 42 Phonebook ........................................................................... 35 AMOI Smart Dial.................................................. 35 Search...............................................................35 New..................................................................35 Number Group......................................................35 Calls.................................................................35 Amoi Smart dial...................................................35 PhBook Manager............................................................ 35 Country / Area Code.............................................36 Messages ......................................................................... 48 SMS .......................................................... 48 MMS...............................................................49 Voice mail..........................................................51 Cell Broadcast .................................................................. 51 Settings ............................................................................ 51 Memory................…

Text truncated - open the document above for the full version.

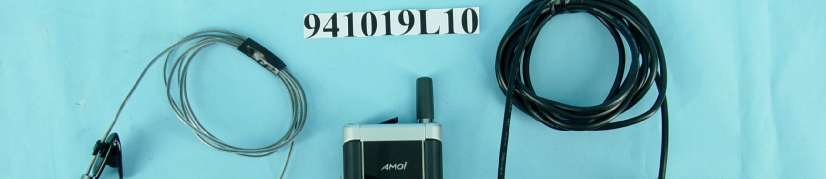

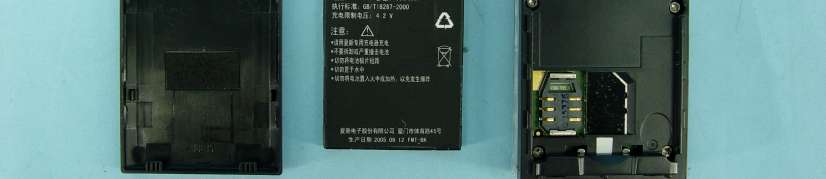

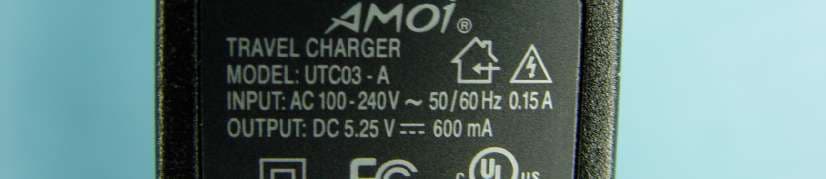

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

AMOI FCC ID : RWZ-A211A S/N: 091450930094213A0 IMEI: 357304000005145 Made in China

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13

FCC ID: RWZ-A211A Report No.: RF941019L10 Operational Description This device is the GSM Tri-band Digital Mobile Phone and operated frequency in the 850MHz (GSM band) and 1900MHz (PCS band). When GMSK technique will be applied under the transmission data and voice. The transmitter of the EUT is powered by charged battery or AC adapter. The antenna is Fixed External antenna. There is no antenna connector. The other instruction, please have a look at the users manual.

D4：ET3DV6 E-Field Probe (Cal Date：September 15.2005)

D4：1900MHz System Validation Dipole (Cal Date：August 26.2005)

D4：DAE3 (Cal Date：August 17.2005)

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

FCC ID: RWZ-A211A Report No.: SA941019L101Report Format Version 2.0.2 SAR TEST REPORT REPORT NO.: SA941019L10 MODEL NO.: A211a RECEIVED: Oct. 20, 2005 TESTED: Oct. 27 ~ Oct. 28, 2005 ISSUED: Nov. 09, 2005 APPLICANT: Amoi Electronics Co., Ltd ADDRESS: No. 45, Tiyu Road, Xiamen, Fujian, China ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 47 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA NO. 2177-01 FCC ID: RWZ-A211A Report No.: SA941019L102Report Format Version 2.0.2 TABLE OF CONTENTS 1.CERTIFICATION........................................................................................................................ 3 2.GENERAL INFORMATION........................................................................................................ 4 2.1GENERAL DESCRIPTION OF EUT.......................................................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 4 2.3GENERAL INOFRMATION OF THE SAR SYSTEM ................................................................. 6 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ................................ 9 3.DESCRIPTION OF TEST POSITION AND CONFIGURATIONS............................................ 14 3.1TOUCH/CHEEK TEST POSITION .......................................................................................... 16 3.2TILT TEST POSITION ............................................................................................................. 16 3.3BODY-WORN CONFIGURATION ........................................................................................... 17 3.4DESCRIPTION OF TEST MODE ............................................................................................ 18 4.DESCRIPTION OF SUPPORT UNITS .................................................................................... 13 5.TEST RESULTS ...................................................................................................................... 22 5.1TEST PROCEDURES .............................................................................................................22 5.2MEASURED SAR RESULTS................................................................................................... 24 5.3SAR LIMITS ............................................................................................................................. 30 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................... 30 5.5TEST EQUIPMENT FOR TISSUE PROPERTY...................................................................... 34 6.SYSTEM VALIDATION ............................................................................................................35 6.1TEST EQUIPMENT ................................................................................................................. 35 6.2TEST PROCEDURE................................................................................................................ 36 6.3VALIDATION RESULTS ..........................................................................................................38 6.4SYSTEM VALIDATION UNCERTAINTIES .............................................................................. 39 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES ...................................................... 40 7.1. PROBE CALIBRATION UNCERTAINTY................................................................................. 40 7.2. ISOTROPY UNCERTAINTY.................................................................................................... 41 7.3. BOUNDARY EFFECT UNCERTAINTY................................................................................... 41 7.4. PROBE LINEARITY UNCERTAINTY ...................................................................................... 42 7.5. READOUT ELECTRONICS UNCERTAINTY.......................................................................... 42 7.6. RESPONSE TIME UNCERTAINTY ........................................................................................ 42 7.7. INTEGRATION TIME UNCERTAINTY .................................................................................... 43 7.8. PROBE POSITIONER MECHANICAL TOLERANCE ............................................................. 44 7.9. PROBE POSITIONING............................................................................................................ 44 7.10. PHANTOM UNCERTAINTY .................................................................................................... 45 7.11. DASY4 UNCERTAINTY BUDGET .......................................................................................... 46 8.INFORMATION ON THE TESTING LABORATORIES............................................................ 47 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: RWZ-A211A Report No.: SA941019L103Report Format Version 2.0.2 1. CERTIFICATION PRODUCT : GSM Tri-band Digital Mobile Phone MODEL NO. : A211a BRAND NAME : AMOI APPLICANT : Amoi Electronics Co., Ltd TEST DATE: Oct. 27 ~ Oct. 28, 2005 TEST SAMPLE: MASS-PRODUCTION STANDARDS : FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment have been t…

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Right Head Cheek Position A - 2 Right Head Tilt Position A - 3 Left Head Cheek Position A - 4 Left Head Tilt Position A - 5 Body Worn Position The bottom of the EUT to the flat phantom distance 15 mm A - 6 Body Worn Position The front of the EUT to the flat phantom distance 15 mm A - 7 EUT Photo Reference Point (Body-bottom) Reference Point (Body-front) A - 8 Reference Point (Head) A - 9 Liquid Level Photo Tissue HSL835MHz D=150mm Tissue MSL850MHz D=151mm A - 10 Tissue HSL1900MHz D=155mm Tissue MSL1900MHz D=150mm A - 11 Date/Time: 2005/10/28 13:40:31 Test Laboratory: Advance Data Technology Right Head-Cheek-GSM850-Ch128-Mode 1 DUT: GSM Tri-Band Digital Mobile Phone ; Type: A211a ; Test Frequency: 824.2 MHz Communication System: PCS 850 ; Frequency: 824.2 MHz ; Duty Cycle: 1:8.3 Phantom: SAM 12 Medium parameters used: f = 824.2 MHz; σ = 0.88 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 ; Liquid level: 150mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 22.8 degrees ; Liquid temp. : 21.6 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(6.34, 6.34, 6.34) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2005/8/17 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Touch position - Low Channel 128/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.42 mW/g Touch position - Low Channel 128/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.6 V/m Peak SAR (extrapolated) = 1.91 W/kg SAR(1 g) = 1.31 mW/g; SAR(10 g) = 0.854 mW/g Maximum value of SAR (measured) = 1.40 mW/g A - 12 Date/Time: 2005/10/28 13:59:59 Test Laboratory: Advance Data Technology Right Head-Cheek-GSM850-Ch190-Mode 1 DUT: GSM Tri-Band Digital Mobile Phone ; Type: A211a ; Test Frequency: 836.6 MHz Communication System: PCS 850 ; Frequency: 836.6 MHz ; Duty Cycle: 1:8.3 Phantom: SAM 12 Medium parameters used: f = 836.6 MHz; σ = 0.89 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 ; Liquid level: 150mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 22.8 degrees ; Liquid temp. : 21.6 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(6.34, 6.34, 6.34) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2005/8/17 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Touch position - Mid Channel 190/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.53 mW/g Touch position - Mid Channel 190/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.3 V/m Peak SAR (extrapolated) = 2.08 W/kg SAR(1 g) = 1.41 mW/g; SAR(10 g) = 0.920 mW/g Maximum value of SAR (measured) = 1.52 mW/g A - 13 A - 14 Date/Time: 2005/10/28 14:21:04 Test Laboratory: Advance Data Technology Right Head-Cheek-GSM850-Ch251-Mode 1 DUT: GSM Tri-Band Digital Mobile Phone ; Type: A211a ; Test Frequency: 848.8 MHz Communication System: PCS 850 ; Frequency: 848.8 MHz ; Duty Cycle: 1:8.3 Phantom: SAM 12 Medium parameters used: f = 848.8 MHz; σ = 0.9 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 ; Liquid level: 150mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 22.8 degrees ; Liquid temp. : 21.6 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(6.34, 6.34, 6.34) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2005/8/17 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Touch position - High Channel 251/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.32 mW/g Touch position - High Channel 251/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.28 V/m Peak SAR (extrapolated) = 1.81 W/kg SAR(1 g) = 1.23 mW/g; SAR(10 g) = 0.801 mW/g Maximum value of SAR (measured) = 1.33 mW/g A - 15 Date/Time: 2005/10/28 14:41:31 Test Laboratory: Advance Data Technology Right Head-Tilt-GSM850-Ch128-Mode 2 DUT: GSM Tri-Band Digital Mobile Phone ; Type: A211a ; Test Frequency: 824.2 MHz Communication System: PCS 850 ; Frequency: 824.2 MHz; Duty Cycle: 1:8.3 Medium: HSL835 Medium parameters used: f = 824.2 MHz; σ = 0.88 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 ; Liquid level: 150 mm Phantom section: Right Section ; DUT test position : Tilt ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 22.8 degrees ; Liquid temp. : 21.6 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(6.34, 6.34, 6.34) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2005/8/17 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Tilt position - Low Channel 128/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.292 mW/g Tilt position - Low Channel 128/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.7 V/m Peak SAR (extrapolated) = 0.374 W/kg SAR(1 g) = 0.282 mW/g; SAR(10 g) = 0.209 mW/g Maximum value of SAR (measured) = 0.299 mW/g A - 16 Date/Time: 2005/10/28 15:23:09 Test Laboratory: Advance Data Technology Right Head-Tilt-GSM850-Ch190-Mode 2 DUT: GSM Tri-Band Digital Mobile Phone ; Type: A211a ; Test Frequency: 836.6 MHz Communication System: PCS 850 ; Frequency: 836.6 MHz; Duty Cyc…

Text truncated - open the document above for the full version.

FCC ID: RWZ-A211A Report no.: RF941019L101Report Format Version 2.0.3 FCC TEST REPORT (PART 22) REPORT NO.: RF941019L10 MODEL NO.: A211a RECEIVED: Oct. 20, 2005 TESTED: Oct. 31 ~ Nov. 07, 2005 ISSUED: Nov. 09, 2005 APPLICANT: Amoi Electronics Co., Ltd ADDRESS: No. 45, Tiyu Road, Xiamen, Fujian, China ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 60 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 0528 ILAC MRA FCC ID: RWZ-A211A Report no.: RF941019L102Report Format Version 2.0.3 TABLE OF CONTENTS 1CERTIFICATION ..........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY..........................................................................6 3GENERAL INFORMATION...........................................................................................7 3.1GENERAL DESCRIPTION OF EUT .......................................................................7 3.2DESCRIPTION OF TEST MODES .........................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................9 3.4DESCRIPTION OF SUPPORT UNITS ...................................................................9 4TEST TYPES AND RESULTS ....................................................................................10 4.1MODULATION CHARACTERISTICS ...................................................................10 4.1.1DESCRIPTION OF MODULATION TECHNIQUE ................................................10 4.1.2THE ACTIVE TIME SLOT 8 MODULATED FRAME PLOT................................... 11 4.2OUTPUT POWER MEASUREMENT ...................................................................13 4.2.1LIMITS OF OUTPUT POWER MEASUREMENT .................................................13 4.2.2TEST INSTRUMENTS..........................................................................................14 4.2.3TEST PROCEDURES ..........................................................................................15 4.2.4TEST SETUP........................................................................................................16 4.2.5EUT OPERATING CONDITIONS .........................................................................17 4.2.6TEST RESULTS ...................................................................................................18 4.3FREQUENCY STABILITY MEASUREMENT........................................................20 4.3.1LIMITS OF FREQUENCY STABILIITY MEASUREMENT ....................................20 4.3.2TEST INSTRUMENTS..........................................................................................20 4.3.3TEST PROCEDURE.............................................................................................21 4.3.4TEST SETUP........................................................................................................21 4.3.5TEST RESULTS ...................................................................................................22 4.4OCCUPIED BANDWIDTH MEASUREMENT .......................................................26 4.4.1LIMITS OF OCCUPIED BANDWIDTH MEASUREMENT ....................................26 4.4.2TEST INSTRUMENTS..........................................................................................26 4.4.3TEST SETUP........................................................................................................26 4.4.4TEST PROCEDURES ..........................................................................................27 4.4.5EUT OPERATING CONDITION............................................................................27 4.4.6TEST RESULTS ...................................................................................................28 4.5BAND EDGE MEASUREMENT............................................................................32 4.5.1LIMITS OF BAND EDGE MEASUREMENT .........................................................32 4.5.2TEST INSTRUMENTS..........................................................................................32 4.5.3TEST SETUP........................................................................................................32 4.5.4TEST PROCEDURES ..........................................................................................33 4.5.5EUT OPERATING CONDITION............................................................................33 4.5.6TEST RESULTS ...................................................................................................34 4.6CONDUCTED SPURIOUS EMISSIONS ..............................................................36 4.6.1LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT ..............36 4.6.2TEST INSTRUMENTS..........................................................................................36 4.6.3TEST PROCEDURE.............................................................................................37 FCC ID: RWZ-A211A Report no.: RF941019L103Report Format Version 2.0.3 4.6.4TEST SETUP........................................................................................................37 4.6.5EUT OPERATING CONDITIONS .........................................................................37 4.6.6TEST RESULTS .....................................................…

Text truncated - open the document above for the full version.

FCC ID: RWZ-A211A Report No.: RF941019L101Report Format Version 2.0.4 FCC TEST REPORT (Part 24) REPORT NO.: RF941019L10 MODEL NO.: A211a RECEIVED: Oct. 20, 2005 TESTED: Oct. 31 ~ Nov. 03, 2005 ISSUED: Nov. 09, 2005 APPLICANT: Amoi Electronics Co., Ltd ADDRESS: No. 45, Tiyu Road, Xiamen, Fujian, China ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 61 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 0528 ILAC MRA FCC ID: RWZ-A211A Report No.: RF941019L102Report Format Version 2.0.4 TABLE OF CONTENTS 1CERTIFICATION.............................................................................................. 4 2SUMMARY OF TEST RESULTS ..................................................................... 5 2.1MEASUREMENT UNCERTAINTY.............................................................. 6 3GENERAL INFORMATION .............................................................................. 7 3.1GENERAL DESCRIPTION OF EUT ........................................................... 7 3.2DESCRIPTION OF TEST MODES ............................................................. 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................ 9 3.4DESCRIPTION OF SUPPORT UNITS ....................................................... 9 4TEST TYPES AND RESULTS ....................................................................... 10 4.1MODULATION CHARACTERISTICS ....................................................... 10 4.1.1DESCRIPTION OF MODULATION TECHNIQUE .................................... 10 4.1.2THE ACTIVE TIME SLOT 8 MODULATED FRAME PLOT ........................11 4.2OUTPUT POWER MEASUREMENT ....................................................... 13 4.2.1LIMITS OF OUTPUT POWER MEASUREMENT ..................................... 13 4.2.2TEST INSTRUMENTS.............................................................................. 14 4.2.3TEST PROCEDURES .............................................................................. 15 4.2.4TEST SETUP ........................................................................................... 16 4.2.5EUT OPERATING CONDITIONS ............................................................. 17 4.2.6TEST RESULTS ....................................................................................... 18 4.3FREQUENCY STABILITY MEASUREMENT............................................ 20 4.3.1LIMITS OF FREQUENCY STABILIITY MEASUREMENT ........................ 20 4.3.2TEST INSTRUMENTS.............................................................................. 20 4.3.3TEST PROCEDURE ................................................................................ 21 4.3.4TEST SETUP ........................................................................................... 21 4.3.5TEST RESULTS ....................................................................................... 22 4.4OCCUPIED BANDWIDTH MEASUREMENT ........................................... 26 4.4.1LIMITS OF OCCUPIED BANDWIDTH MEASUREMENT......................... 26 4.4.2TEST INSTRUMENTS.............................................................................. 26 4.4.3TEST SETUP ........................................................................................... 26 4.4.4TEST PROCEDURES .............................................................................. 27 4.4.5EUT OPERATING CONDITION ............................................................... 27 4.4.6TEST RESULTS ....................................................................................... 28 4.5BAND EDGE MEASUREMENT................................................................ 32 4.5.1LIMITS OF BAND EDGE MEASUREMENT ............................................. 32 4.5.2TEST INSTRUMENTS.............................................................................. 32 FCC ID: RWZ-A211A Report No.: RF941019L103Report Format Version 2.0.4 4.5.3TEST SETUP ........................................................................................... 32 4.5.4TEST PROCEDURES .............................................................................. 33 4.5.5EUT OPERATING CONDITION ............................................................... 33 4.5.6TEST RESULTS ....................................................................................... 34 4.6CONDUCTED SPURIOUS EMISSIONS .................................................. 36 4.6.1LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT ... 36 4.6.2TEST INSTRUMENTS.............................................................................. 36 …

Text truncated - open the document above for the full version.
